Key Features

EP4612-L
Product Description

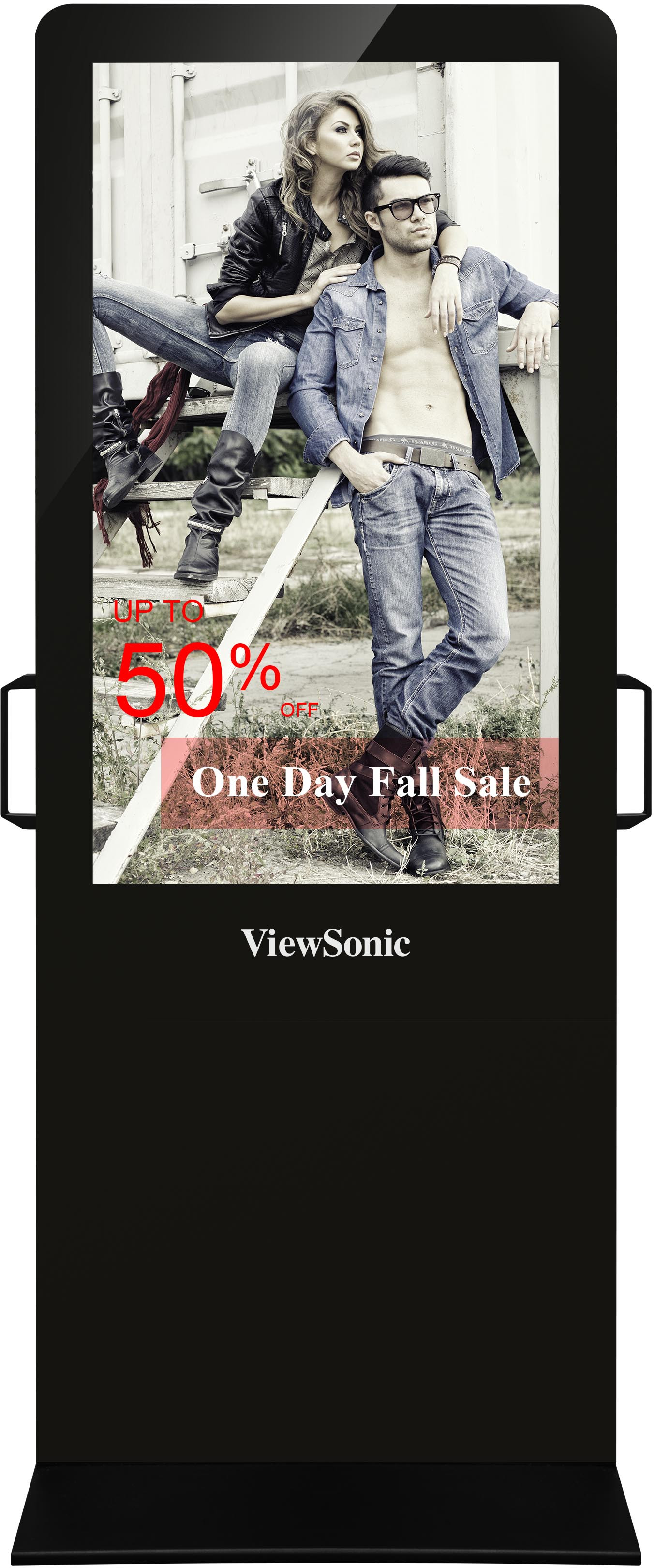

The ViewSonic EP4612-L is a 46" all-in-one digital ePoster kiosk with a sleek, free-standing design. It delivers high-impact messaging in a number of venues including shopping malls and retail stores, as well as office and school buildings. The EP4612-L comes with a scratch-proof tempered-glass faceplate for added durability. Featuring Full HD 1080p resolution, SuperClear image enhancement technology with wide viewing angles, 360-nit brightness, 1,200:1 contrast ratio, and dual 6W stereo speakers, the EP4612-L delivers customised multimedia messaging with vivid clarity. Photo and video files that are manually loaded can be played back using the integrated media player and 4GB of internal memory. Plus, the bundled ePoster Manager Express software makes the loading and scheduling of customized multimedia content easier than ever. Flexible HDMI, D-sub, USB (x2), and LAN connections also allow for content loading from a PC or networkable media player. The EP4612-L also provides auto on/off scheduling via an on-screen display, as well as a security lock design, making it a reliable and easy-to-maintain digital signage solution.
Visit Us
  • www.viewsonic.com
  • LCD
    Type: TFT LCD Module with WLED
    Contrast Ratio: 1200:1 (typ)
    Viewing Angles: 178º horizontal, 178º vertical
    Display Area: 1018.08mm (H) x 572.67mm (V)
    Optimum Resolution: 1920x1080
    Response Time: 8ms
    Aspect Ratio: 9:16
    Panel Surface: Tempered glass on front cover
    Size: 46" diagonal
    Brightness: 360 cd/m2
    Backlight Life: 50,000h (typ)
  • COMPATIBILITY
    Photo Formats: JPEG, GIF, BMP, PNG
    Video Formats: MPEG 1/2/3, H.264, Xvid 1.00-AVI, MP4
    Audio Formats: WMA, MP3, M4A (AA CC)
  • DIMENSIONS
    Physical (WxHxD): 705 x 1850 x 450 mm, 27.76 x 72.83 x 17.72 in
    Packaging: 851.5 x 2010 x 574 mm, 33.52x79.13x22.6 in
  • PACKAGE CONTENTS
    -EP4612-L ePoster Digital Kiosk

    -Power cable

    -Y Power cable

    -Remote control with battery

    -Quick Start Guide

    -User Guide CD

    -Key

    -Hexagon wrench(to remove handles)

    -Black labels(to cover holes after removing handles)
  • WARRANTY
    1-year limited

    **Warranty offered may differ from market to market
  • CONNECTOR
    Video: 1x HDMI (Version 1.3), 1x RGB (D-SUB)
    USB: 2x USB (2.0)
    Audio: 1x PC audio in (3.5mm Jack)
    Ethernet: 1x RJ45 (Ethernet)
    Speaker: 2x Internal 6 Watt
  • POWER
    Voltage: AC 100-240V (universal), 50-60Hz
    Consumption: 97.6W (typ)
  • CONTROLS
    Basic: Language, Clock Display, Scrolling Text, USB Port, Return To Factory Settings
    Picture: Brightness, Contrast, Saturation, Colour Temperature
    Set Up: OSD Language, Reset
    On View (PC mode): Auto Adjust, H Position, V Position, Phase, Clock
    Screen: Vertical, Horizontal, Save and Reboot
    Configuration 1: Playback Control: Storage Priority, Playback Mode, Play Time

    Local ID: ID, Save
    Configuration 2: Date & Time: Year, Month, Day, Hour, Minute, Update Date & Time

    On/Off Timer: Timer Mode, Daily, Sunday ~ Saturday
    Configuration 3: File Management: Information, Format

    Source: HDMI. VGA, Internal Storage
  • OPERATING CONDITIONS
    Temperature: 0-50ºC
    Humidity: 20–90% (non-condensing)
  • WEIGHT
    Gross: 95 kg / 209.44 lb
    Net: 81 kg / 178.57 lb
