ePoster
EP3203r
Key Features
Product Description

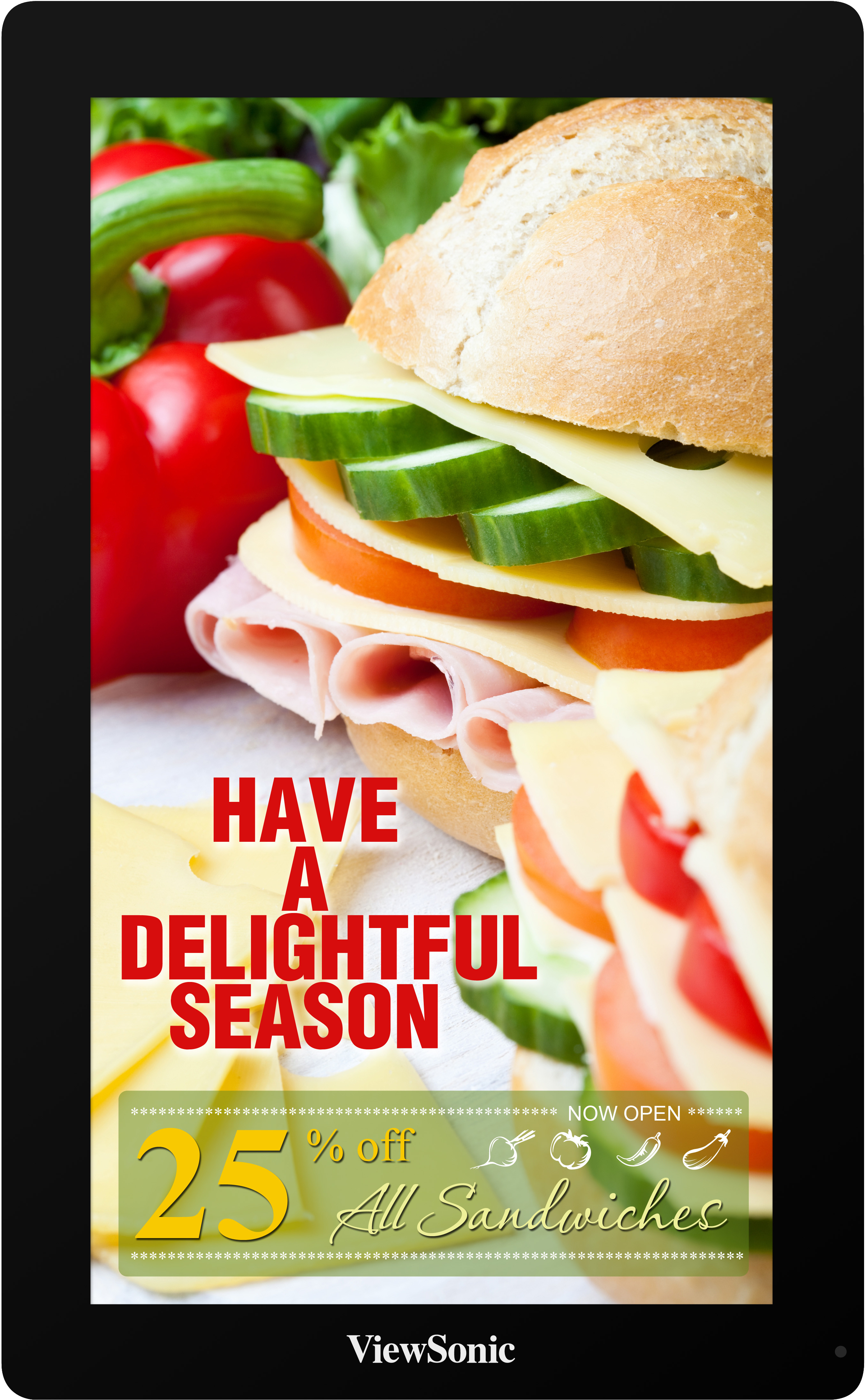

ViewSonic’s EP3203r is a 32” LED ePoster that delivers brilliant and crystal clear image quality from a large, sleek, and slim profile. The premium design and slim profile allows it to be the perfect wall mount for informational and promotional applications in any setting, while the USB ports offer quick access to a wide range of formats for convenient content management.
Visit Us
- www.viewsonic.com
-
COLORS
Black -
LCD
Type: 31.5" color TFT active matrix, wide LCD Contrast Ratio: 4,000:1 Viewing Angles: 89° (H) / 89° (V) Brightness: Internal: 320 nits / External: 280 nits Display Area: 697.68 (H) x 392.26 (V) Optimum Resolution: 1366 x 768 Aspect Ratio: 16:9 Panel Surface: Anti-glare, hard coating (3H) -
DIMENSIONS
Physical (mm): 809.6 x 499.6 x 40 Physical (in): 31.87 x 19.67 x 1.57 -
CONNECTOR
HDMI (input): x1 Video Input: x1 USB: 2.0 x2 LAN: RJ45 x1 Analog: VGA (D-Sub) x1 Power: 2 pin plug -
POWER
Voltage: AC 100 - 240V (Universal) , 50 - 60Hz -
AUDIO
Speakers: Amplifier:5W x2 -
WEIGHT
Gross: 39.68 lb. (18kg) Net: 33.01 lb. (15kg) -
OPERATING CONDITIONS
Humidity: 20% ~ 90% (non-condensation) Temperature: 32°F~122°F (0 ~ 50°C) -
INPUT
Supported Image H.264 TBD
Decoding Format
MPEG 1 TBD
MPEG 2 TBD
MPEG 4 - XVID TBD
JPEG TBD -
CONTROLS
System Settings : Language, Clock Display, Scrolling Text, USB Port, Return to Factory Settings
Playback Control : Storage, Priority, Playback Mode, Play Time
Date & Time : Year, Month, Day, Hour, Minute, Update Date & Time
On/Off Timer : Timer Mode, Daily, Sunday-Saturday
Local ID : ID, Save
Screen Mode : Vertical, Horizontal, Save and Reboot
File Management : Information, Format
Source : HDMI, VGA, Digital Signage
System Setting : OSD Language, Reset
Image : Brightness, Contract, Saturation, Color Temp
PC Settings : Auto Adjust, H Position, V Position, Phase, Clock
