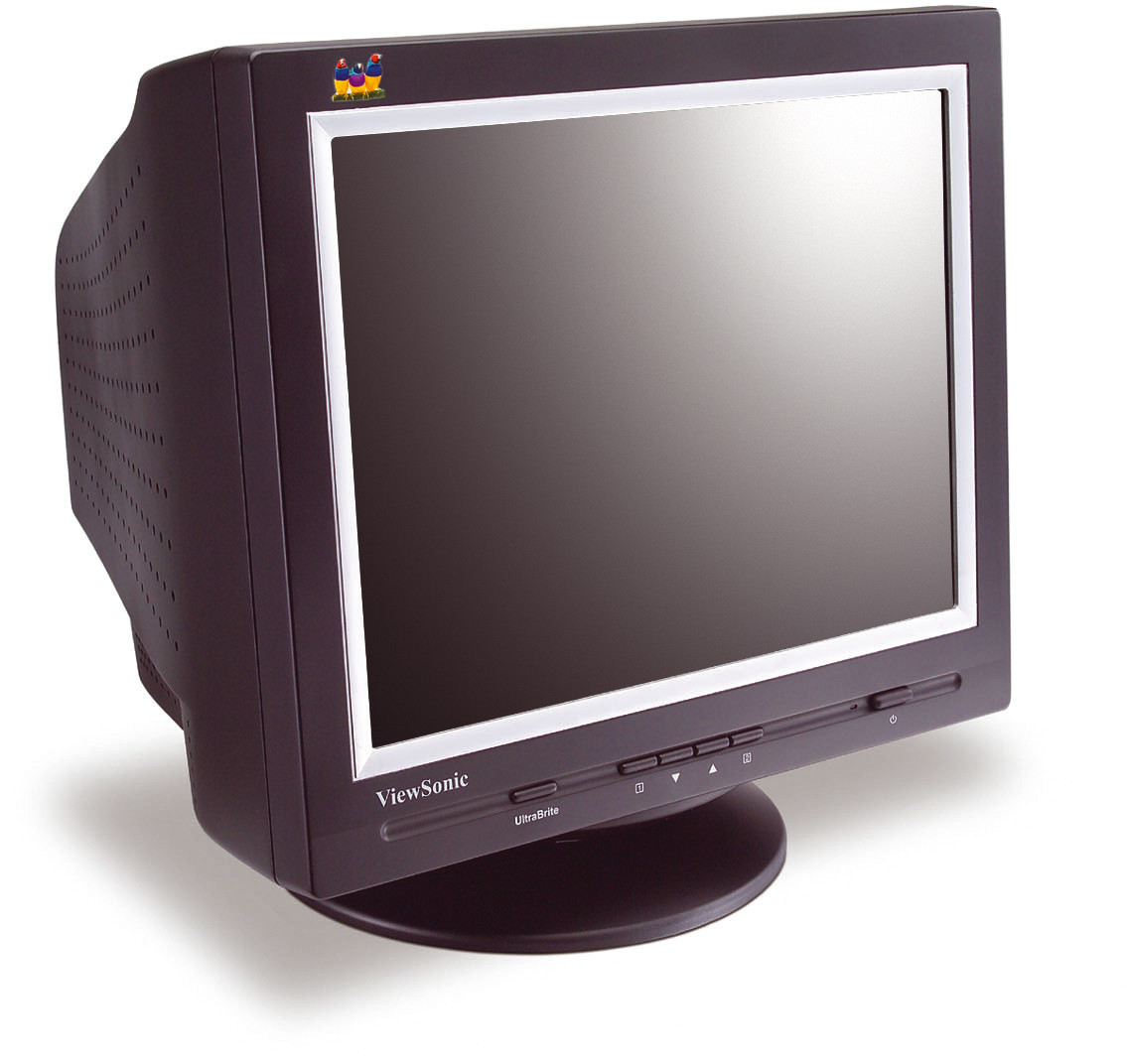

ViewSonic E96fSB CRT MONITOR 48cm / 19" (18" VIEWABLE) E²® SERIES CRT

COLORS

Black
COMPATIBILITY

PC: PC and compatible (from VGA up to 1792 x 1344)

Mac®: Power Mac™ G3/G4 (from 640 x 480 up to 1152 x 864)
DIMENSIONS

Physical (WxHxD): 445mm (W) x 424mm (H) x 465mm (D)
INPUT SIGNAL

Frequency: Fh: 30 – 86kHz
Fv: 50 – 160Hz

Video: RGB analogue (0.7 Vp-p, 75 ohms)

Sync: H/V separated (TTL)
CONNECTOR

Power: 3-pin plug (IEC320)

Signal: 15-pin mini D-sub
POWER

Voltage: AC 100 – 240V, 50/60Hz (+/-3Hz) (auto-switch)

Consumption: 55 watts (typ.)

CONTROLS

Basic:	Power on/off, menu, up, down, select, UltraBrite
OSD:	Contrast, brightness, zoom, H/V size, H/V position, pincushion, pin balance, trapezoid, parallelogram, tilt, moiré reduction, degauss, ViewMatch® colour (9300k, 6500k, 5000k user), ViewMeter, OSD position, language, OSD lock, Memory recall

OPERATING CONDITIONS

Temperature: 32-104ºF (0-40ºC)

Humidity: 5% to 95% (no condensation)
WEIGHT

Net: 18.0kg
VIDEO INPUT

Bandwidth: 210MHz (typ.)
POWER MANAGEMENT

Meets MPR II

CRT

Type:	48cm / 19" (18" viewable) CRT, 90° deflection, PerfectFlat
Dot Pitch:	0.20mm horizontal x 0.14mm vertical, 0.25mm diagonal
Phosphor:	RGB P22 (Cd free)
Glass Surface:	Tint: (TM ~ 53.6%), anti-reflection, anti-static

PLUG & PLAY

DDC1, DDC2B
MISCONVERGENCE

0.25mm (max.) at centre
0.35mm (max.) at corner
PROGRAMMABLE MODES

Factory: 10

User: 12
DISPLAY AREA

Factory Setting: 352mm (H) x 264mm (V) (typ.)

Maximum Scan: 360mm (H) x 270mm (V) (depending on signal timing used)
