Key Features

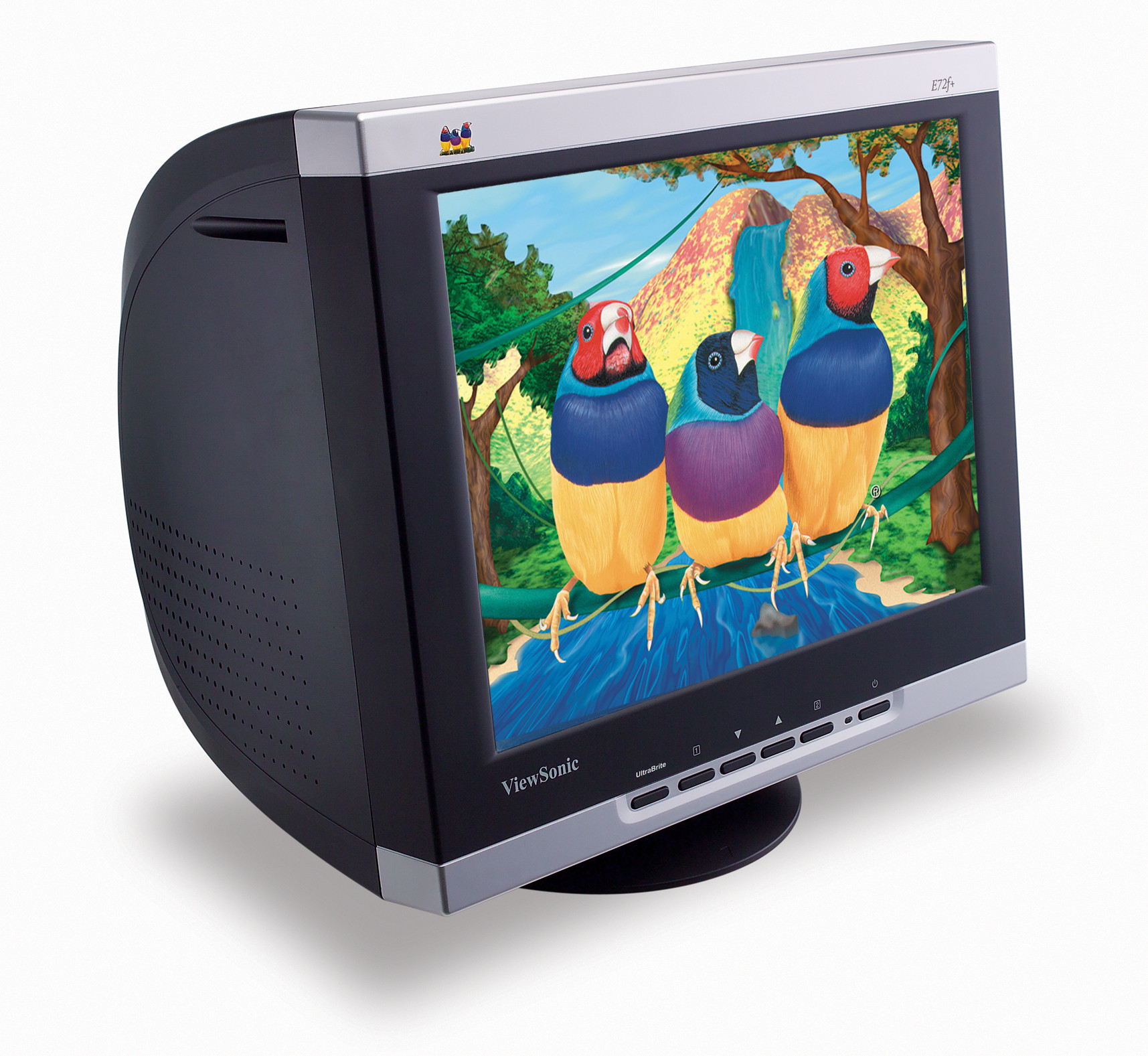

E72fSB
Product Description
The E72f+SB monitor combines ViewSonic’s award-winning PerfectFlat®screen with high-brightness UltraBrite™ technology for exceptional performance,convenient versatility and excellent value. Ideal for home,office and school, the E72f+SB is up to five times brighter than conventionaldisplays for dazzling clarity in any viewing situation. Toggle forgraphics, video, movies and gaming, where vivid colour and ultradetailedviewing are critical. Toggle again for optimum viewing of textintensiveapplications like word processing, spreadsheets and e-mail. With anultra-fine 0.21mm horizontal dot pitch, 1024x768 optimum resolutionand features like OSD lock and OnView® controls, the stylish E72f+SB isa solid choice.
Visit Us
  • www.viewsonic.com
  • COMPATIBILITY
    PC: IBM compatible (from VGA up to 1280 x 1024)
    Mac®: Power Mac™ (G3/G4 up to 1280 x 1024)
  • DIMENSIONS
    Physical (WxHxD): 408.8mm (W) x 432.6mm (D) x 385.1mm (H)
  • INPUT SIGNAL
    Frequency: fh: 30-72kHz; fv: 50-160Hz
    Video: RGB analogue (75 ohms, 0.7/1.0 Vp-p)
    Sync: H/V separated (TTL), Composite
  • CONNECTOR
    Signal: 15-pin mini D-sub (attached)
    Power: 3-pin plug (IEC320)
  • POWER
    Voltage: AC 90–264V, 50–60Hz (+/-3)Hz
    Consumption: 75W (typ), active off <5W
  • CONTROLS
    Basic: Power on/off, Key-1, Up, Down, Key-2, UltraBrite Hotkey
    OnView®: Contrast, Brightness, Degauss, H. Size/Position, V. Size/
    Position, Pincushion, Pinbalance, Trapezoid, Parallelogram,
    Tilt, Moiré Reduction, ViewMatch (9300k, 6500k, User),
    Language, ViewMeter, OSD Position, Zoom, and
    Memory Recall
  • OPERATING CONDITIONS
    Temperature: 0–40º C
    Humidity: 5–95% (non-condensing)
  • WEIGHT
    Net: 16.2kg
  • VIDEO INPUT
    Bandwidth: 110MHz
  • POWER MANAGEMENT
    Meets TCO’99, Energy 2000, VESA® DPMS
  • CRT
    Type: 43cm / 17" (16.0" viewable) CRT, 90º deflection
    Dot Pitch: 0.21mm (horizontal), 0.25mm diagonal
    Phosphor: RGB P22 medium/short persistence
    Glass Surface: Tint (TM = 52,6%), anti static, antiglare
  • PROGRAMMABLE MODES
    Factory: 12
    User: 10
  • DISPLAY AREA
    Factory Setting: 310mm x 230mm
    Maximum Scan: 325mm x 243mm
