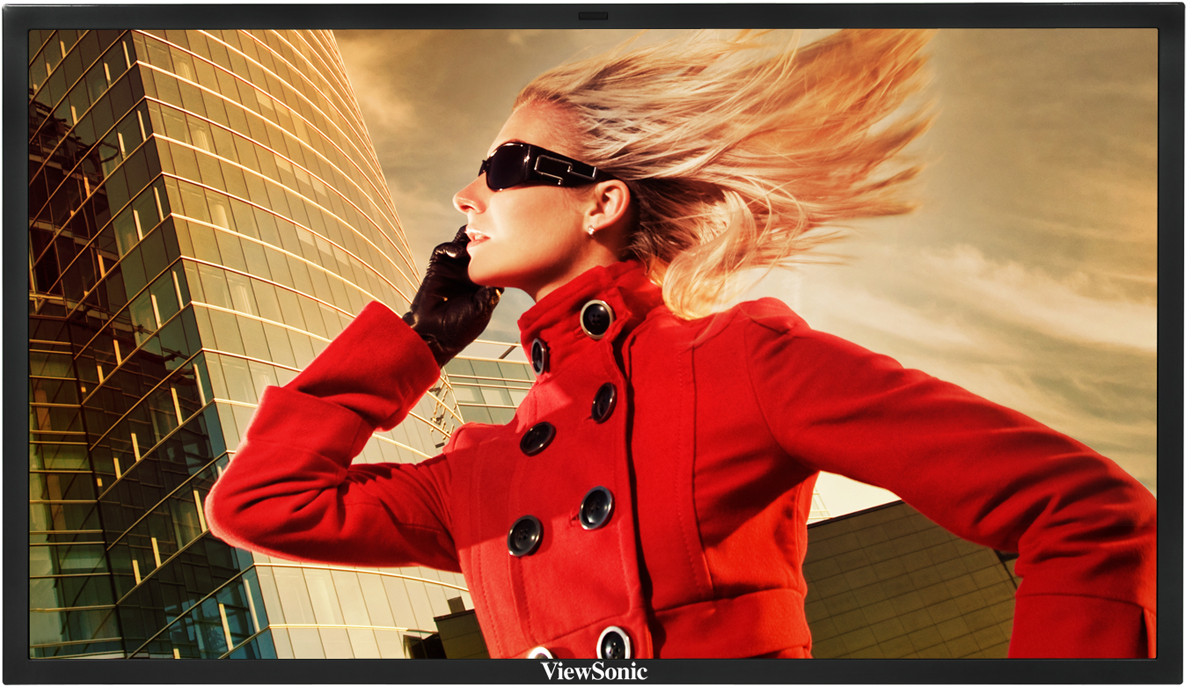

CDP6530T
Product Description
The ViewSonic ® CDP6530-T is a full HD touch interactive commercial display with 1920x1080p panel resolution with 500 nits (typ) of brightness and 20,000:1 dynamic contrast ratio. Key features include optical 2-touch capability usablewith your finger or stylus. Additional features include versatile inputs including an Intel® OPS slot for easy integration of a media player, as well as the traditional HDMI, DVI, VGA, YPbPr, S-video CVBS inputs. Built-in 12W (x2) speakers are also provided. The new CDP6530-T Also features internal scheduling as well as a tiling feature with video wall support up to a 10x10 display matrix. Other features include remote and front panel lockout, PIP (picture in picture) built in AC power for adding a media player and RS-232 loop through for automated control.
Visit Us
  • www.viewsonic.com
  • COLORS
    Black
  • LCD
    Type: 65" (64.6" viewable) color TFT active matrix, wide LCD
    Contrast Ratio: 5000:1 (typ)
    20,000:1 (Dynamic)
    Viewing Angles: 178º horizontal, 178º vertical
    Brightness: 500 cd/m2 (typ)
    Display Area: 56.2" horizontal x 31.6" vertical; 64.5" diagonal
    Optimum Resolution: 1920x1080, 600mm dot pitch
    Response Time: 8ms
    Light Source: Long life, 50,000 hrs. (typ)
    Aspect Ratio: 16:9
    Panel Surface: Anti-glare, hard coating (3H)
  • DIMENSIONS
    Physical With Stand: 59.9" x 40.4" x 16.4" / 1522 x 1026 x 417 mm
    Physical Without Stand: 59.9" x 35.5" x 5.4" / 1522 x 903 x 138 mm
    Packaging: 64.8" x 41.2" x 11.7" / 1647 x 1046 x 298 mm
  • PACKAGE CONTENTS
    CDP6530-T LCD display, power cable, remote control with batteries,
    User Guide CD
  • AUDIO
    Amplifier: 12-watt / 8 ohm
  • INPUT
    Video Input: HDMI, DVI, component, VGA, S-video, CVBS (BNC)
    Video Output: VGA, component
    Control Input/Output: RS-232
  • INPUT SIGNAL
    TV/Video comp.: 480i, 480p, 720p, 1080i, 1080p
  • CONNECTOR
    Digital: HDMI, DVI, S-video YPbPr, CVBS
    Power: 3-pin plug
    Analog: 15-pin mini D-sub (VGA)
  • POWER
    Voltage: AC 100–240V (universal), 50–60Hz
    Consumption: 520W (typ)
  • CONTROLS
    Picture: Picture mode, contrast, brightness, color temperature,
    temperature adjust, sharpness
    Front Panel: Power, Exit, +, –, Menu/Enter
    Special: Aspect ratio, over scan, power save, image retention,
    auto adjustment, monitor ID, reset
    Audio: Volume, mute, audio source
    Diagnostic: Thermal, back light, ambient, 5V detect, 12 detect
    OSD Setting: Languages, OSD H. position, OSD V. position, OSD timer
    VGA Setting: Auto adjustment, clock, phase, sharpness,
    H. position, V. position
  • DISPLAY
    Touch: Type: Optical Imaging
    Capability: 2 simultaneous touches
    Support OS: Windows® 2000, XP, Vista®, Windows 7 (multi-touch requires
    driver), Max OS X, and Linux (requires evtouch)
    Touch Resolution: 32,767 x 32,767
    Accuracy: +/- 3.5 mm over 95% of touchable area
    Response Time: 9 ms to 22 ms depending on configuration; 14 ms (typ)
    Touch Method: Touch with any object, Finger, Pen or Brush
    Connection: USB
    Glass: 5mm tempered glass
  • OPTIONAL ACCESSORIES AVAILABLE
    Stand (optional), Wall Mount (WMK-013),
    Wall Mount with Locking Media Player Cradle (WMK-028)
  • VESA MOUNT COMPLIANT
    VESA 200mm x 400mm, 400mm x 400mm
  • WEIGHT
    Gross: 189.6 lb. / 86.0 kg
    Net: 156.5 lb. / 71 kg
  • OPERATING CONDITIONS
    Humidity: 20–90% (non-condensing)
    Temperature (landscape): 32–104ºF (0–40ºC)
    Temperature (portrait): 41–95ºF (5–35ºC)
  • RECYCLE/DISPOSAL
    The lamp in this product contains mercury. Please
    dispose of in accordance with local, state or federal laws.
  • AUDIO OUT
    Speakers: Internal 12-watt (x2)
  • RESOLUTIONS
    640 x 480 at 60 Hz to 75 Hz
    800 x 600 at 60 Hz, 60Hz to 75 Hz
    1024 x 768 at 60 Hz, 60Hz to 75 Hz
    1280 x 768 at 60 Hz, 60Hz to 75 Hz
    1360 x 768 at 60 Hz, 60Hz to 75 Hz
    1280 x 1024 at 60Hz
    1600 x 1200 at 60 Hz
    1920 x 1080 at 60Hz (recommended resolution)
    NTSC, SECAM, 4.43 NTSC
    Component: 480i,480p,720p,1080i,1080p
  • COUNTRY OF ORIGIN
    Taiwan
