Key Features

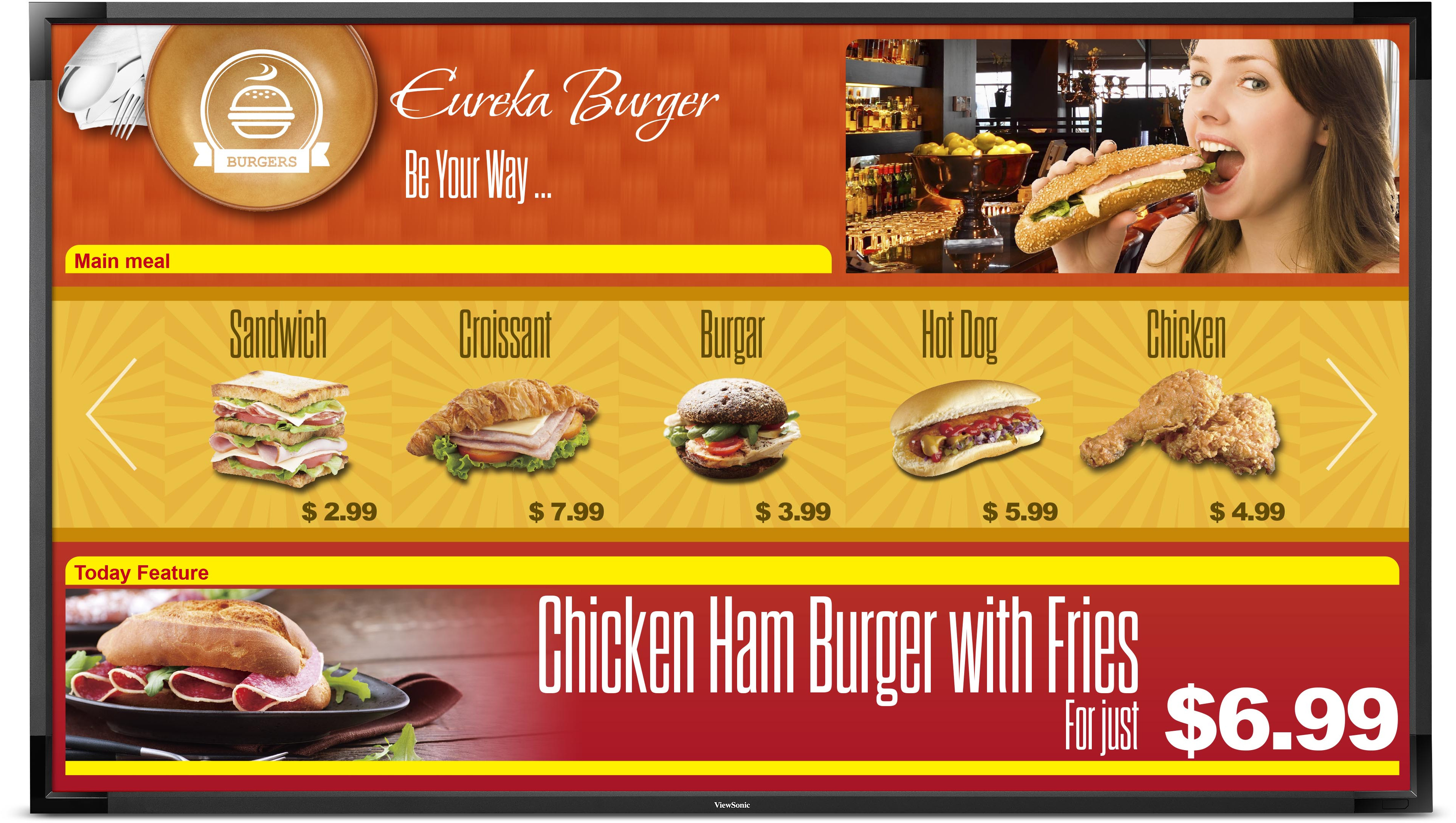

CDP4260-TL
Product Description
The ViewSonic CDP4260-TL is a 42” commercial LED display designed for use 24 hours a day, 7 days a week. Equipped with 6-point multi-touch functionality, the CDP4260-TL is ideal for providing interactive information in indoor areas such as high-traffic transportation settings, as well as in education, hospitality, and commercial venues. Featuring a slim 19.5mm narrow bezel design, Full HD 1080p resolution, 450-nit high brightness, SuperClear® image enhance technology with wide viewing angles, as well as dual 10W stereo speakers, the CDP4260-TL delivers sharp, vivid images with incredible sound for superior multimedia messaging performance. Versatile connectivity options include HDMI, DisplayPort, DVI, D-Sub, YPbPr, and CVBS inputs for easy installation and control of a variety of high-definition devices. An integrated OPS slot provides easy connectivity to external PCs as well. The CDP4260-TL also supports up to a 5x5 daisy chain installation. In addition, integrated RS232 input and output, with IR pass-through and a content scheduling function, make the CDP4260-TL an easy to-manage solution for 24/7 use.
Visit Us
  • www.viewsonic.com
  • LCD PANEL
    Panel Size: 42”
    Type/ Tech: TFT LED Module with LED Backlight
    Display Area (mm): 930.24(H) x 523.26 (V) (42” diagonal)
    Aspect Ratio: 16:09
    Resolution: 1920x1080
    Colors: 1.06 Billion
    Brightness: 450 nits (typ.)
    Contrast Ratio: 1300:1 (typ.)
    Response Time: 12ms
    Viewing Angles: 178°/178° SuperClear®
    Backlight: LED
    Backlight Life: 50,000 Hours (typ.)
    Hardness: Hard coating ( 3H)
  • TOUCH
    Type/ Tech: Optical touch
    Touch Point: 6-point
  • INPUT
    HDMI: x 1 (Ver 1.3)
    RGB / VGA: x1
    DisplayPort: x1
    DVI: x1
    Audio: x 1 (L+R RCA), x 1 (3.5mm Jack)
    CVBS: x1
    YPbPr: x1
    RS232: x1
    OPS: x 1
  • OUTPUT
    DVI: x1
    Audio: x 1 (L+R RCA)
    RS232: x1
  • LAN
    RJ45: x1
  • USB
    Type A: x 1 (for touch)
  • SPEAKERS
    10 Wx2
  • COMPATIBILITY
    RGB PC/HDMI PC: Refer to timing table
    CVBS: 480i
    YPbPr: 480i, 480p,720p,1080i,1080p
    HDMI: 480i, 480p,720p,1080i,1080p
  • CONTROLS
    Physical- Top OSD: PICTURE: POWER, MUTE, INPUT, VOL -/+, UP, DOWN, MENU; SCREEN: Brightness, Contrast, Sharpness, Black Level, Tint, Colour, Color Temperature, Gamma; Selection, Noise Reduction, Film Mode, Picture Reset; Auto Setup, Auto Adjust, H Position, V Position, Clock, Clock Phase, Zoom Mode, Custom; Zoom, Input Resolution, Screen Reset; SOUND: Balance, Treble, Bass, Audio Reset; PIP: PIP Mode, PIP Size, PIP Audio, PIP H Position, PIP V Position, SUB Input, PIP Reset; CONFIGURATION 1: Off Timer, Schedule, Data and Time, Configuration 1 Reset; CONFIGURATION 2: Language, OSD Turn Off, OSD H Position, OSD V Position, Information OSD, Monitor; Information, Monitor ID, IR Control, Tiling, Power on Delay, Closed Caption, Configuration 2 Reset; CONFIGURATION 3: Power Save, Heat Status, Screen Saver, Side Border Colour, Configuration 3 Reset; ADVANCED OPTION: Input Change, Terminal Setting, Scan Conversion, Colour System, Scan Mode, Serial; Control, Lan Setting, APM, Advanced Option Reset, Factory Reset;
  • POWER
    Voltage: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
    Consumption: Stand by <0.5W, Normal 120W, Max 250W
  • ERGONOMICS
    Wall Mount (VESA® ): Refer diagram attached
  • OPERATING CONDITIONS
    Temperature (º C): 0°C to 40°C
    Humidity: 20% ~ 80% non-condensing
  • DIMENSIONS (W X H X D)
    Physical (inch / mm): 38.43 x 24.00 x 15.75 / 976.16 x 609.5 x 400 (w/ Stand)
    38.43 x 22.42 x 3.14 / 976.16 x 569.5 x 79.8 (w/o Stand, default)
    Packaging (inch / mm): 45.74 x 30.83 x 9.80 / 1162 x 783 x 249
  • WEIGHT
    Net (lb / kg): 58.09 / 26.35 (with Stand) 54.56 / 24.75 (w/o Stand, default)
    Gross (lb / kg): 67.42 / 30.58
  • WHAT'S IN THE BOX?
    1. CDP4260-TL LCD Monitor
    2. Remote Control with batteries
    3. User manual CD wizard
    4. Quick Start Guide
    5. Power Cables (UK, EU)
    6. VGA cable
    7. RS232 cable
    8. USB cable
    *Actual content may differ from market to market
