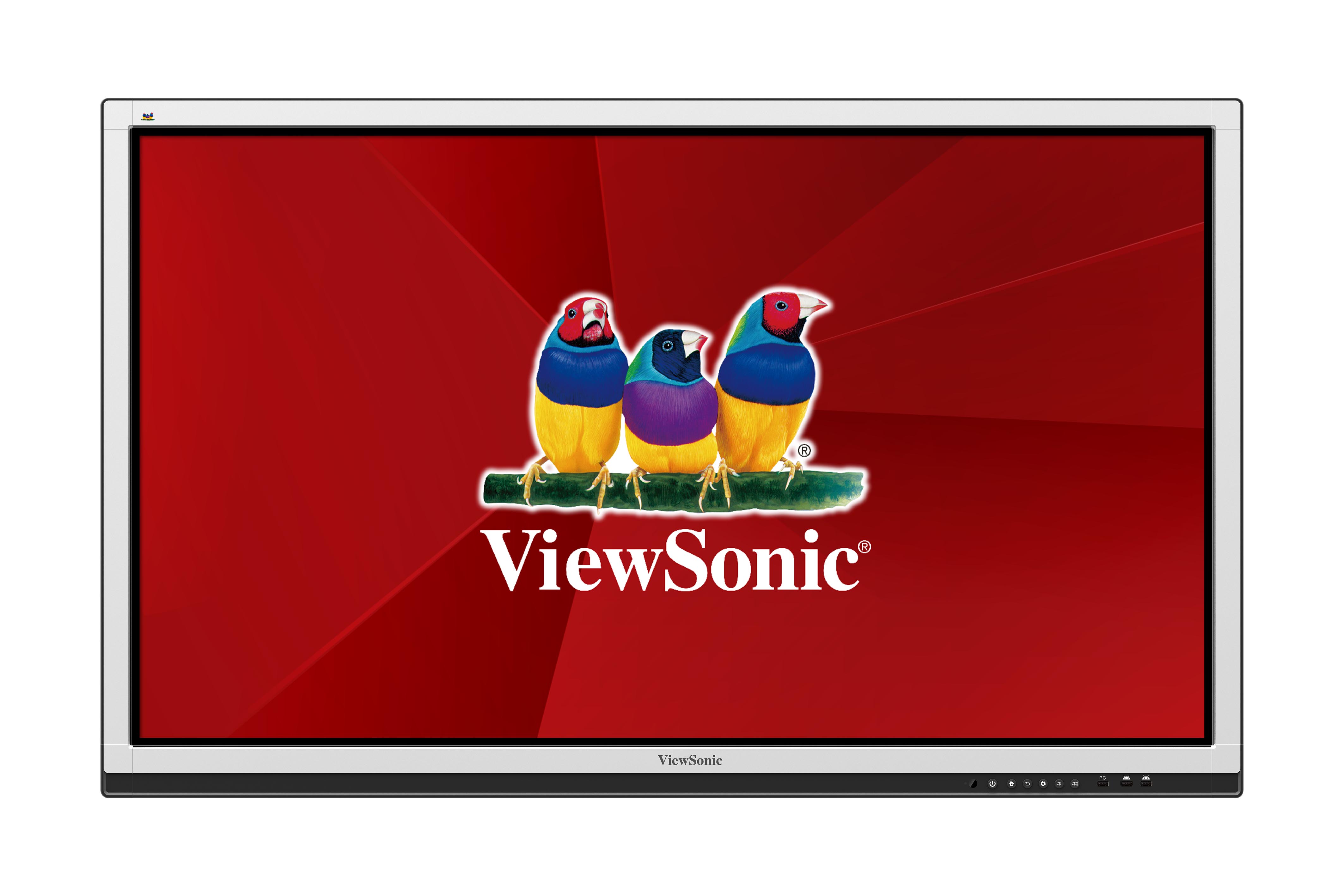

ViewBoard
CDE6561T
Key Features
Product Description
The ViewSonic® CDE6561T 65’’ Full HD interactive flat panel display is a perfect solution for interactive business and educational classroom applications. This 20-point touch-enabled display, paired with PC-less operation and pre-installed annotation software, allows multiple users to simultaneously write or draw on the display’s 7H hardness surface using fingers or styluses. 350-nit brightness and wide viewing angles provide better visual performance in well-lit rooms, while Flicker-Free and Blue Light filter technologies create a more comfortable viewing environment. With a built-in dual core processor and 8GB internal storage, as well as versatile connectivity including HDMI, VGA, RS232, RJ45 and USB ports, this display provides powerful computing for annotation and multimedia playback without the need for a PC. This Energy Star certified display delivers optional slot-in PC (NMP711-P10) capability with Windows® 10 OS and ViewBoard annotation software, for more computing-intensive interactive applications. The CDE6561T features a VESA-compatible design and can be placed on a wall mount, or on an optional trolley cart for flexible installation in classrooms and corporate meeting rooms.
Visit Us
- www.viewsonic.com
-
LCD PANEL
Panel Size: 65” (64.5” viewable) Type/ Tech: TFT LCD Module with LED Backlight Display Area (mm): 1428.48(H) x 803.52(V) (64.5” diagonal) Aspect Ratio: 16:09 Resolution: 1920x1080 Colors: 10 bit, 1.07B colors Brightness: 350 nits (typ.) Contrast Ratio: 1400:1 Typ. Response Time: 8ms Viewing Angles: H = 178, V = 178 Backlight: LED Backlight Life: 50,000 Hours Typ Hardness: 7H -
TOUCH
Type/ Tech: Infrared Touch Resolution: 32767 x 32767 Touch Point: 20 points for gesture, 5 points for writing Response time: 15ms MAX. System: Windows10 / Windows8/Windows7/WindowsXP/Vista/Linux/Mac/Android/Wince/Chrome -
INPUT
HDMI: x3 RGB / VGA: x3 Audio: x3 (PC audio in) CVBS: x1 RS232: x1 OPS / ViewSonic PC module slot: N/A / x1 (for NMP710) -
OUTPUT
RGB / VGA: x1 Audio: x1 (Earphone out) SPDIF: x1 (Coxial) -
LAN
RJ45: x1 -
USB
Type A: x3 (2.0); x1 (3.0) Type B: x1 (for touch) -
SPEAKERS
10W x 2 -
BUILT-IN PC
Processor: ARM Cortex A9 Dual Core CPU Graphic: ARM Mali400 MP4 Memory: 1.5GB Storage: 8GB Networking: Integrated 10/100/1000M Adaption -
COMPATIBILITY
RGB PC/HDMI PC: Refer to timing table CVBS: 480i HDMI: 480i, 480p,720p, up to 1080 -
CONTROLS
Physical- Top OSD: Power, Home, Return, Setting, VOL-, VOL+ INPUT: PC, Android, AV, VGA1, VGA2, VGA3, HDMI1, HDMI2, HDMI3, HDMI4 LIGHT: 1~10 VOLUME: 0~100 VGA: H Position, V Position, Phase, Clock, Zoom, Auto Adjust, Writing Mode PICTURE: Brightness, Contrast, Hue, Sharpness, Color Temp, Zoom, Writing Mode Embedded Linux OS: SETTING: Ethernet checking, Sound, Display, Apps, Language&input, Date&time, About device ANNOTATION: Annotation menu, Return, Main, Pen, ViewBoard Lit, Open file, Screenshot, close menu INTERFACE: ViewBoard Lit, Folders, Browser, PIP, Settings, Apps Multimedia: IMAGE: Close, Zoom in, Zoom out, Previous, Play/Pause, Next, Counterclockwise, Clockwise, setting AUDIO: Close, Previous, Play/Pause, Next, Playlist, Loop, Random, Single VIDEO: Close, Previous, Fast backward, Play/Pause, Fast forward, Next, Playlist -
POWER
Voltage: 100-240VAC +/- 10% Wide Range Consumption: "On" 270W(typ), "Power Saving" < 0.5 W, "Off" (Suspend) < 0.5 W -
ERGONOMICS
Wall Mount (VESA® ): 600 x 400 (M8 x 60mm) With Wall Mount Spacer -
OPERATING CONDITIONS
Temperature (º C): 32°F to 104°F (0°C to 40°C) Humidity: 20% ~ 80% non-condensing -
DIMENSIONS (W X H X D)
Physical (inch / mm): 59.96x36.38x3.9 in/ 1523x924x98 Packaging (inch / mm): 66.18x42.17x8.66 in / 1697x1071x220 -
WEIGHT
Net (lb / kg): 100.31lb / 45.5kg Gross (lb / kg): 125.66 lb /57kg -
WARRANTY
**Warranty offered may differ from market to market -
WHAT'S IN THE BOX?
CDE Interactive Large Format Display Monitor
VGA cable
Power cable x 4
Remote control
USB cable
Audio cable
Touching pen x 3
User manual CD wizard
RS232 adapter
Wall Mount Spacer
