Key Features

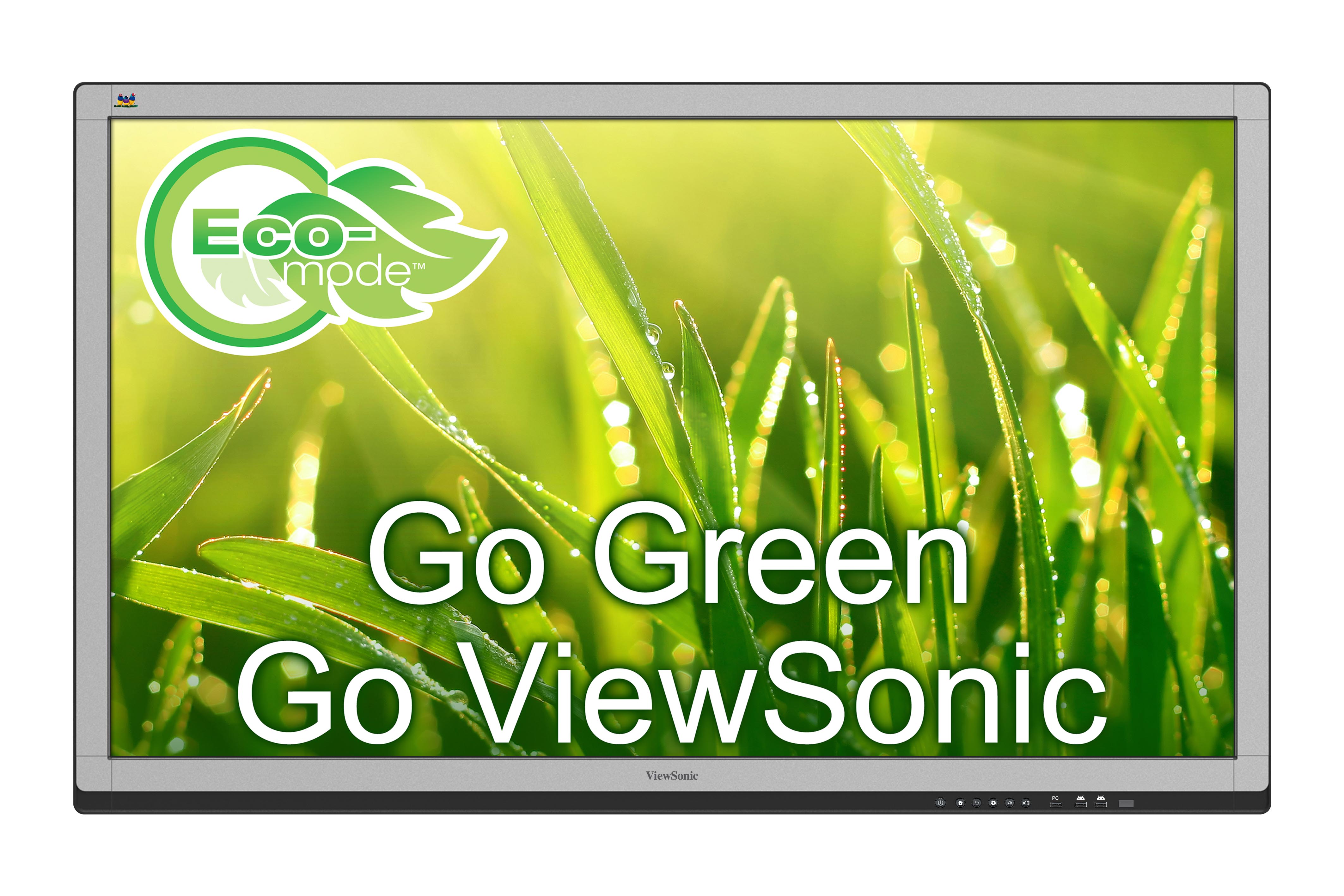

CDE5560T
Product Description
The ViewSonic CDE5560T 55’’(54.6’’ viewable) Full HD interactive LED display solution is perfect for business and education. This 10-point touch-enabled display, paired with pre-installed annotation software, allows multiple users to simultaneously write or draw on the display’s hardness surface using fingers or stylus. A Full HD screen guarantees crisp and vivid image quality, while 350-nit brightness and wide viewing angles provide better visual performance in well-lit rooms. With built-in dual core processor and 8GB internal storage, as well as integrated versatile connectivity including HDMI, VGA, YPbPr, RS232, RJ45 and USB ports, this display provides powerful computing for annotation and multimedia playback without the need for a PC. This Energy Star certified display delivers optional slot-in PC (NMP710) capability, offering Windows®8 Professional (64 Bit) OS and ViewBoard annotation software for more computing-intensive interactive applications. The CDE5560T is VESA mountable (wall mount kit WMK-047 included for Europe region) or choose the optional trolley cart for flexible installation for classrooms and corporate meeting rooms.
Visit Us
  • www.viewsonic.com
  • LCD PANEL
    Panel Size: 55” (54.6” viewable)
    Type/ Tech: TFT LCD Module with LED Backlight
    Display Area (mm): 1209.6(H) x 680.4(V) (54.6” diagonal)
    Aspect Ratio: 16:9
    Resolution: 1920x1080
    Colors: 16.7M colors
    Brightness: 280 / 350 nits (Min. / Typ.)
    Contrast Ratio: 1000:1 / 1400:1 (Min. / Typ.)
    Response Time: 6ms
    Viewing Angles: H = 178, V = 178
    Backlight: LED
    Backlight Life: 50,000 Hours Typ
    Hardness: 7H
  • TOUCH
    Type/ Tech: Infrared
    Touch Resolution: 32767 x 32767
    Touch Point: 10 point for gesture, 5 point for writing
    Response time: 15ms MAX.
    System: Windows8/Windows7/WindowsXP/Vista/Linux/Mac/Android/Wince/Chrome
  • INPUT
    HDMI: x3
    RGB / VGA: x3
    Audio: x3 (PC audio in)
    CVBS: x1
    RS232: x1
    OPS / ViewSonic PC module slot: N/A / x1 (for NMP710)
  • OUTPUT
    RGB / VGA: x1
    Audio: x1 (Earphone out)
    SPDIF: x1 (optical)
  • LAN
    RJ45: x1
  • USB
    Type A: x3 (2.0); x1 (3.0)
    Type B: x1 (for touch)
  • SPEAKERS
    10W x 2
  • BUILT-IN PC
    Processor: ARM Cortex A9 Dual Core CPU
    Graphic: ARM Mali400 MP4
    Memory: 1.5GB
    Storage: 8GB
    Networking: Integrated 10/100/1000M Adaption
  • COMPATIBILITY
    RGB PC/HDMI PC: Refer to timing table
    CVBS: 480i
    HDMI: 480i, 480p,720p, up to 1080
  • CONTROLS
    Physical- Top OSD: Power, Home, Return, Setting, VOL-, VOL+ INPUT: PC, Android, AV, VGA1, VGA2, VGA3, HDMI1, HDMI2, HDMI3, HDMI4 LIGHT: 1~10 VOLUME: 0~100 VGA: H Position, V Position, Phase, Clock, Zoom, Auto Adjust, Writing Mode PICTURE: Brightness, Contrast, Hue, Sharpness, Color Temp, Zoom, Writing Mode
    Embedded Linux OS: SETTING: Ethernet checking, Sound, Display, Apps, Language&input, Date&time, About device ANNOTATION: Annotation menu, Return, Main, Pen, ViewBoard Lit, Open file, Screenshot, close menu INTERFACE: ViewBoard Lit, Folders, Browser, PIP, Settings, Apps
    Multimedia: IMAGE: Close, Zoom in, Zoom out, Previous, Play/Pause, Next, Counterclockwise, Clockwise, setting AUDIO: Close, Previous, Play/Pause, Next, Playlist, Loop, Random, Single VIDEO: Close, Previous, Fast backward, Play/Pause, Fast forward, Next, Playlist
  • POWER
    Voltage: 100-240VAC +/- 10% Wide Range
    Consumption: "On" 190W(typ), "Power Saving" < 0.5 W, "Off" (Suspend) < 0.5 W
  • ERGONOMICS
    Wall Mount (VESA® ): 400 x 400 (M8 x 20mm)
  • OPERATING CONDITIONS
    Temperature (º C): 32°F to 104°F (0°C to 40°C)
    Humidity: 20% ~ 80% non-condensing
  • DIMENSIONS (W X H X D)
    Physical (inch / mm): 51.77x31.69x3.66 / 1315x805x93
    Packaging (inch / mm): 58.27x37.60x11.02 / 1480x955x280
  • WEIGHT
    Net (lb / kg): 119.05 / 54
    Gross (lb / kg): 143.30 / 65
  • WARRANTY
    **Warranty offered may differ from market to market
  • WHAT'S IN THE BOX?
    • CDE Interactive Large Format Display Monitor
    • VGA cable
    • Power cable x 4
    • Remote control
    • USB cable
    • Audio cable
    • Touching pen x 3
    • User manual CD wizard
    • RS232 adapter
    • Wall Mount Kit: WMK-047 (in separate box, for Europe only)
