Commercial Display
CDE5010
Key Features
- 50" screen with 3840 x 2160 resolution
- Built-in browser for displaying internet content
- ViewBoard® Cast content sharing software (Optional)
- vController software for remote display management
- USB multimedia player for video, photo, and music playback
Product Description

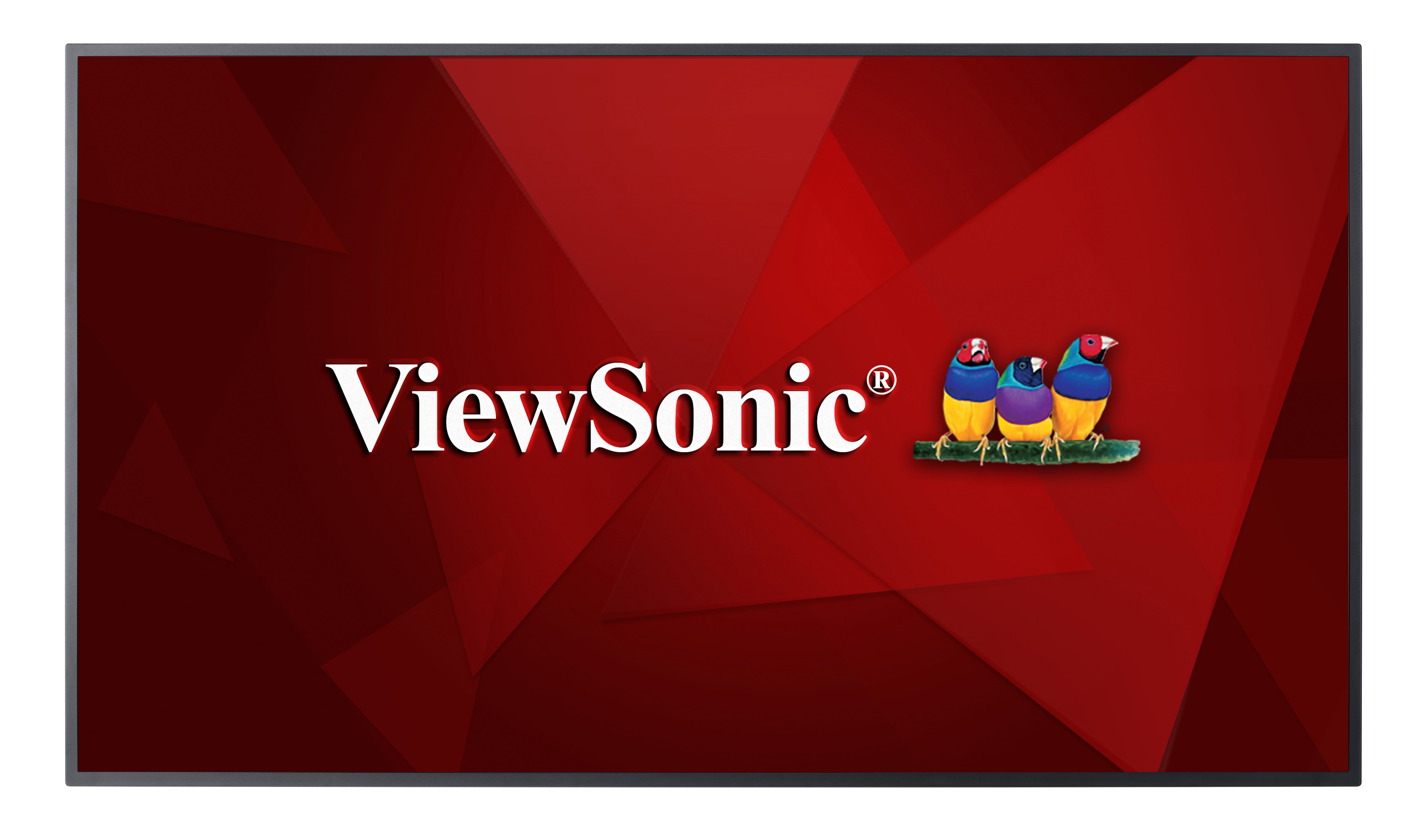

The ViewSonic® CDE5010 is a 50’’ (50” viewable) 4K Ultra HD presenation display purpose-built to deliver eye-catching imagery for hotels, restaurants, retail, business, and more. With stunning 3840x2160 resolution, 350-nit high brightness, wide viewing angles, and dual 10W speakers this display provides immersive, high-impact messaging wherever needed. In addition to HDMI, DVI, and VGA inputs to connect with various high definition devices, this display utilises an integrated multi-core processor and 8GB of internal memory, allowing customers to playback multimedia content via USB without the need for a PC. To make life even easier, the bundled vController software offers easy maintenance and intuitive interfaces for remote management via a PC server or laptop. Flicker-Free and Blue Light Filter technologies help provide a comfortable viewing environment.
Visit Us
- www.viewsonic.com
-
DISPLAY
Panel Size: 50" Type/ Tech: TFT LCD Module with LED Backlight Display Area (mm): 1095.84 (H) x 616.4 (V) Aspect Ratio: 16:09 Colours: 1.07B colours Brightness: 350 nits (typ.) Contrast Ratio: 4000:1 (typ.) Response Time: 8 ms Viewing Angles: H = 178, V = 178 (typ.) Backlight Life: 30,000 Hours Surface Treatment: Anti-Glare,3H (Haze=2%) Bezel: Slim Orientation: Landscape -
INPUT
HDMI: x2 RGB / VGA: x1 DVI: x1 Audio: x1 PC audio(3.5mm) RS-232: x1 IR Pass Thru: x1 SD/SDHC: x1 (Micro SD) -
OUTPUT
Audio: x1 (RCA) RS232: x1 IR Pass Thru: x1 -
LAN
RJ45: x1 -
USB
Type A: 2.0 Type A : x 1 (USB Playback)
3.0 Type A : x 1 (USB Playback) -
SPEAKERS
10W x 2 -
COMPATIBILITY
RGB PC/HDMI PC: Up to 1920x1080 @60Hz. Refer to timing table (RGB PC) HDMI: 480i, 480p,720p,1080i,1080p, 4K2K@60Hz DVI: 480i, 480p,720p,1080i,1080p Android Version: Android 5.0.1 -
POWER
Voltage: 100-240 VAC +/- 10% Wide Range Consumption: Normal 140 W, Max 175 W -
ERGONOMICS
Wall Mount (VESA® ): 400x400 mm -
OPERATING CONDITIONS
Temperature (º C): 5 to 40°C Humidity: 20% ~ 80% -
DIMENSIONS (W X H X D)
Physical (inch / mm): 44.24 x 25.46 x 2.67 in/1123.6 x 646.7 x 67.8 mm Packaging (inch / mm): 50.47 x 33.27 x 7.99 in/1282 x 845 x 203 mm -
WEIGHT
Net (lb / kg): 13 kg / 28.66 lbs (w/o stand); 14.9 kg / 32.85 lbs (with Stand) Gross (lb / kg): 16.5 kg / 36.38 lbs -
PACKAGE CONTENTS
1. CDE5010 presenation display
2. Remote Control with batteries
3. User manual CD wizard
4. Quick Start Guide
5. Power Cables
6. RS232 cable
7. RS232 daisy chain cable (2.5mm – 2.5mm)
8. IR sensor cable
