Key Features

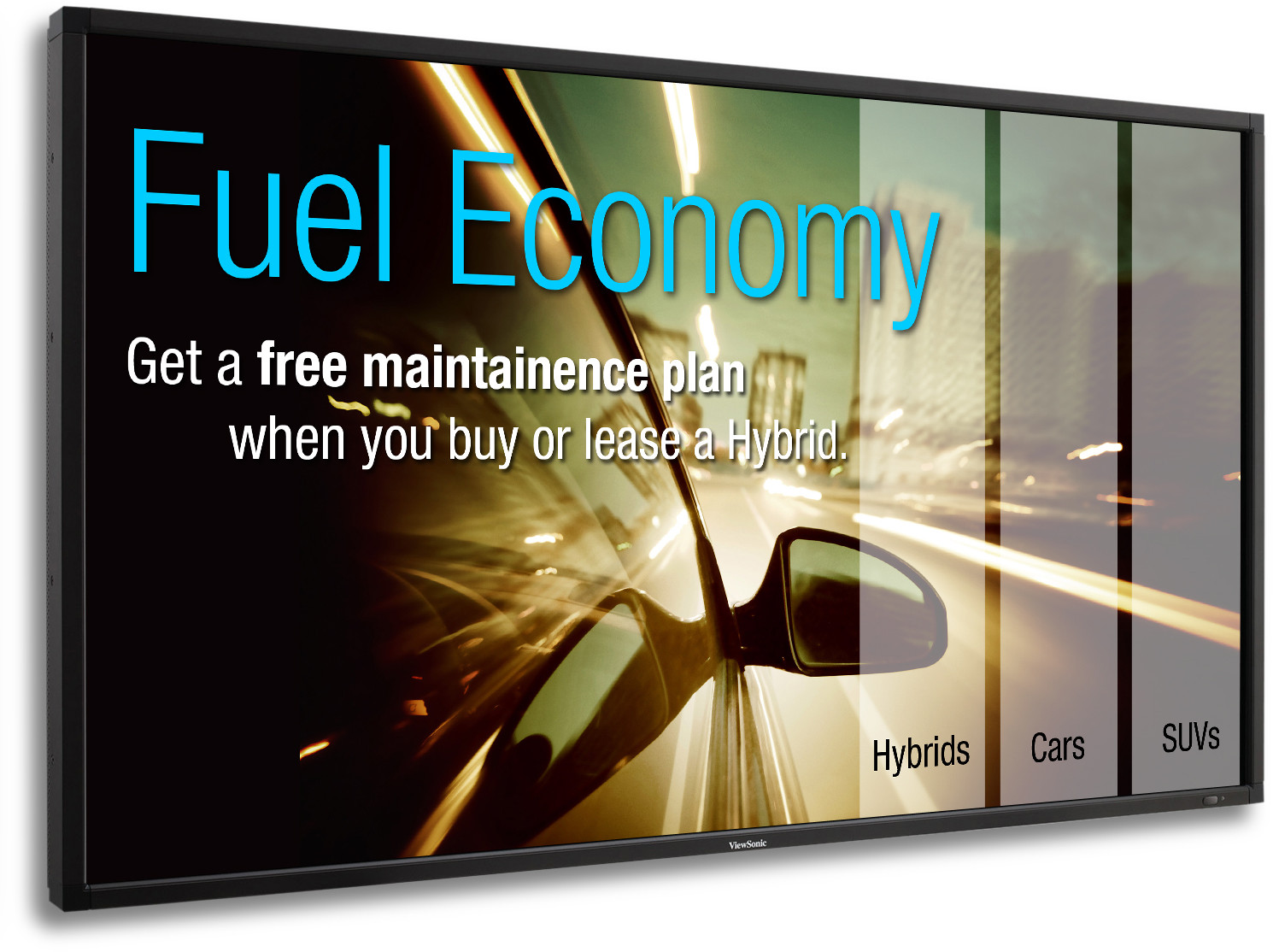

CD4233
Product Description
ViewSonic’s 42" CD4233 Commercial Display is designed for use in educational, retail, public and commercial signage applications. Full 1080p resolution provides a clear view in any installation. Generous screen size and super slim bezel make messages stand out in a big way. Multiple connectivity and resolutions provide you with lots of options for showing a diverse set of digital signage content; from video, to internet pages, PowerPoint, Flash, and much more with ultimate HD clarity. Display your vivid graphics and stunning video beautifully with this large, bright and high contrast screen.
Visit Us
  • www.viewsonic.com
  • COLORS
    Black
  • LCD
    Type: 42" color TFT active matrix, wide LCD
    Contrast Ratio: 1100:1 (typ)
    Viewing Angles: 178º horizontal, 178º vertical
    Brightness: 700 cd/m2 (typ)
    Display Area: 36.6" horizontal x 20.6" vertical; 42" diagonal
    Optimum Resolution: 1920x1080, 600mm dot pitch
    Response Time: 9ms
    Light Source: Long life, 50,000 hrs. (typ)
    Aspect Ratio: 16:9
    Panel Surface: Anti-glare, hard coating (3H)
  • DIMENSIONS
    Physical Without Stand: 38.1" x 22.0" x 4.9" (967.6mm x559.6mm x 123.1mm)
    Physical with stand (optional): 38.1" x 25.5" x 15.9" (967.6mm x 647.7mm x 403.9mm)
  • PACKAGE CONTENTS
    LCD display, power cable, remote control with batteries,
    User Guide CD
  • AUDIO
    Amplifier: 7-watt / 8 ohm
  • INPUT
    Video Input: HDMI, DVI, component, VGA, S-Video, composite
    Video Output: VGA, component, DVI
    Control Input/Output: RS-232
  • CONNECTOR
    Digital: HDMI, DVI
    Power: 3-pin plug
    Analog: 15-pin mini D-sub (VGA)
  • POWER
    Voltage: AC 100–240V (universal), 50–60Hz
    Consumption: 280W (typ)
  • CONTROLS
    Picture: Picture mode, contrast, brightness, color temperature,
    temperature adjust, sharpness
    Front Panel: Power, Exit, +, –, Menu/Enter
    Special: Aspect ratio, over scan, power save, image retention,
    auto adjustment, monitor ID, reset
    Audio: Volume, mute, audio source
    Diagnostic: Thermal, back light, ambient, 5V detect, 12 detect
    Input: VGA, DVI, HDMI, YPbPr
    OSD Setting: Languages, OSD H. position, OSD V. position, OSD timer
    VGA Setting: Auto adjustment, clock, phase, sharpness,
    H. position, V. position
  • VESA MOUNT COMPLIANT
    VESA 100mm x 100mm, 12 holes
  • WEIGHT
    Gross without stand: 76.5 lb. (34.7 kg)
    Net With Stand: 69.8 lb. (31.7 kg)
    Net Without Stand: 65.0 lb. (29.5 kg)
  • OPERATING CONDITIONS
    Humidity: 20–80% (non-condensing)
    Temperature (landscape): 41–104ºF (5–40ºC)
    Temperature (portrait): 41–95ºF (5–35ºC)
  • INPUT SIGNAL
    Video: 480i, 480p, 720p, 1080i, 1080p
  • RECYCLE/DISPOSAL
    The lamp in this product contains mercury. Please
    dispose of in accordance with local, state or federal laws.
