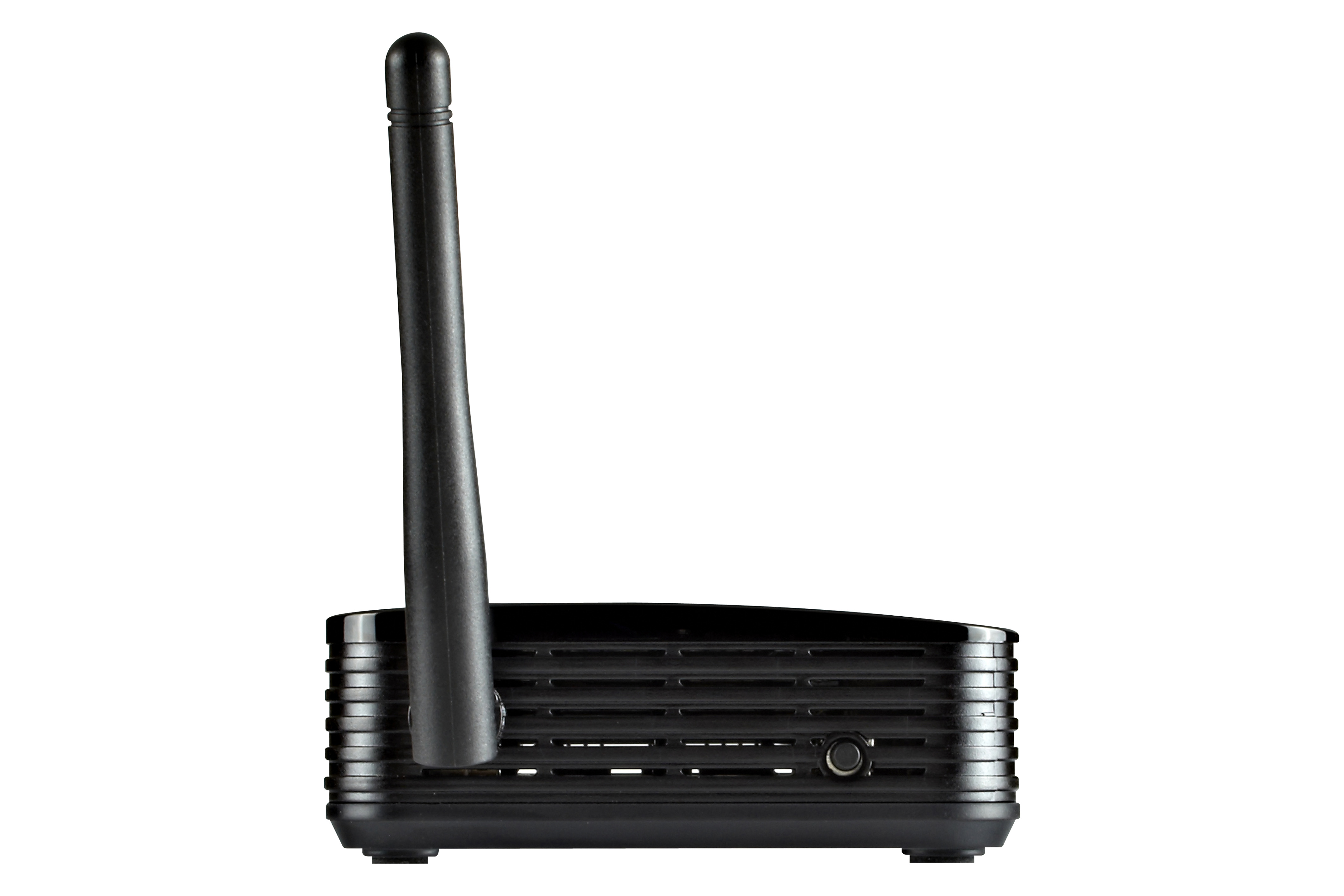

ViewSync3
Wireless Group Presentation Solution with AutoProject™
SPECIFICATIONS
- WIRED NETWORKInterface: RJ-45 Connector (10/100Mbps)
- WIRELESS NETWORKInterface: Built-in 802.11 a/b/g/n 2T2R
Frequency Band: 2.4GHz(2.312~2.472GHz, 2.484GHz))/5G(5.18~5.825GHz) Dual Band
Data transfer speeds: up to 150Mbps - WIRELESS SECURITYSecurity/ Encryption: WPA/WPA2, WPA-PSK, WPA2-PSK
- VIDEO OUTPUTSupport Output Resolution: HDMI: 1080P, 720P, 480P

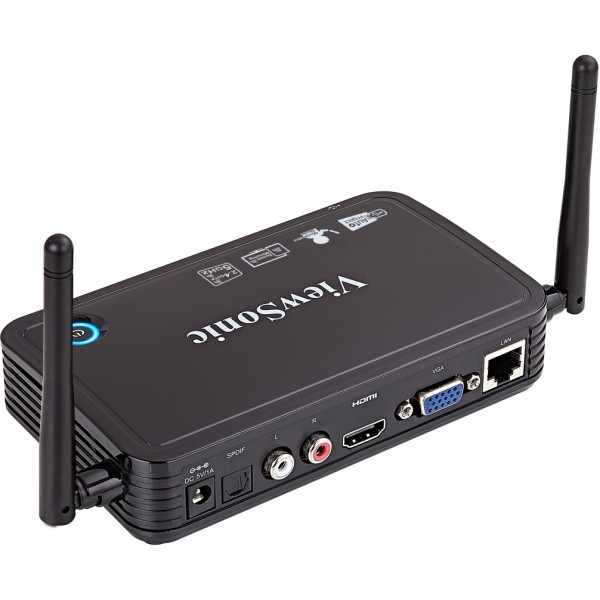

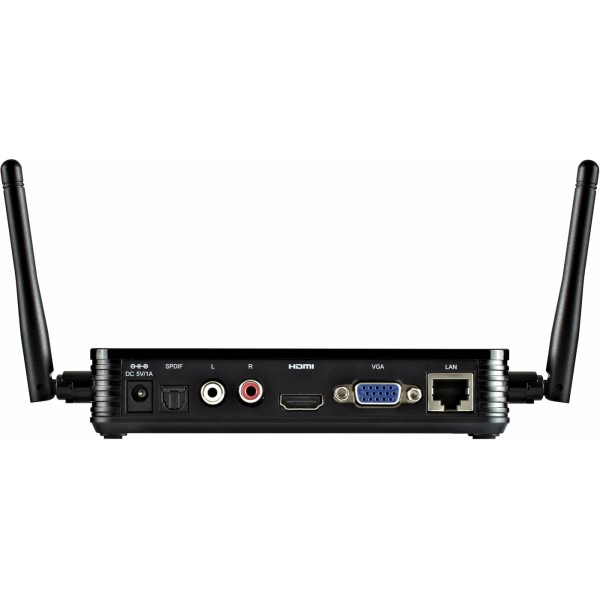

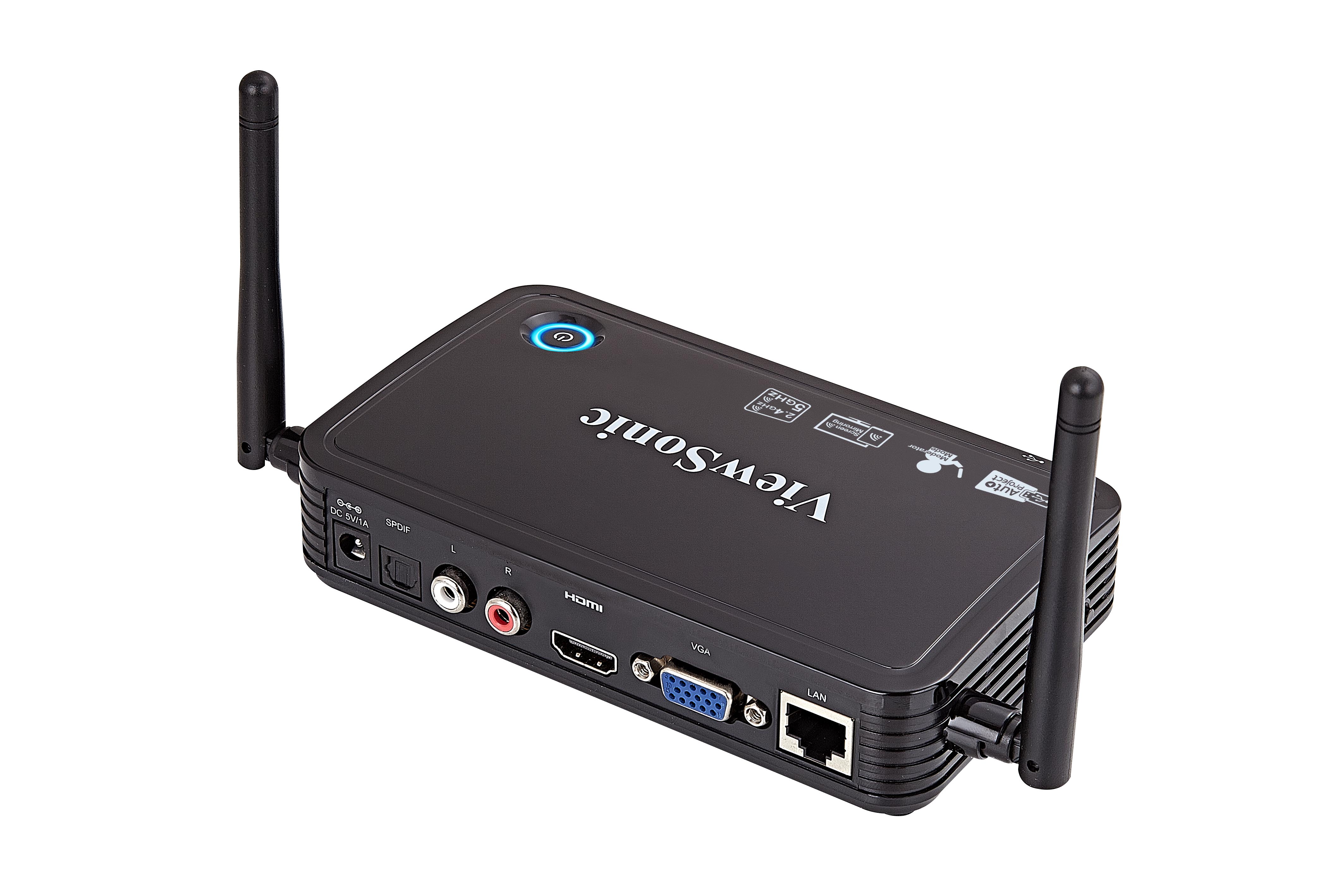

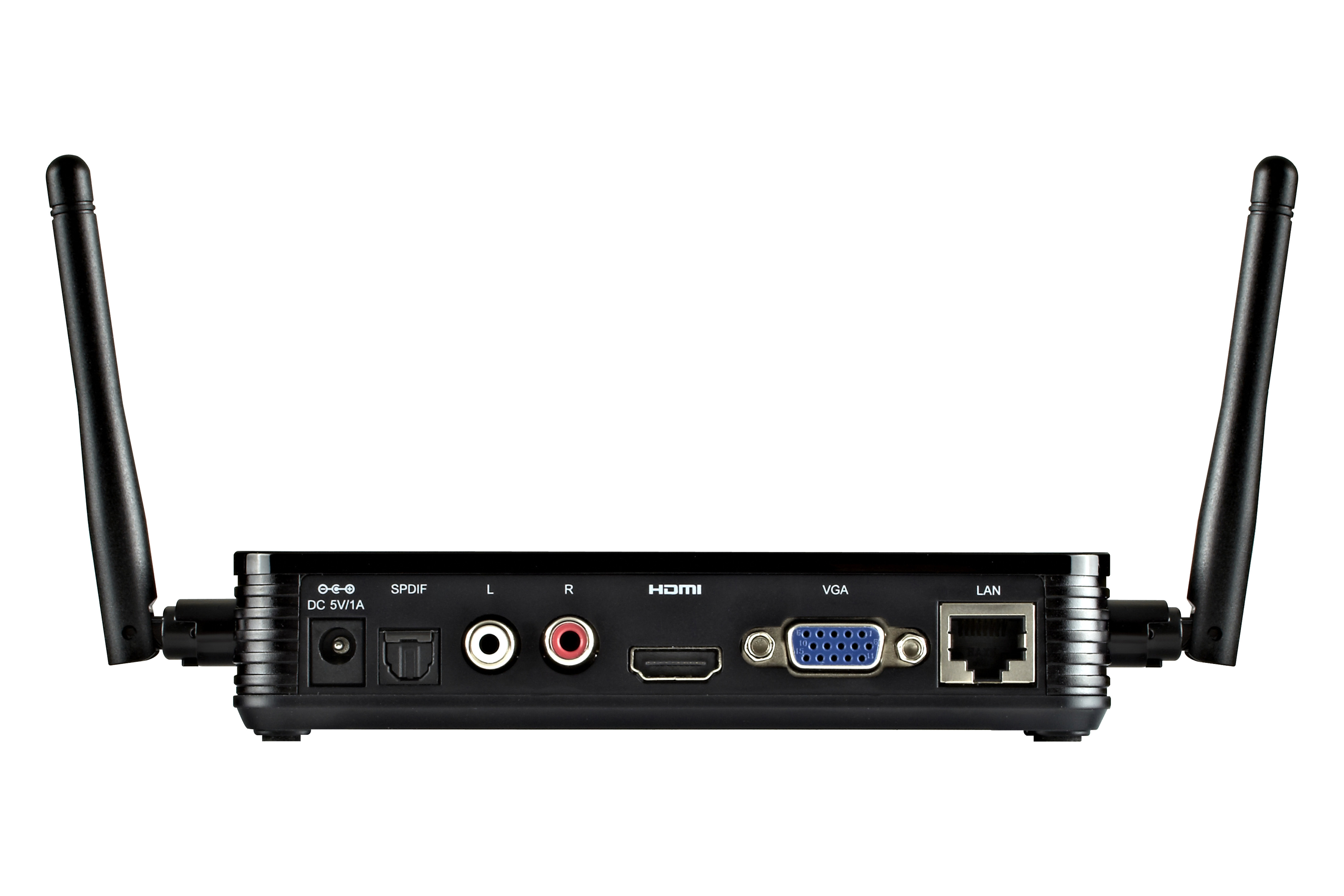

VGA: 800x600、1024x768、1280x800、1280x1024、1366x768 - CONNECTORHDMI: 1
RGB: 1
Network: RJ-45(10/100M), Wireless(802.11a/b/g/n)2.4G/5GHz
USB Type A: 1 - SYSTEM REQUIREMENTCompatible OS: AutoProject
Windows: 7/8/8.1/10
Mac: 10.9/10.10/10.11/10.12
iOS(APP No Mirroring): 9/10
Android(APP): 5/6
Android(Miracast): 4.2 - 6 - POWERAC Adapter: 100~240VAC @ 50/60Hz, 5V/1A output
Comsumption: 5W (Maximum), 0.5W (Standby) - CONTROLSSetting: Control by software
OSD Language: English, French, German,
Spanish,Italian, Dutch, Simplified Chinese, Russian, Traditional Chinese
Web Setup Language: English - OPERATING CONDITIONSTemperature (º F / º C): 23°F to 113°F (-5°C to 45°C)
- DIMENSIONS Physical : 7.54” (W) x 1.27” (H) x 4.04“ (D) / 191.5 mm (W) x 32.25 mm (H) x 102.6 mm (D)
Packaging: 242.17 mm (W) x 62.85 mm (H) x 216.35 mm (D) / 9.53” (W) x 2.47” (H) x 8.52” (D) - WEIGHTNet: 0.43 lb / 240 g
Gross: 1. 54lb / 700 g - USER GUIDELanguage: English
- WARRANTY**Warranty offered may differ from market to market
- What's in the box?The Top Level Assembly shall consist of :

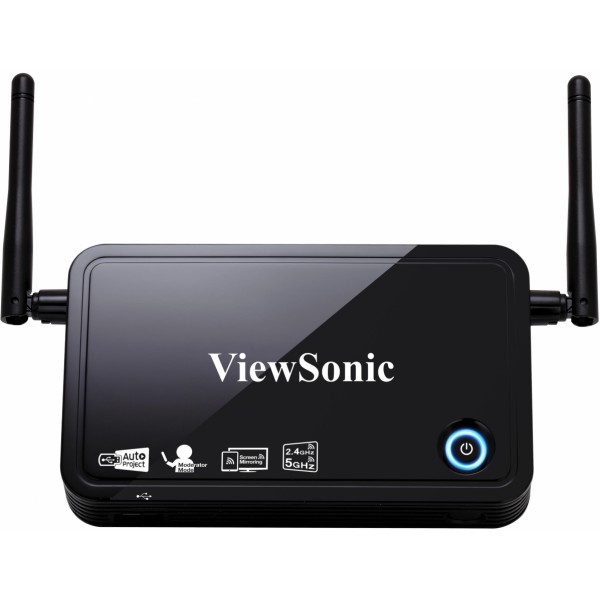

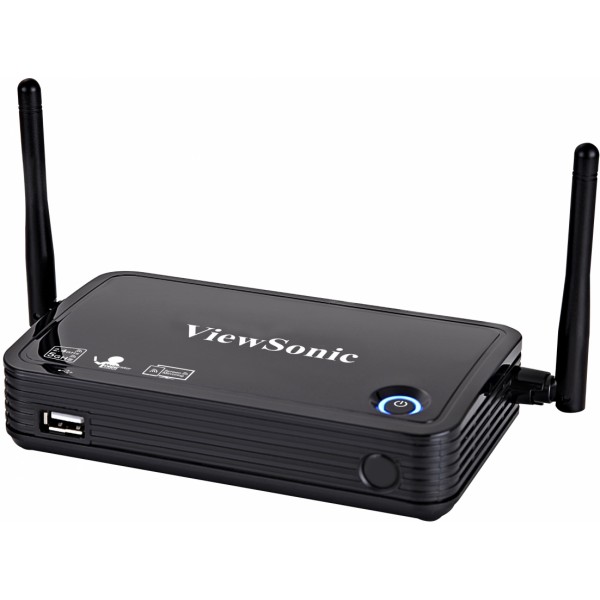

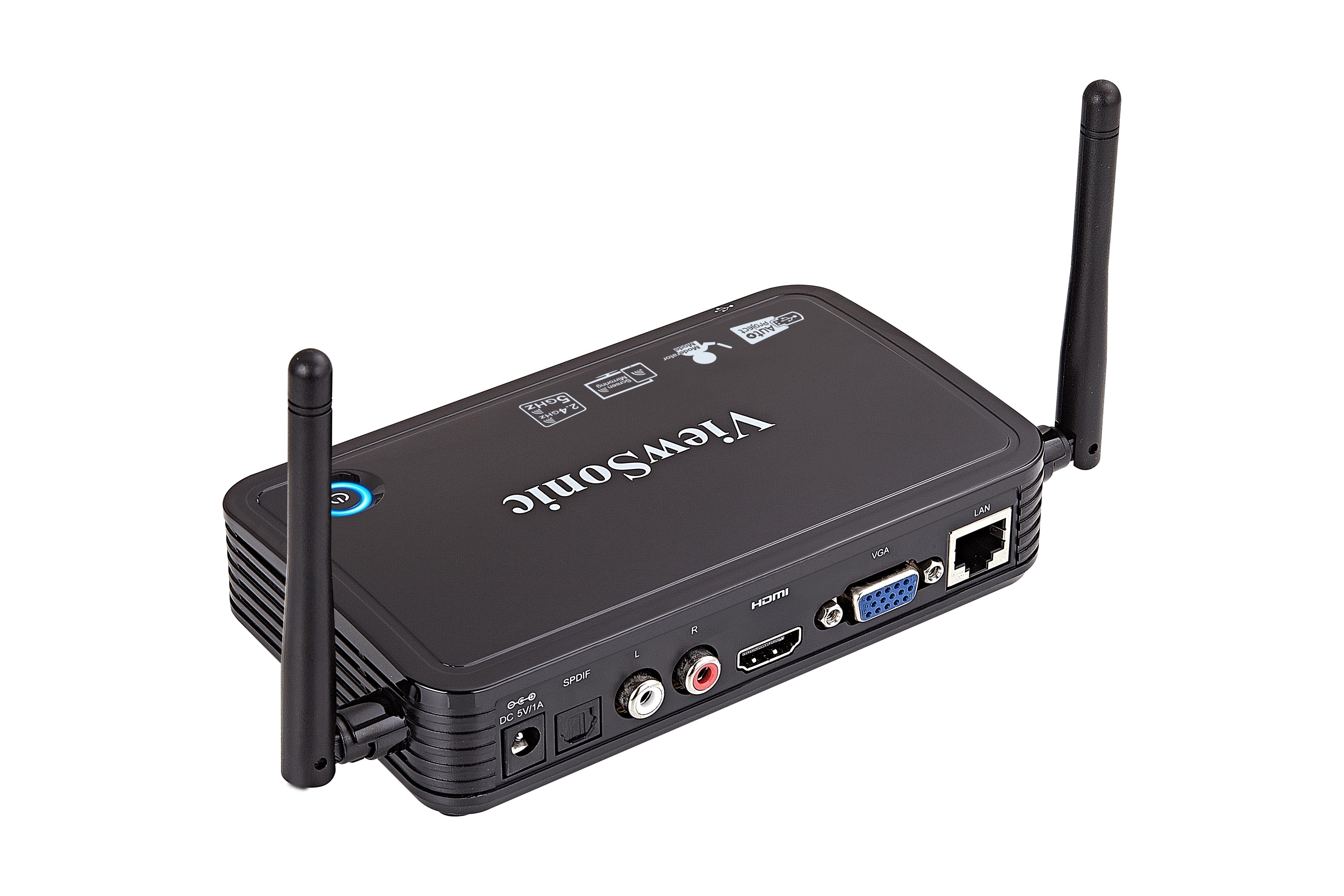

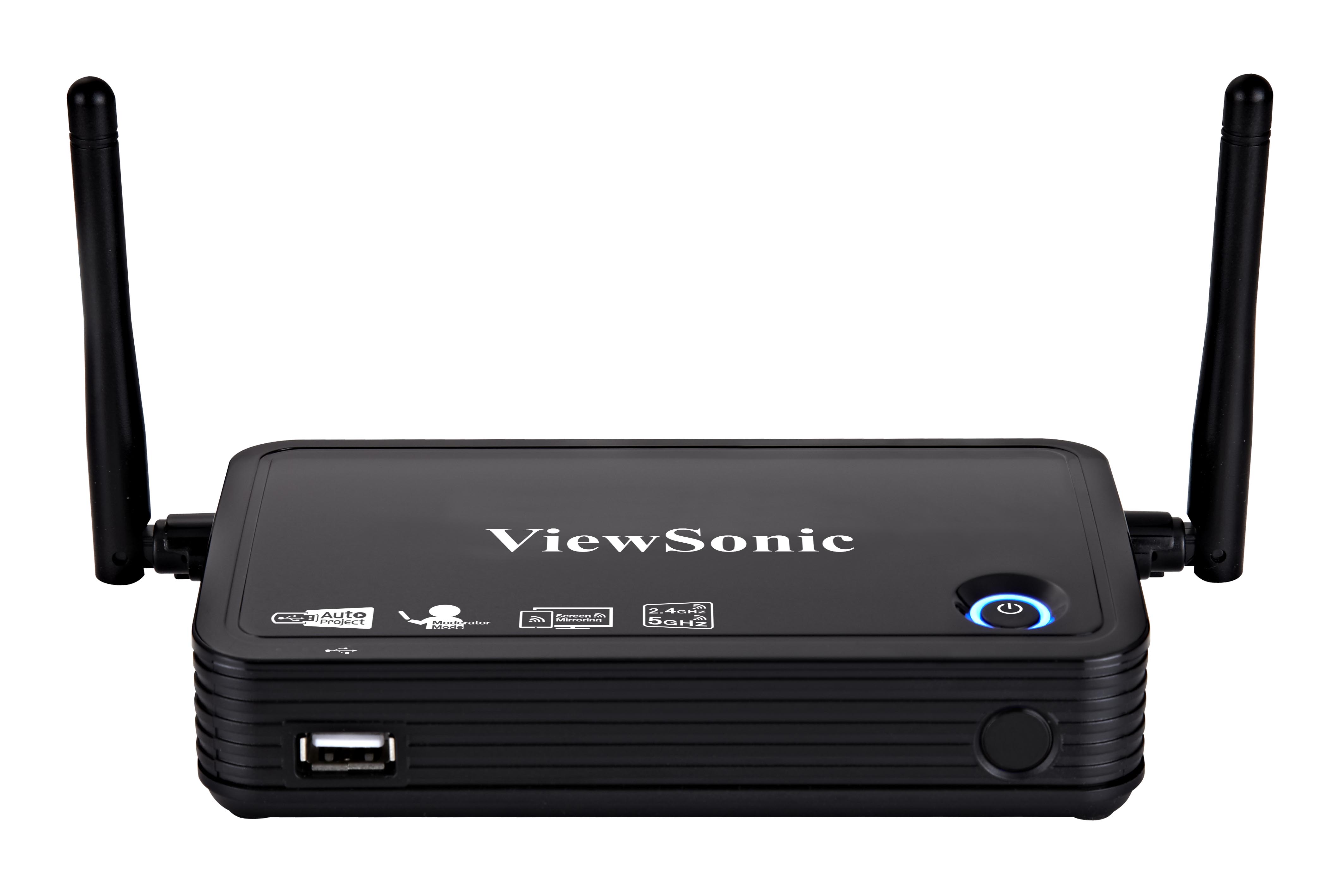

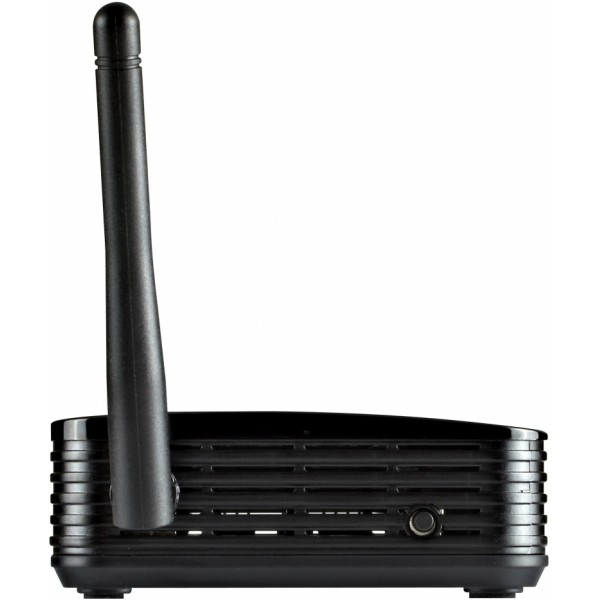

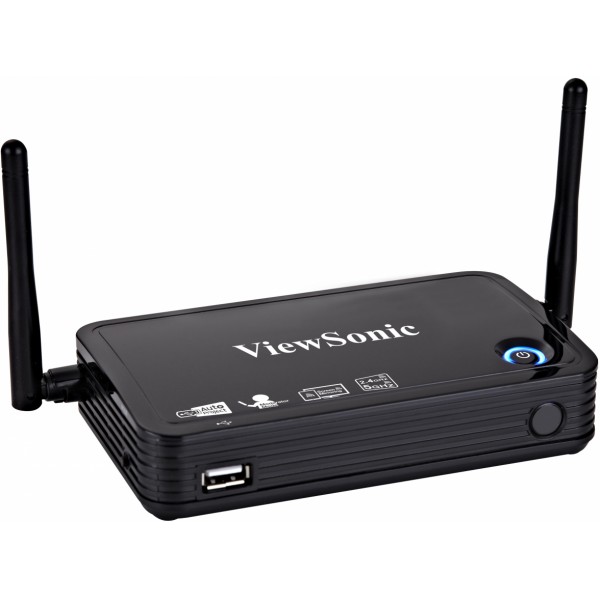

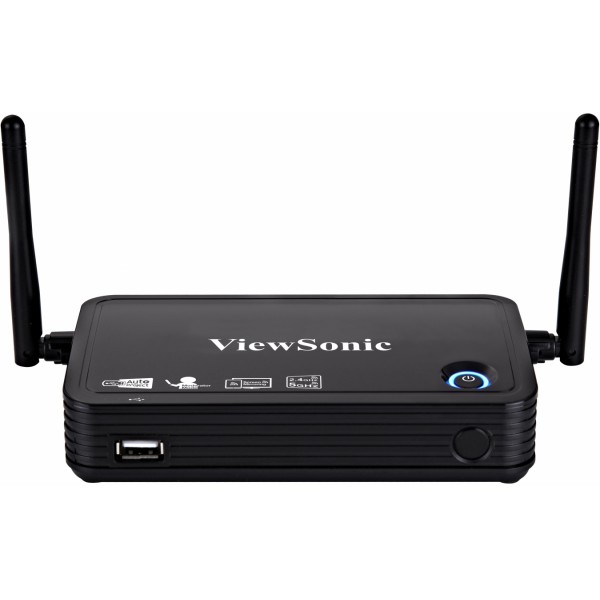

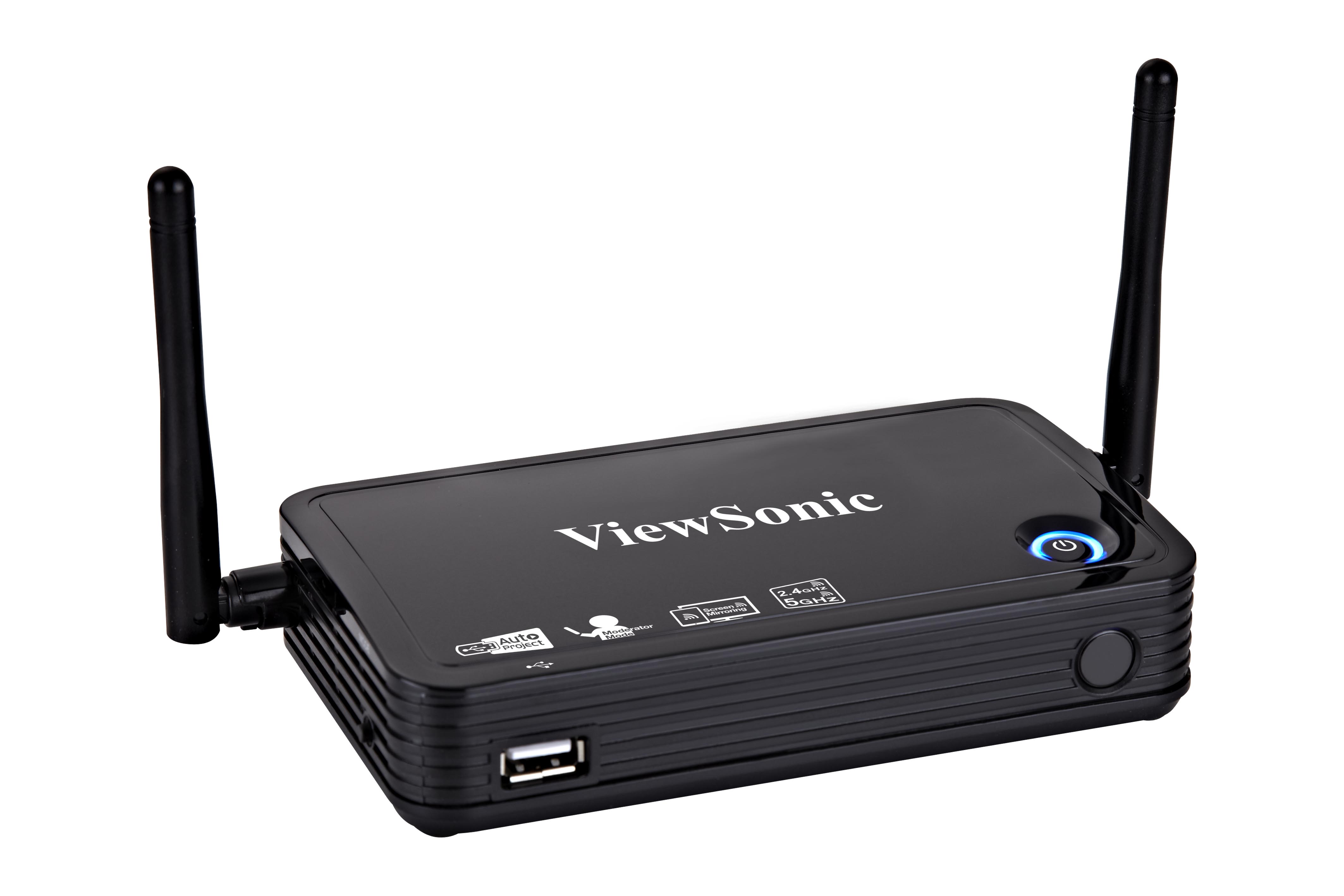

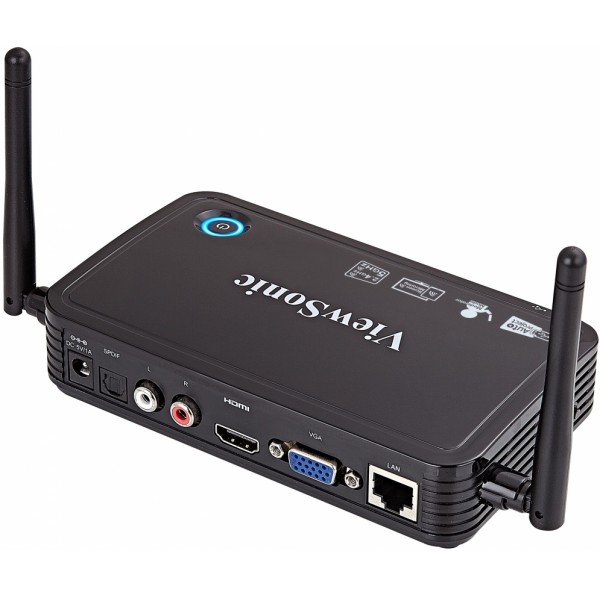

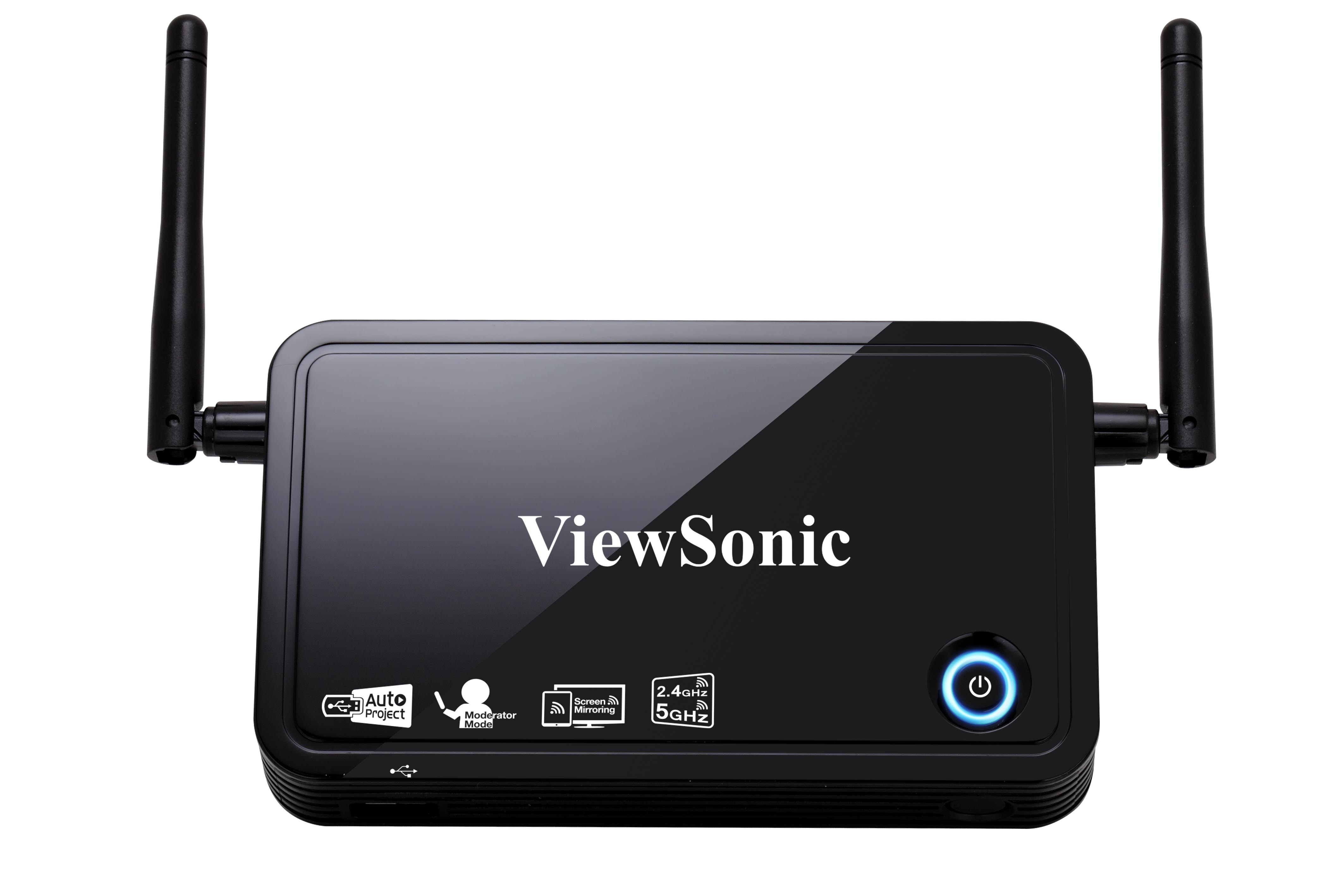

1. Wireless Presentation Gateway ViewSync 3
2. Universal Power Adapter x 1 (with US, EU, UK head for VSE/VSA,, VSI： add addition AU head.), (China type for VSCN)
3. Antenna x 2 (attached)
4. Quick Start Guide

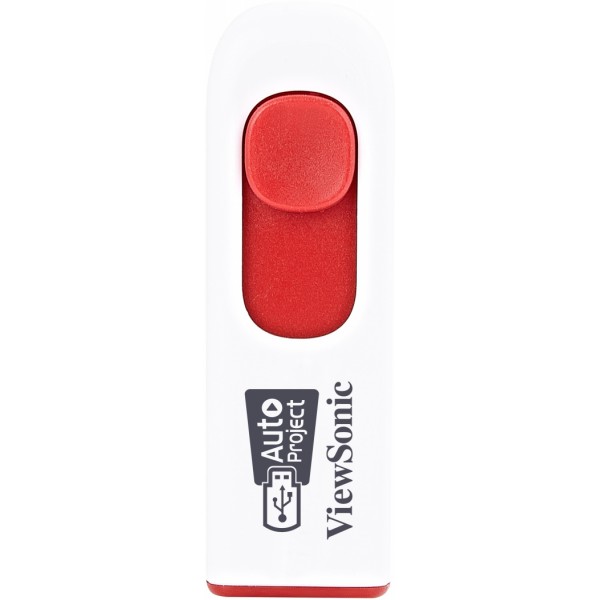

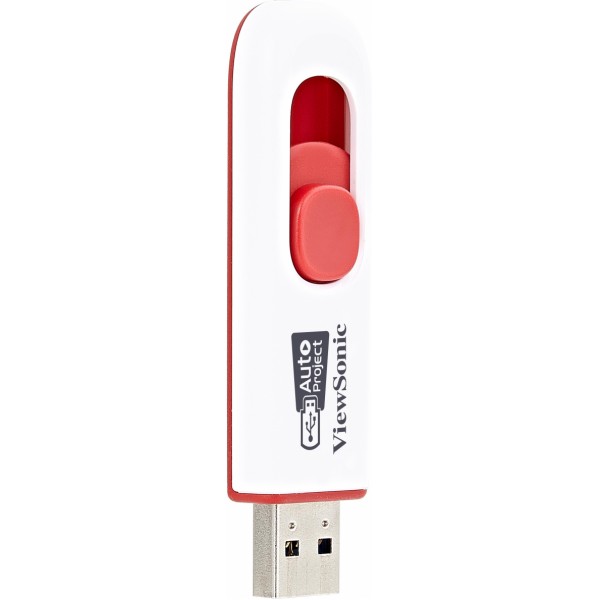

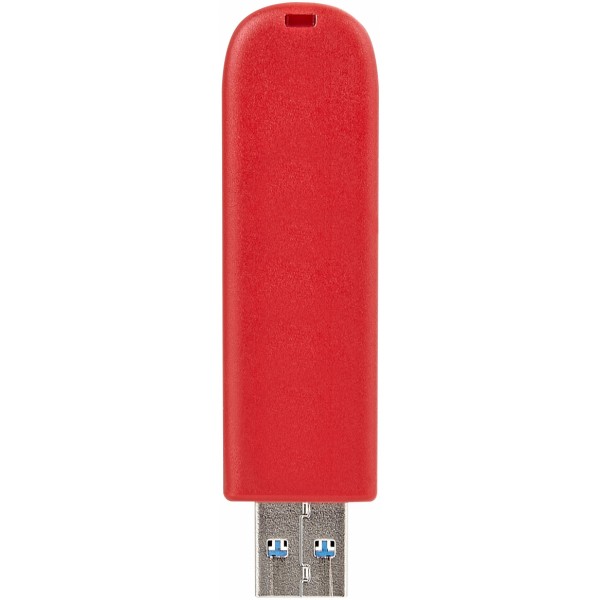

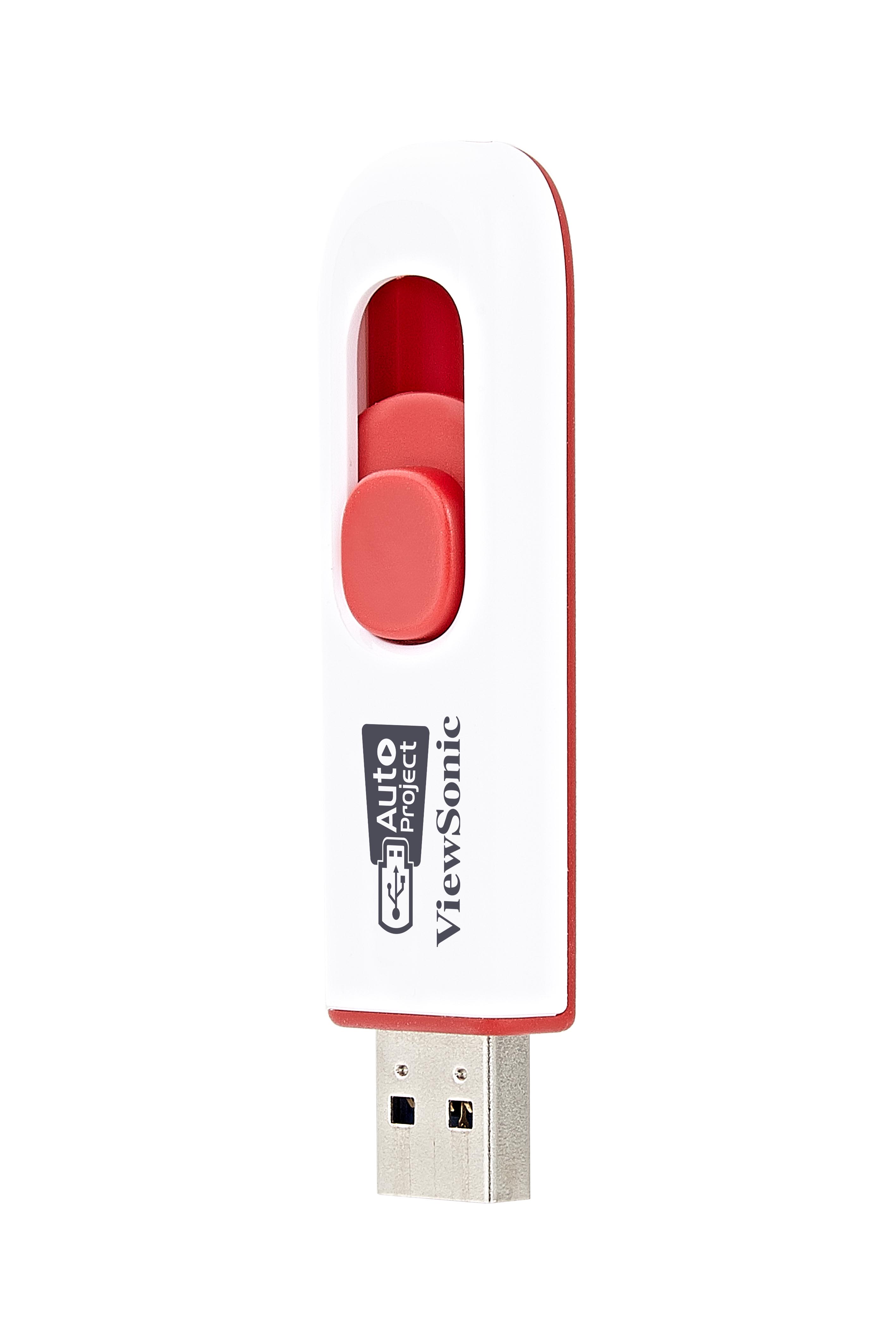

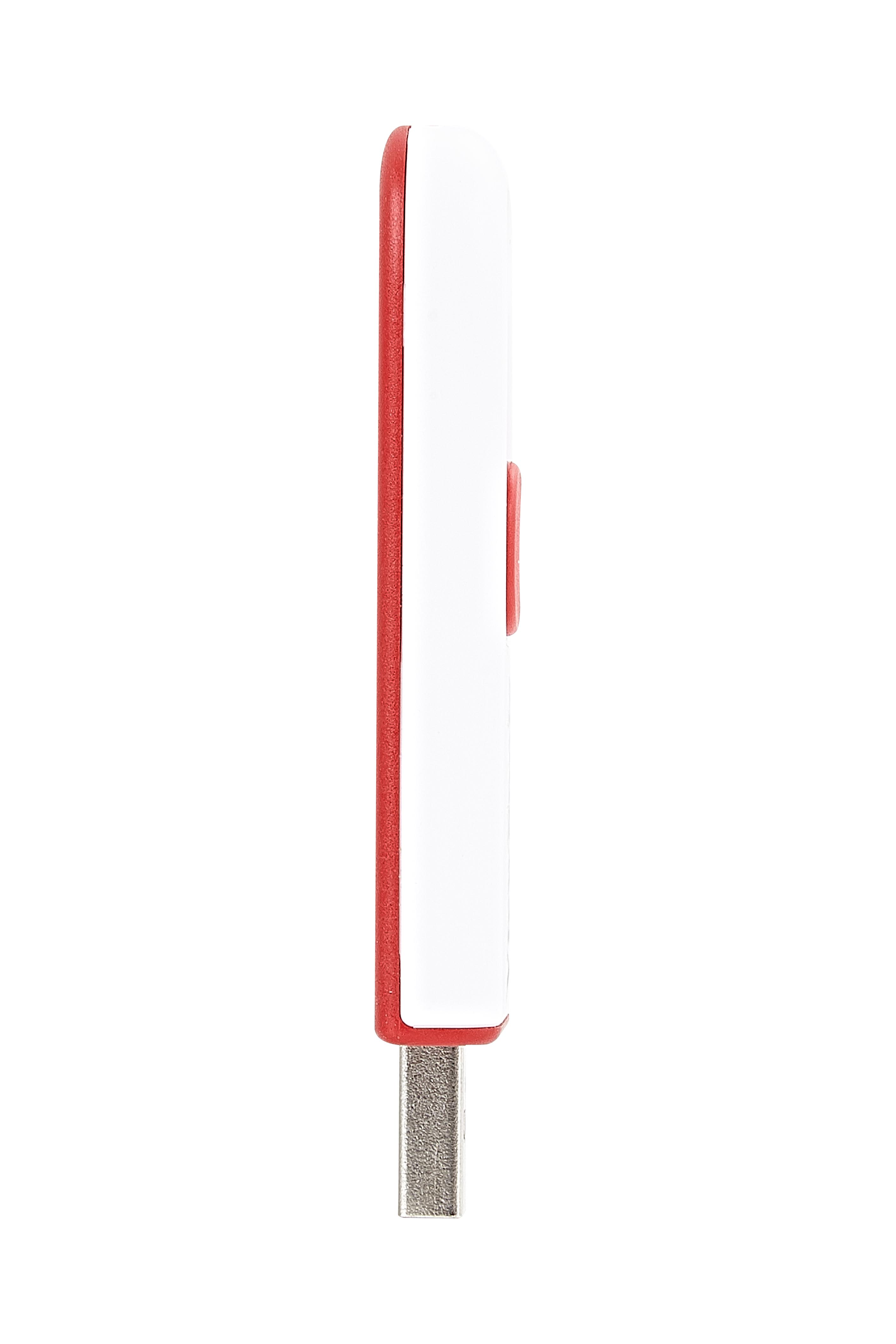

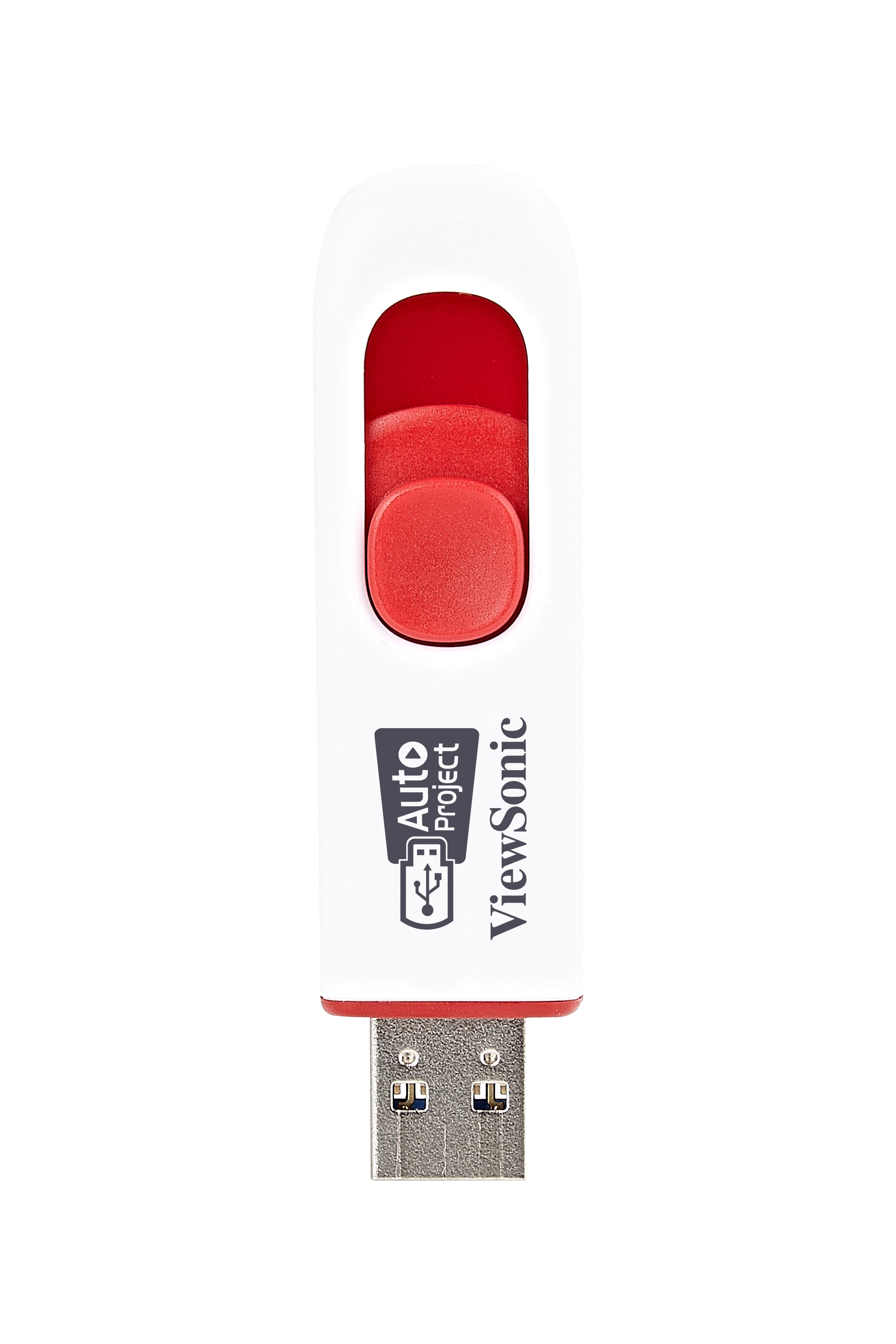

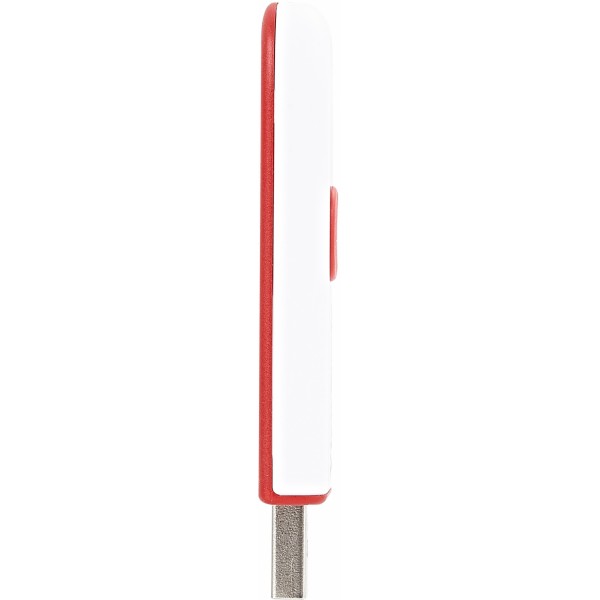

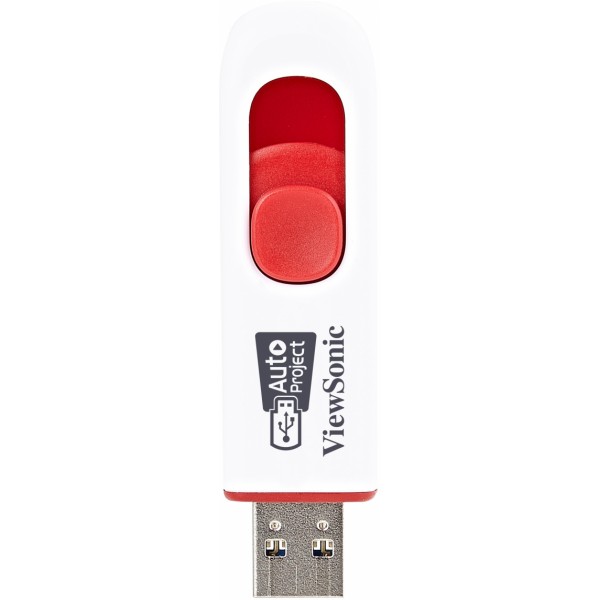

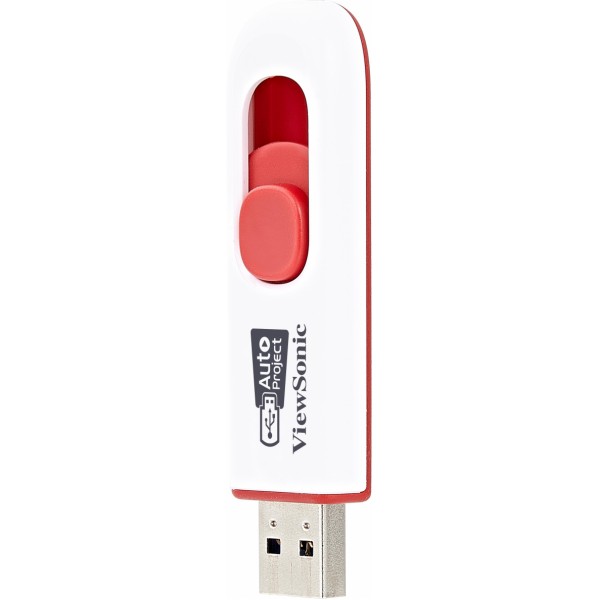

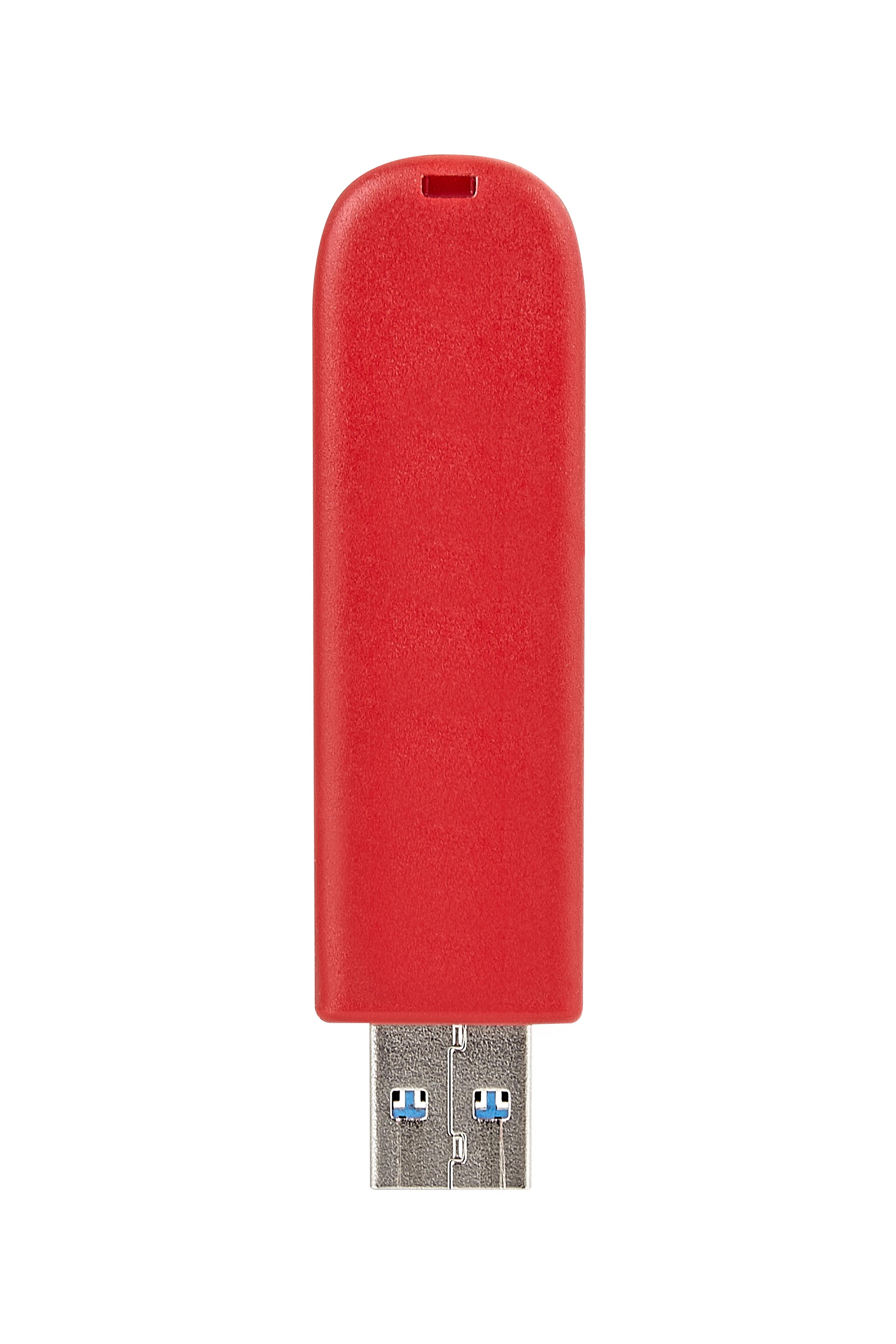

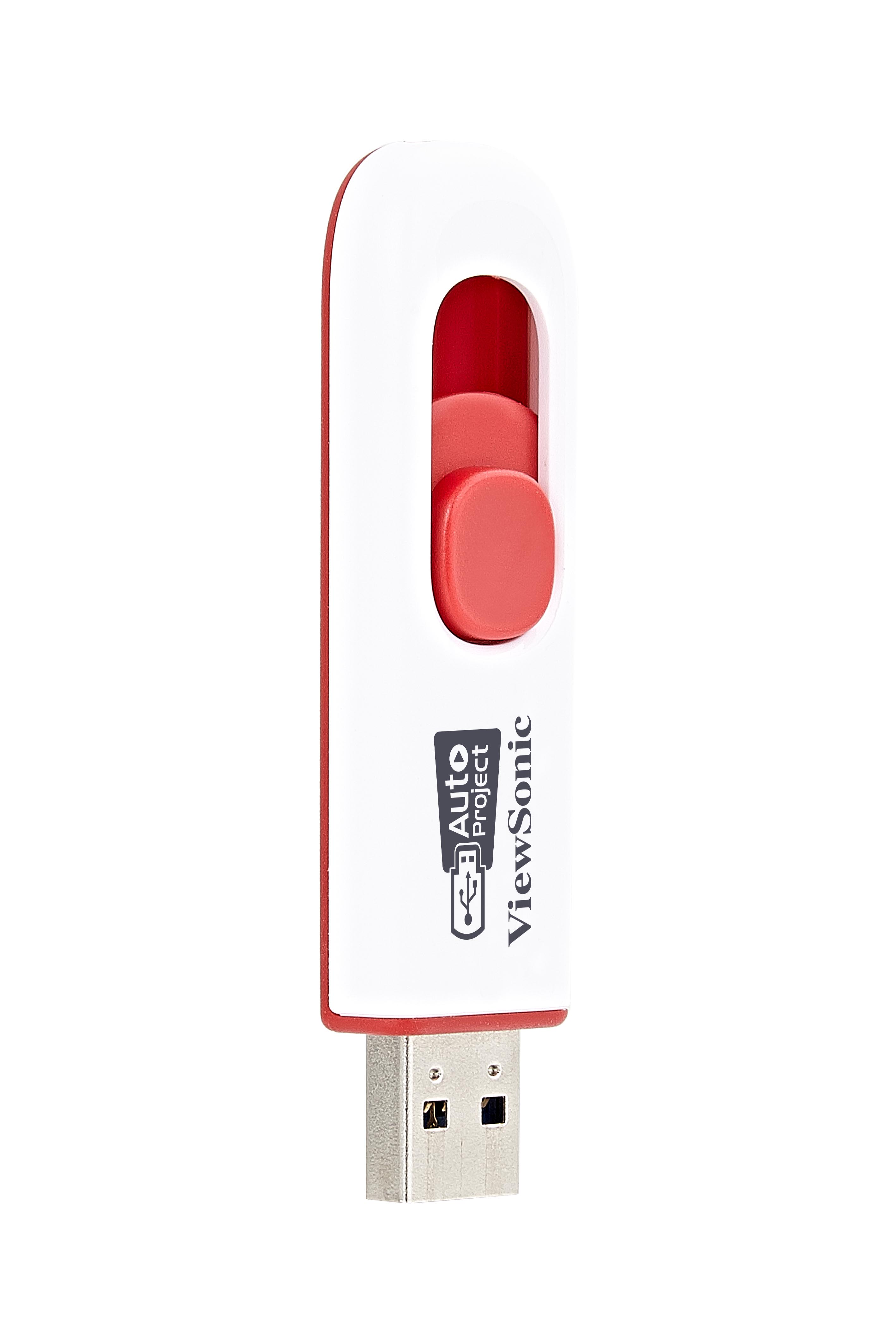

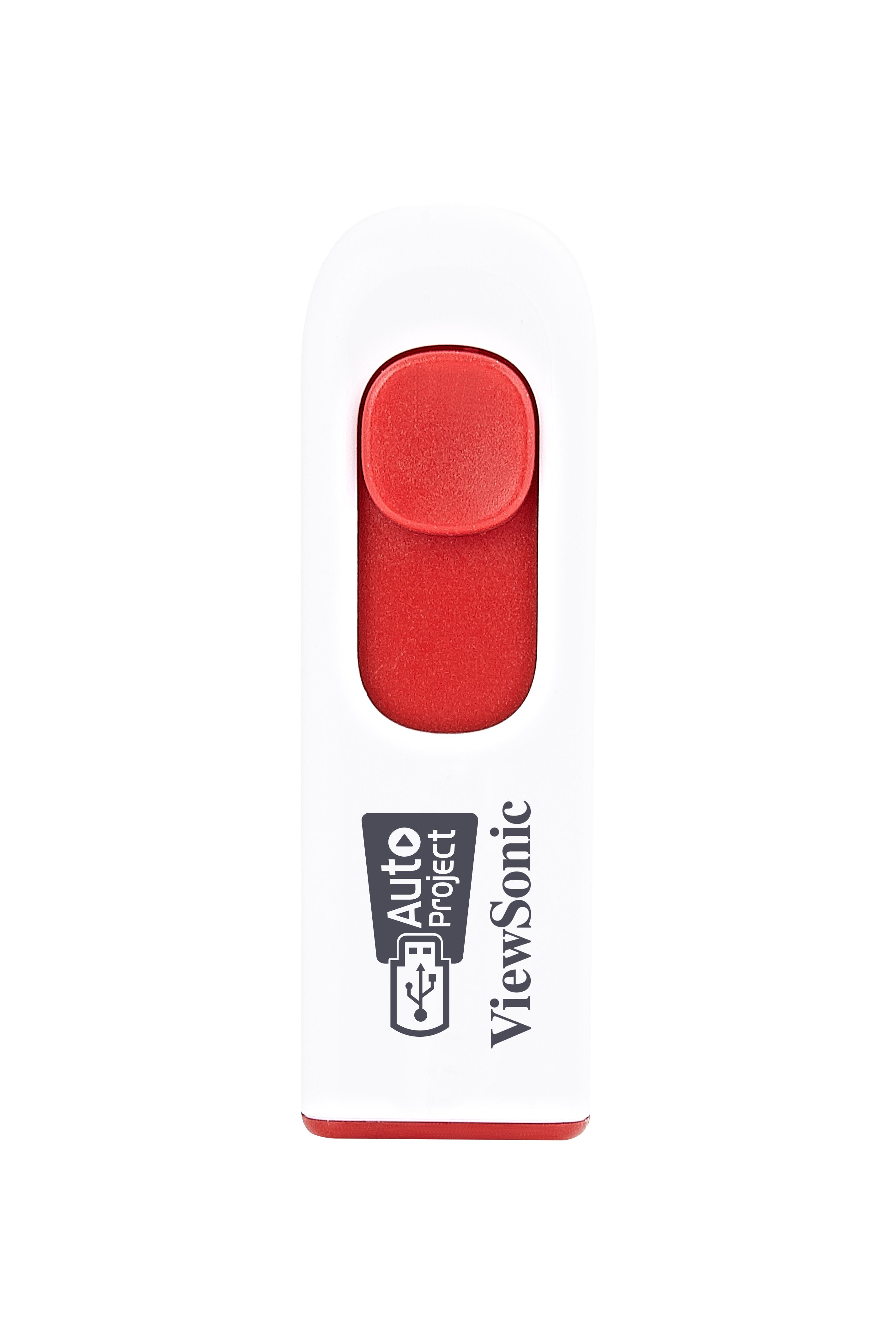

5. AutoProject Key (USB drive) x2

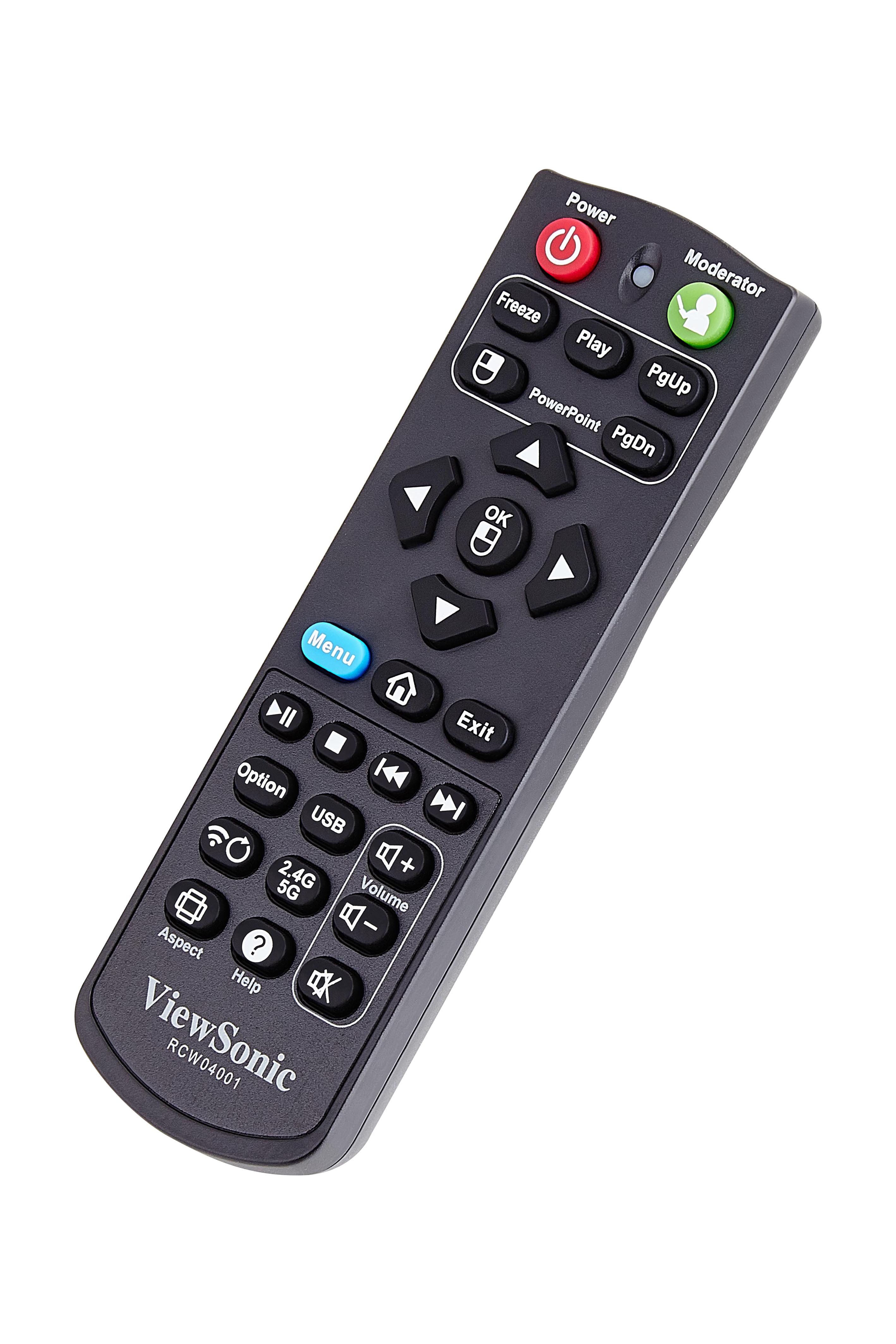

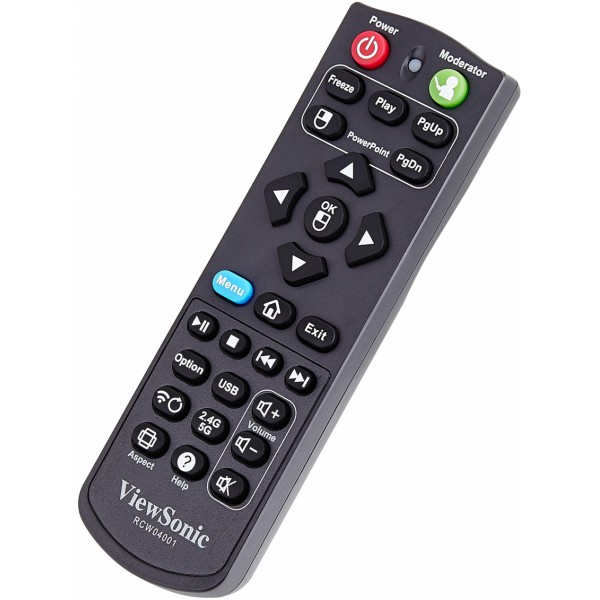

6. Remote control with battery
*Actual content may differ from market to market
