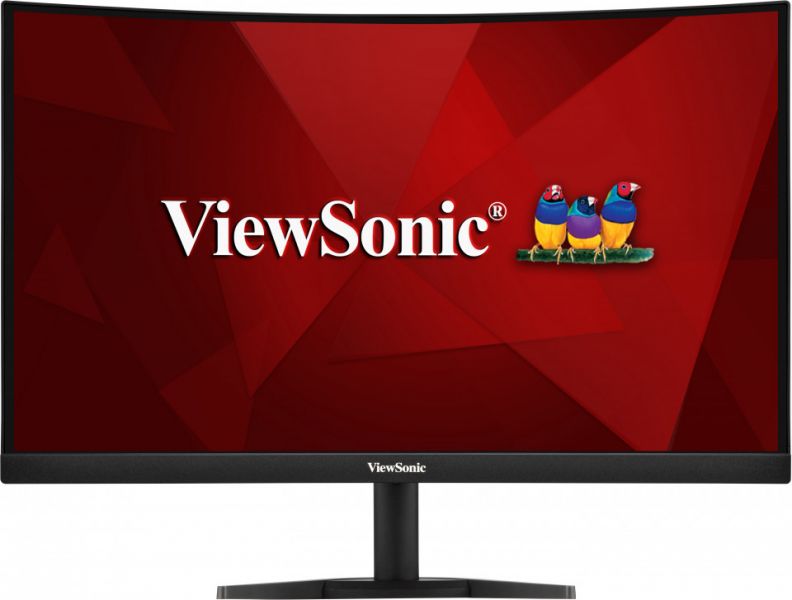

VX2468-PC-MHD

24” 165Hz Curved Gaming Monitor

165Hz refresh rate for smooth gameplay
1ms (MPRT) response time for precision
1500R Curved screen for immersive visuals
AMD FreeSync™ Premium prevents screen tearing
Full HD resolution for rich detail

GALLERY

SPECIFICATIONS

Display
Display Size (in.): 24
Viewable Area (in.): 23.6
Panel Type: VA Technology
Resolution: 1920 x 1080
Resolution Type: FHD
Static Contrast Ratio: 3,000:1 (typ)
Dynamic Contrast Ratio: 80M:1
Light Source: LED
Brightness: 250 cd/m² (typ)
Colours: 16.7M
Colour Space Support: 8 bit (6 bit + FRC)
Aspect Ratio: 16:9
Response Time (MPRT): 1ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: 1500R
Refresh Rate (Hz): 165
Variable Refresh Rate Technology: FreeSync
Blue Light Filter: Yes
Flicker-Free: Yes
Colour Gamut: NTSC: 72% size (Typ)sRGB: 103% size (Typ)
Pixel Size: 0.272 mm (H) x 0.272 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H)
Compatibility
PC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 10 certified; macOS tested
Mac® Resolution (min): 1920x1080

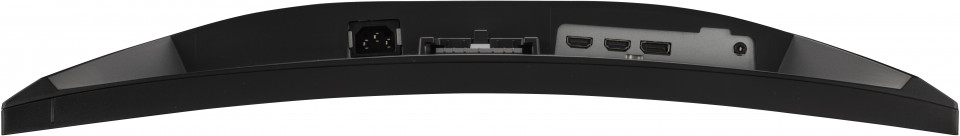

Connector
3.5mm Audio Out: 1
HDMI 2.0: 2
DisplayPort: 1
Power in: 3-pin Socket (IEC C14 / CEE22)

Audio
Internal Speakers: 2Watts x2
Power
Eco Mode (Conserve): 19.27W
Eco Mode (optimized): 24.45W
Consumption (typical): 29.99W
Consumption (max): 32W
Voltage: AC 100-240V, 50/60 Hz
Stand-by: 0.5W
Power Supply: Internal
Additional Hardware
Kensington Lock Slot: 1
Controls
Physical Controls: Joystick key: Up, Right, Down, Left, Center; Key 1 (power)
On Screen Display: Input Select, Audio Adjust, ViewMode, Colour Adjust, Manual Image Adjust, Setup Menu
Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%
Wall Mount
VESA Compatible: 100 x 100 mm
Input Signal
Frequency Horizontal: 30 ~ 184KHz
Frequency Vertical: 48 ~ 165Hz
Video Input
Digital Sync: TMDS - HDMI (v2.0), PCI-E - DisplayPort (v1.2)
Ergonomics
Tilt (Forward/Back): -3º / 21º
Weight (imperial)
Net (lbs): 8.8
Net Without Stand (lbs): 7.6
Gross (lbs): 11.8
Weight (metric)
Net (kg): 4
Net Without Stand (kg): 3.4
Gross (kg): 5.4
Dimensions (imperial) (wxhxd)
Packaging (in.): 24.1 x 16.1 x 7.5
Physical (in.): 21.1 x 16.1 x 7.4
Physical Without Stand (in.): 21.1 x 12.7 x 3.1
Dimensions (metric) (wxhxd)
Packaging (mm): 612 x 408 x 190
Physical (mm): 536 x 408 x 188
Physical Without Stand (mm): 536 x 323 x 78
General
PACKAGE CONTENTS: VX2468-PC-MHD x1, 3-pin Plug (IEC C13 / CEE22) x1, DisplayPort Cable (v1.2; Male-Male) x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
