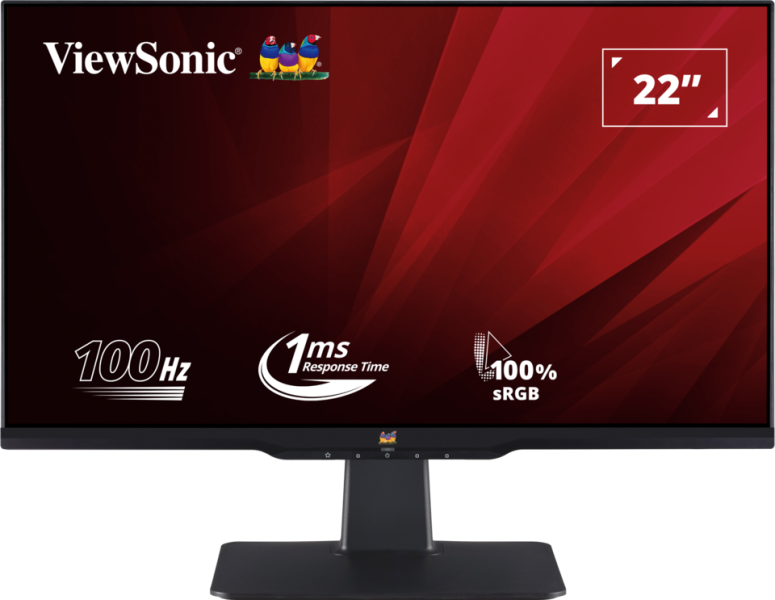

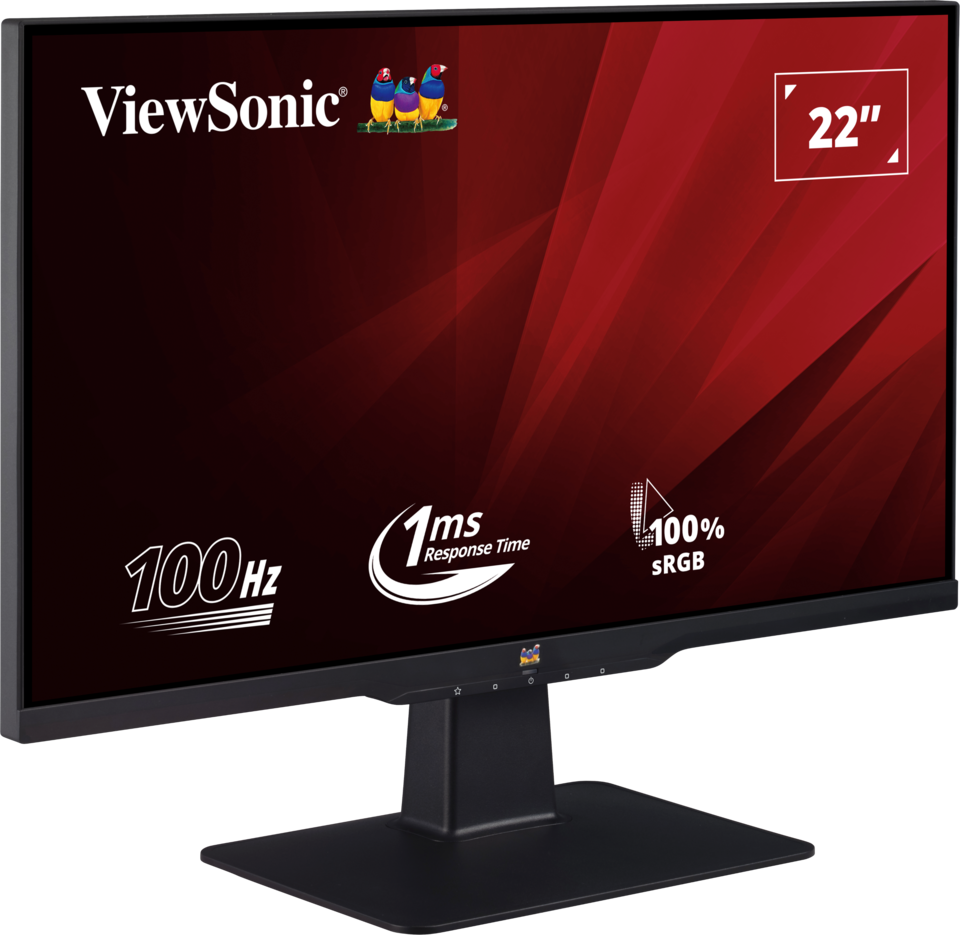

VA2201-H

22" Full HD Monitor with Fast 1ms Response Time

SuperClear® VA panel
100Hz Variable Refresh rate delivers fluid visuals
Eye-care technology for comfortable viewing
Various ViewMode color rendering options
HDMI and VGA Input for flexible connectivity

GALLERY

SPECIFICATIONS

Display
Display Size (in.): 22
Viewable Area (in.): 21.5
Panel Type: VA Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 3,000:1 (typ)
Dynamic Contrast Ratio: 50M:1
Light Source: LED
Brightness: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit true
Aspect Ratio: 16:9
Response Time (MPRT): 1ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 100
Variable Refresh Rate Technology: Yes
Blue Light Filter: Yes
Flicker-Free: Yes
Color Gamut: NTSC: 72% size (Typ)
sRGB: 104% size (Typ)
Pixel Size: 0.249 mm (H) x 0.241 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H)
Compatibility
PC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 10/11 certified; macOS tested
Mac® Resolution (min): 1920x1080

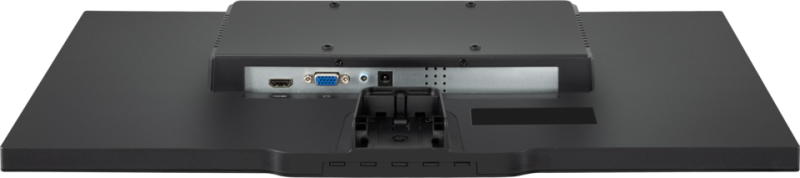

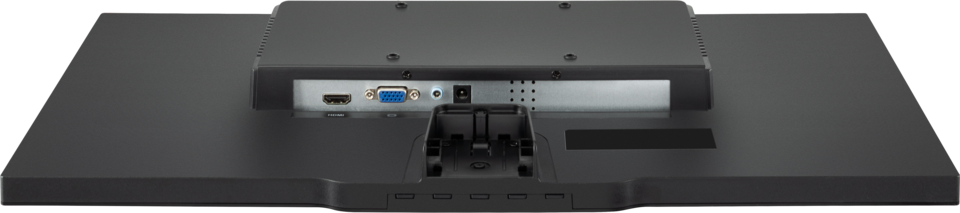

Connector
VGA: 1
3.5mm Audio Out: 1
HDMI 1.4: 1
Power in: DC Socket (Center Positive)

Power
Eco Mode (Conserve): 15W
Eco Mode (optimized): 18W
Consumption (typical): 22W
Consumption (max): 24W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: External Power Adaptor
Additional Hardware
Kensington Lock Slot: 1
Controls
Physical Controls: Key 1 (favorite), Key 2, Key 3 (power), Key 4, Key 5
On Screen Display: Input Select, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%
Wall Mount
VESA Compatible: 100 x 100 mm
Input Signal
Frequency Horizontal: RGB Analog: 24 ~ 86KHz, HDMI (v1.4): 30 ~ 115KHz
Frequency Vertical: RGB Analog: 48 ~ 75Hz, HDMI (v1.4): 48 ~ 100Hz
Video Input
Digital Sync: TMDS - HDMI (v1.4)
Analog Sync: Separate - RGB Analog
Ergonomics

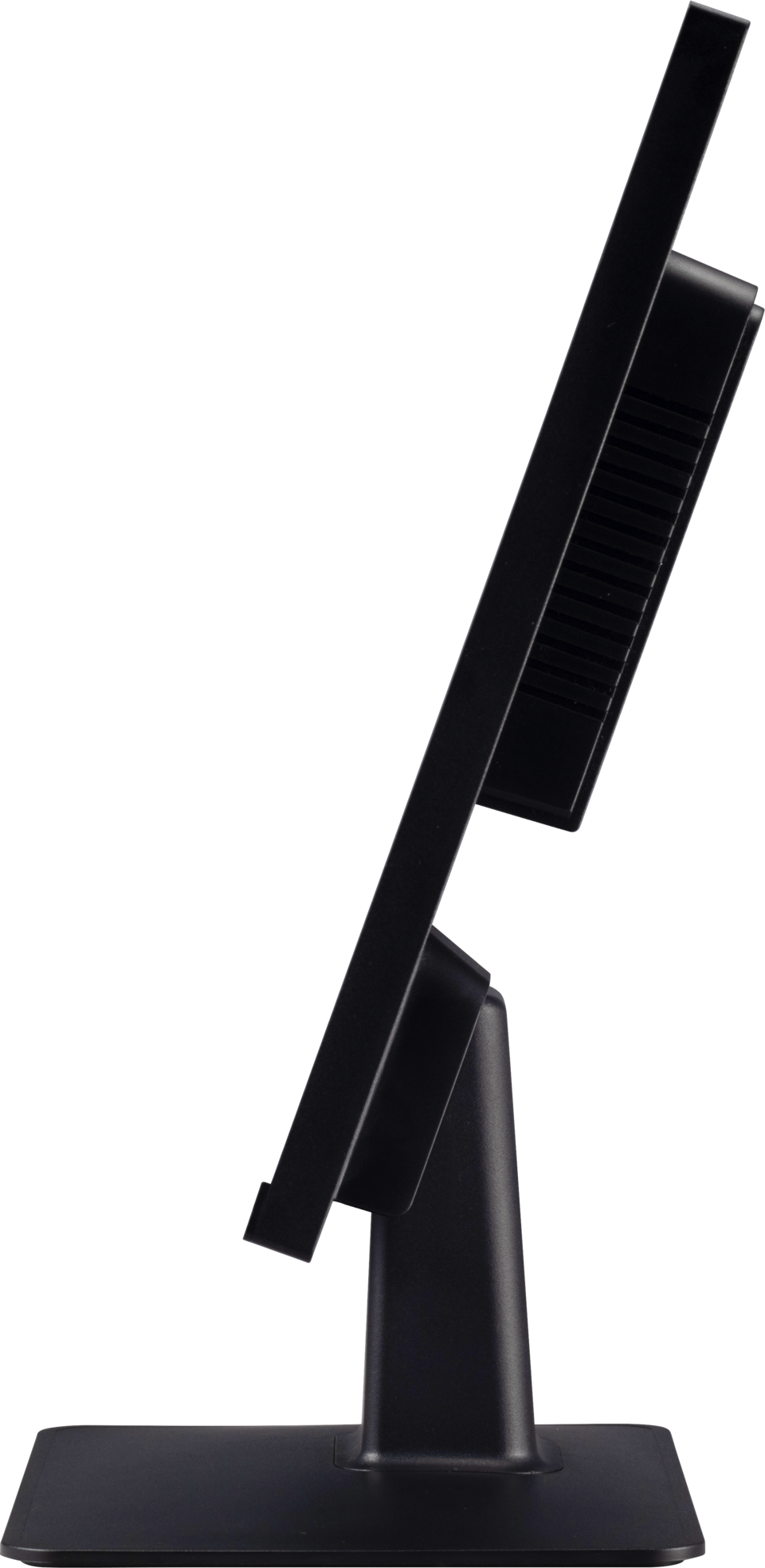

Tilt (Forward/Back): -3º / 20º
Weight (imperial)
Net (lbs): 5.3
Net Without Stand (lbs): 4.9
Gross (lbs): 7.7
Weight (metric)
Net (kg): 2.4
Net Without Stand (kg): 2.2
Gross (kg): 3.5
Dimensions (imperial) (wxhxd)
Packaging (in.): 21.9 x 13.8 x 4.7
Physical (in.): 19.4 x 14.4 x 6.5
Physical Without Stand (in.): 19.4 x 11.3 x 1.6
Dimensions (metric) (wxhxd)
Packaging (mm): 555 x 350 x 120
Physical (mm): 492 x 367 x 165
Physical Without Stand (mm): 492 x 288 x 40
General
PACKAGE CONTENTS: VA2201-H x1, HDMI Cable (v1.4; Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
