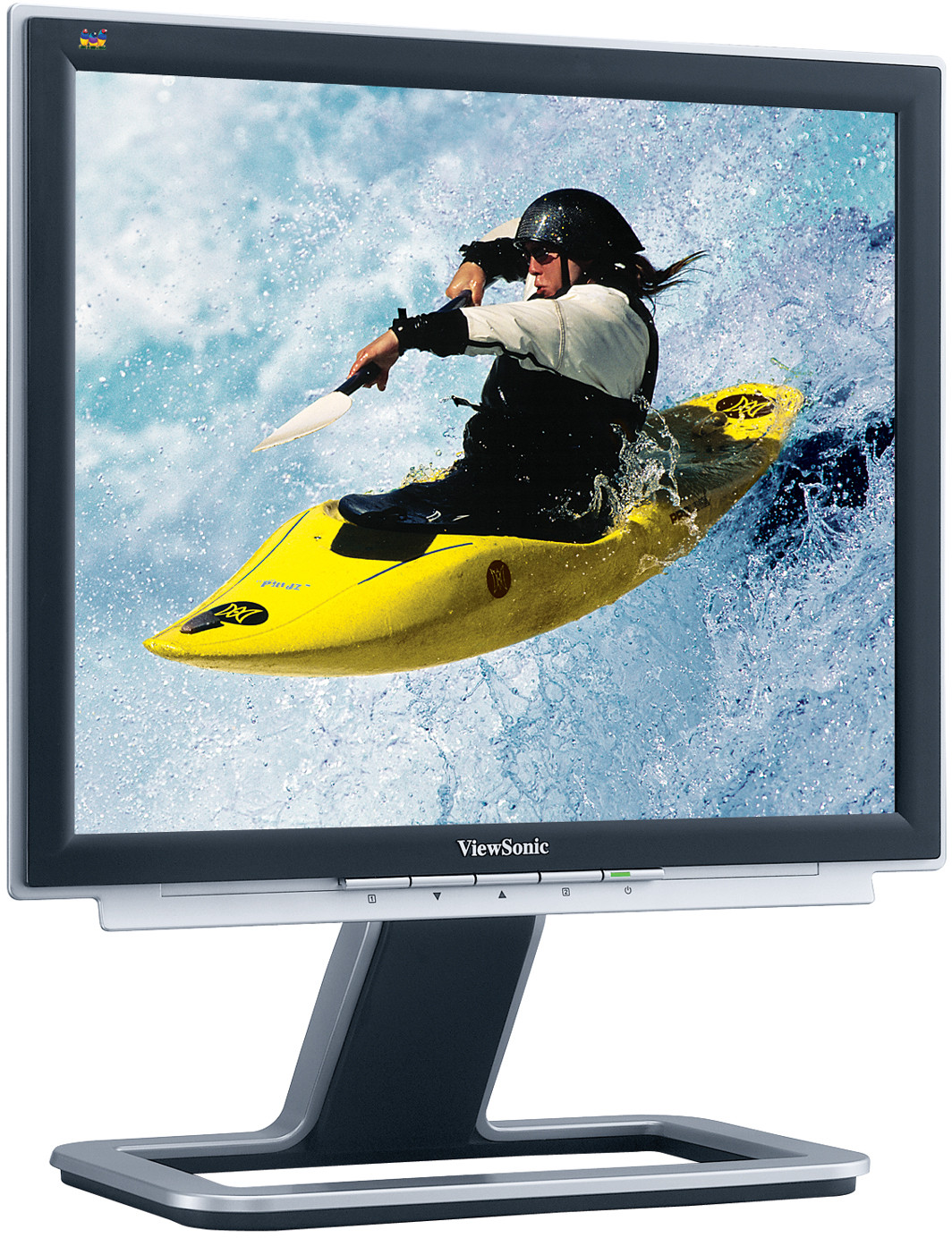

Тип: | 19” colour TFT active matrix SXGA LCD |
Коефіцієнт контрастності: | 550:1 (typ.) |
Кути перегляду: | 140° horizontal, 135° vertical (at 10:1) 160° horizontal, 160° vertical (at 5:1) |
Display Area: | 37.6cm horizontal x 30.1cm vertical, 48.3cm diagonal |
Optimum Resolution: | 1280 x 1024 |
Час відповіді: | 3ms (grey-to-grey), 4.8ms (off-on-off) |
Panel Surface: | anti-glare 3H |
Colour Support: | 16.2M colours (6-bit+2-bit FRC) |
Pixel Clock: | 135MHz |
Яскравість: | 270cd/m² |
PC: | VGA up to 1280 x 1024 (max. 75Hz) |
Mac®: | Power Mac™ up to 1280 x 1024 (max. 75Hz) |
W x H x D mm: | 431 x 468 x 201 (with stand) 431 x 370 x 66 (without stand) |
LCD display, power cable, 15-pin VGA video cable, DVI cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers) |
Please see: www.viewsoniceurope.com/UK/Support/warranty.htm |
Sync: | H/V separate (TTL), composite, sync on green |
Digital: | DVI-D (TMDS, 100 ohm) |
Analogue: | RGB analogue (0.7 Vp-p, 75 ohm) |
Frequency: | Fh: 30–82kHz, Fv: 50–75Hz |
Analogue: | 15-pin mini D-Sub (detachable cable) |
Digital: | 24-pin DVI-D (detachable cable) |
Живлення: | 3-pin (CEE22) |
Напруга: | 100–240V, 50–60Hz (Auto-Switch), internal power |
Споживання: | 35W (typ); ≤ 1 watt in power save mode |
OSD: | Auto image adjust, contrast, brightness, input select, colour adjust (sRGB, 9300K, 6500K, 5400K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number, website), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language, resolution information, OSD position, OSD timeout, OSD background), Recall |
Physical: | Power on/off, menu, up, down, select |
температура: | 0°C to 40°C |
Вологість: | 10% to 90% (non-condensation) |
Нетто: | 6.7kg (with stand), 5.3kg (without stand) |
Meets TCO’99 and Energy Star standards |
Нахил: | Down 5°, Up 20° |
