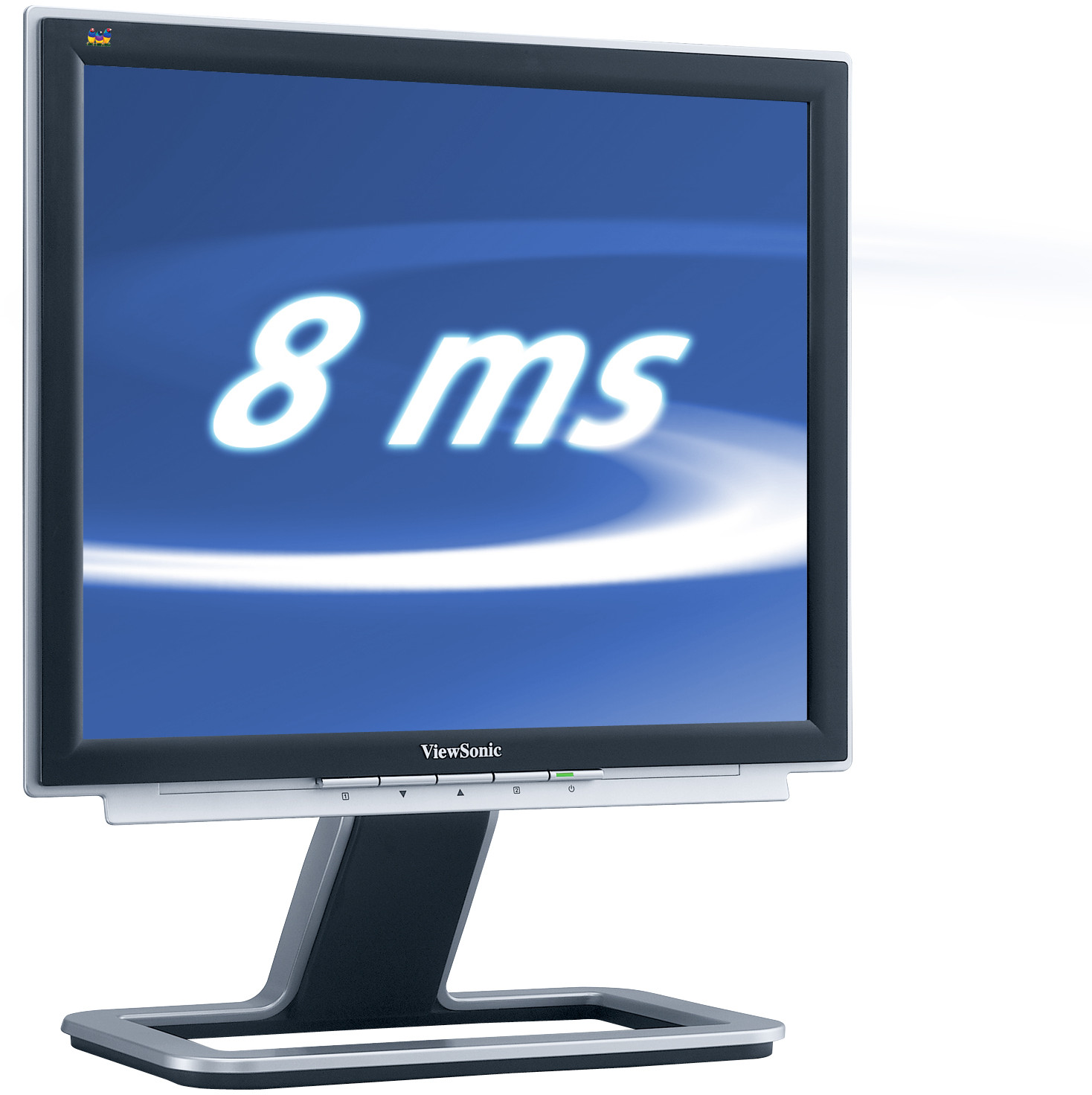

Тип: | 43cm / 17" TN-Colour TFT Active Matrix SXGA LCD |
Коефіцієнт контрастності: | 135MHz |
Кути перегляду: | 140° horizontal, 130° vertical @ 10:1 160° horizontal, 160° vertical @ 5:1 |
Яскравість: | 300cd/m² (typ.) |
Display Area: | 338mm horizontal x 270mm vertical; 43.2cm diagonal |
Optimum Resolution: | 1280 x 1024 |
Час відповіді: | 3ms (grey-to-grey); 5.4ms (on-off-on) (typ.) |
Джерело світла: | Long life, 40,000hrs. (typ.) |
Panel Surface: | Anti-glare |
Pixel Pitch: | 0,264mm |
Colour Support: | 16.2M colours (6-bit + 2-bit FRC) |
Pixel Clock: | 135MHz |
PC: | VGA up to 1280 x 1024 (@ max. 75Hz non-interlaced) |
Mac®: | Power Mac™ G3/G4/G5 1280 x 1024 (@ max. 75Hz) |
W x H x D mm: | 388 x 438 x 176 (with stand) 388 x 332 x 62 (without stand) |
LCD display, power cable, 15-pin VGA video cable, DVI cable, Quick Start Guide, ViewSonic Wizard CD |
Please see: www.viewsoniceurope.com/UK/Support/warranty.htm |
Sync: | H/V separated (TTL), composite, sync-on-green |
Frequency: | Fh: 30-82kHz, Fv: 50-75Hz |
Video: | RGB analogue (75 ohms, 0.7 Vp-p); DVI-D (TMDS, 100 ohms) |
Analogue: | 15-pin mini D-Sub (detachable cable) |
Digital: | 24-pin DVI-D (detachable cable) |
Живлення: | 3-pin AC plug, (CEE22) |
Напруга: | AC 100–240V, 50–60Hz (auto switch), internal power supply |
Споживання: | < 32W (typ); ≤ 1 watt in power save mode |
Physical: | Down 5°, Up 20° |
Main Menu: | Auto image adjust, brightness, contrast, input select [analogue, digital], ViewMatch® colour adjust [sRGB, 9300K, 6500K-default, 5400K, user colour - RGB], information [resolution, H. frequency, V. frequency, pixel clock, model number, serial number], manual image adjust [H. size, H./V. position, fine tune, sharpness], setup menu [language (English, French, German, Italian, Spanish, Finnish, Japanese, Traditional Chinese, Simplified Chinese), resolution notice, OSD position, OSD timeout, OSD background], memory recall, OSD lock, power lock |
Нетто: | 5.0kg (with stand) |
Meets TCO’99, Energy and ENERGY STAR standards |
Нахил: | Down 5°, Up 20° |
Вологість: | 10% to 90% (non-condensation) |
температура: | 0°C to 40°C |
