LCD-дисплей
VX1945wm
Основні особливості
Опис товару

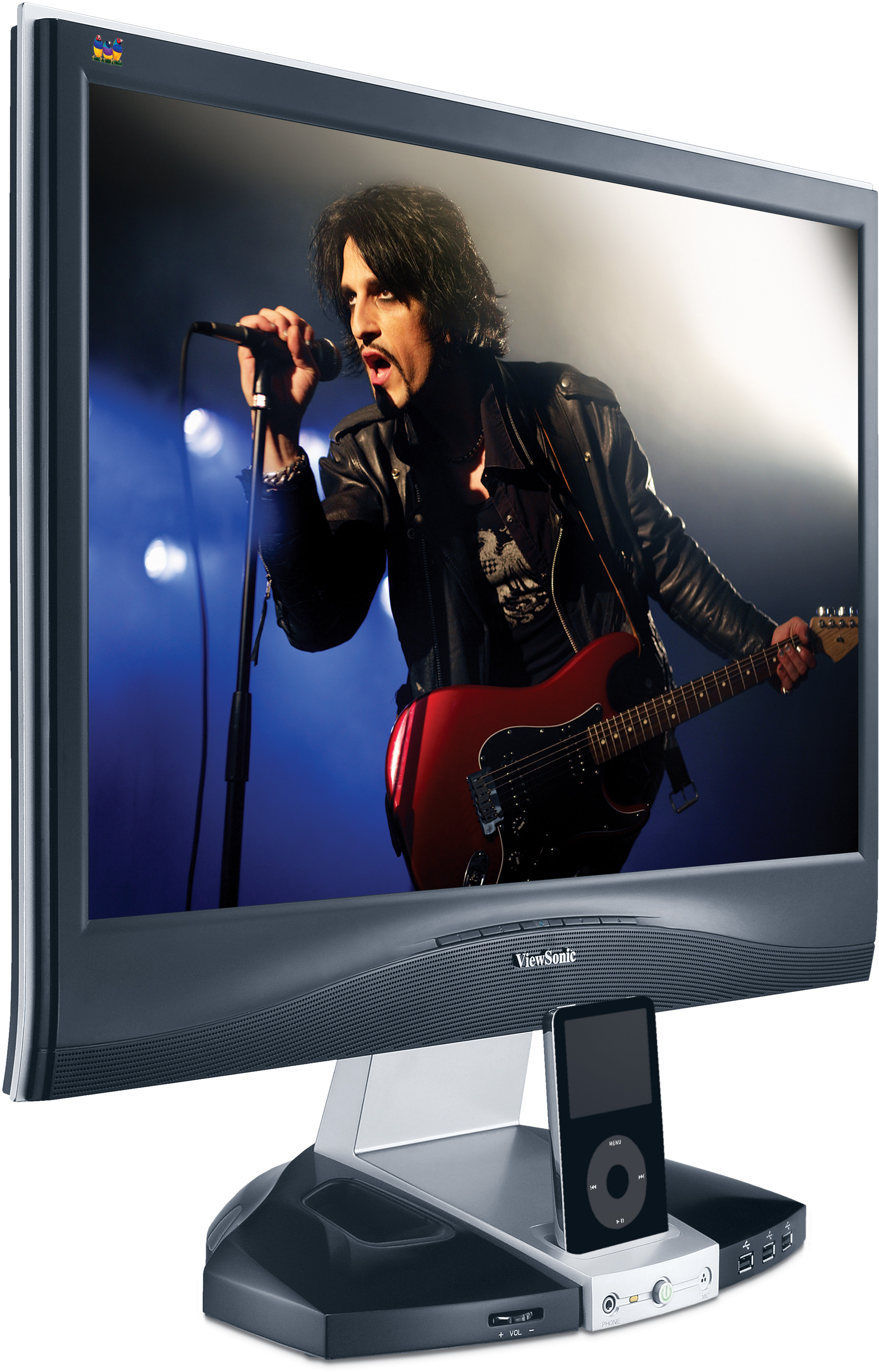

Stop, Dock and Rock – the ViewSonic 19” VX1945wm ViewDock™ LCD is the ultimate entertainment display. Dock your iPod® to access all your digital content. Boost your handheld photos and videos and view on the large widescreen display. Hear your digital content with built-in stereo speakers and additional subwoofer for unparalleled audio performance – or go silent with the headphone jack. Manage your digital media with the integrated 8-in-1 digital card reader for camera cards. Connect your digital devices through the 4 USB ports. Chat on-line using the built-in microphone. The super-fast 5ms response time screen lets you watch movies or play games free from blurs or ghosting. Your desktop experience will never be the same once you bring it all together with the VX1945wm ViewDock and iPod®.
Відвідайте нас
- www.viewsonic.com
-
COLORS
Black -
LCD
Тип: 19” Wide TN colour TFT active matrix WXGA+ LCD Коефіцієнт контрастності: 700:1 (typ.) Кути перегляду: 140° horizontal, 140° vertical (at 10:1), 160° horizontal, 160° vertical (at 5:1) Яскравість: 300cd/m2 Display Area: 41.0cm horizontal x 25.6cm vertical, 48.3cm diagonal Optimum Resolution: 1440 x 900@60Hz Час відповіді: 5ms (off-on-off) (typ.) Джерело світла: Long life, 40,000 hrs. (typ) Panel Surface: Anti-glare Pixel Pitch: 0.285mm Colour Support: 16.2M colours (6-bit+2-bit FRC) Pixel Clock: 140MHz -
COMPATIBILITY
PC: VGA up to 1440x900 non-interlaced Mac®: Power Mac™ G3/G4/G5 up to 1440 x 900 non-interlaced -
DIMENSIONS
Physical With Stand: 450 x 449 x 212 Physical Without Stand: 450 x 341 x 66 W x H x D mm: 545 x 520 x 260 -
ВМІСТ УПАКОВКИ
LCD Monitor, power cable, 15-pin VGA video cable, DVI cable, audio cable,
USB cable, iPod® adapter, Quick Start Guide, ViewSonic Wizard CD-ROM
(User Guide/drivers) (multi-language) -
WARRANTY
Three-year limited warranty on LCD, parts and labor. Optional Express Exchange® service program available. -
AUDIO
Динамік: 2 x 2 watt integrated stereo speakers Sub-woofer: 1 x 3 watt intergrated into base Microphone: Integrated into base -
RECYCLE/DISPOSAL
The lamp in this product contains mercury. Please dispose of in accordance with local, state and federal laws. -
CONNECTOR
Analogue: 15-pin mini D-Sub (detachable cable) Digital: 24-pin DVI-D (detachable cable) Живлення: 3-pin plug USB: USB 2.0 hub, 1x upstream (4-pin Typ B)/4x downstream (4-pin Typ A) Base: iPod dock, USB (A type)x4, USB (B type)x1, audio out stereo jack, 2-in-1 audio in, headphone jack Аудіо: 1 x 3.5mm stereo audio line-in, 1 x 3.5mm stereo audio line-out Headphone: 3.5mm mini stereo jack ViewDock: iPod® dock (Made for iPod® certified) Card Reader: 8-in-1 digital card reader -
POWER
Напруга: AC 100– 240V, 50/60Hz (auto switch), internal power supply (Display) Споживання: 59 watt (typ.), <1 watt in power save mode -
CONTROLS
Basic: Power, menu [1], up, down, select [2], mute, subwoofer volume up/down OSD: Auto image adjust, contrast, brightness, input select (D-sub, DVI-D), ViewMatch® colour adjust (sRGB, 9300K, 7500K, 6500K, 5400K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall -
OPERATING CONDITIONS
температура: 0°C – 40°C Вологість: 20%–80% (non-condensation) -
WEIGHT
Net With Stand: 5.7kg Net Without Stand: 4.7kg Gross With Stand: 7.7kg -
VIDEO INPUT
Analog/Digital: RGB analogue (0.7 Vp-p, 75 ohm) Frequency: Fh: 30~82kHz, Fv: 50~85Hz Sync: H/V separated (TTL), composite, sync-on-green Digital: DVI-D (TMDS, 100 ohm) -
POWER MANAGEMENT
Meets MPR II and ENERGY STAR® standards -
SECURITY
Kensington® security port -
VESA MOUNT COMPLIANT
VESA FDMI 100mm x 100mm -
ERGONOMICS
Нахил: Down 5°, Up 20°
