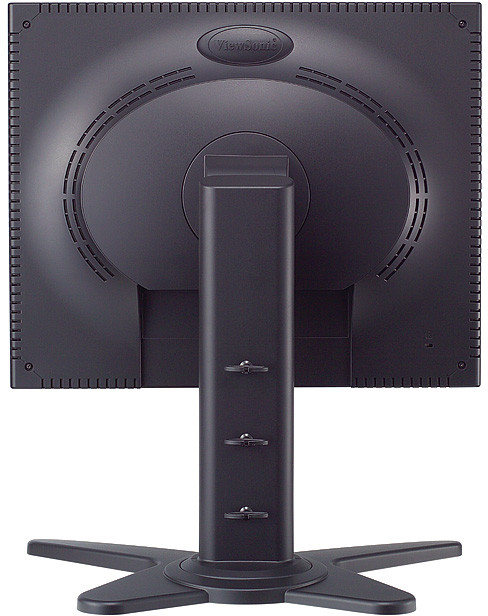

ViewSonic VP930 ERGONOMIC 19" LCD MONITOR WITH PERFECT SUITE

LCD

Тип:	48cm / 19" MVA colour TFT active matrix SXGA LCD
Коефіцієнт контрастності:	1300:1 (typ.)
Кути перегляду:	178° horizontal, 178° vertical (at 10:1)
Яскравість:	300cd/m² (typ.)
Display Area:	376mm (horizontal) x 301mm (vertical), 483mm diagonal
Optimum Resolution:	1280 x 1024
Час відповіді:	8ms (grey-to-grey), 20ms (off-on-off)
Panel Surface:	Anti-glare
Pixel Pitch:	0.294mm
Bandwidth:	135MHz
Colour Support:	16.7M (8bit)

COMPATIBILITY

PC: Compatible from VGA up to 1280 x 1024 non-interlaced (max. 75Hz)

Mac®: Power Mac™ up to 1280 x 1024 (max. 75Hz)
DIMENSIONS

W x H x D mm: 412 x 356–491 x 289 (w/stand)

412 x 336 x 61 (w/o stand)
ВМІСТ УПАКОВКИ

LCD display, power cable, 15-pin VGA video cable, DVI cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers/PerfectSuite software), portrait/pivot CD-ROM software
CONNECTOR

Analogue: 2 x 15-pin mini D-sub (detachable cable)

Digital: DVI-D (detachable cable)

Живлення: 3-pin plug (CEE22)
POWER

Напруга: AC 100-240V, 50-60Hz (Auto-Switch), internal power supply

Споживання: 38 watt (max.), <= 1 watt in suspend mode

CONTROLS

Basic:

Soft power, menu [1] , down, up, select [2], main power

OSD:

Auto image adjust, contrast, brightness, input select (D-sub 1, D-sub 2, DVI), colour adjust (sRGB, 9300K, 7500K, 6500K, 5400K, 5000K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background, OSD pivot), auto white balance, OSD/power lock, memory recall

OPERATING CONDITIONS

температура: 0° to 40°

Вологість: 10% to 90% (non-condensing)
WEIGHT

Нетто: 6.8kg (w/ stand);

4.2 kg (w/o stand)
VIDEO INPUT

Frequency: DVI-D (TMDS, 100 ohms)

Sync: H/V separated (TTL), composite, sync on green

Analogue: RGB analogue (0.7/1.0 Vp-p , 75 ohms)

Digital: DVI-D (TMDS, 100 ohms)
POWER MANAGEMENT

Meets TCO'03, ENERGY and Energy Star standards
ERGONOMICS

Нахил: Down 5°, up 20°

Поворотний: 270° (135° left/right)

Height Adjustment: 0~135mm

Pivot: 0°~90°

PC:	Compatible from VGA up to 1280 x 1024 non-interlaced (max. 75Hz)
Mac®:	Power Mac™ up to 1280 x 1024 (max. 75Hz)

Analogue:	2 x 15-pin mini D-sub (detachable cable)
Digital:	DVI-D (detachable cable)
Живлення:	3-pin plug (CEE22)

Напруга:	AC 100-240V, 50-60Hz (Auto-Switch), internal power supply
Споживання:	38 watt (max.), <= 1 watt in suspend mode

температура:	0° to 40°
Вологість:	10% to 90% (non-condensing)

Frequency:	DVI-D (TMDS, 100 ohms)
Sync:	H/V separated (TTL), composite, sync on green
Analogue:	RGB analogue (0.7/1.0 Vp-p , 75 ohms)
Digital:	DVI-D (TMDS, 100 ohms)

Нахил:	Down 5°, up 20°
Поворотний:	270° (135° left/right)
Height Adjustment:	0~135mm
Pivot:	0°~90°
