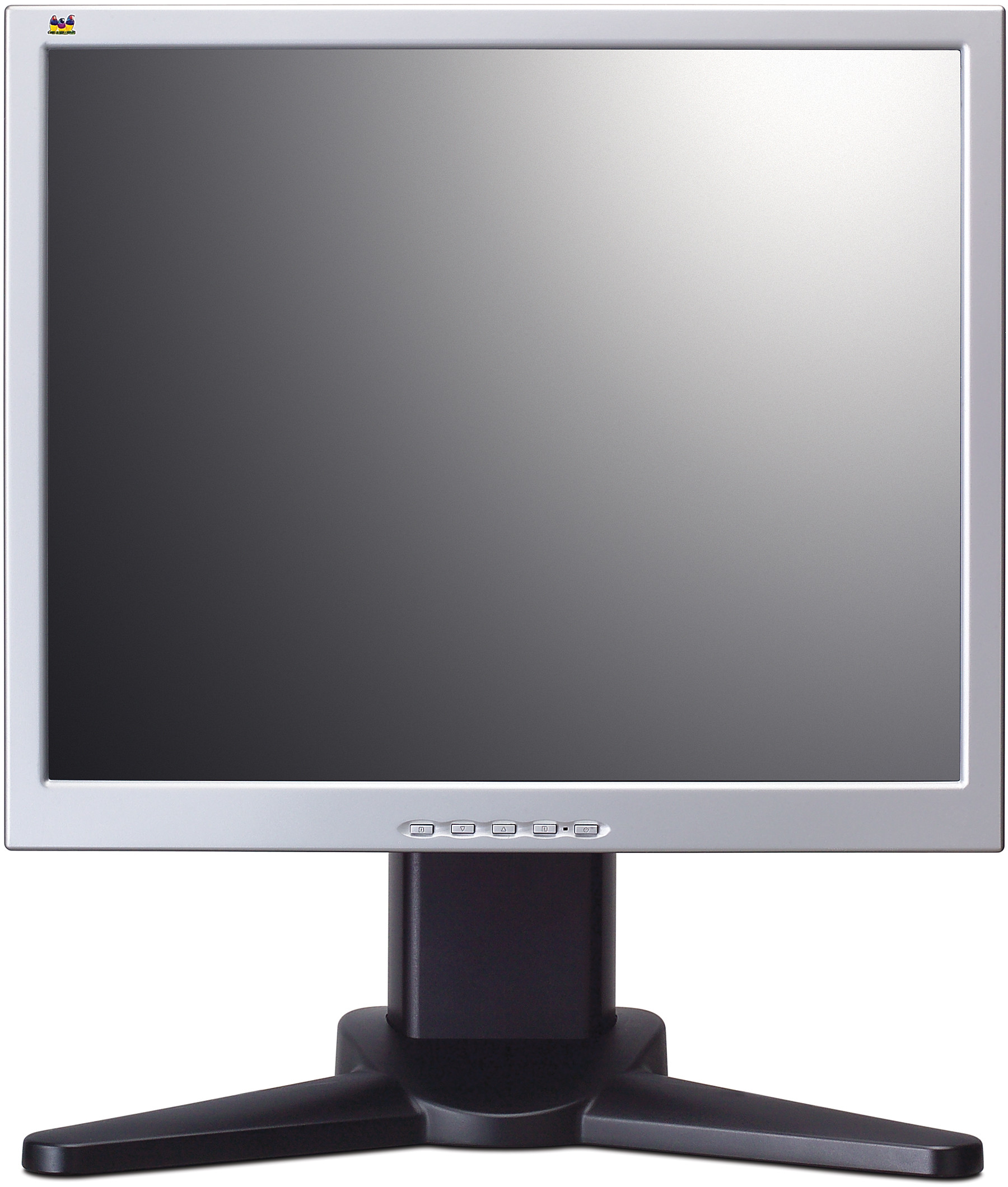

ViewSonic VP720 ERGONOMIC 17" LCD MONITOR WITH ULTRA-FAST 4MS VIDEO RESPONSE

LCD

Тип:	17” TN colour TFT active matrix SXGA LCD
Коефіцієнт контрастності:	500:1 (typ.)
Кути перегляду:	140° horizontal, 130° vertical (at 10:1) 170° horizontal, 170° vertical (at 5:1)
Display Area:	33.8cm horizontal x 27.0cm vertical, 43.2cm diagonal
Optimum Resolution:	1280 x 1024
Час відповіді:	4ms (Grey-to-Grey), 8ms (off-on-off) (typ.)
Panel Surface:	Anti-glare
Pixel Pitch:	0.264mm
Bandwidth:	135MHz
Colour Support:	16.2M colours (6-bit+2-bit FRC)
Яскравість:	280cd/m²

COMPATIBILITY

PC: VGA up to 1280 x 1024 non-interlaced (max. 60Hz)

Mac®: Power Mac™ up to 1280 x 1024 non-interlaced (max. 60Hz)
DIMENSIONS

W x H x D mm: 376 x 463 x 229 (with stand)
376 x 320 x 68 (without stand)
ВМІСТ УПАКОВКИ

LCD Monitor, power cable, 15-pin VGA video cable, DVI cable, audio cable,
Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers)
WARRANTY

Please see:
www.viewsoniceurope.com/UK/Support/warranty.htm
INPUT

Sync: H/V separate (TTL), composite, sync on green

Digital: DVI-D (TMDS, 100 ohm)

Analogue: RGB analogue (0.7/1.0 Vp-p, 75 ohm)

Frequency: Fh: 24 – 82kHz, Fv: 50 – 85Hz
CONNECTOR

Analogue: 15-pin mini D-Sub (detachable cable)

Digital: 24-pin DVI-D (detachable cable)

Аудіо: 3.5mm stereo audio line-in

Живлення: 3-pin (CEE22)
POWER

Напруга: AC 100 – 240V, 50/60Hz (auto switch), internal power supply

Споживання: <45 watt (max.), ≤1 watt in power save mode

CONTROLS

Basic:

Power on/off, menu [1], up, down, select [2]

OSD:

Auto image adjust, contrast, brightness, input select (D-sub, DVI-D), Audio
adjust (volume, mute), colour adjust (sRGB, 9300K, 7500K, 6500K, 5400K,
5000K, user RGB), information (resolution, H/V frequency, pixel clock, model
number, serial number, website), manual image adjust (H/V position, H size,
fine tune, sharpness), setup menu (language, resolution notice, OSD
position, OSD timeout, OSD background), OSD/power lock, memory recall

OPERATING CONDITIONS

температура: 0°C - 40°C

Вологість: 10% - 90% (non-condensation)
WEIGHT

Нетто: 5.45kg (with stand), 3.7kg (without stand)
POWER MANAGEMENT

Meets TCO’03, ENERGY and Energy Star standards
SECURITY

Kensington® security port
VESA MOUNT COMPLIANT

VESA FPMPMI 100mm x 100mm
ERGONOMICS

Нахил: Down 5°, Up 20°

Height Adjustment: 0~100mm

Pivot: 0°~90°
AUDIO

Speakers: 2 x 1 watt

PC:	VGA up to 1280 x 1024 non-interlaced (max. 60Hz)
Mac®:	Power Mac™ up to 1280 x 1024 non-interlaced (max. 60Hz)

Sync:	H/V separate (TTL), composite, sync on green
Digital:	DVI-D (TMDS, 100 ohm)
Analogue:	RGB analogue (0.7/1.0 Vp-p, 75 ohm)
Frequency:	Fh: 24 – 82kHz, Fv: 50 – 85Hz

Analogue:	15-pin mini D-Sub (detachable cable)
Digital:	24-pin DVI-D (detachable cable)
Аудіо:	3.5mm stereo audio line-in
Живлення:	3-pin (CEE22)

Напруга:	AC 100 – 240V, 50/60Hz (auto switch), internal power supply
Споживання:	<45 watt (max.), ≤1 watt in power save mode

температура:	0°C - 40°C
Вологість:	10% - 90% (non-condensation)

Нахил:	Down 5°, Up 20°
Height Adjustment:	0~100mm
Pivot:	0°~90°
