Основні особливості

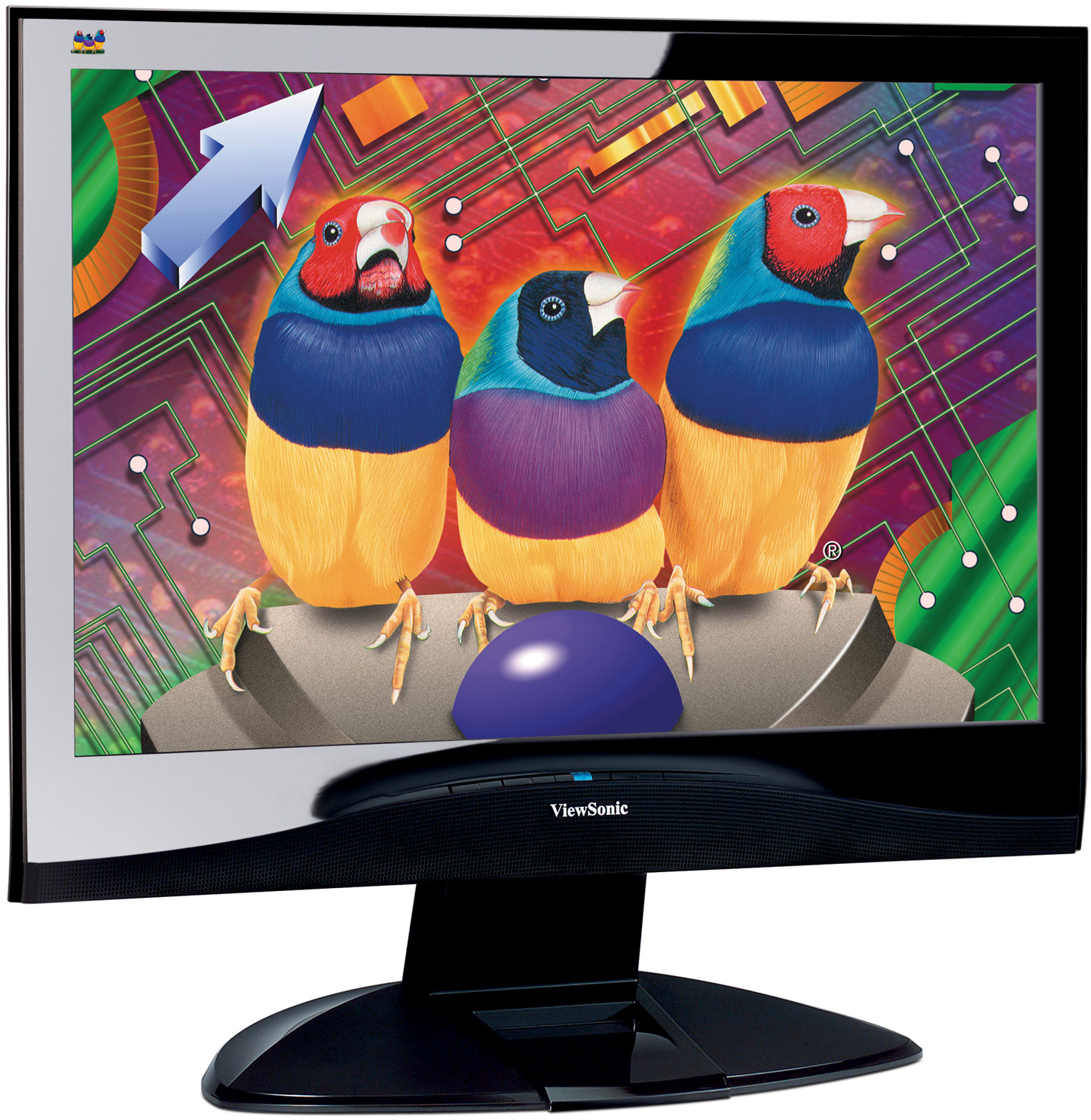

VLED221wm
Опис товару
ViewSonic’s 56 cm / 22" VLED221wm widescreen LCD features a mercury-free LED backlight that requires less power than a standard 56 cm / 22"LCD yet produces exceptionally brilliant colour and crystal-clear images. OptiColor 118% NTSC and Super-HD 1680 x 1050 resolution deliver the deepest colour rendition, while the 16:10 widescreen panel allows users to work in two documents or applications side-by-side. Unmatched 12000:1 Dynamic Contrast Ratio (typ.) further supports the VLED221wm’s excellent front-of-screen performance with the blackest blacks and whitest whites. OptiSync digital and analogue inputs and integrated speakers expand this display’s multimedia versatility. Gamers, movie fans, graphic designers and home offi ce users will love the performance and style of the VLED221wm.
Відвідайте нас
  • www.viewsonic.com
  • COLORS
    Black
  • LCD
    Тип: 56 cm / 22"Wide TN colour TFT active matrix WSXGA+ LCD
    Коефіцієнт контрастності: 1000:1 (typ.), 12000:1 DCR (typ.)
    Кути перегляду: 170° horizontal, 160° vertical (at 10:1)

    170° horizontal, 170° vertical (at 5:1)
    Яскравість: 250cd/m² (typ.)
    Display Area: 47.4cm horizontal x 29.6cm vertical, 55.9cm diagonal
    Optimum Resolution: 1680 x 1050@60Hz
    Час відповіді: 5ms (off-on-off) (typ.)
    Джерело світла: LED backlight array
    Panel Surface: Anti-glare (3H)
    Pixel Pitch: 0.282mm
    Colour Support: 16.7M colours supported (6-bit+2-bit FRC)
    Pixel Clock: 170MHz
    Колірна гама: Wide colour gamut: 118% NTSC
  • COMPATIBILITY
    PC: VGA up to 1680 x 1050 non-interlaced
    Mac®: Power Mac™ up to 1680 x 1050 non-interlaced
  • DIMENSIONS
    Physical With Stand: 524 x 482 x 244
    Physical Without Stand: 524 x 355 x 64
    W x H x D mm: 575 x 522 x 150
  • ВМІСТ УПАКОВКИ
    LCD Monitor, power cable, 15-pin VGA video cable, DVI cable, audio cable, Quick Start Guide, ViewSonic Wizard CD-ROM (multi-language User Guides/drivers and SRS WOW HD software)
  • AUDIO
    Динамік: 2 x 2.5 watt integrated stereo speakers with SRS WOW HD
  • CONNECTOR
    Analogue: 15-pin mini D-Sub (detachable cable)
    Digital: 24-pin DVI-D (detachable cable) (HDCP enabled)
    Живлення: 3-pin AC plug (CEE22)
    Аудіо: 3.5mm stereo audio line-in
  • POWER
    Напруга: AC 100–240 V, 50–60 Hz (auto switch), internal power supply
    Споживання: 36 watt (typ.), <1 watt in power save mode
  • CONTROLS
    Basic: Power, menu [1], select [2], up, down
    OSD: Auto image adjust, contrast, brightness, input select (D-sub, DVI-D), Audio adjust (volume, mute), ViewMatch® colour adjust (sRGB, 9300K, 7500K, 6500K, 5000K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language [11 options], resolution notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall
  • OPERATING CONDITIONS
    температура: 5°C – 35°C
    Вологість: 20% – 80% (non-condensation)
  • WEIGHT
    Net With Stand: 6.0kg
    Net Without Stand: 4.8kg
    Packaging: 7.5kg
  • VIDEO INPUT
    Frequency: Fh: 30–82kHz, Fv: 50–75Hz
    Sync: H/V separate (TTL), composite, sync on green
    Analogue: RGB analogue (0.7/1.0 Vp-p, 75 ohm, DDC/CI)
    Digital: DVI-D (HDCP enabled, TMDS, 100 ohm, DDC/CI)
  • POWER MANAGEMENT
    Meets ENERGY STAR standards
  • SECURITY
    Kensington® security port
  • VESA MOUNT COMPLIANT
    VESA FDMI 100mm x 100mm
  • ERGONOMICS
    Нахил: Down 5°, Up 17°
