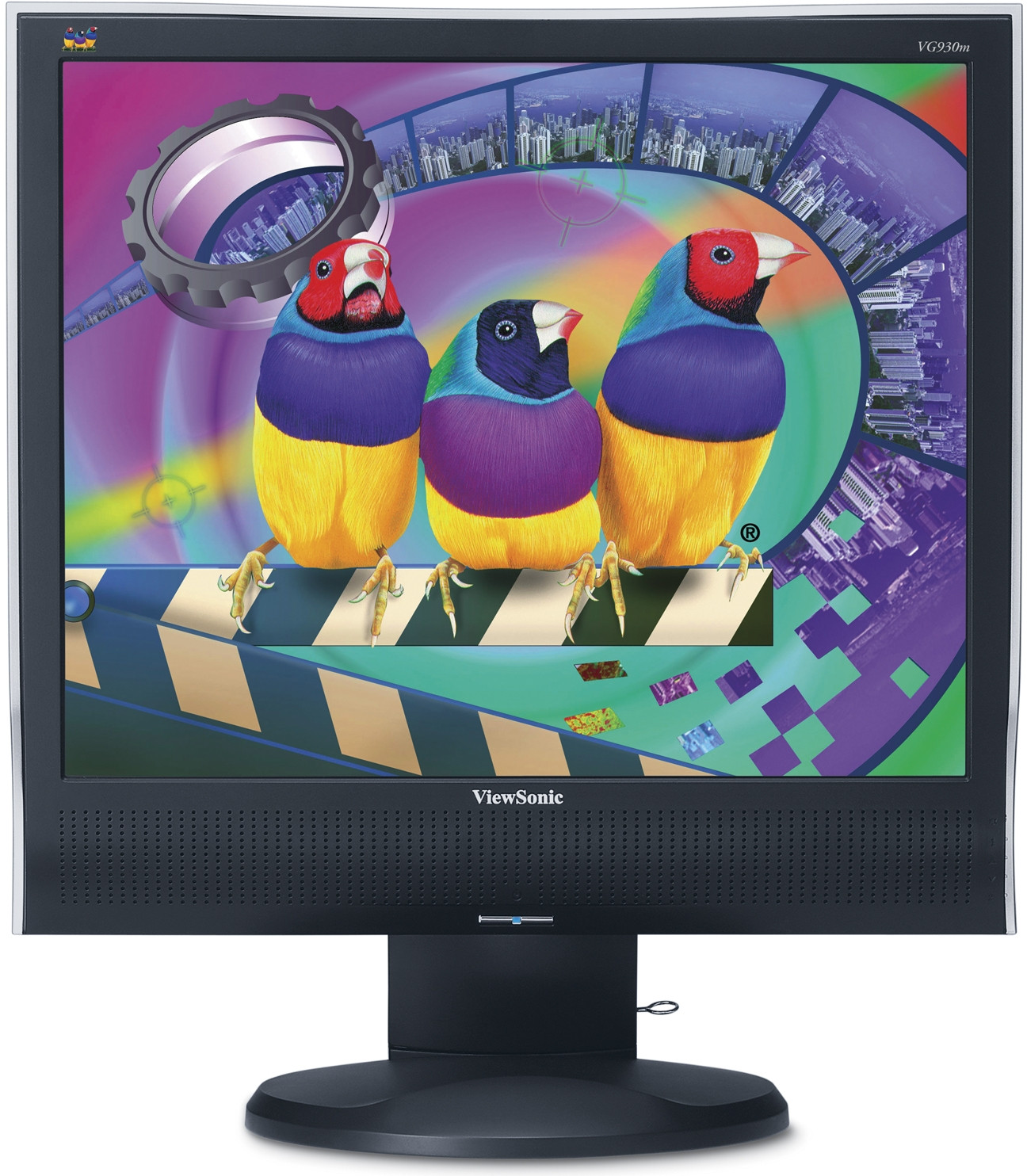

ViewSonic VG930m 48cm / 19" DIGITALMEDIA™ LCD MONITOR WITH CLEARMOTIV™ 8MS VIDEO RESPONSE

Основні особливості

Опис товару

The 48cm / 19" ViewSonic VG930m LCD monitor is the ultimate value LCD business display. Featuring height adjustment, tilt and 360° swivel features, the VG930m allows the user to set the ergonomic position of the monitor to generate the best possible viewing position and greatest viewing comfort. Image quality is guaranteed with premium contrast and brightness levels to deliver superb pictures with vivid, brilliant colours and crisp detail. Digital and analogue inputs ensure maximum connectivity and integrated stereo speakers provide space-saving high quality sound to your desktop. The full featured VG930m is the ideal LCD monitor for business, home office, government or education use.

Відвідайте нас

www.viewsonic.com

COLORS

Black

LCD

Тип:	48cm / 19" TN colour TFT active matrix SXGA LCD
Коефіцієнт контрастності:	1000:1 (typ.)
Кути перегляду:	170° horizontal, 160° vertical (at 10:1) 170° horizontal, 170° vertical (at 5:1)
Яскравість:	300cd/m² (typ.)
Display Area:	37.6cm horizontal x 30.1cm vertical; 48.3cm diagonal
Optimum Resolution:	1280 x 1024@60Hz
Час відповіді:	5ms (off-on-off) (typ.)
Джерело світла:	Long life, 50,000 hrs. (typ)
Panel Surface:	Anti-glare (3H)
Pixel Pitch:	0.294mm
Colour Support:	16.2M colours (6-bit + 2-bit FRC)
Pixel Clock:	135MHz

COMPATIBILITY

PC: VGA up to 1280 x 1024 non-interlaced

Mac®: Power Mac™ up to 1280 x 1024 non-interlaced
DIMENSIONS

Physical With Stand: 428 x 457-537 x 230

Physical Without Stand: 428 x 399 x 68

W x H x D mm: 486 x 590 x 278
ВМІСТ УПАКОВКИ

LCD Monitor, power cable, D-sub video cable, audio cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers) (multi-language)
AUDIO

Динамік: 2 x 1.5 watt integrated stereo speakers

Amplifier: 3 watts @ 1khz @ THD ≤ 8%
CONNECTOR

Analogue: 15-pin mini D-Sub (detachable cable)

Digital: 24-pin DVI-D (detachable cable)

Живлення: 3-pin AC plug (CEE22)

Аудіо: 3.5mm stereo audio line-in
POWER

Напруга: AC 100–240V, 50/60Hz (auto switch), internal power supply

Споживання: 35 watt (typ.), <1 watt in power save mode

CONTROLS

Basic:

Power, menu [1], up, down, select [2], mute

OSD:

Auto image adjust, contrast, brightness, input select (D-sub, DVI-D), audio (volume, mute), ViewMatch® colour adjust (sRGB, 9300K, 6500K, 5400K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall

OPERATING CONDITIONS

температура: 0° to 40°

Вологість: 10% to 90% (non-condensing)
WEIGHT

Net With Stand: 6.0kg

Брутто: 7.2kg
VIDEO INPUT

Frequency: Fh: 24-82kHz, Fv: 50–75Hz

Sync: H/V separate (TTL)

Analogue: RGB analogue (0.7 Vp-p , 75 ohm)

Digital: DVI-D (TMDS, 100 ohms)
POWER MANAGEMENT

Meets TCO’03 and ENERGY STAR® standards
SECURITY

Kensington® security port
VESA MOUNT COMPLIANT

VESA FDMI 100mm x 100mm
ERGONOMICS

Нахил: Down 5°, up 20°

Поворотний: 360° swivel base

Height Adjustment: 0~80mm

PC:	VGA up to 1280 x 1024 non-interlaced
Mac®:	Power Mac™ up to 1280 x 1024 non-interlaced

Physical With Stand:	428 x 457-537 x 230
Physical Without Stand:	428 x 399 x 68
W x H x D mm:	486 x 590 x 278

Динамік:	2 x 1.5 watt integrated stereo speakers
Amplifier:	3 watts @ 1khz @ THD ≤ 8%

Analogue:	15-pin mini D-Sub (detachable cable)
Digital:	24-pin DVI-D (detachable cable)
Живлення:	3-pin AC plug (CEE22)
Аудіо:	3.5mm stereo audio line-in

Напруга:	AC 100–240V, 50/60Hz (auto switch), internal power supply
Споживання:	35 watt (typ.), <1 watt in power save mode

температура:	0° to 40°
Вологість:	10% to 90% (non-condensing)

Frequency:	Fh: 24-82kHz, Fv: 50–75Hz
Sync:	H/V separate (TTL)
Analogue:	RGB analogue (0.7 Vp-p , 75 ohm)
Digital:	DVI-D (TMDS, 100 ohms)

Нахил:	Down 5°, up 20°
Поворотний:	360° swivel base
Height Adjustment:	0~80mm

Net With Stand:	6.0kg
Брутто:	7.2kg
