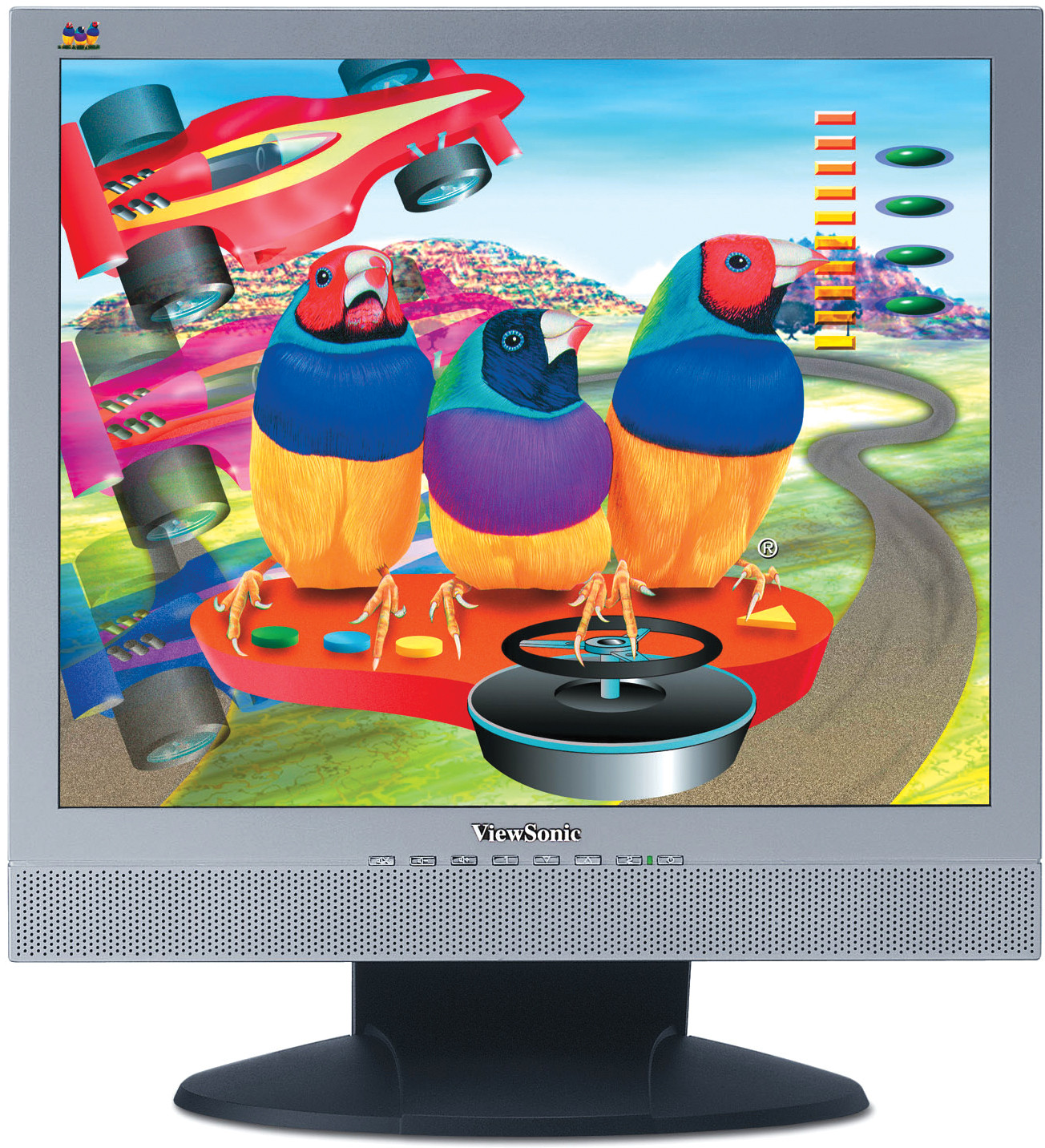

ViewSonic VG712b 43cm / 17" DigitalMedia Slim Bezel Display

LCD

Тип:	43mm / 17.0" colour TFT active matrix SXGA LCD
Коефіцієнт контрастності:	500:1 (typ)
Кути перегляду:	140° horizontal, 130° vertical (at 10:1) 160° horizontal, 160° vertical (at 5:1)
Display Area:	33.8cm horizontal x 27cm vertical; 43.2cm diagonal
Optimum Resolution:	1280 x 1024
Час відповіді:	8ms (typ.)
Panel Surface:	Anti-glare
Colour Support:	16.2M colours (6-bit + 2-bit FRC)
Яскравість:	300 cd/m² (typ)

COMPATIBILITY

PC: VGA up to 1280 x 1024

Mac®: Power Mac™ G3/G4 up to 1280 x 1024
DIMENSIONS

Physical With Stand: 378mm x 405mm x 177mm

Physical Without Stand: 378mm x 405mm x 50mm
AUDIO

Динамік: 2x3-watts

Amplifier: 3 watts @1kHz
CONNECTOR

Аудіо: 3.5mm audio line-in

Signal: 15-pin mini D-sub, DVI-D2

Живлення: 3-pin AC plug
POWER

Напруга: AC 100-240V, 50-60Hz (auto switch), external power supply

Споживання: <36W (typ), ≤1W in power save mode

CONTROLS

Basic:	Power (soft), 1, down, up, 2, mute, volume up, volume down
OSD:	Auto image adjust, contrast, brightness input select, audio adjust (volume, mute), ViewMatch® colour adjust (sRGB, 9300K, 6500Kdefault, 5400K, 5000K, user colour), information (mode, model number, serial number), manual image adjust (H. size, H. position, V. position, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout), memory recall

PC:	VGA up to 1280 x 1024
Mac®:	Power Mac™ G3/G4 up to 1280 x 1024

Physical With Stand:	378mm x 405mm x 177mm
Physical Without Stand:	378mm x 405mm x 50mm

Напруга:	AC 100-240V, 50-60Hz (auto switch), external power supply
Споживання:	<36W (typ), ≤1W in power save mode

температура:	0–40°C
Вологість:	10–90% (non-condensing)

Динамік:	2x3-watts
Amplifier:	3 watts @1kHz
