Основні особливості
  • Monitor temperature, humidity levels, and air quality to maintain optimal learning conditions
  • Energy-saving automatic wake up of the ViewBoard when people enter the room
  • Unlock the ViewBoard with an NFC card to ensure secure access
  • Powered by the ViewBoard via USB, for less cable clutter

VB-SEN-001
Опис товару

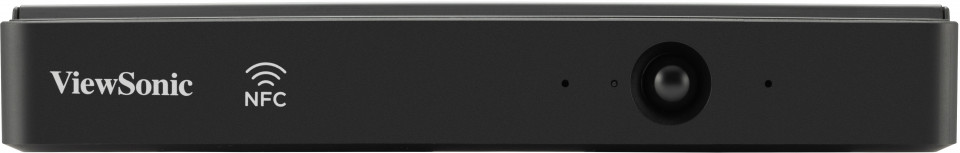

The 6-in-1 Smart Sensor VB-SEN-001 is an accessory module for the ViewBoard IFP50-5 and IFP33 Series that provides smart classrooms with comprehensive conditions monitoring tools. Equipped with multiple sensors, it measures the CO2 and PM2.5 levels, temperature, and humidity to ensure optimal learning conditions at all times. The device provides extended interactive whiteboard access possibilities with advanced detectors and PIR technology that automatically wakes up the interactive whiteboard when people are in the room, and an NFC chip reader to restrict access to authorized personnel. The 6-in-1 Smart Sensor is powered by the ViewBoard via USB, eliminating the need for an additional adapter and maintaining a clutter-free learning space.
Відвідайте нас
  • www.viewsonic.com
  • PIR SENSOR
    Detection Range: 0-7M
    Detection Angle: 0-5m, -40° to +40° (80°) ;
    5-7m, -10° to +10° (20°)
  • Вологість
    Accuracy: ±5%
    Range: 5%RH to 95%RH
  • температура
    Accuracy: ±2°C
    Range: -20°C to 85°C
  • NFC
    Operation Mode: Reader / Writer
    Detecting Distance: 3-5cm
    Supporting ISOs: 15693 @13.56MHz and 14443 @13.56MHz
  • PM 2.5
    Detection Range: 0-1000μg/m3
  • VOCS
    Час відповіді: <2S
    Detecting Range: 400-29000ppm
  • USB
    Type B: USB B type (2.0)
  • Живлення
    Напруга: 5V / 0.5A
  • SUPPORTED OS
    Android 11
  • DIMENSIONS (L × W × H)
    Фізичні (дюйми / мм): 8.1 x 2.7 x 1.24 in / 206 x 69 x 31.7mm
  • Вага
    Нетто (фунт/кг): 0.4 lb/0.183kg
  • Умови роботи
    температура: 0℃ ~ 40℃
    Вологість: 10% ~ 90% RH Non-Condensing
  • STORAGE CONDITIONS
    температура: -20°C ~ 60°C
    Вологість: 10% ~ 90% RH
  • PACKAGE CONTENT
    1.USB type-B to type-A cable
    2.Screws
    3.Cable Clips
    4.Quick Start Guide
