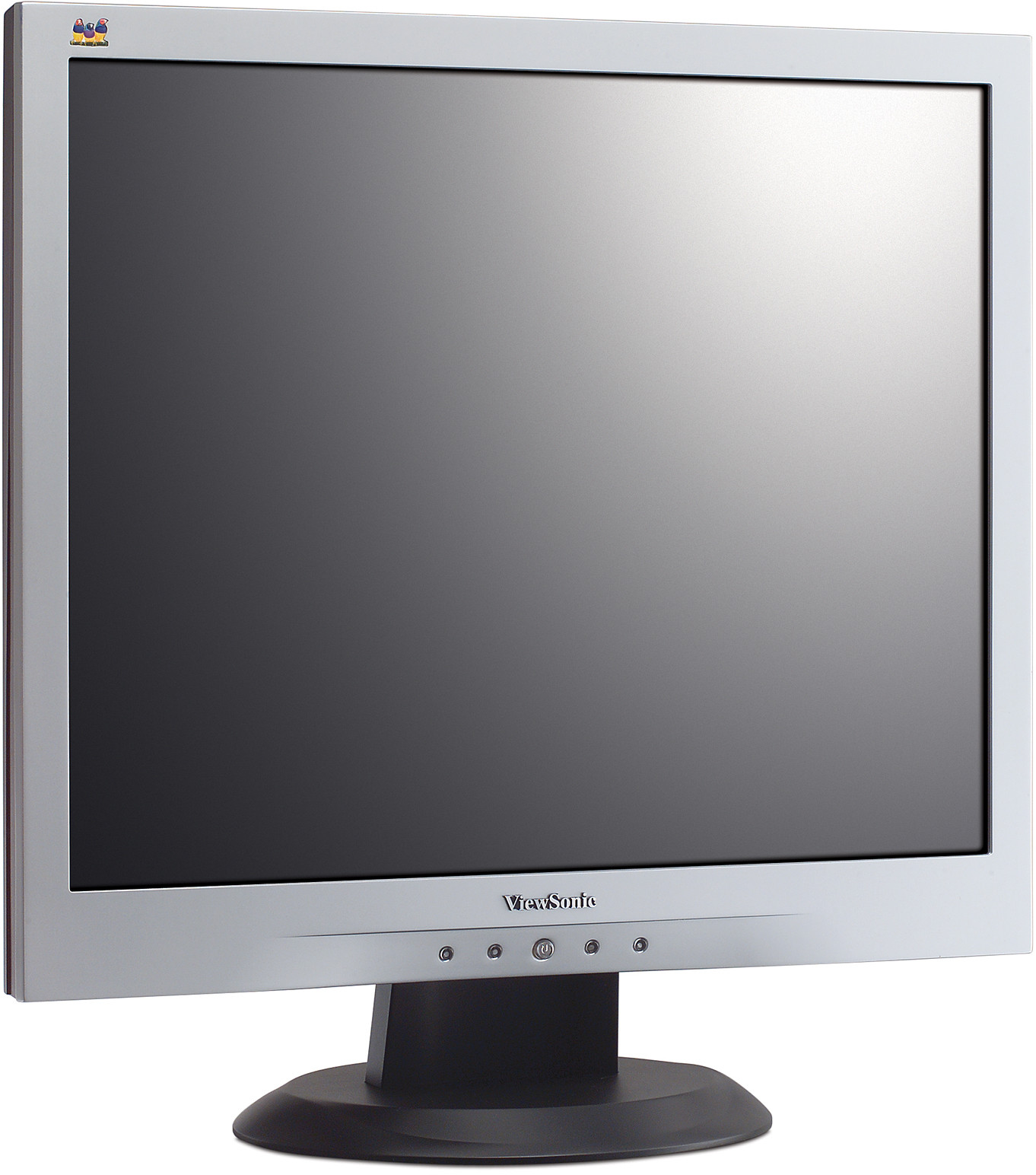

ViewSonic VA703m 17" VALUE SERIES LCD MONITOR WITH MULTIMEDIA

Основні особливості

Опис товару

The 17" ViewSonic VA703m is the all-in-one price performance solution for all needs. No matter if your use is for entertainment or for intensive graphics, whether in the home or in the office, the VA703m fits the bill perfectly. Its 5ms response time delivers crisp images and fluid full-motion video for games, movies and scrolling text. Matched with 700:1 contrast levels and 300cd/m² brightness, the VA703m displays brilliant, vivid, true-to-life colours. Invisible built-in speakers deliver true multimedia performance. The slim styling and silver-black bezel add to the monitors appeal. Prepare to be impressed by the performance, quality and style of the VA703m.

Відвідайте нас

www.viewsonic.com

COLORS

Black

LCD

Тип:	17” TN colour TFT active matrix XGA LCD
Коефіцієнт контрастності:	700:1 (typ.)
Кути перегляду:	160° horizontal, 160° vertical (at 10:1) 170° horizontal, 170° vertical (at 5:1)
Яскравість:	300cd/m² (typ.)
Display Area:	33.8cm horizontal x 27.0cm vertical; 43.2cm diagonal
Optimum Resolution:	1280 x 1024@60Hz
Час відповіді:	5ms (off-on-off) (typ.)
Джерело світла:	Long life, 50000 hrs. (min.)
Panel Surface:	Anti-glare (3H)
Pixel Pitch:	0.264mm
Colour Support:	16.7M colours (6-bit + 2-bit FRC)
Pixel Clock:	135MHz

COMPATIBILITY

PC: VGA up to 1280 x 1024 non-interlaced (@60Hz preferred)

Mac®: Power Mac™ up to 1280 x 1024 non-interlaced (@60Hz preferred)
DIMENSIONS

Physical With Stand: 379 x 400 x 210
ВМІСТ УПАКОВКИ

LCD Monitor, power cable, audio cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers)
AUDIO

Динамік: 2 x 1 watt integrated invisible stereo speakers
CONNECTOR

Analogue: 15-pin mini D-Sub (attached cable)

Живлення: 3-pin AC plug (CEE22)

Аудіо: 3.5mm stereo audio line-in
POWER

Напруга: AC 100 – 240V, 50/60Hz (auto switch), internal power supply

Споживання: 36 watt (max.), <1 watt in power save mode

CONTROLS

Basic:

Power, menu [1], up, down, select [2]

OSD:

Auto image adjust, contrast, brightness, audio adjust (volume, mute), ViewMatch® colour adjust (sRGB, 9300K, 6500K, 5400K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number, website), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language [English, Finnish, French, German, Italian, Japanese, Spanish, Simplified Chinese, Traditional Chinese], resolution notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall

OPERATING CONDITIONS

температура: 0°C – 40°C

Вологість: 10% – 90% (non-condensation)
WEIGHT

Net With Stand: 3.6kg

Брутто: 4.8kg
VIDEO INPUT

Frequency: Fh: 30 – 82kHz, Fv: 50 – 75Hz

Sync: H/V separate (TTL)

Analogue: RGB analogue (0.7 Vp-p, 75 ohm)
POWER MANAGEMENT

Meets TCO’03 and ENERGY STAR standards
SECURITY

Kensington® security port
VESA MOUNT COMPLIANT

VESA FDMI 100mm x 100mm
ERGONOMICS

Нахил: Down 5°, Up 20°

PC:	VGA up to 1280 x 1024 non-interlaced (@60Hz preferred)
Mac®:	Power Mac™ up to 1280 x 1024 non-interlaced (@60Hz preferred)

Analogue:	15-pin mini D-Sub (attached cable)
Живлення:	3-pin AC plug (CEE22)
Аудіо:	3.5mm stereo audio line-in

Напруга:	AC 100 – 240V, 50/60Hz (auto switch), internal power supply
Споживання:	36 watt (max.), <1 watt in power save mode

температура:	0°C – 40°C
Вологість:	10% – 90% (non-condensation)

Frequency:	Fh: 30 – 82kHz, Fv: 50 – 75Hz
Sync:	H/V separate (TTL)
Analogue:	RGB analogue (0.7 Vp-p, 75 ohm)

Net With Stand:	3.6kg
Брутто:	4.8kg
