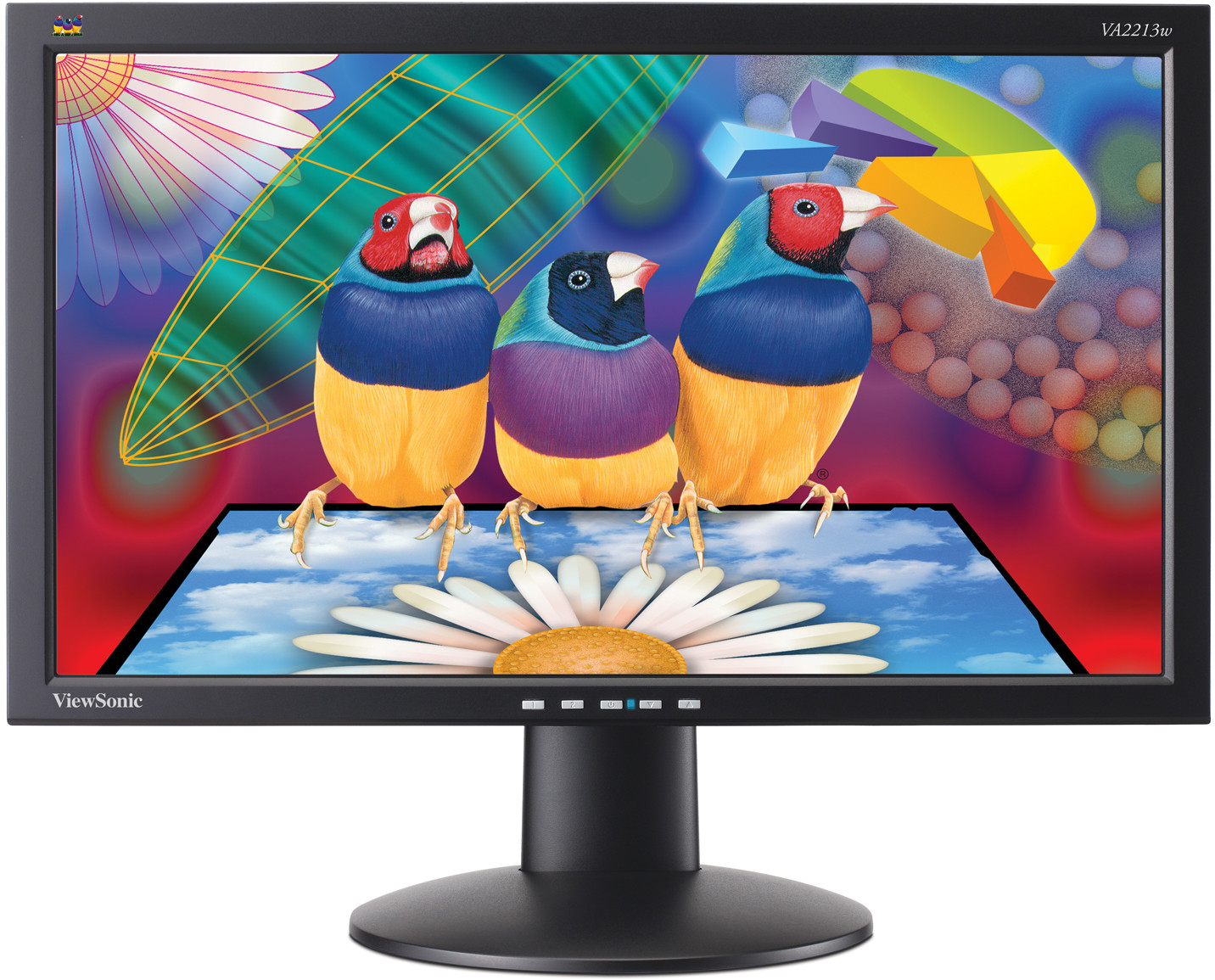

ViewSonic VA2213w 56 cm / 22" (21.5" VIEWABLE) 16:9 WIDESCREEN LCD WITH 16,000:1 DYNAMIC CONTRAST RATIO

LCD

Коефіцієнт контрастності:	1000:1 (typ.) / 16000:1 dynamic
Кути перегляду:	170° (H), 160° (V) (CR≧10) , 170° (H), 170° (V) (CR≧5)
Яскравість:	300 cd/m² (typ.)
Display Area:	47.50 cm (18.7") (H) × 26.67 cm (10.5"）(V)
Optimum Resolution:	1920 × 1080
Час відповіді:	5ms (typ.)
Джерело світла:	50,000 hrs (typ.)
Panel Surface:	Anti-Glare, Hard coating (3H)
Pixel Pitch:	0.248mm (H) × 0.248mm (V)
Colour Support:	16.7 M (6-bits + 2-bits Hi FRC)
Size:	55cm / 21.5" wide Color TFT Active Matrix LCD 16:9 aspect ratio

COMPATIBILITY

PC: VGA up to 1920×1080 Non Interlaced

Mac®: Power Mac, up to 1920×1080
DIMENSIONS

Physical With Stand: 512mm × 388mm × 246mm (20.1" × 15.3" × 9.7")

Physical Without Stand: 512mm × 300mm × 63mm (20.1" × 11.8" × 2.5")
ВМІСТ УПАКОВКИ

LCD display, VGA cable, Power cable, Quick Start Guide, ViewSonic Wizard CD
RECYCLE/DISPOSAL

The lamp in this product contains mercury. Please dispose of in accordance with local, state and federal laws.
INPUT

Sync: Separate Sync

Analogue: RGB Analog (75 ohms, 0.7 / 1.0 Vp-p)

Frequency: Fh: 24-82kHz, Fv: 50-85Hz
CONNECTOR

Живлення: Built-in power Adapter, 3-Pin plug

Analogue/Digital: 15 pin mini D-sub×1
POWER

Напруга: AC 100-240V (Universal); 50/60Hz (Switch)

Споживання: 42 W (typ.)

Eco Mode: 33 (optimize) / 24 (conserve)

Save mode: ≦1W

CONTROLS

Basic:	[1], [2], Power, Down[▼], Up[▲]
OnView®:	Auto Image Adjust, Contrast/Brightness, Color Adjust (sRGB, 9300K, 7500K, 6500K, 5000K, User Color [R, G, B]), Information, Manual Image Adjust (Horizontal Size, H/V Position, Fine Tune, Sharpness, Dynamic contrast, Aspect ratio, Eco mode, setup menu etc.), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), memory recall.

OPERATING CONDITIONS

Температура: 5°C - 35°C (41°F - 95°F)

Вологість: 20 - 80% (Non condensed)
WEIGHT

Нетто: 4 kg (8.8 lbs)
POWER MANAGEMENT

TCO'03, ENERGY STAR
VESA MOUNT COMPLIANT

VESA 100mm x 100mm
ERGONOMICS

Нахил: 20° ~ -5°

PC:	VGA up to 1920×1080 Non Interlaced
Mac®:	Power Mac, up to 1920×1080

Physical With Stand:	512mm × 388mm × 246mm (20.1" × 15.3" × 9.7")
Physical Without Stand:	512mm × 300mm × 63mm (20.1" × 11.8" × 2.5")

Живлення:	Built-in power Adapter, 3-Pin plug
Analogue/Digital:	15 pin mini D-sub×1

Температура:	5°C - 35°C (41°F - 95°F)
Вологість:	20 - 80% (Non condensed)
