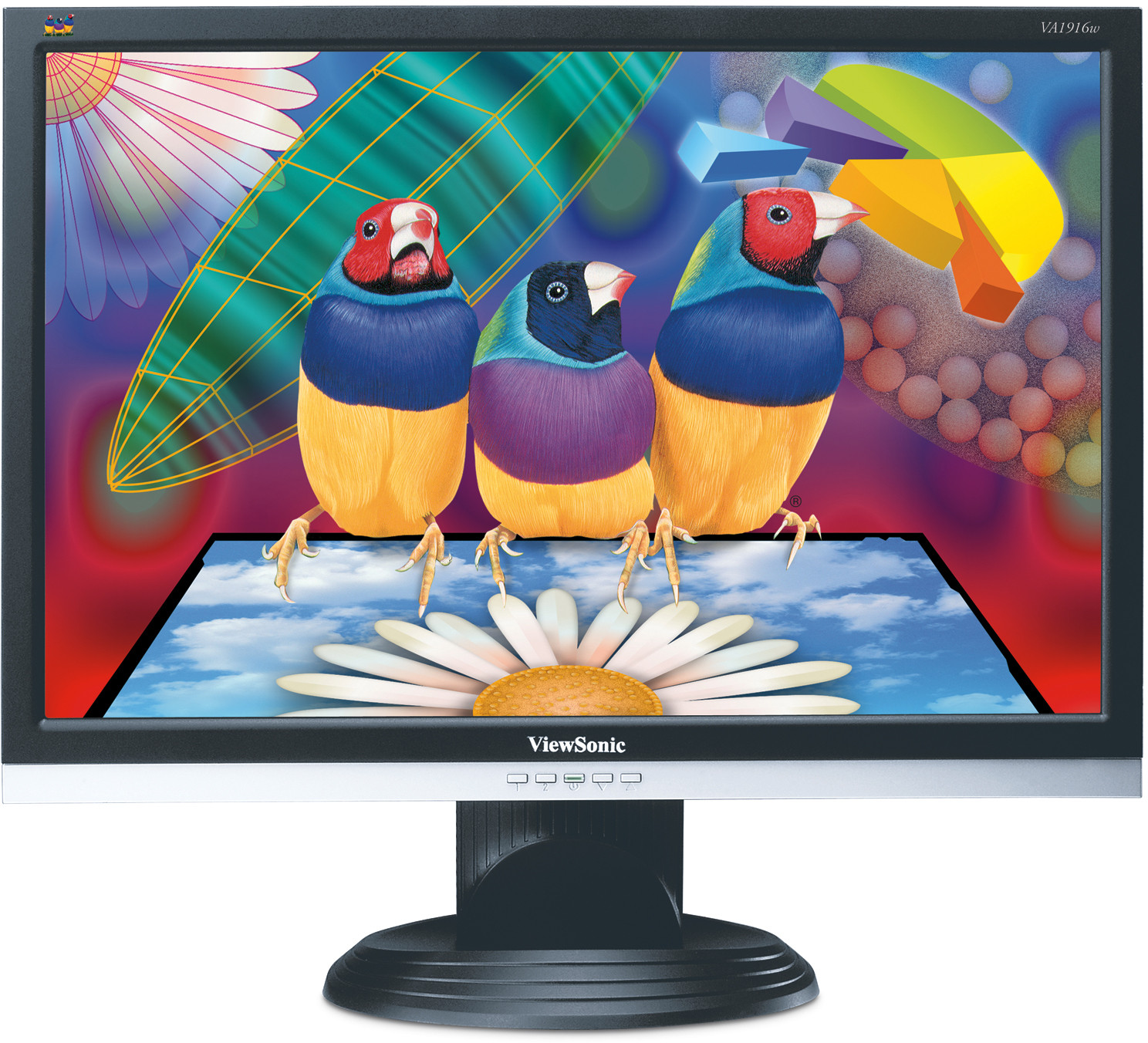

ViewSonic VA1916w 48cm / 19" WIDESCREEN LCD MONITOR VA SERIES WITH 5MS VIDEO RESPONSE TIME

COLORS

Black

LCD

Тип:	48cm / 19" Wide TN colour TFT active matrix WXGA+ LCD
Коефіцієнт контрастності:	700:1 (typ.), 2000:1 (DCR)
Кути перегляду:	150° horizontal, 140° vertical (at 10:1) 170° horizontal, 160° vertical (at 5:1)
Яскравість:	300 cd/m² (typ)
Display Area:	40.8cm horizontal x 25.5cm vertical, 48.3cm diagonal
Optimum Resolution:	1440 x 900@60Hz
Час відповіді:	5ms (off-on-off) (typ.)
Джерело світла:	300cd/m²
Panel Surface:	Anti-glare (3H)
Pixel Pitch:	0.2835mm
Colour Support:	16.7M colours supported (6-bit + 2-bit FRC)
Pixel Clock:	140MHz

COMPATIBILITY

PC: VGA up to 1440 x 900 non-interlaced

Mac®: Power Mac™ up to 1440 x 900 non-interlaced
DIMENSIONS

W x H x D mm: 440 x 383 x 195 (with stand)

440 x 304 x 62 (without stand)

520 x 460 x 142 (packaging)
ВМІСТ УПАКОВКИ

LCD Monitor, power cable, 15-pin VGA video cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers) (multi-language)
CONNECTOR

Analogue: 15-pin mini D-Sub (detachable cable)

Живлення: 3-pin AC plug (CEE22)
POWER

Напруга: AC 100–240V, 50/60Hz (auto switch), internal power supply

Споживання: 32 watt (typ.), <1 watt in power save mode

CONTROLS

Basic:

Power, menu [1], up, down, select [2]

OSD:

Auto image adjust, contrast, brightness, ViewMatch® colour adjust (sRGB, 9300K, 6500K, 5400K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), auto white balance, DCR on/off, OSD/power lock, memory recall

OPERATING CONDITIONS

температура: 0°C–40°C

Вологість: 20%–90% (non-condensation)
WEIGHT

Нетто: 4.0kg (with stand)

Брутто: 5.1kg
VIDEO INPUT

Frequency: Fh: 24–82kHz,

Fv: 50–75 Hz

Sync: H/V separate (TTL)

Analogue: RGB analogue (0.7/1.0 Vp-p, 75 ohm)
POWER MANAGEMENT

TCO’03 and ENERGY STAR standards
SECURITY

Kensington security port
VESA MOUNT COMPLIANT

VESA FDMI 100mm x 100mm
ERGONOMICS

Нахил: Down 5°, Up 20°

PC:	VGA up to 1440 x 900 non-interlaced
Mac®:	Power Mac™ up to 1440 x 900 non-interlaced

Analogue:	15-pin mini D-Sub (detachable cable)
Живлення:	3-pin AC plug (CEE22)

Напруга:	AC 100–240V, 50/60Hz (auto switch), internal power supply
Споживання:	32 watt (typ.), <1 watt in power save mode

температура:	0°C–40°C
Вологість:	20%–90% (non-condensation)

Frequency:	Fh: 24–82kHz, Fv: 50–75 Hz
Sync:	H/V separate (TTL)
Analogue:	RGB analogue (0.7/1.0 Vp-p, 75 ohm)

Нетто:	4.0kg (with stand)
Брутто:	5.1kg
