Основні особливості

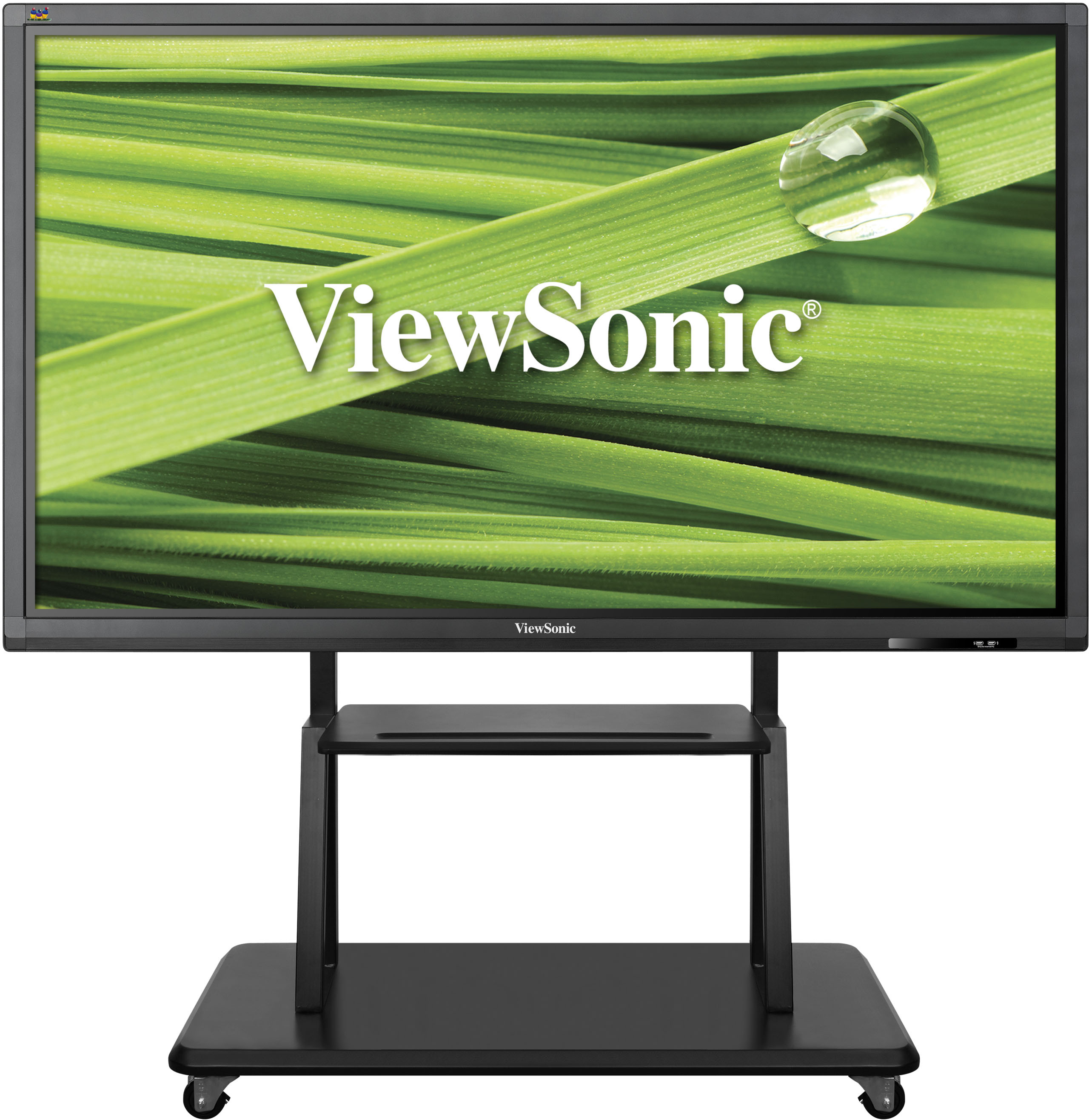

SWB8451
Опис товару
The ViewSonic SWB8451 is an 84" interactive display ideal for educational and corporate meeting applications, as well as for scientific, GIS, and way-finding applications. With 6-point simultaneous touch technology, this Smart WhiteBoard encourages collaboration and allows two or three users to simultaneously write or draw on the display's surface with their fingers or stylus. The large-format LED screen guarantees the ultimate in colour, clarity, and image detail. Equipped with a tempered glass overlay, anti-glare treatment, and rounded corners, the SWB8451 is designed for heavy usage in high- traffic areas. The ViewSonic SWB8451 Smart Whiteboard is the perfect solution where touch interactive performance is needed.
Відвідайте нас
  • www.viewsonic.com
  • LCD
    Тип: TFT LCD module with LED backlight
    Effective Viewing Area: 3,840 (H) x 2,160 (W) (84.04” diagonal)
    Коефіцієнт контрастності: 1600:1 (typ.)
    Кути перегляду: H = 89, V = 89  (typ.)
    Яскравість: CR : 5,000 (typ.) / 350 nits (typ.)
    Час відповіді: Total (ON + OFF) = 8ms
    Рідна роздільна здатність: 1920 x 1080p @60Hz
    Panel Surface: Anti-glare
    Colour Support: 1.06B colors
    Size: 84"
  • DIMENSIONS
    Фізичні (ШxВxГ): 1,978 x 1,186 x 86 mm / 77.9 x 46.7 x 3.4 in
    Настінне кріплення: 1,000 x 280 x 55 mm / 39.37 x 11.02 x 2.17 in
    Екран: 2,180 x 1,480 x 340 mm / 85.83 x 58.27 x 13.39 in
  • POWER
    Напруга: 100-240VAC +/- 10% Wide Range
  • CONTROLS
    OSD: *1
    Physical: Top: POWER, INPUT, MENU,CH ^, CH v, VOL+, VOL-
  • VESA® MOUNT
    600 x 600mm
  • INCLUDED ACCESSORIES
    1. VGA cable

    2. Power cable x 4

    3. Remote control

    4. USB cable

    5. Audio cable

    6. Touching pen x 3

    7. User manual CD wizard
  • AUDIO
    Speakers: 15W x 2 @THD = 10%
    Microphone: None
  • WEIGHT
    Брутто: 140 kgs / 308.65 lbs
    Нетто: 116 kgs / 255.74 lbs
    Настінне кріплення: 6.5 kgs / 14.33 lbs
  • OPERATING CONDITIONS
    Вологість: 20% ~ 80%, non-condensing
    Температура: 32°F to 104°F (0°C to 40°C)
  • RELIABILITY
    Backlight: 30,000 Hours (typ.)
  • BUILT-IN PC
    Процесор: Intel Core i3 (SWB8451-3_ SWB8451-3) Intel Core i5 (SWB8451-5_ SWB8451-5)
    Графіка: Integrated Intel HD 3000
    Sound Card: Integrated High Definition Audio Stereo
    Пам'ять: DDR III 2GB (SWB8451-3_ SWB8451-3)  DDR III 4GB (SWB8451-5_SWB8451-5)
    Зберігання: 2.5” SATA2 HDD 320GB (SWB8451-3_ SWB8451-3) 2.5” SATA2 HDD 500GB (SWB8451-5_ SWB8451-5)
    Networking: Integrated 10/100/1000M Adaption
  • REMOTE CONTROL UNIT (RCN)
    Тип: IR
    Range: Straigt-line distance: 8M

    Transmit angle ± 30° ³ 6M
  • INPUT / OUTPUT
    Роз'єм: Display: HDMI x 2 RGB x 2 PC audio (mini stereo) x 2 S-Video x 1 CVBS IN x 1 CVBS OUT x 1 Shared RCA Audio x 1 YPbPr x1 USB A Type (for F/W) x 1 USB B Type (for touch) x 1 SPIDF x 1 RS232 x 1

    PC: AUDIO OUT x 1 MIC x 1 VGA OUT x 1 LAN IN x 1 USB x 4
  • VIDEO FORMAT
    Сумісність: RGB PC/HDMI PC: Refer to timing table

    CVBS: 480i

    S-Video: 480i, 576i

    YPbPr: 480i, 480p, 720p, up to 1080p

    HDMI: 480i, 720p, up to 1080p
  • STORAGE / SHIPPING CONDITION
    Температура: -4°F to 140°F (-20°C to 60°C)
    Вологість: 10% ~ 90%, non-condensing
  • POWER SAVING FUNCTION
    On: Green indicator, < TBDW
    Power-saving Mode: Green indicator flashing, < 0.5 W
    Off (Suspend): Red indicator, < 0.5 W
  • DISPLAY PC/RGB MODES
    Supported: Refer to the compatibility table

    *If a mode isn’t specifically listed, full compatibility is not guaranteed. Results may vary between video cards / drivers.
