Розумний дисплей

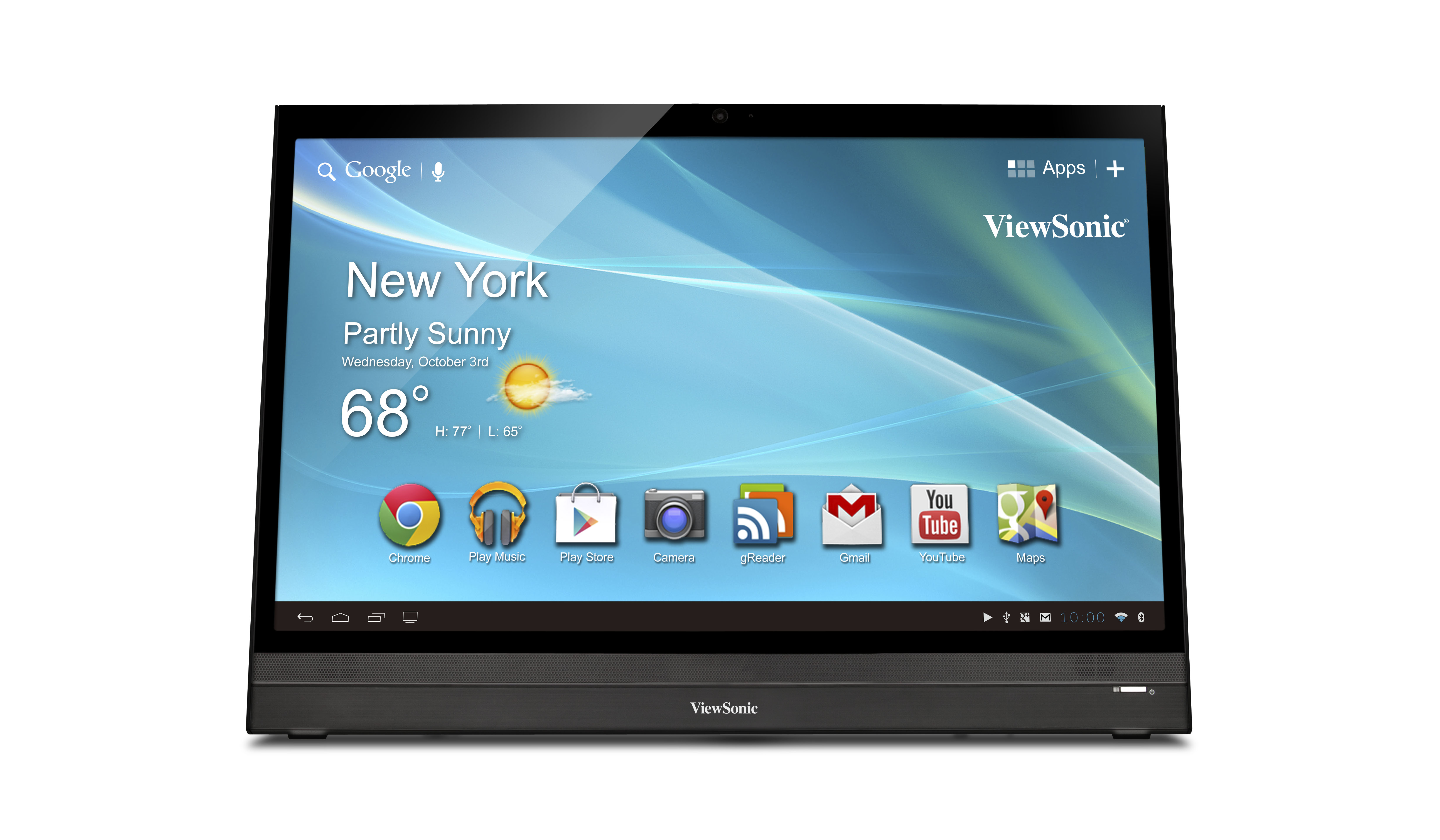

SD-A225
Основні особливості
Опис товару
The ViewSonic® SD-A225 is a 22" (21.5" viewable) multi-touch smart display client with 1920 x 1080 Full HD resolution, and a TI Dual Core OMAP processor. With Citrix® XenMobile™ pre-installed, the SD-A225 is a completely locked-down, secured, and fully manageable device for your business. Now you can easily provision and deploy both your mobile and desktop devices. Versatile connectivity options include micro HDMI®, three USB ports (2 Type A and 1 micro USB OTG), micro SD card reader, RJ45, headphone jack, and 1.3MP webcam with integrated microphone for video conferencing. Wireless and Bluetooth® network connections provide instant access to transfer data, documents, and multimedia files. Integrated speakers with SRS® 3D complete the package for multimedia enjoyment. The SD-A225 provides the security and control needed on the desktop to leverage the investments being made in mobile and cloud-based tools.
Відвідайте нас
- www.viewsonic.com
-
LCD
Тип: 22" (21.5" viewable) Wide Colour TFT Transmissive LED Коефіцієнт контрастності: 3000:1 (typ.) Кути перегляду: 170º horizontal, 160º vertical Display Area: 19.0" horizontal x 10.7" vertical; 21.5" diagonal Optimum Resolution: 1920 x 1080p Час відповіді: 5ms (typ.) Яскравість: 250 cd/m2 (typ.) Backlight: White-light LED Термін служби підсвітки: 30,000 hours (min.) Touch Controller: Dual touch with pinch and zoom Touch Panel: Optical touch type, with glass 8H -
DIMENSIONS
Фізичні (ШxВxГ): 20.2 x 13.9 x 1.0 in. / 512.8 x 353 x 56.6 mm Packaging: 23.6 x 16.9 x 4.9 in. / 598 x 428 x 123 mm -
ВМІСТ УПАКОВКИ
1.SD-A225 smart display
2.power cord and adapter
3.micro HDMI to HDMI cable
4.micro USB to USB cable
5.Quick Start Guide
*Actual content may differ from market to market -
CONNECTOR
HDMI (input): Micro HDMI USB: Type A (x2), micro USB (x1) Аудіо: Headphone jack Card Reader: Micro SD card LAN: RJ45, Wi-Fi 802.11 b/g/n, Bluetooth V2.1 Живлення: DC-In jack (ID 1.7mm, OD 4.0mm) Динамік: 1-watt (x2) -
POWER
Напруга: AC-DC power (Input: 100V~240V / Output: DC 19V) Споживання: 36W (typ.) -
VESA® MOUNT
100 x 100 mm -
CAMERA
1.3MP -
ERGONOMICS
Нахил: 15º – 70º -
WEIGHT
Брутто: 12.8 lb. / 5.8 kg Нетто: 10.6 lb. / 4.8 kg -
OPERATING CONDITIONS
Вологість: 20–90% (non-condensing) температура: 32–95º F (0–35º C) -
SYSTEM
CPU Processor: TI OMAP4470 Dual Core 1.5GHz Операційна система: Android™ 4.1 with Citrix XenMobile System Memory: 1GB (DDR2) Storage Memory: 8GB (eMMC4.4) Internal MIC: Echo cancelling
