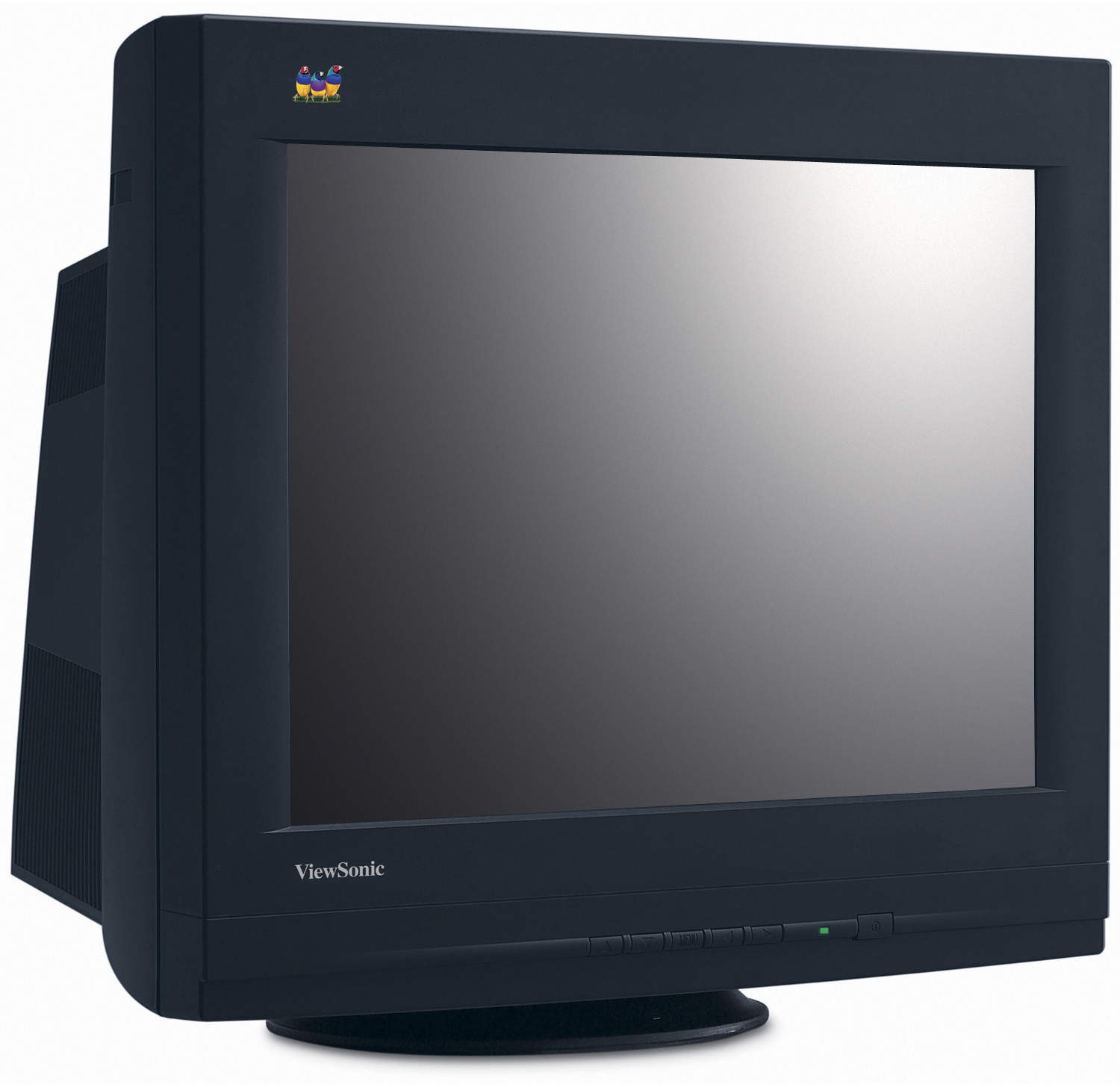

ViewSonic P227fb 21” CRT MONITOR WITH PERFECTFLAT™

Основні особливості

Опис товару

Top professional users searching for an extremely powerful yetaffordable 21" monitor with superior image quality shouldlook no further than the P227fb from ViewSonic. Thanks to itshigh resolution and impressive refresh rates as well as ultra-fine0.25 mm dot pitch, the model convinces with an absolutelyprecise picture from edge-to-edge in rich, true-to-life colour.For optimal viewing, more than 20 image parameters can beindividually adjusted. The completely flat (PerfectFlat) screen andARAG anti-glare treatment effectively minimise reflections, toreduce eyestrain and increase productivity.

Відвідайте нас

www.viewsonic.com

COLORS

Black
COMPATIBILITY

PC: PC and compatible (from VGA up to 2048 x 1536)

Mac®: Power Mac™ (from VGA up to 2048 x 1536)
DIMENSIONS

Фізичні (ШxВxГ): 501mm (W) x 503mm (H) x 477mm (D)
INPUT SIGNAL

Frequency: Fh: 30 - 130kHz, Fv: 50 - 160Hz

Video: RGB analogue (0.7 Vp-p, 75 ohms)

Sync: H/V separated (TTL), composite, sync on green
CONNECTOR

Signal: 15-pin mini D-sub, BNC x 5 (RGBHV)

Живлення: 3-pin plug (IEC320)
POWER

Напруга: AC 90 - 264V, 50/60Hz (+/- 2Hz) (auto switch)

Споживання: 125 Watt (typ.), < 2 Watt in power save mode

CONTROLS

Basic:	Power on/off, menu, up, down, right, left
OSD:	Auto calibrate, language, input select (D-sub, BNC), zoom, H/V position, H/V size, side curve, pincushion, pin balance, trapezoid, parallelogram, tilt, H/V moiré reduction, H/V-convergence, purity, ViewMatch® colour (sRGB, 9300k, 6500k, 5000k, smart mode, professional mode), degauss, preset to factory setting, H/V OSD position, OSD lock

WEIGHT

Нетто: 26.4kg
VIDEO INPUT

Bandwidth: 360MHz (typ.)
POWER MANAGEMENT

Meets TCO'03 and Energy Star™ standards
ERGONOMICS

Tilt: Down 5°, up 20°

Swivel:180°(90° left/right)

CRT

Тип:	21” (20” viewable) CRT, 90° deflection, PerfectFlat™
Dot Pitch:	0.20mm horizontal x 0.14mm vertical, 0.25mm diagonal
Phosphor:	RGB medium-short persistence P22
Glass Surface:	Tint (TM ~ 54.5%), ARAG® screen treatment

MISCONVERGENCE

0.25mm (max.) at centre

0.35mm (max.) at corner
PROGRAMMABLE MODES

Factory: 12

User: 12
DISPLAY AREA

Factory Setting: 392mm (H) x 294mm (V) (typ.)

Maximum Scan: 410mm (H) x 300mm (V) (depending on signal timing used)
OPERATING CONDITIONS

Вологість: 5% to 95% (non condensation)

Температура: 0°C to 40°C

PC:	PC and compatible (from VGA up to 2048 x 1536)
Mac®:	Power Mac™ (from VGA up to 2048 x 1536)

Frequency:	Fh: 30 - 130kHz, Fv: 50 - 160Hz
Video:	RGB analogue (0.7 Vp-p, 75 ohms)
Sync:	H/V separated (TTL), composite, sync on green

Signal:	15-pin mini D-sub, BNC x 5 (RGBHV)
Живлення:	3-pin plug (IEC320)

Напруга:	AC 90 - 264V, 50/60Hz (+/- 2Hz) (auto switch)
Споживання:	125 Watt (typ.), < 2 Watt in power save mode

Factory Setting:	392mm (H) x 294mm (V) (typ.)
Maximum Scan:	410mm (H) x 300mm (V) (depending on signal timing used)

Вологість:	5% to 95% (non condensation)
Температура:	0°C to 40°C

Factory:	12
User:	12
