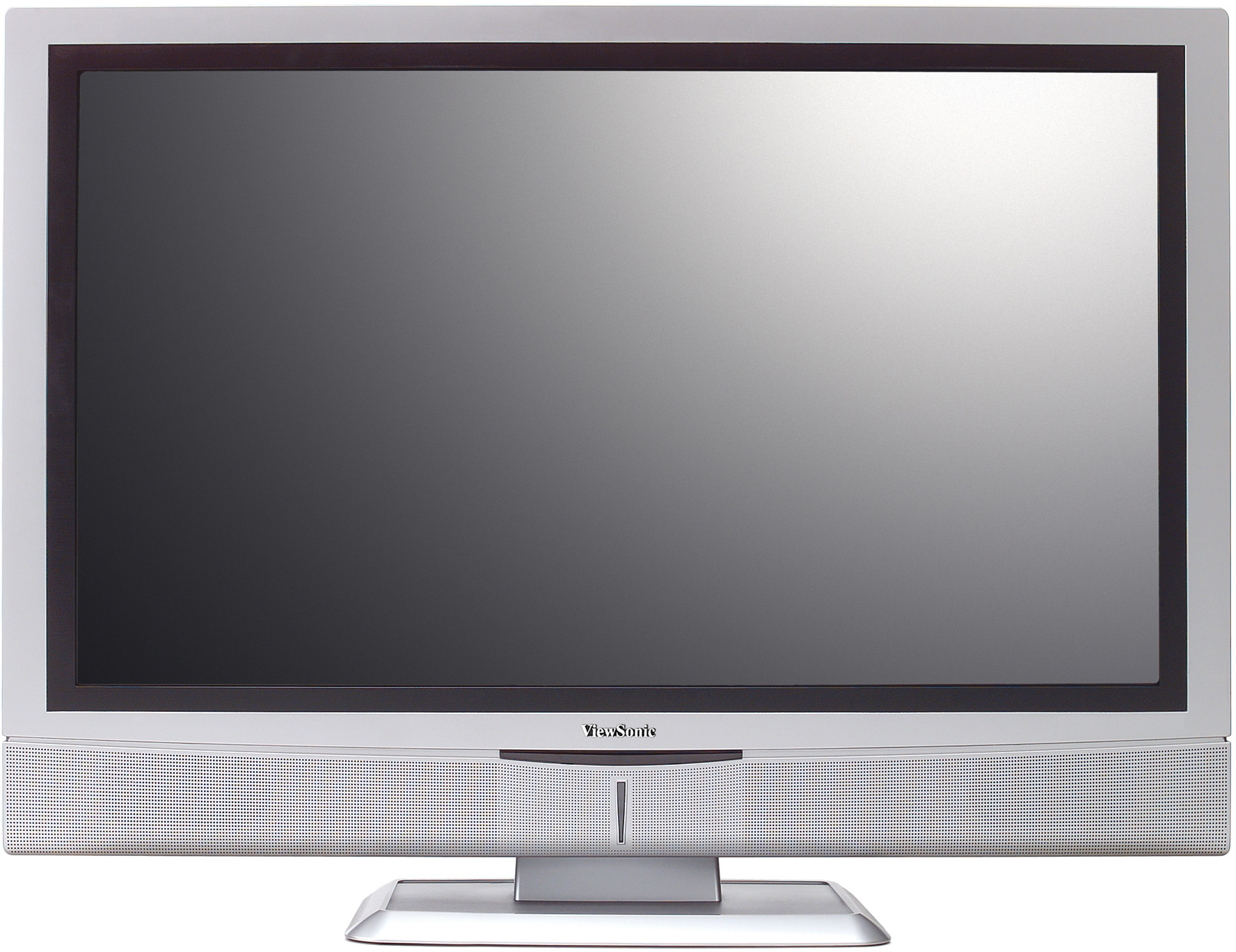

ViewSonic N3246w 32” WIDESCREEN HD-READY LCD TV WITH DIGITAL TUNER (DVB-T)

LCD

Тип:	32” VA extreme colour TFT active matrix, wide XGA 1366 x 768
Коефіцієнт контрастності:	1200:1 (typ.)
Кути перегляду:	176° horizontal, 176° vertical (at 20:1)
Яскравість:	550cd/m² (typ.)
Display Area:	70.9cm (horizontal) x 39.9cm (vertical), 81.3cm diagonal
Час відповіді:	8ms (grey-to-grey)
Співвідношення сторін:	16:9 native
Panel Surface:	Anti-glare 3H

COMPATIBILITY

PC: Compatible from 640 x 480 up to 1360 x 768, 1360 x 768 @ 60Hz preferred

Mac®: Power Mac™ up to 832 x 624
DIMENSIONS

W x H x D mm: 810 x 605 x 237 (with base)
810 x 556 x 116 (without base)
984 x 707 x 252 (packaging)
ВМІСТ УПАКОВКИ

LCD TV, 1.8m power cables (Europe [Schuko]/UK), AV cable, SCART cable, remote control, batteries, quick start guide, user guide (multi-language)
WARRANTY

Please see: www.viewsoniceurope.com/UK/Support/warranty.htm
AUDIO

Динамік: 2 x 10 watts SRS WOW (virtual surround-sound)

CONNECTOR

Живлення:	3-pin plug (CEE22)
Audio Out:	1 x L/R RCA set
Audio Input:	1 x L/R RCA set (for composite1/component) 1 x L/R RCA set (for composite2/S-video) 1 x 3.5mm mini stereo jack (for PC)
S-Video:	1 x 4-pin mini DIN jack
Headphone:	1 x 3.5mm mini stereo jack
SCART:	2 x SCART (SCART 1 [RGB In, CVBS In/Out, Audio In/Out], SCART 2 [S-video In, CVBS In, Audio In])
Composite Video:	2 x RCA (CVBS)
Tuner (Analogue):	1 x Coax RF (PAL/SECAM)
Tuner (Digital):	1 x Coax (DVB-T)
Digital Video:	1 x HDMI (HDCP)
Component Video:	1 x RCA set (YPbPr/YCbCr)
PC-RGB:	1 x 15-pin mini D-sub
PC Card Slot:	1 x for digital pay card and service

POWER

Напруга: AC 100–240V, 50/60Hz (auto switch); internal, fanless power supply

Споживання: 180 watt (max.)

CONTROLS

Basic:	Power, source, menu, channel up/down, volume up/down
OSD:	Picture Menu (present, contrast, brightness, colour, sharpness, tint, reset), Sound Menu (balance, treble, bass, SRS WOW, reset), PIP Menu (dual mode, PIP position, PIP source, audio source select), Setup Menu (OSD language, OSD timeout, OSD background, sleep timer, blue screen, teletext language), power lock, OSD lock

OPERATING CONDITIONS

температура: 0°C to 35°C

Вологість: 20% to 90% (non condensation)
WEIGHT

Нетто: 15.5kg (with base)

Брутто: 18.0kg
VESA MOUNT COMPLIANT

VESA FDMI 200mm x 200mm
VIDEO INPUT

PAL, SECAM, NTSC, SDTV/EDTV (480i/p, 576i/p), HDTV (720p, 1080i), DVB-T
TELETEXT/MHEG5

Yes (100 pages)/Yes

PC:	Compatible from 640 x 480 up to 1360 x 768, 1360 x 768 @ 60Hz preferred
Mac®:	Power Mac™ up to 832 x 624

Напруга:	AC 100–240V, 50/60Hz (auto switch); internal, fanless power supply
Споживання:	180 watt (max.)

температура:	0°C to 35°C
Вологість:	20% to 90% (non condensation)

Нетто:	15.5kg (with base)
Брутто:	18.0kg
