Основні особливості
  • Laser phosphor technology
  • WUXGA resolution
  • 30,000 hours lifespan
  • Built-in HDBaseT receiver
  • H/V lens shift & 1.65X optical zoom

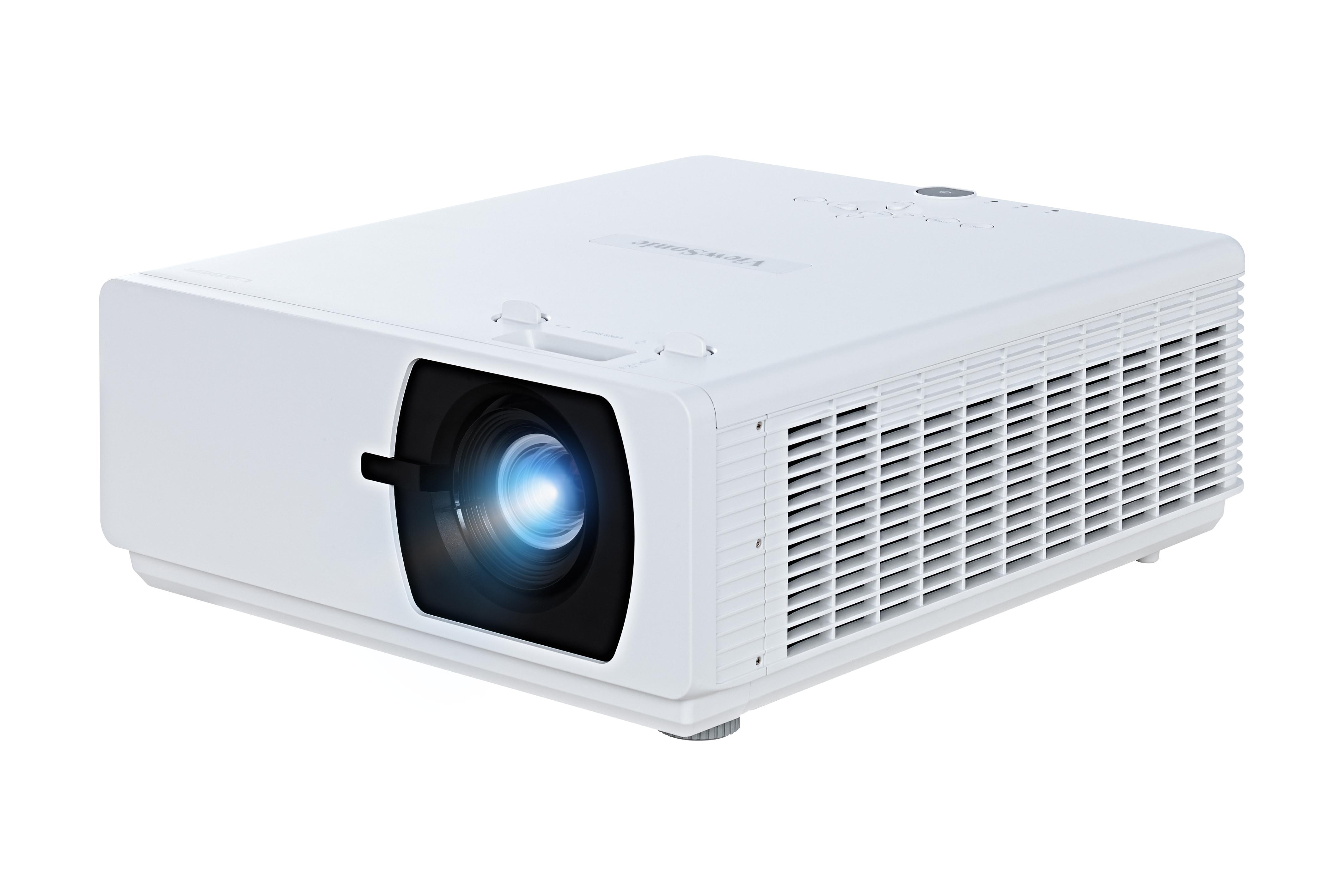

LS800WU
Опис товару
The LS800WU shines bright in virtually any environment with 5,500 ANSI Lumens of high-brightness projection and WUXGA resolution clarity. The projector comes equipped with a laser phosphor technology capable of achieving up to 30,000 hours of maintenance free projection and is capable of 24/7 continuous operation to provide a dramatically durable solution for public use. H/V lens shift and 1.65X optical zoom offers additional flexibility and makes the projectors adaptable to a wide array of installation settings. The projector’s built-in HDBaseT receiver is able to transmit uncompressed high resolution audio and video at a lengthy distance (100 meters for 1080p and 70 meters for 4K/2K) when combined with a cat5e/cat6 cable and is compatible with any certified HDBaseT transmitter. Addition features such as portrait mode and 360-degree projection allow users to deliver a fresh visual perspective for creative applications such as staging and advertising.
  1. Horizontal lens shift adjustment
  2. 1.65X optical zoom
  3. Front IR
  4. Power key & Top IR
  5. Keypad
  6. Vertical lens shift adjustment
  7. Focus adjustment
  8. HDMI x3
  9. Computer in
  10. Monitor out
  11. Video
  12. 3D sync (VESA)
  13. Mini USB for service
  14. USB type A (5V/1.5A)
  15. AC in
  16. LAN (FJ45)
  17. HDBaseT (RJ45)
  18. RS232
  19. Audio out
  20. Audio in / Mic in
  21. Audio in (R/L)
  22. Kensington lock
Відвідайте нас
  • www.viewsonic.com
  • SPECIFICATION
    Рідна роздільна здатність: 1920x1200
    DC type: DC3
    Яскравість: 5500 ANSI Lumens
    Contrast Ratio with SuperEco mode: 100000:1
    Display Color: 1.07 Billion Colors‎
    Джерело світла: Laser Phosphor system
    Light source life (Nor/SuperEco): 20000/30000
    Вати лампи: Laser Bank x 4
    Об'єктив: f2.45-3.13, f=17.23-27.9mm
    Зсув проекції: 130%+/-10%
    Проекційний коефіцієнт: 1.15-1.9
    Image size: 50" - 300"
    Проекційна відстань: 1.24-7.43m
    (100"@2.48m )
    Трапеція: HV
    Зсув об’єктива по вертикалі: Yes (-2.4% +9.2%)
    Зсув об’єктива по горизонталі: Yes (-2.5% +2.5%)
    Оптичний зум: 1.65x
    Audible Noise (Normal/Eco): 34dB / 32dB
    Підтримка роздільної здатності: VGA(640 x 480) to WUXGA_RB(1920 x 1200)
    *RB-Reduced Blanking
    Сумісність з HDTV: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Сумісність відео: NTSC, PAL, SECAM
    Горизонтальна частота: 15K~102KHz
    Швидкість вертикального сканування: 23~120Hz
  • Вхід
    Computer in (D-SUB 15 pin): 1
    Композитний: 1
    Аудіовхід (3,5 мм): 1
    Аудіовхід (RCA R/L): 1
    Вхід мікрофона: 1
    HDMI (HDCP): 3
    (HDMI 1.4/ HDCP 1.4)
    3D VESA (Sync): 1
  • Вихід
    Monitor out (D-SUB 15 pin): 1
    Аудіовихід (3,5 мм): 1
    Динамік: 5W x 2
    USB type A (Power): 1 (5V/1.5A)
  • Управління
    RS232: 1
    RJ45: 1
    USB type mini B (Services): 1
    HDBaseT: 1
  • Інші
    Напруга джерела живлення: 100-240V+/- 10%, 50/60Hz AC
    Споживання енергії: Normal: 430W
    Standby: <0.5W
    Робоча температура: 0~40℃
    Carton: Brown
    Вага нетто: 11.0kg
    Dimensions (WxDxH) w/adjustment foot: 360x440x161mm
    Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese
  • STANDARD ACCESSORY
    Шнур живлення: 1
    VGA cable: 1
    Пульт ДК: 1 (w/Laser pointer)
    QSG: 1
  • Додаткові аксесуари
    Warranty Card: Yes (CN Only)
