Основні особливості
  • Intuitive Interactive Interface and Eye-care Certified Display
  • Synchronous Writing Performance with Dual Pens
  • Lag-free, Pen-on-paper Writing Experience with Ultra Fine Touch Technology
  • Native Whiteboarding Tool with built-in myViewBoard® App
  • Wireless Content Sharing and 4-way Split Screen with ViewBoard® Cast App

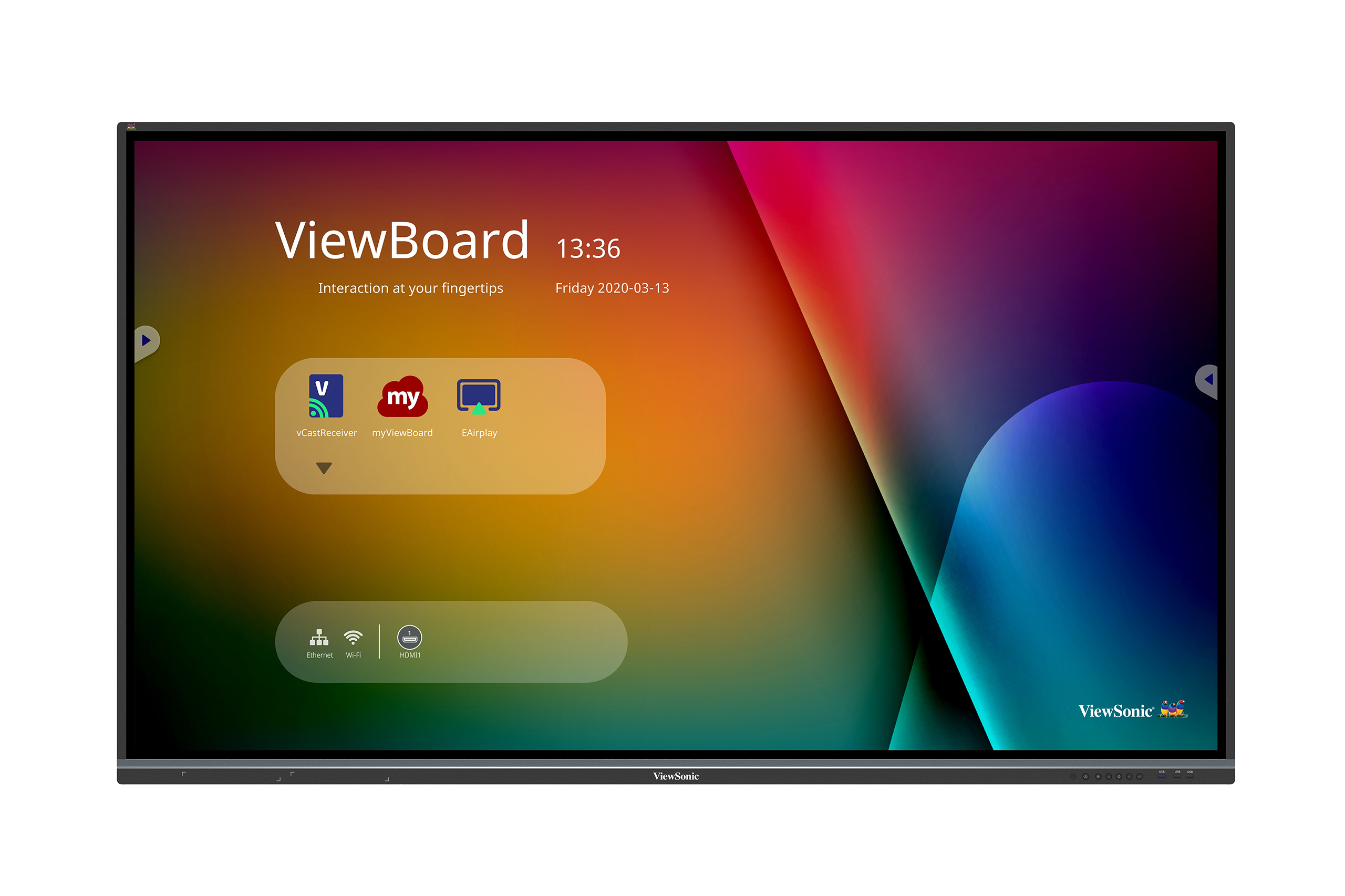

ViewBoard IFP8650-3
Опис товару
For teachers in the modern classroom, the ViewBoard® IFP50 series has the most intuitive interactive interface. It keeps continuous interaction within the first vision area and keeps everything within comfortable reach. Additionally, it is an eye-care certified display with low blue light and flicker-free at all brightness levels. The ViewBoard® IFP50 series further stands out with synchronous writing performance. You can write smoothly, with the pen that serves as an extension of your fingertips, and simultaneously with the equipped dual pens of different colors and thicknesses. The native built-in whiteboarding tool, myViewBoard®, further helps visualize your ideas with ease. The ViewBoard® IFP50 series is further complimented by wireless content sharing. Students can share their screens to the ViewBoard and vice versa with the built-in ViewBoard® Cast app. It is not limited to one-on-one presentation either. Teachers can advance to do group activities with the 4-way split screen display. Whether you’ve experienced good or lackluster classroom interaction in the digital whiteboarding world, the ViewBoard® IFP50 series will now allow you to work effortlessly in the classroom.
  1. MENU CONTROLS
  2. USB 3.0
  3. USB 2.0
  4. USB 3.0
  5. TOUCH
  6. HDMI IN X 3
  7. Wi-Fi Module Slot
  8. VESA® Wall Mount 800x600mm
  9. INTERNAL SPEAKERS
  10. USB 2.0
  11. LAN
  12. Audio Out
  13. RS232
  14. SPDIF
  15. Audio In
  16. VGA
Відвідайте нас
  • www.viewsonic.com
  • Екран
    Розмір панелі: 86"
    Type/Tech: TFT LCD Module with DLED Backlight.
    Площа екрана (мм): 1895.04 (H) x 1065.96 (V) (85.6”diagonal)
    Співвідношення сторін: 16:9
    Рідна роздільна здатність: UHD 3840x2160 (Pixels)
    Colors: 1.07B colors (10bit)
    Яскравість: 350 nits (typ.)
    Коефіцієнт контрастності: 5000:1 (DCR)
    Час відповіді: 8ms
    Кути перегляду: H = 178, V = 178 typ.
    Термін служби підсвітки: 50,000 hrs
    Обробка поверхні: Hardness: 9H, Anti-flare coating
    Рамка: Slim
    Орієнтація: Landscape
  • Платформа
    Процесор: ARM Cortex-A73*2 + Cortex-A53*2 1.5GHz
    ОЗП: 3GB DDR4
    Зберігання: 32GB
  • TOUCH
    Тип/ Технологія: IR Recognition
    Сенсорна роздільна здатність: 32767 x 32767
    Точка дотику: 20 points touch, 10 points writing
  • INPUT
    HDMI: 2.0 x3 (3840x2160 @60Hz)
    RGB / VGA: x1
    Аудіо: x1 (PC audio in)
    RS232: x1
    Модульний ПК: x1 PC Slot (proprietary)
  • OUTPUT
    Аудіо: x1 (Earphone out)
    SPDIF: 1 (optical)
  • LAN
    RJ45: x1
  • USB
    Type A: USB2.0: Front x2, Rear x1 (SmartPort™ for all), USB3.0: Front x1, Rear x3 (SmartPort™ for Rear x3)
    Type B: x2, for touch
  • ДИНАМІКИ
    10W x 2 + 15W x 1
  • TOP CAMERA PLATE
    Yes
  • COMPATIBILITY
    HDMI: 3840x2160
  • Вбудована ОС
    Android 8
  • Програмне забезпечення в комплекті
    Базове програмне забезпечення для анотацій: myViewBoard
    Професійна програма для анотування: myViewBoard for Windows (Embedded in Windows Slot-in PC)
  • Особливості
    Універсальний USB-порт (поєднує USB-порт для Windows та Android; їх більше не потрібно розрізняти): Front “SmartPort™ USB” to all channels.
    Простий спільний доступ до локальної мережі між інтерактивною панеллю і роз'ємним пристроєм: 10M/100M/ for Android, 10M/100M/1000M for slot-in PC
  • Живлення
    Напруга: 100-240VAC +/- 10% Wide Range
    Споживання: On: 162W(typ.) / Off: <0.5W
  • ERGONOMICS
    Настінне кріплення (VESA® ): 800 x 600
  • OPERATING CONDITIONS
    Температура (º C): 0°C to 40°C
    Вологість: 10% ~ 90% RH non-condensing
  • РОЗМІРИ (Ш X В X Г)
    Фізичні (дюйми / мм): 77.1 x 45.7 x 3.5 in / 1958 x 1160 x 90 mm
    Упаковка (дюйм / мм): 83.6 x 53.0 x 11.0 in / 2123 x 1345 x 280 mm
  • WEIGHT
    Нетто (фунт/кг): 150.8 lb / 68.4 kg
    Брутто (фунт/кг): 200 lb / 90.7 kg
  • ВМІСТ УПАКОВКИ
    1. Power cable (3 meters) x2
    2. Remote control
    3. USB cable (3 meters)
    4. Touching pen x2
    5. Quick Start Guide
    6. RS232 adapter
    7. Clamp x5
    8. Plate
    9. Screw x8
    10. HDMI cable 3M
  • Сумісний модульний ПК
    VPC14-WP series, VPC10-WP series, VPC15-WP series, VPC16-WP series, VPC17-WP series
