Основні особливості

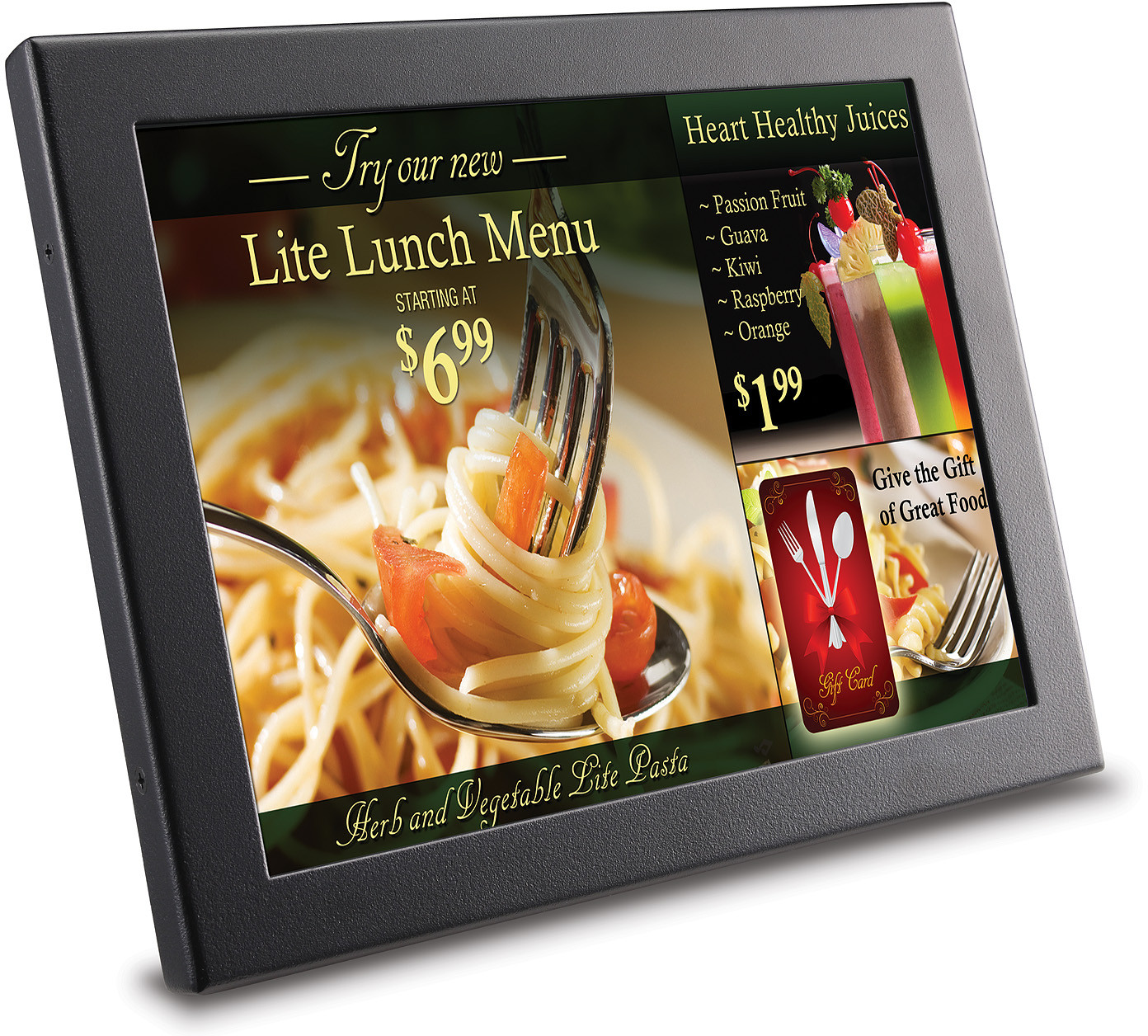

EP1020r
Опис товару
ViewSonic’s EP1020r wireless display is just right for POS messaging or meeting room schedules. It features a built-in media player with internal storage capable of playing of JPEG images and video content with audio. Vivid retail messagingis easily configured via a play list, using the included Signage Manager Express Software and uploaded into the EP1020r display over a corporate network or manually using a USB thumb drive. Great for advertising in high visibility locations, informational signs for hotel lobbies and public locations, even for advertising boards in banks and on university campuses. The EP1020r is also SMIL compatible making the perfect companion for ViewSonic’s new ScheduleIT software for automated meeting room scheduling.
Відвідайте нас
  • www.viewsonic.com
  • COLORS
    Black
  • COMPATIBILITY
    Photo Formats: JPEG baseline 5120x3840, progressive 2048x1536
    Audio Formats: LPCM, sampling rate: 32–48KHZ/16–24 bit, MPEG1 Layer 3, sampling rate: 32–48KHZ, bit rate: 32–320Kbps
  • DIMENSIONS
    Фізичні (ШxВxГ): 9.9" x 7.8" x 1.7" (251mm x 198mm x 43mm)
  • ВМІСТ УПАКОВКИ
    ePoster, AC adapter, stand, antenna, Quick Start Guide and Software on CD
  • AUDIO
    Динамік: 3W (x2)
  • CONNECTOR
    USB: 1.1 (x1)
    Ethernet: RJ45 (10/100M)
    WiFi: WiFi 802.11g/b

    WiFi Security: WPA/WPA2, TKIP/AES
  • POWER
    Споживання: Max 24W
    Save Mode (W): Off < 1W
    Supply: 3.2–1.38 A @ 100–240VAC, 50/60Hz
  • OPERATING CONDITIONS
    Вологість: 10–90% (non-condensing)
    температура: 32–122º F (0–40º C)
  • DISPLAY
    Contrast Ratio: 400:1 (typ)
    Display size: 10.4" (4:3) TFT LCD
    Яскравість: 250 cd/m2 (typ)
    Роздільна здатність: 800x600 dots
    Color Depth: Over 16.7M color (depending on video card used)
    Час відповіді: 8ms (typ gray-to-gray)
    Зберігання: 2GB Compact Flash
    Кути перегляду: Up and down 178º, left and right 178º (typ) @ CR>10
  • VESA MOUNT COMPLIANT
    75mm x 75mm
  • WEIGHT
    Брутто: 5.3 lbs. (2.4 kg)
    Нетто: 4.0 lbs. (1.8 kg)
  • CONTENT MANAGEMENT
    Операційна система: MS Windows
    Програмне забезпечення: Signage Manager Express
  • MTBF
    50,000 hrs.
