Комерційні дисплеї

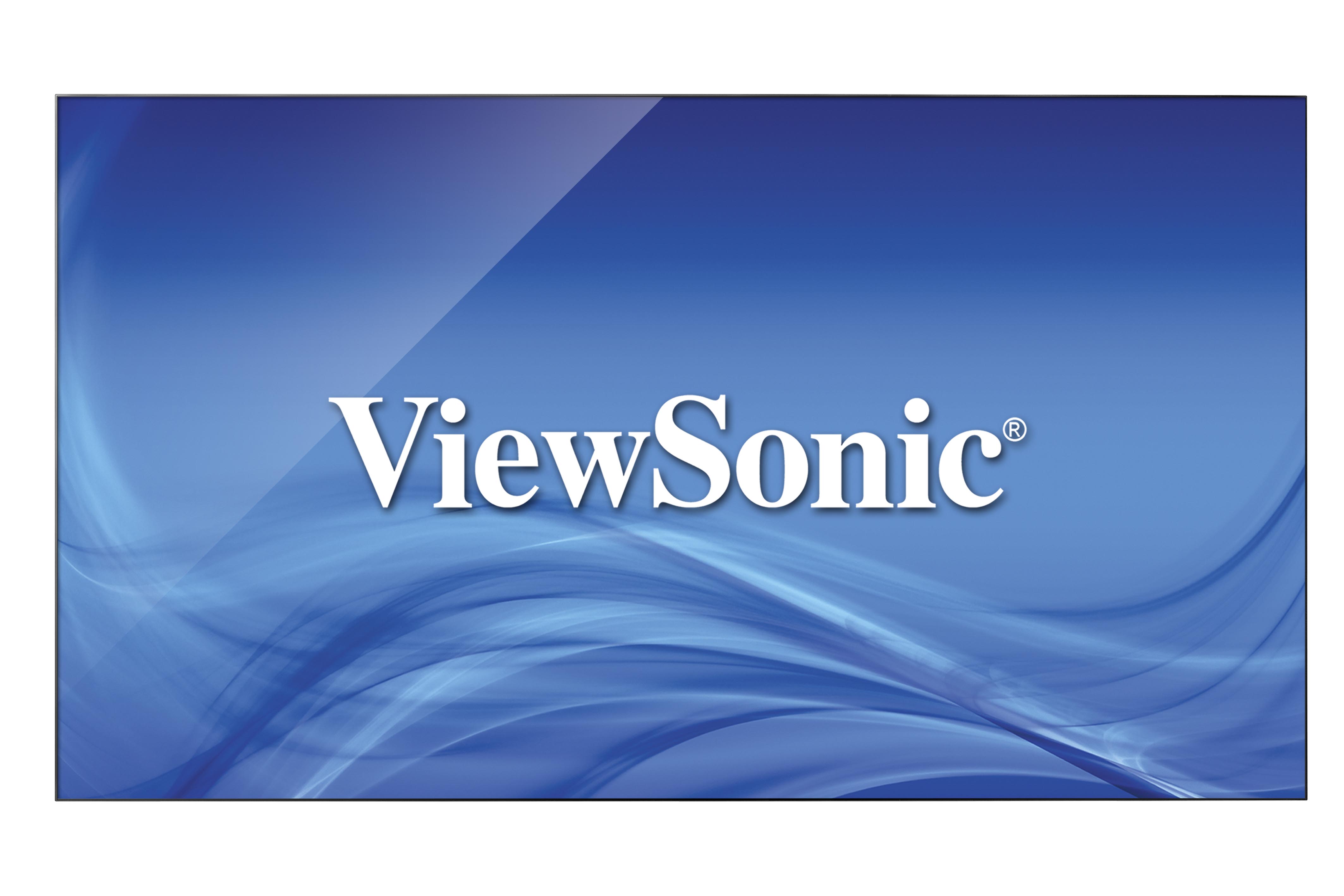

CDX4952
Основні особливості
- Ultra-narrow Bezel
- 10x10 Tiling Support with DisplayPort or DVI
- Supports HDMI CEC pass-through
- vController Software
- Computing expansion PC slot for Intel OPS
Опис товару
With stunning brightness, vibrant images, and multi-screen tiling, the ViewSonic® CDX4952 49" (48.5" viewable) commercial display is your ideal tool for creating video walls that wow! With up to 10x10 tiling installation, and an ultra-narrow bezel that measures only 3.5mm between combined displays, the CDX4952 delivers nearly seamless, high-impact messaging that helps you to astonish, inspire, and inform. Featuring full metal construction and a scratch-resistant tempered glass screen, this durable commercial-grade display delivers reliable messaging 24 hours a day, 7 days a week. With Full HD 1080p resolution, 450-nit brightness, SuperClear® technology for wide viewing angles, and dual 10W stereo speakers, the CDX4952 delivers sharp, vivid images with incredible sound for superior multimedia performance.
Відвідайте нас
- www.viewsonic.com
-
LCD PANEL
Розмір панелі: 49" (48.5'' diagonal) Тип/ Технологія: TFT LCD Module. (IPS type, DLED backlight) Площа екрана (мм): 1073.8(H) x 604.0 (V) (48.50” diagonal) Співвідношення сторін: 16:09 Роздільна здатність: 1920 x 1080 Colors: 10 bit, 1.07 Billion colors Яскравість: 450 nits (typ.) Коефіцієнт контрастності: 1300:1 (typ.) Час відповіді: 12 ms Кути перегляду: H = 178°, V = 178° (typ.) Backlight: LED Термін служби підсвітки: 50,000 Hours (typ.) Hardness: Hard coating(3H), Anti-glare treatment of the front polarizer, Haze 1%(Typ.) -
INPUT
HDMI: x 2 (1.4) RGB / VGA: x 1 DisplayPort: x 1 DVI: x 1 Аудіо: x1 Композитне відео: x 1 (Share with component Y) YPbPr: x 1 RS232: x 1 Модульний ПК: x 1 IR Pass Through: x 1 -
OUTPUT
DisplayPort: x 1 DVI: x 1 Аудіо: x 1 RS232: x 1 IR Pass Through: x 1 -
LAN
RJ45: x 1 -
ДИНАМІКИ
10W x2 -
COMPATIBILITY
Композитне відео: 480i HDMI (1080p): 480i, 480p,720p,1080i,1080p, 4k2k@30Hz DisplayPort: 480i, 480p,720p,1080i,1080p, 4k2k@30Hz YPbPr: 480i, 480p,720p,1080i,1080p DVI: 480i, 480p,720p,1080i,1080p -
CONTROLS
Physical- Top OSD: PICTURE:POWER, MUTE, INPUT, VOL -/+, UP, DOWN, MENU
Picture style, Restore style, Backlight, Colour, Sharpness, Noise reduction, MPEG artifact reduction, Digital Crystal Clear, Advanced, Game or computer, Format and edges, Input resolution
SOUND: Sound style, Restore style, Bass, Treble, Balance, Surround mode, Audio Out, Advanced
TILING: Enable, H monitors, V monitors, Position, Frame Comp.
GENEERAL SETTINGS: Menu language, Monitor ID, Eco mode, Auto search, Clock, Scheduling, Sleep timer, CEC, Auto adjust, Locak KB lock, RC lock, Pixel shift, Smart power, Wake on lan, Switch on state, Light sensor, LED, Switch on delay, Logo, APM, Information OSD, DisplayPort Ver., Cooling fan, Network control port,Factory settings.
NETWORK SETTINGS: View network settings, Network configuration, Static IP Configuration, Digital Media Renderer-DMR, Network name -
POWER
Напруга: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz Споживання: Normal 110 W, Max 235 W -
ERGONOMICS
Настінне кріплення (VESA® ): 400x400mm ; Screw: M6*10mm -
OPERATING CONDITIONS
Температура (º C): 5 – 40 degC (Landscape), 5 – 35 degC (Portrait) Вологість: 20% ~ 80% without condensation -
DIMENSIONS
Фізичні (дюйми / мм): 1077.6 x 648.7 x 400 mm / 42.43’ x 25.54’ x 15.75’ in. Physical w/o Stand (inch / mm): 1077.6 x 607.8 x 93.5 mm / 42.43 ‘x 23.93’ x 3.68’ in Упаковка (дюйм / мм): 1367 x 897 x 366 mm / 53.82’ x 35.31’ x 14.41’ in -
WEIGHT
Нетто (фунт/кг): 23.9 kg / 52.69 lb Net w/o Stand (lb / kg): 21.6 kg / 47.62 lb Брутто (фунт/кг): 34.3 kg / 75.62 lb -
WHAT'S IN THE BOX?
1. CDX4952 Commercial Display
2. Remote Control with batteries
3. User manual CD wizard
4. Quick Start Guide
5. Power Cables
6. VGA cable
7. RS232 cable
8. IR sensor cable
9. RS232 daisy chain cable
10. Edge Alignment Kit-1
11. Edge Alignment Kit-2
12. Thumb Screw
*Actual content may differ from market to market
