Комерційні дисплеї
CDP4235-T
Основні особливості
Опис товару

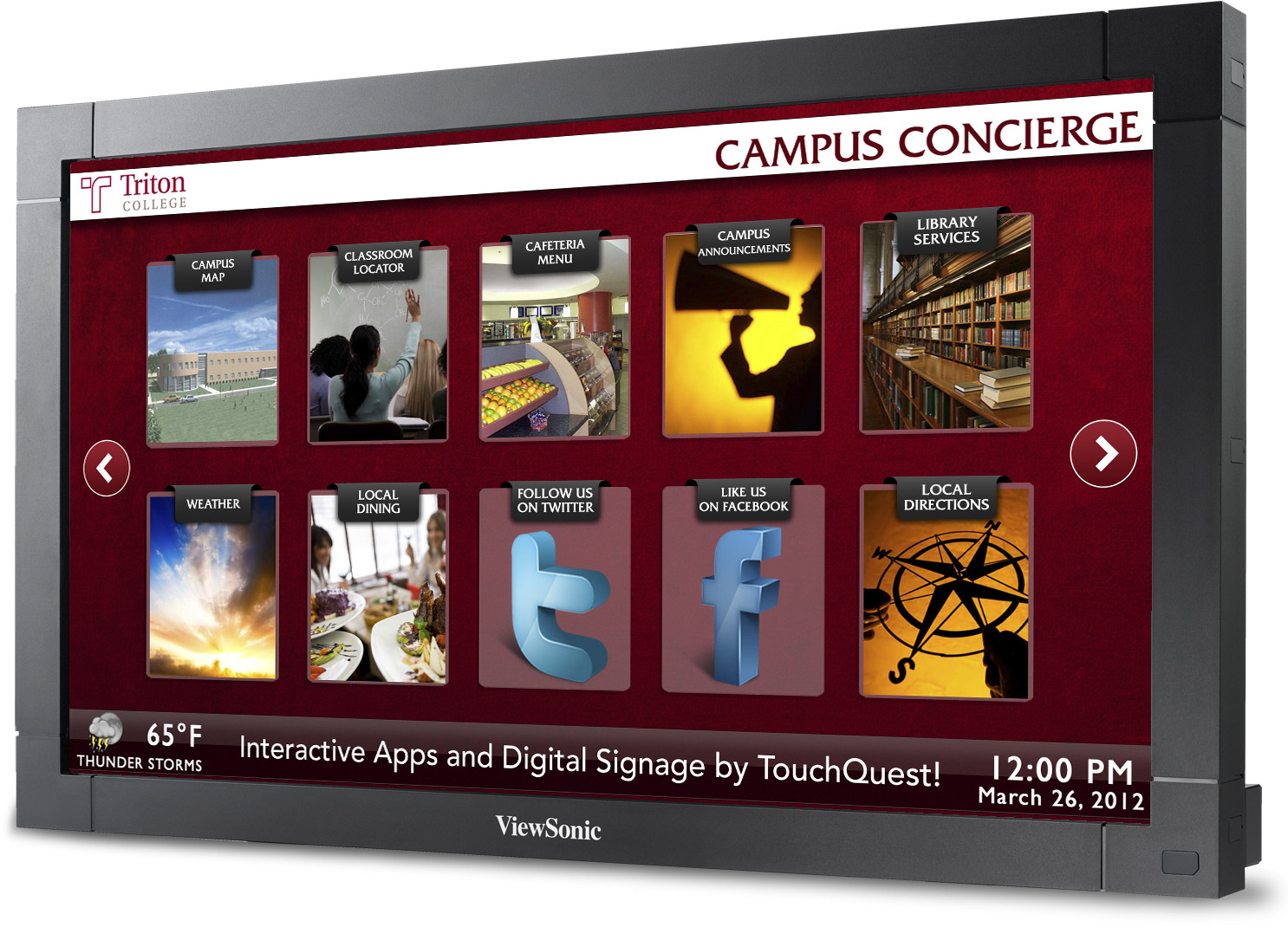

The ViewSonic® CDP4235-T Full HD Touch Commercial Display features a 1920 x 1080p panel with a 4000:1 contrast ratio and Intel’s Open Pluggable Specification (OPS) for applications requiring an integrated media player. Additional features include versatile inputs – HDMI, DVI, VGA, S-Video and composite, YPbPr and built-in 10W x2 speakers. The CDP4235-T will support up to a 5x5 display video wall with internal clock and scheduler. RS-232 daisy chain capable and RJ-45 are provided for remote control.
Відвідайте нас
- www.viewsonic.com
-
LCD
Тип: 42" colour TFT active matrix, wide LCD Коефіцієнт контрастності: 4000:1 (typ) Кути перегляду: 178º horizontal, 178º vertical Яскравість: 450 cd/m2(typ) Display Area: 36.6" horizontal x 20.6" vertical; 42" diagonal Optimum Resolution: 1920 x 1080, 435mm dot pitch Час відповіді: 8ms Джерело світла: Long life, 50,000 hrs. (typ) Співвідношення сторін: 16:9 Panel Surface: Anti-glare, hard coating (3H) -
DIMENSIONS
Physical With Stand: 39" x 25.4" x 11.2" / 991.6 x 621 x 328.8mm Physical Without Stand: 39" x 25.5" x1.5" / 991.6 x 115.5 x 25.5mm Packaging: 44.8" x 29.3" x12" / 1139 x 743 x 305.2 mm -
ВМІСТ УПАКОВКИ
LCD display, power cable, remote control with batteries, User Guide CD -
INPUT
Відео вхід: HDMI, DVI, component, VGA, S-Video, composite Video Output: VGA, component, DVI Control Input/Output: RS-232/RJ45 -
INPUT SIGNAL
TV/Video comp.: 480i, 480p, 720p, 1080i, 1080p -
CONNECTOR
Digital: HDMI, DVI Живлення: 3-pin plug Analog: 9-pin mini D-sub (VGA) -
POWER
Напруга: AC 100–240V (universal), 50–60Hz Споживання: 210W (typ) -
CONTROLS
Picture: Picture mode, contrast, brightness, colour temperature, temperature adjust, sharpness Front Panel: Power, Exit, +, –, Menu/Enter Special: Aspect ratio, over scan, power save, image retention, auto adjustment, monitor ID, reset Аудіо: Volume, mute, audio source Diagnostic: Thermal, back light, ambient, 5V detect, 12 detect Вхід: VGA, DVI, HDMI, YPbPr OSD Setting: Languages, OSD H. position, OSD V. position, OSD timer VGA Setting: Auto adjustment, clock, phase, sharpness, H. position, V. position -
DISPLAY
Touch: Type : Optical Imaging
Capability : 4 simultaneous touches
Support OS : Windows® 2000, XP, Vista®, Windows 7 (multi-touch requires driver), Max OS X, and Linux (requires evtouch)
Touch Resolution : 32,767 x 32,767
Accuracy : +/- 3.5 mm over 95% of touchable area
Response Time : 9ms to 22ms depending on configuration; 14ms (typ)
Touch Method : Touch with any object, Finger, Pen or Brush
Connection : USB
Glass : 5mm tempered glass -
VESA MOUNT COMPLIANT
VESA® 400mm x 200mm, 200mm x 200mm -
WEIGHT
Брутто: 61.7 lb. / 28 kg Нетто: 50.7 lb. / 23 kg -
OPERATING CONDITIONS
Вологість: 10–80% (non-condensing) Temperature (landscape): 32–104ºF (5–40ºC) Temperature (portrait): 32–95ºF (5–35ºC) -
RECYCLE/DISPOSAL
The lamp in this product contains mercury. Please dispose of in
accordance with local, state or federal laws. -
AUDIO OUT
Speakers: Internal 10-watt (x2) -
Модульний ПК
Open Pluggable Specification slot (OPS ready)
