ViewBoard
CDE8452T
Основні особливості
Опис товару

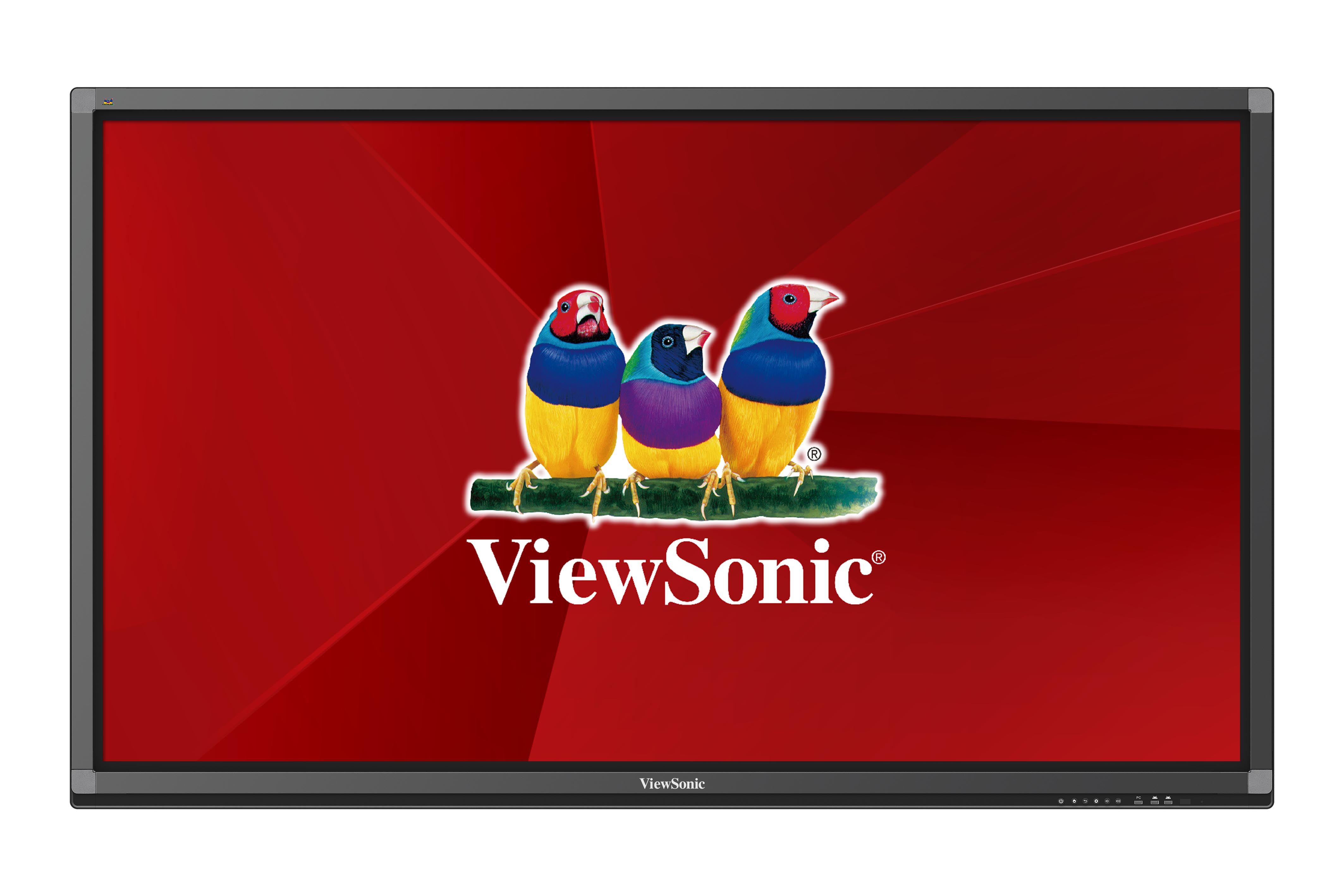

The ViewSonic CDE8452T is a stunning 84" 4K Ultra HD interactive flat panel. Delivering four times the detail of Full HD displays, the CDE8452T is ideal for higher education and corporate meeting applications, as well as for scientific, GIS, and wayfinding applications. The 10-point touch-enabled display allows up to ten users to simultaneously write or draw on the display’s surface using their fingers or styluses. The large-format LED screen and Ultra HD 3840 x 2160 resolution guarantees the ultimate in colour, clarity, and image detail. Equipped with a tempered glass overlay, anti-glare treatment, and rounded corners, the CDE8452T is designed for heavy usage in high-traffic areas. The ViewSonic CDE8452T Ultra HD interactive flat panel is the perfect solution where ultra-high resolution imaging and touch interactive performance is needed.
Відвідайте нас
- www.viewsonic.com
-
LCD
Display Area: 1860.48mm(H) x 1046.52mm(V), 84” diagonal Optimum Resolution: 3840 x 2160 Коефіцієнт контрастності: 1600:1 (typ) Кути перегляду: 178º horizontal, 178º vertical Час відповіді: 8 ms Джерело світла: Long life, 50,000 hrs. (typ) Яскравість: 350 cd/m2 (typ) Співвідношення сторін: 16:9 Panel Surface: Anti-glare, hard coating 7H scratch resistant Touch Type: Yes, Infrared, 10 point multi touch Тип: 84" colour TFT LCD Module with LED Backlight -
INPUT
Video Output: VGA Control Input/Output: RS232 Відео вхід: HDMI, Component, VGA, CVBS -
CONNECTOR
Analog: 3x VGA in (D-SUB), 1x VGA out (D-SUB), 1x CVBS Аудіо: 3x PC Audio in (3.5mm Jack) USB: 3x USB A type (2.0), 1x USB A type (3.0), 1x USB B type (Touch function) Digital: 3x HDMI (up to 1080p), 1x HDMI (up to 4K2K) -
AUDIO
Speakers: 2x Internal 15 Watt -
VIDEO SIGNAL
HDMI resolution: up to 3840x2160 (30Hz) CVBS resolution: 640x480 (480i) VGA resolution: up to 1920x1200 (60Hz) -
CONTROLS
Sound: Sound Mode, Treble, Bass, Balance, Auto Volume, SPDIF Mode, AD Switch OSD: Clock, Time Zone, Sleep Timer, Auto Standby, OSD Timer Panel: Power, Input, PC/VGA, Vol+, Vol-, Zoom, Energy Saving Set Up: OSD Language, TT Language, Hearing Imparied, PVR File System, Record list, Aspect Ratio, Blue Screen, First Time Installation, Reset, Software Update (USB) Advanced Options: Lock System, Set Password, Block Program, Parental Guidance, Key Lock Picture: Picture Mode, Contrast, Brightness, Colour, Tint, Sharpness, Colour Temperature, Noise Reduction -
POWER
Споживання: 500W (Typ), <0.5W (suspend) Напруга: AC 100–240V (universal), 50–60Hz -
OPERATING CONDITIONS
Вологість: 20–80% (non-condensing) Температура: 0-40º C, Landscape mount only -
DIMENSIONS
Екран: 1978 x 1187 x 95 mm / 77.9 x 46.7 x 3.7 in. Packaging: 2170x1370x320 mm, 85.4x53.9x12.6 in -
WEIGHT
Нетто: 107kg/235.89 lb Брутто: 135kg/297.62 lb -
WALL MOUNT
VESA®: 600 x 600mm -
INCLUDED ACCESSORIES
•CDE8452T display
•Power cables (EU, UK)
•VGA cable
•Audio cable
•USB cable
•Remote control with batteries
•Stylus (x3)
•ViewSonic Wizard CD (User Guide and ViewBoard Software) -
OPTIONAL ACCESSORIES
PC Module (NMP711-P10), Trolley (LB-STND-003)
