Комерційні дисплеї

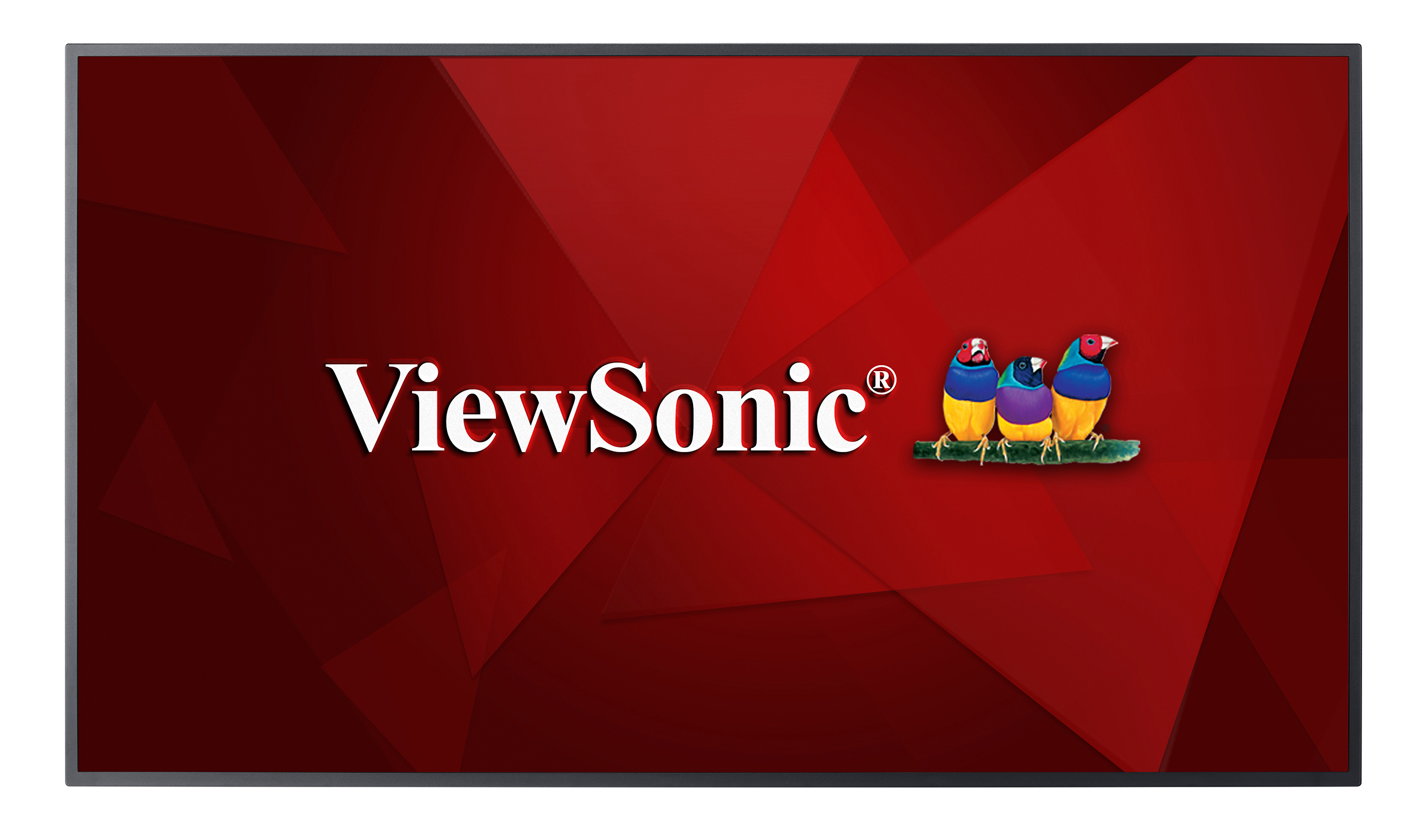

CDE6510
Основні особливості
- Embedded Android SOC supports Android apps
- Computing expansion PC slot for Intel OPS
- USB multimedia player
- vController software
- Supports HDMI CEC pass-through
Опис товару
The ViewSonic CDE6510 is a great value 65’’ 4K LED presenation display with high-reliability 16 hours per day/7 days a week operating time. A built-in browser offers a convenient method for displaying internet content without a PC. In addition to versatile connectivity options, including 4K DisplayPort, HDMI, VGA, USB, IR, RJ45, the display comes with a convenient USB multimedia playback function. With 3840 x 2160 resolution, 350-nit brightness with 178-degree wide viewing angles, and 2 x 10W stereo speakers, the slim-bezel CDE6510 delivers vivid images and remarkable sound for superior multimedia performance. The HDMI CEC pass-through support provides one control for multiple HDMI-connected devices while the free-bundled vController software makes remote display management easier via RSS232/RJ45 port. The display also comes equipped with Blue Light Filter technology to create a more comfortable viewing experience.
Відвідайте нас
- www.viewsonic.com
-
LCD PANEL
Розмір панелі: 65" Тип/ Технологія: TFT LCD Module with DLED Backlight Площа екрана (мм): 1428.48 (H) x 803.52 (V) Співвідношення сторін: 16:09 Роздільна здатність: 3840x2160 @60Hz Colors: 1.07B colors Яскравість: 350 nits (typ.) Коефіцієнт контрастності: 4000:1 (typ.) Час відповіді: 8 ms Кути перегляду: H = 178, V = 178 (typ.) Backlight: DLED Термін служби підсвітки: 30,000 Hours Min. Hardness: 3H -
INPUT
HDMI: x 4 RGB / VGA: x 1 DisplayPort: x 1 Аудіо: x1 PC audio (3.5 mm) RS232: x 1 PC Slot: x 1 (optional VPC12-WPO) IR: x 1 -
OUTPUT
RS232: x 1 IR: x 1 -
LAN
RJ45: x 1 -
USB
Type A: x 1 for 5V/2A 2.0 Type A: x 2 (USB Playback) 3.0 Type A: x 1 (USB Playback) -
ДИНАМІКИ
10W x 2 -
COMPATIBILITY
VGA: 1920 x 1080 DisplayPort: 480i, 480p,720p,1080i,1080p, 4K2K@30Hz HDMI: 480i, 480p,720p,1080i,1080p, 4K2K@60Hz -
POWER
Напруга: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz Споживання: Normal 165 W, Max 295 W EEI Rating: A -
ERGONOMICS
Настінне кріплення (VESA® ): 400 x 400mm ; Screw: M6*(10+X) mm. (X=thickness of wall mount plate) -
OPERATING CONDITIONS
Температура (º C): 5°C to 40°C Вологість: 20% ~ 80% non-condensing -
РОЗМІРИ (Ш X В X Г)
Physical (mm / inch): 1458.7 x 938.8 x 540 mm / 57.43 x 36.96 x 21.26 in. (with Stand) Physical w/o Stand (mm / inch): 1458.7 x 834.7 x 81.6 mm / 57.43 x 32.86 x 3.21 in. (w/o Stand) Packaging (mm / inch): 1655 x 1078 x 280 mm / 65.16 x 42.44 x 11.02 in -
WEIGHT
Net (kg / lb): 28.9 kg / 63.71 lbs (with Stand) Net w/o Stand (kg / lb): 24.8 kg / 54.67 lbs (w/o stand) Gross (kg / lb): 34.84 kg / 76.80 lbs -
WHAT'S IN THE BOX?
1. CDE6510 presenation display
2. Remote Control with batteries
3. User manual CD wizard
4. Quick Start Guide
5. Power Cables
6. RS232 cable
7. RS232 daisy chain cable (2.4mm – 2.4mm)
8. IR sensor cable
