ViewBoard
CDE5501-TL
Основні особливості
Опис товару

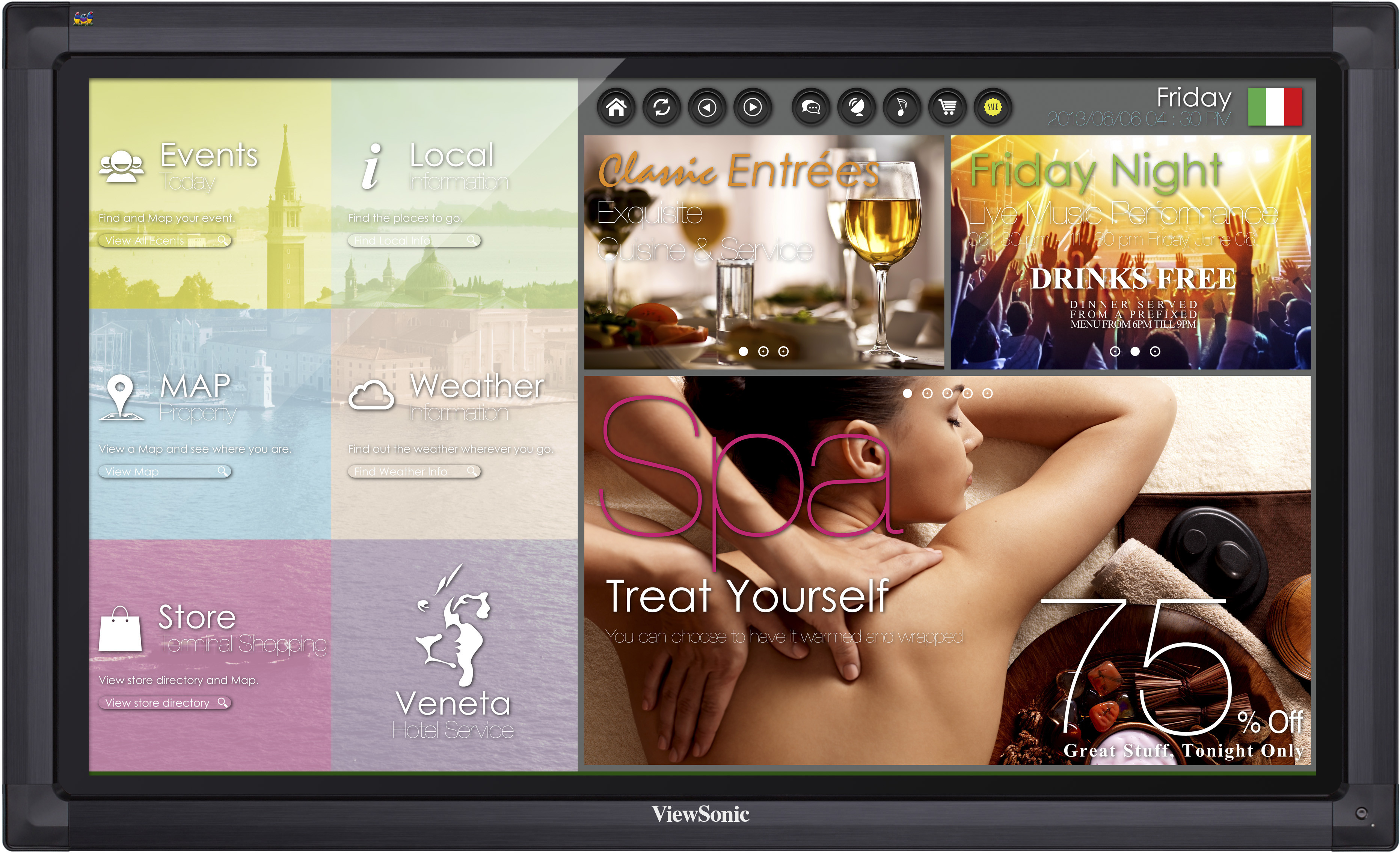

The CDE5501-TL is a large format interactive display ideal for classrooms and meeting rooms. Its multi-touch capabilities facilitate interaction and collaboration. The Full HD LED screen guarantees crisp and vivid content. Ergonomically designed, this panel display features a tempered-glass overlay, anti-glare glass treatment and rounded-corner housing. Plus, connectivity is never a problem with various input/output options, including 2 HDMI ports, 2 VGA ports, and analog YPbPr and composite video connectors to connect with PCs or media players.
Відвідайте нас
- www.viewsonic.com
-
LCD
Коефіцієнт контрастності: 4,000:1 Кути перегляду: 178°/178° Display Area: 54.6" Час відповіді: <4ms Рідна роздільна здатність: 1920 x 1080p Яскравість: 400 nits Backlight: E-LED Display Orientation: Landscape Service Life: > 30,000hr Touch Type: Infrared Touch response area: 5mm -
COMPATIBILITY
PC: TBC Mac®: TBC -
DIMENSIONS
Packaging: 1480 x 987 x 407mm Physical: 1369 x 828 x 104mm -
ВМІСТ УПАКОВКИ
Power Cable *1, D-Sub*1, Audio Cable *1 (only for VA2046m-LED), Quick Start Guide *1, ViewSonic CD Wizard *1 -
CONNECTOR
Video Output: CVBS Управління: RS232 In Video/Audio Input: HDMI x 2, VGA x 2, PC audio x 2, S-video x 1, YPbPr x 1, CVBS x 1 Other: USB x 1, B type USB x 1 (for Touch), SPDIF Out x 1 OPS or PC slot (Optional): PC Slot (proprietary) -
POWER
Споживання: 150 max Rated Voltage: 100V-240V AC, 50/60HZ Power On Mode: < 150W (typ) Power-Saving Mode (stand-by): < 0.5W (typ) Power Off Mode: < 0.5W (typ) -
WEIGHT
Нетто: 47 kg (103.4 lb.) -
MECHANICAL
Bezel Width (T/B/L/R): 55mm Net Dimensions (W x H x D): 1369 x 828 x 104mm Gross Dimensions (W x H x D): 1480 x 987 x 307mm Speaker Output: 15W x 2 Net/Gross Weight: 47 / 55 kg VESA Mount: 400 x 400 (M8) -
TOUCH
Tempered Glass: 7H, AG Coding Сенсорна роздільна здатність: 4096 x 4096 Touch Connection: USB
