面板尺寸: | 55" |
型/ 技術: | TFT LCD Module with DLED Backlight |
展示面積 (mm): | 1209.6 (H) x 680.4 (V) (54.64” diagonal) |
長寬比: | 16:9 |
解析度: | 3840 x 2160 |
色彩: | 1.07B colors (10bit) |
亮度: | 350 nits (typ.) 300 nits (min.) |
對比度: | 1200:1 (typ.) |
反應時間: | 8 ms |
可視角度: | H = 178, V = 178 (typ.) |
背光: | DLED |
背光壽命: | 30,000 Hours Min. |
硬度: | 7H |
型/ 技術: | IR Recognition |
觸控解析度: | 32767 x 32767 |
觸控點: | 20 points touch, 10 points writing |
反應時間: | <15ms |
適用系統: | Windows 10 / Windows 8 / Windows 7 / Windows XP / Vista / Linux / Mac / Android / Wince / Chrome |
生命週期: | 80,000hrs |
HDMI: | 1.4a x 2 (3840 x 2160@30Hz) 2.0 x 1 (3840 x 2160@60Hz) |
RGB / VGA: | x 1 |
Display Port: | x 1 (3840 x 2160@60Hz) |
音訊: | x 1 PC audio (3.5mm) |
CVBS (AV): | x 1 |
RS232: | x 1 |
PC Slot: | x 1 (proprietary) |
HDMI: | x 1 (1080P@60Hz) |
Audio (Earphone out): | x 1 |
SPDIF: | x 1 |
RJ45: | x 1 |
2.0 Type A: | x 4 (前 x 2, 嵌入式 player 和 slot-in PC |
3.0 Type A: | x 2 (前 x 1, 嵌入式 player 和 slot-in PC ) |
2.0 Type B (For touch): | x 2 |
16W x 2 |
處理器: | ARM Cortex A53 Quad Core 1.2G Hz CPU |
圖像處裡器: | ARM Mali-450 Quad Core |
記憶體: | 2GB DDR3 |
容量: | 16GB eMMC |
網路: | 10/100M auto-identification and DHCP |
VGA: | Refer to timing table |
HDMI: | 3840x2160 |
DP: | 3840x2160 |
CVBS: | 480i |
電壓: | 100-240VAC +/- 10% Wide Range |
耗電: | 129 W (未含嵌入式電腦);224 W (含嵌入式電腦) |

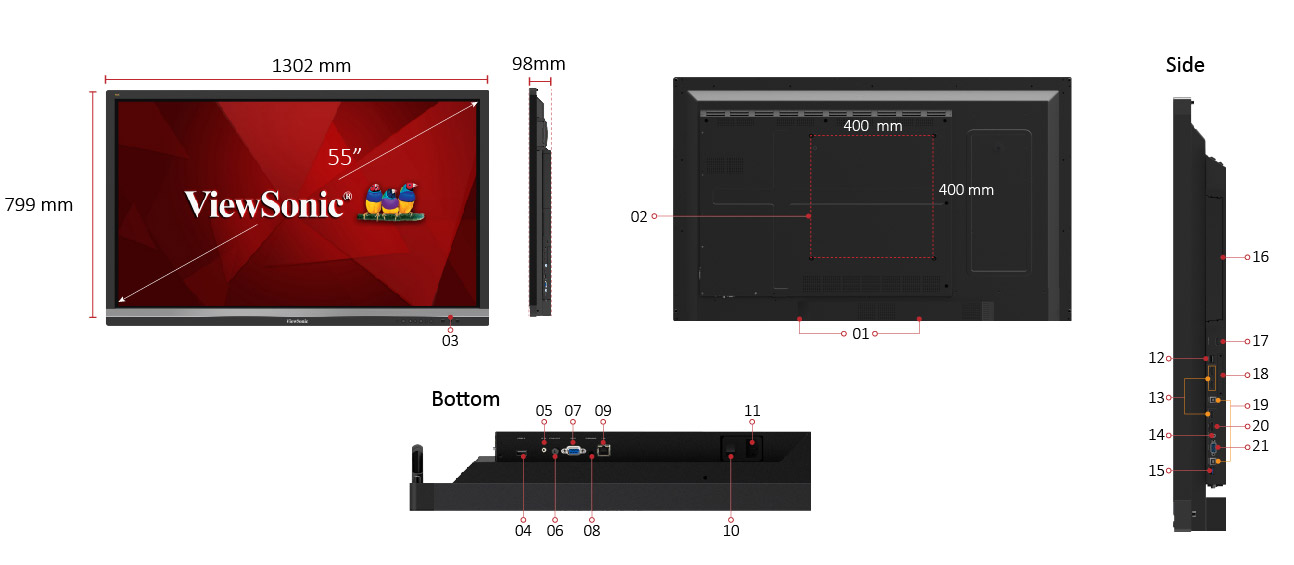

壁掛 (VESA®): | 400 x 400mm; Screw: M8 x 25mm |
溫度 (º C): | 32°F to 104°F (0°C to 40°C) |
濕度: | 10% ~ 90% non-condensing |
淨重 (kg / lb): | 34kg / 74.96lbs |
毛重 (kg / lb): | 46kg / 101.41lbs |
1.VGA cable(5 meters) 2.電源線(3 meters) x 4 3.遙控器l 4.USB 線(3 meters) 5.聲音線(5 meters) 6.AV cable 7.觸控筆 x 3 8.CD導覽操作手冊 9.快速導覽 10.RS232 適配器 11.鉗 x 5 12.金屬骨固定裝置 13.螺旋丁 x 3 |
