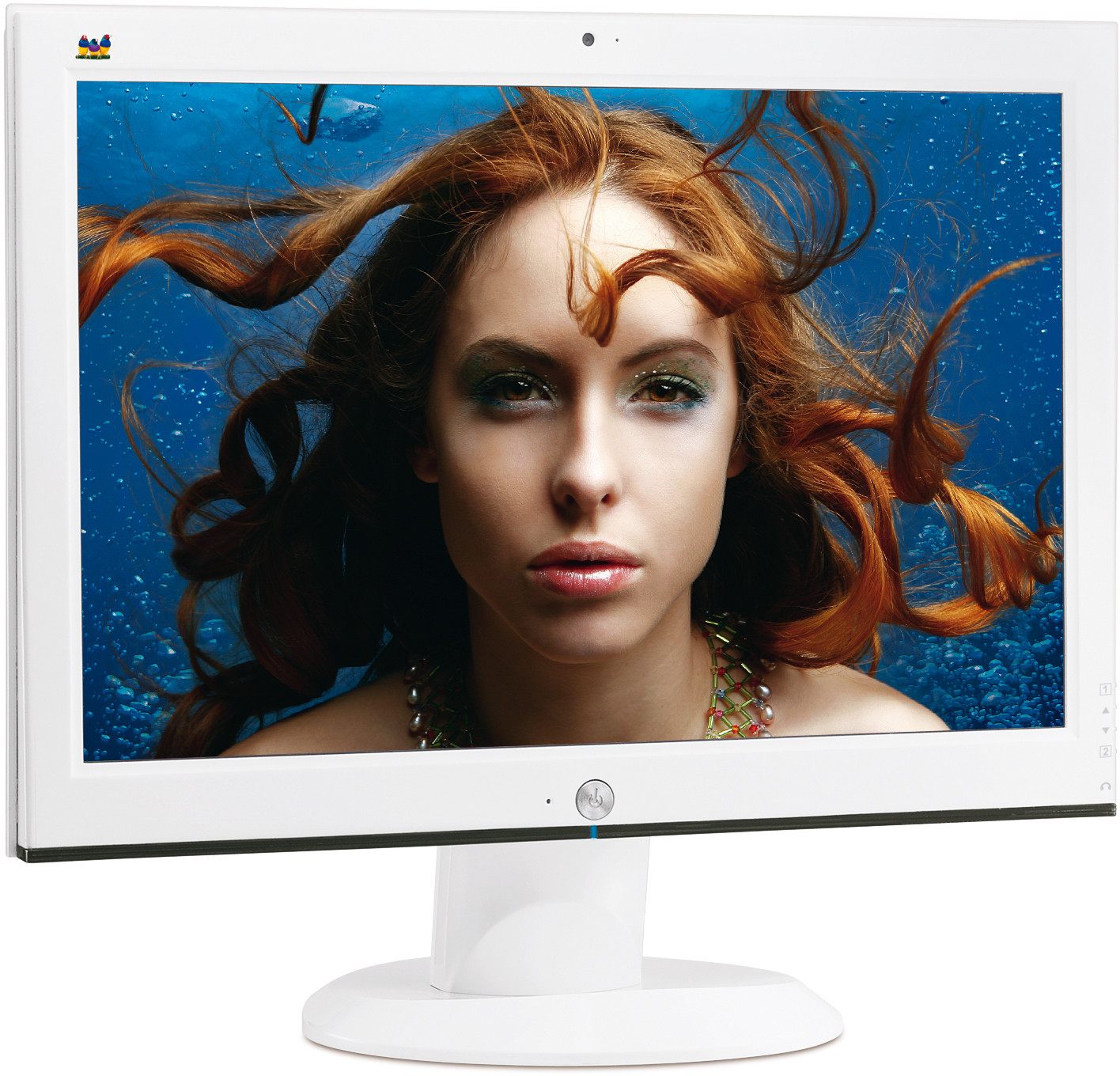

ViewSonic VX2255wmh 22” WIDESCREEN MULTIFUNCTION LCD WITH INTEGRATED 1.3 MEGAPIXEL WEBCAM, MICROPHONE & STEREO SPEAKERS

Önemli Özellikler

Ürün Açıklama

ViewSonic’s 22” VX2255wmb/wmh widescreen LCDs deliver the ultimate in premium and desktop entertainment with their PANORAMIC WIDESCREEN ASPECT RATIOS. Designed for internet users, power gamers and movie fans, these displays will amaze you with their blur-free images thanks to super-fast ClearMotiv® 3ms video response times. The INTEGRATED 1.3 MEGAPIXEL WEBCAM connects you to your family and friends via the internet like never before. These displays are also great for business applications that require working in multiple applications for two full-page documents simultaneously. Finished in premium gloss piano-black (wmb) or piano-key white (wmh), these displays bring style and excitement to any desktop.

Bizi Ziyaret Edin

www.viewsonic.com

LCD

Tür:	22” Wide TN colour TFT active matrix WSXGA+ LCD
Kontrast Oranı:	1000:1 with 4000:1 DCR
Görüntüleme Açıları:	170° horizontal, 160° vertical (at 10:1) 170° horizontal, 170° vertical (at 5:1)
Parlaklık:	300cd/m²
Ekran Alanı:	47.4cm horizontal x 29.6cm vertical; 55.9cm diagonal
Optimum Çözünürlük:	1680 x 1050@60Hz
Yanıt Süresi:	3ms (grey-to-grey), 5ms (off-on-off, typ.)
Işık Kaynağı:	Long life, 40000 hrs. (min.)
Panel Yüzeyi:	Anti-glare (3H)
Piksel Aralığı:	0.282mm
Renk Desteği:	16.7M colours supported (6-bit+2-bit FRC)
Piksel Saat:	165MHz

UYUM

PC: VGA up to 1680 x 1050 non-interlaced

Mac®: Power Mac™ up to 1680 x 1050 non-interlaced
BOYUTLAR

Stand İle Birlikte Fiziksel: 527 x 450-530 x 225

Stand Olmadan Fiziksel: 527 x 366 x 60

Ambalaj (GxYxD): 575 x 525 x 270
PAKET İÇERİĞİ

LCD Monitor, power cable, 15-pin VGA video cable, DVI cable, audio cable, USB cable, Quick Start Guide, webcam CD-ROM, ViewSonic Wizard CD-ROM (User Guide/drivers) (multi-language)
SES

Hoparlörler: 2 x 2 watt integrated invisible stereo speakers

Mikrofon: Integrated into bezel
KONEKTÖRLER

Analog: 15-pin mini D-Sub (detachable cable)

Dijital: 24-pin DVI-D (detachable cable) (HDCP enabled)

Güç: 3-pin AC plug (CEE22)

USB: 1 x upstream USB 2.0 (for webcam)
Güç

Gerilim: AC 100–240V, 50/60Hz (auto switch), internal power supply

Tüketim: 45 watt (typ.), <2 watt in power save mode

KONTROLLER

Temel:

Power, menu [1], up, down, select [2]

OSD:

Auto image adjust, contrast, brightness, input select (D-sub, DVI-D), View-Match® colour adjust (sRGB, 9300K, 7500K, 6500K, 5400K, user RGB), audio adjust (volume, mute), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), auto white balance, OSD/power lock, memory recall

İŞLETİM KOŞULLARI

Isı: 0°C–40°C

Nem: 10%–90% (non-condensation)
AğıRLıK

Stand İle Birlikte Net: 5.9kg

Stand Olmadan Net: 4.6kg

Brüt: 8.4kg
VIDEO GIRIşI

Frekans: Fh: 24–82kHz, Fv: 50–85Hz

Senk.: H/V separate (TTL), composite, sync on green

Analog: RGB analogue (0.7/1.0 Vp-p, 75 ohm)

Dijital: DVI-D (HDCP enabled, TMDS, 100 ohm)
GÜÇ YÖNETİMİ

Meets MPR II and ENERGY standards
GÜVENLİK

Kensington security port
DUVAR MONTAJI

VESA FDMI 100mm x 100mm
ERGONOMIK ÖZELLIKLER

Eğilme: Down 5°, Up 20°

Kendi Etrafında Dönme: 360° (180° left/right)

Yükseklik Ayarı: 0~80mm
WEB KAMERA

1.3M integrated into bezel

PC:	VGA up to 1680 x 1050 non-interlaced
Mac®:	Power Mac™ up to 1680 x 1050 non-interlaced

Stand İle Birlikte Fiziksel:	527 x 450-530 x 225
Stand Olmadan Fiziksel:	527 x 366 x 60
Ambalaj (GxYxD):	575 x 525 x 270

Hoparlörler:	2 x 2 watt integrated invisible stereo speakers
Mikrofon:	Integrated into bezel

Analog:	15-pin mini D-Sub (detachable cable)
Dijital:	24-pin DVI-D (detachable cable) (HDCP enabled)
Güç:	3-pin AC plug (CEE22)
USB:	1 x upstream USB 2.0 (for webcam)

Gerilim:	AC 100–240V, 50/60Hz (auto switch), internal power supply
Tüketim:	45 watt (typ.), <2 watt in power save mode

Stand İle Birlikte Net:	5.9kg
Stand Olmadan Net:	4.6kg
Brüt:	8.4kg

Frekans:	Fh: 24–82kHz, Fv: 50–85Hz
Senk.:	H/V separate (TTL), composite, sync on green
Analog:	RGB analogue (0.7/1.0 Vp-p, 75 ohm)
Dijital:	DVI-D (HDCP enabled, TMDS, 100 ohm)

Eğilme:	Down 5°, Up 20°
Kendi Etrafında Dönme:	360° (180° left/right)
Yükseklik Ayarı:	0~80mm

Isı:	0°C–40°C
Nem:	10%–90% (non-condensation)
