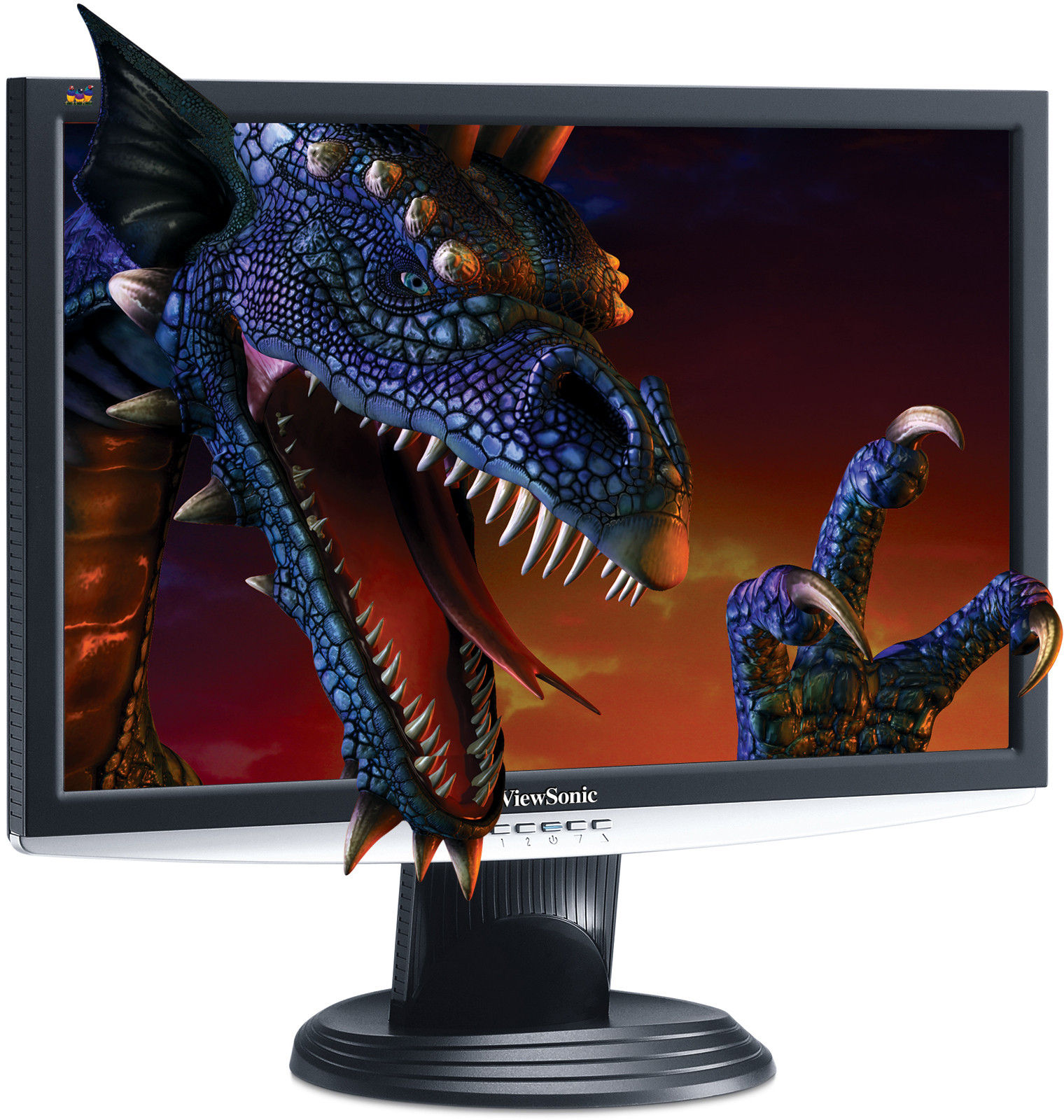

ViewSonic VX2240w 56 cm / 22" WIDESCREEN MONITOR VX SERIES WITH 2MS RESPONSE TIME AND DCR

Önemli Özellikler

Ürün Açıklama

Take it to the next level with ViewSonic’s 56 cm / 22" VX2240w ultimate widescreen gaming LCD. Supercharge your gaming and entertainment experience with its ultra-fast 2ms video response time and large 16:10 native aspect ratio. Enjoy graphic-intensive applications in dramatic detail. Advanced Amplified Impulse™ technology and a stunning 1680 x 1050 pixels of resolution provide HD broadcast-quality for intensive games, movies and graphics.OptiSync analogue and digital inputs with HDCP offer superior video signal quality and allow you to dock multiple components and HD sources. The OSD lock function safeguards you against accidental changes to your optimal screen settings.lA built-in Kensington security port provides an additional deterrent against theft.The advanced technology and design of the VX2240w make it the perfect complement for your desktop.

Bizi Ziyaret Edin

www.viewsonic.com

COLORS

Black

LCD

Tür:	56 cm / 22" Wide TN colour TFT active matrix WSXGA+ LCD
Kontrast Oranı:	1000:1 (typ.), 4000:1 DCR (typ.)
Görüntüleme Açıları:	170° horizontal, 160° vertical (at 10:1) 170° horizontal, 170° vertical (at 5:1)
Parlaklık:	300cd/m²
Ekran Alanı:	46.4cm horizontal x 29cm vertical, 55.9cm diagonal
Optimum Çözünürlük:	1680 x 1050@60Hz
Yanıt Süresi:	2ms (grey-to-grey), 5ms (off-on-off) (typ.)
Işık Kaynağı:	Long life, 40000 hrs. (typ.)
Panel Yüzeyi:	Anti-glare (3H)
Renk Desteği:	16.7M colours supported (6-bit+2-bit HI FRC)
Piksel Saat:	165MHz

UYUM

PC: VGA up to 1680 x 1050 non-interlaced

Mac®: Power Mac™ up to 1680 x 1050 non-interlaced
BOYUTLAR

Stand İle Birlikte Fiziksel: 510 x 432 x 225

Stand Olmadan Fiziksel: 510 x 355 x 61

Ambalaj (GxYxD): 564 x 481 x 128
PAKET İÇERİĞİ

LCD Monitor, power cable, 15-pin VGA video cable, DVI cable, Quick
Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers)
(multi-language) (multi-language)
KONEKTÖRLER

Analog: 15-pin mini D-Sub (detachable cable)

Dijital: 24-pin DVI-D (detachable cable) (HDCP enabled)

Güç: 3-pin AC plug (CEE22)
Güç

Gerilim: AC 100–240V, 50/60Hz (auto switch), internal power supply

Tüketim: 38 watt (typ.), <1 watt in power save mode

KONTROLLER

Temel:

Power, menu [1], up, down, select 2]

OSD:

Auto image adjust,contrast, brightness, input select (D-sub, DVI-D), ViewMatch® colour adjust (sRGB, 9300K, 7500K, 6500K, 5400K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial umber), manual image adjust (H/V position, H size, fine tune, sharpness, aspect ratio [4:3, full screen], response time), setup menu (language, resolution notice, OSD position, OSD timeout, OSD
background), auto white balance, OSD/power lock, memory recall

İŞLETİM KOŞULLARI

Isı: 0°C–40°C

Nem: 10%–90% (non-condensation)
AğıRLıK

Stand İle Birlikte Net: 5.0kg

Brüt: 6.6kg
VIDEO GIRIşI

Frekans: Fh: 24~82kHz, Fv: 50~75Hz

Senk.: H/V separate (TTL), composite, sync on green

Analog: RGB analogue (0.7/1.0 Vp-p, 75 ohm)

Dijital: DVI-D (HDCP enabled, TMDS, 100 ohm, DDC/CI)
GÜÇ YÖNETİMİ

TCO’03 and ENERGY STAR standards
GÜVENLİK

Kensington® security port
DUVAR MONTAJI

VESA® FDMI 100mm x 100mm
ERGONOMIK ÖZELLIKLER

Eğilme: Down 5°, Up 20°

PC:	VGA up to 1680 x 1050 non-interlaced
Mac®:	Power Mac™ up to 1680 x 1050 non-interlaced

Stand İle Birlikte Fiziksel:	510 x 432 x 225
Stand Olmadan Fiziksel:	510 x 355 x 61
Ambalaj (GxYxD):	564 x 481 x 128

Analog:	15-pin mini D-Sub (detachable cable)
Dijital:	24-pin DVI-D (detachable cable) (HDCP enabled)
Güç:	3-pin AC plug (CEE22)

Gerilim:	AC 100–240V, 50/60Hz (auto switch), internal power supply
Tüketim:	38 watt (typ.), <1 watt in power save mode

Frekans:	Fh: 24~82kHz, Fv: 50~75Hz
Senk.:	H/V separate (TTL), composite, sync on green
Analog:	RGB analogue (0.7/1.0 Vp-p, 75 ohm)
Dijital:	DVI-D (HDCP enabled, TMDS, 100 ohm, DDC/CI)

Isı:	0°C–40°C
Nem:	10%–90% (non-condensation)

Stand İle Birlikte Net:	5.0kg
Brüt:	6.6kg
