VX1945wm
Önemli Özellikler
Ürün Açıklama

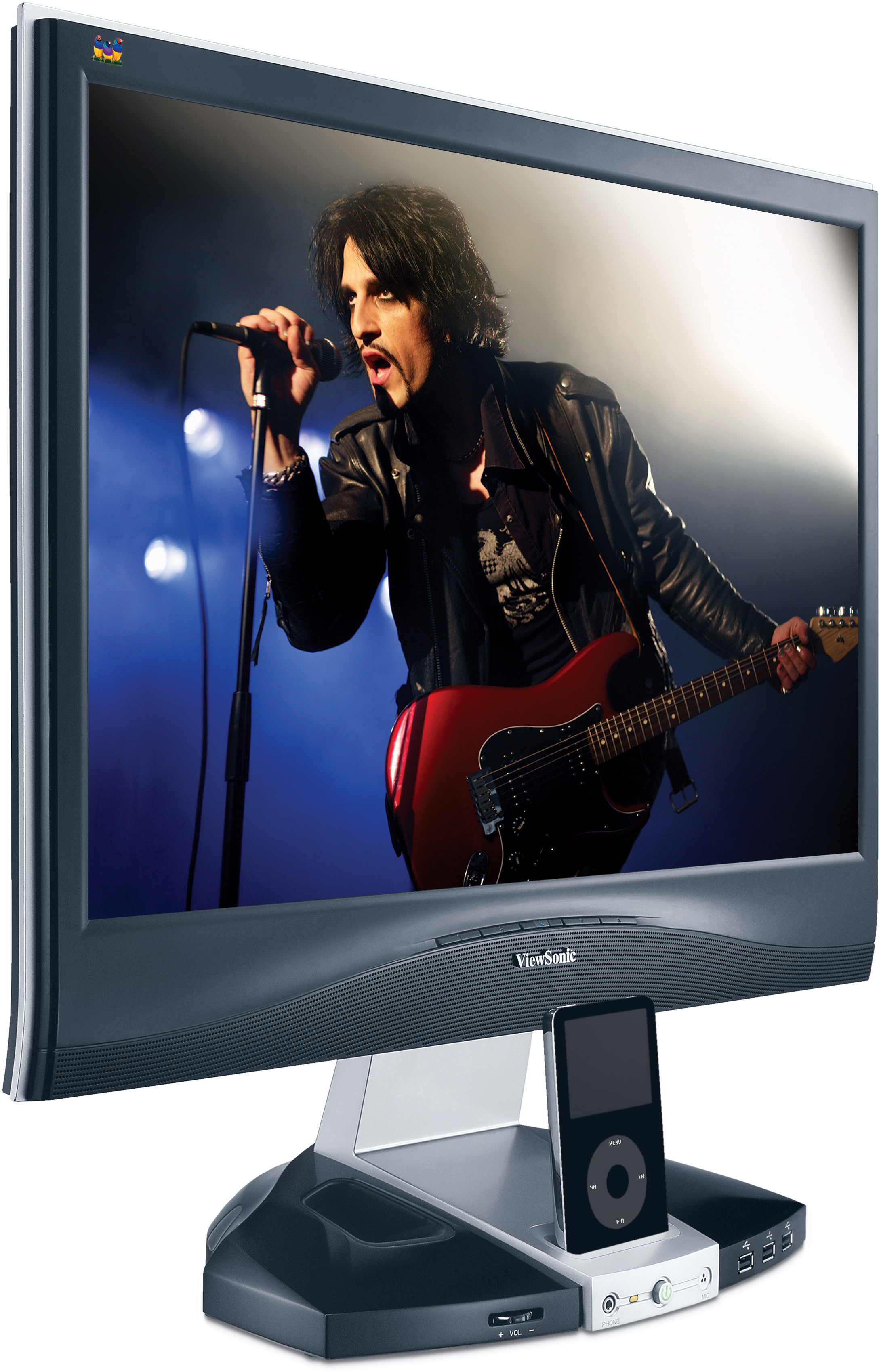

Stop, Dock and Rock – the ViewSonic 49 cm / 19" VX1945wm ViewDock™ LCD is the ultimate entertainment display. Dock your iPod® to access all your digital content. Boost your handheld photos and videos and view on the large widescreen display. Hear your digital content with built-in stereo speakers and additional subwoofer for unparalleled audio performance – or go silent with the headphone jack. Manage your digital media with the integrated 8-in-1 digital card reader for camera cards. Connect your digital devices through the 4 USB ports. Chat on-line using the built-in microphone. The super-fast 5ms response time screen lets you watch movies or play games free from blurs or ghosting. Your desktop experience will never be the same once you bring it all together with the VX1945wm ViewDock and iPod®.
Bizi Ziyaret Edin
- www.viewsonic.com
-
COLORS
Black -
LCD
Tür: 19” Wide TN colour TFT active matrix WXGA+ LCD Kontrast Oranı: 700:1 (typ.) Görüntüleme Açıları: 140° horizontal, 140° vertical (at 10:1), 160° horizontal, 160° vertical (at 5:1) Parlaklık: 300cd/m2 Ekran Alanı: 41.0cm horizontal x 25.6cm vertical, 48.3cm diagonal Optimum Çözünürlük: 1440 x 900@60Hz Yanıt Süresi: 5ms (off-on-off) (typ.) Işık Kaynağı: Long life, 40,000 hrs. (typ) Panel Yüzeyi: Anti-glare Piksel Aralığı: 0.285mm Renk Desteği: 16.2M colours (6-bit+2-bit FRC) Piksel Saat: 140MHz -
UYUM
PC: VGA up to 1440x900 non-interlaced Mac®: Power Mac™ G3/G4/G5 up to 1440 x 900 non-interlaced -
BOYUTLAR
Stand İle Birlikte Fiziksel: 450 x 449 x 212 Stand Olmadan Fiziksel: 450 x 341 x 66 Ambalaj (GxYxD): 545 x 520 x 260 -
PAKET İÇERİĞİ
LCD Monitor, power cable, 15-pin VGA video cable, DVI cable, audio cable,
USB cable, iPod® adapter, Quick Start Guide, ViewSonic Wizard CD-ROM
(User Guide/drivers) (multi-language) -
GARANTİ
Three-year limited warranty on LCD, parts and labor. Optional Express Exchange® service program available. -
SES
Hoparlörler: 2 x 2 watt integrated stereo speakers Subwoofer: 1 x 3 watt intergrated into base Mikrofon: Integrated into base -
GERİ DÖNÜŞÜM/ATMA
The lamp in this product contains mercury. Please dispose of in accordance with local, state and federal laws. -
KONEKTÖRLER
Analog: 15-pin mini D-Sub (detachable cable) Dijital: 24-pin DVI-D (detachable cable) Güç: 3-pin plug USB: USB 2.0 hub, 1x upstream (4-pin Typ B)/4x downstream (4-pin Typ A) Temel: iPod dock, USB (A type)x4, USB (B type)x1, audio out stereo jack, 2-in-1 audio in, headphone jack Ses: 1 x 3.5mm stereo audio line-in, 1 x 3.5mm stereo audio line-out Kulaklık: 3.5mm mini stereo jack ViewDock: iPod® dock (Made for iPod® certified) Kart Okuyucu: 8-in-1 digital card reader -
Güç
Gerilim: AC 100– 240V, 50/60Hz (auto switch), internal power supply (Display) Tüketim: 59 watt (typ.), <1 watt in power save mode -
KONTROLLER
Temel: Power, menu [1], up, down, select [2], mute, subwoofer volume up/down OSD: Auto image adjust, contrast, brightness, input select (D-sub, DVI-D), ViewMatch® colour adjust (sRGB, 9300K, 7500K, 6500K, 5400K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall -
İŞLETİM KOŞULLARI
Isı: 0°C – 40°C Nem: 20%–80% (non-condensation) -
AğıRLıK
Stand İle Birlikte Net: 5.7kg Stand Olmadan Net: 4.7kg Stand İle Birlikte Brüt: 7.7kg -
VIDEO GIRIşI
Analog/Dijital: RGB analogue (0.7 Vp-p, 75 ohm) Frekans: Fh: 30~82kHz, Fv: 50~85Hz Senk.: H/V separated (TTL), composite, sync-on-green Dijital: DVI-D (TMDS, 100 ohm) -
GÜÇ YÖNETİMİ
Meets MPR II and ENERGY STAR® standards -
GÜVENLİK
Kensington® security port -
DUVAR MONTAJI
VESA FDMI 100mm x 100mm -
ERGONOMIK ÖZELLIKLER
Eğilme: Down 5°, Up 20°
