Önemli Özellikler

VP950b
Ürün Açıklama

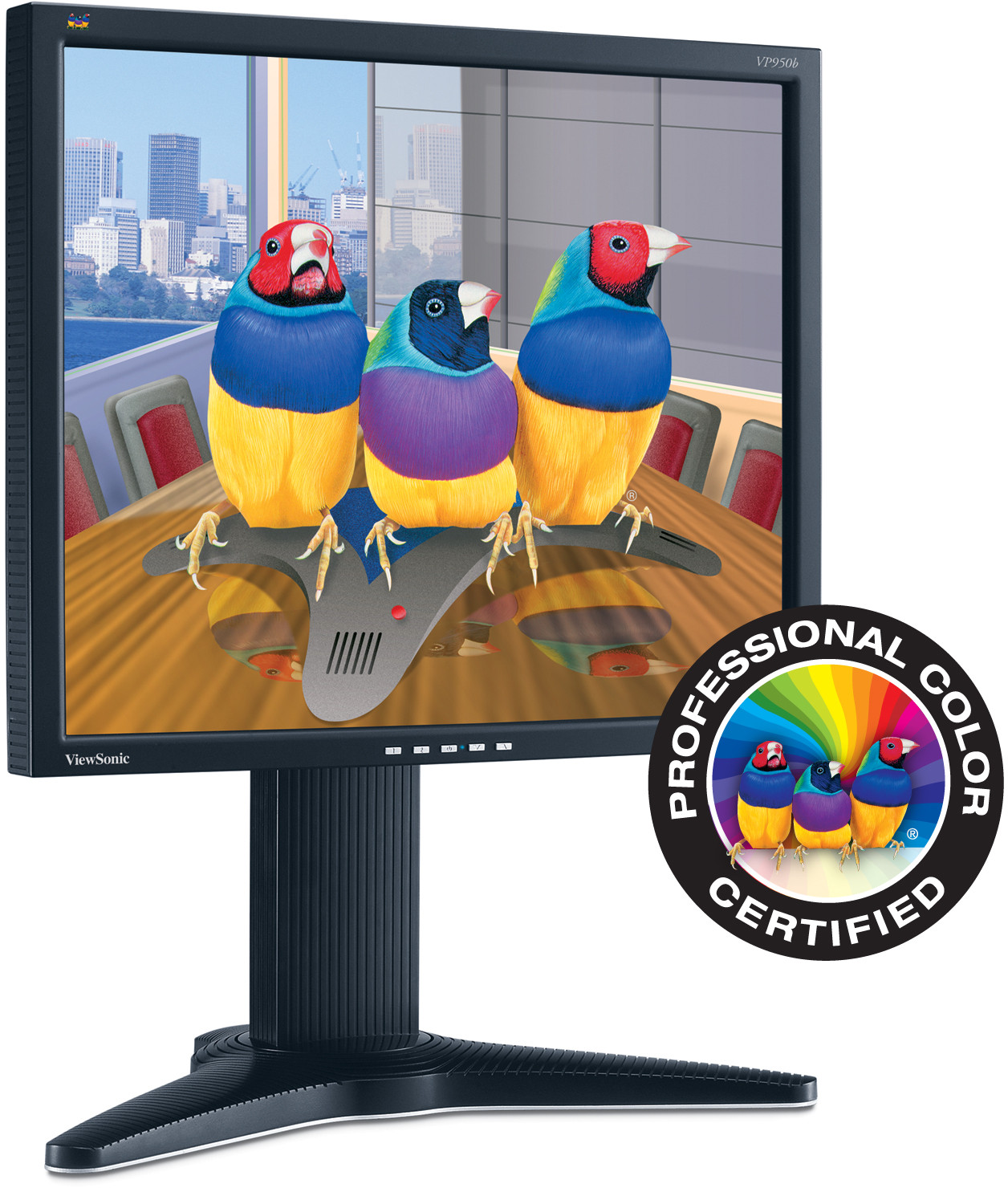

ViewSonic’s 48 cm / 19" VP950b LCD is a professional-grade display with 98% NTSC colour capability for richer, more natural colours across the entire colour spectrum. It is ideal for medical imaging, where precise colour rendition is vital to diagnosis. Graphics production, film and financial professionals will also find this display perfectly suited to their needs. 2000:1 DYNAMIC CONTRAST RATIO (typ.) and ultra-fast ClearMotiv 2ms response time (GtoG) deliver SUPERIOR FRONT-OF-SCREEN PERFORMANCE. The VP950b offers extensive ergonomic adjustments including height adjust, tilt, 120º swivel and pivot, and even a quick release stand. Certified for Windows Vista, this display is also HDCP compatible and features OptiSync digital/ analogue inputs plus 4 USB PORTS TO DELIVER A VERSATILE AND FLEXIBLE professional package. Step into a world of amazing colour and accuracy with the VP950b.
Bizi Ziyaret Edin
  • www.viewsonic.com
  • COLORS
    Black
  • LCD
    Tür: 48 cm / 19" TN colour TFT active matrix SXGA LCD
    Kontrast Oranı: 800:1 (typ.), 2000:1 DCR (typ.)
    Görüntüleme Açıları: 170° horizontal, 160° vertical (at 10:1)

    170° horizontal, 170° vertical (at 5:1)
    Parlaklık: 280cd/m2 (typ.)
    Ekran Alanı: 37.6cm horizontal x 30.1cm vertical, 48.3cm diagonal
    Optimum Çözünürlük: 1280 x 1024@60Hz
    Yanıt Süresi: 2ms (grey-to-grey), 5ms (off-on-off, typ.)
    Işık Kaynağı: Long life, 50000 hrs. (typ.)
    Panel Yüzeyi: Anti-glare (3H)
    Piksel Aralığı: 0.294mm
    Renk Desteği: 16.7M colours supported (6-bit+2-bit HI FRC)
    Piksel Saat: 140MHz
    Renk Gamutu: Wide colour gamut, 98% of NTSC
  • UYUM
    PC: VGA up to 1280 x 1024 non-interlaced
    Mac®: Power Mac™ up to 1280 x 1024 non-interlaced
  • BOYUTLAR
    Stand İle Birlikte Fiziksel: 412 x 391-510 x 279
    Stand Olmadan Fiziksel: 412 x 331 x 63
    Ambalaj (GxYxD): 470 x 523 x 195
  • PAKET İÇERİĞİ
    LCD Monitor, power cable, 15-pin VGA video cable, DVI-D cable, USB cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers)
    (multi-language)
  • KONEKTÖRLER
    Analog: 15-pin mini D-sub (detachable cable)
    Dijital: 24-pin DVI-D (detachable cable) (HDCP enabled)
    Güç: 3-pin plug (CEE22)
    USB: 1 x upstream (4-pin Typ B)/4 x downstream (4-pin Typ A), USB 2.0
  • Güç
    Gerilim: AC 100–240V, 50–60Hz (Auto-Switch), internal power supply
    Tüketim: 40 watt (typ., without USB peripheral connected), <1 watt in power save mode
  • KONTROLLER
    Temel: Power, menu [1], up, down, select [2]
    OSD: Auto image adjust, contrast, brightness, input select (D-sub, DVI-D),
    ViewMatch® colour adjust (sRGB, 9300K, 7500K, 6500K, 5000K, user RGB),
    information (resolution, H/V frequency, pixel clock, model number, serial
    number), manual image adjust (H/V position, H size, fine tune, sharpness, DCR [on/off], response time [standard, advanced, ultra-fast]), setup menu
    (language, resolution notice, OSD position, OSD timeout, OSD background, OSD pivot), auto white balance, OSD/power lock
  • İŞLETİM KOŞULLARI
    Isı: 0° to 40°
    Nem: 10% to 90% (non-condensation)
  • AğıRLıK
    Stand İle Birlikte Net: 5.6kg
    Stand Olmadan Net: 4.4kg
    Brüt: 7.5 kg
  • VIDEO GIRIşI
    Frekans: Fh: 24-82kHz, fv: 50-85Hz
    Senk.: H/V separated (TTL), composite, sync on green
    Analog: RGB analogue (0.7/1.0 Vp-p , 75 ohms)
    Dijital: DVI-D (HDCP enabled, TMDS, 100 ohms, DDC/CI)
  • GÜÇ YÖNETİMİ
    Meets TCO’03 and ENERGY STAR standards
  • GÜVENLİK
    Kensington security port
  • DUVAR MONTAJI
    VESA FDMI 100mm x 100mm
  • ERGONOMIK ÖZELLIKLER
    Eğilme: Down 5°, up 20°
    Kendi Etrafında Dönme: 120° (60° left/right)
    Yükseklik Ayarı: 0~120mm
    Eğme: 0°~90°
