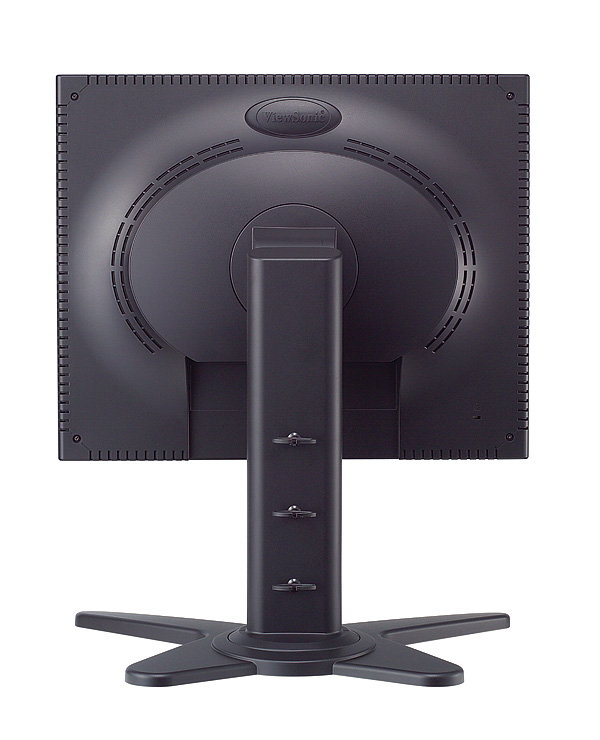

ViewSonic VP930 ERGONOMIC 19" LCD MONITOR WITH PERFECT SUITE

LCD

Tür:	48cm / 19" MVA colour TFT active matrix SXGA LCD
Kontrast Oranı:	1300:1 (typ.)
Görüntüleme Açıları:	178° horizontal, 178° vertical (at 10:1)
Parlaklık:	300cd/m² (typ.)
Ekran Alanı:	376mm (horizontal) x 301mm (vertical), 483mm diagonal
Optimum Çözünürlük:	1280 x 1024
Yanıt Süresi:	8ms (grey-to-grey), 20ms (off-on-off)
Panel Yüzeyi:	Anti-glare
Piksel Aralığı:	0.294mm
Bant Genişliği:	135MHz
Renk Desteği:	16.7M (8bit)

UYUM

PC: Compatible from VGA up to 1280 x 1024 non-interlaced (max. 75Hz)

Mac®: Power Mac™ up to 1280 x 1024 (max. 75Hz)
BOYUTLAR

G x Y X D mm: 412 x 356–491 x 289 (w/stand)

412 x 336 x 61 (w/o stand)
PAKET İÇERİĞİ

LCD display, power cable, 15-pin VGA video cable, DVI cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers/PerfectSuite software), portrait/pivot CD-ROM software
KONEKTÖRLER

Analog: 2 x 15-pin mini D-sub (detachable cable)

Dijital: DVI-D (detachable cable)

Güç: 3-pin plug (CEE22)
Güç

Gerilim: AC 100-240V, 50-60Hz (Auto-Switch), internal power supply

Tüketim: 38 watt (max.), <= 1 watt in suspend mode

KONTROLLER

Temel:

Soft power, menu [1] , down, up, select [2], main power

OSD:

Auto image adjust, contrast, brightness, input select (D-sub 1, D-sub 2, DVI), colour adjust (sRGB, 9300K, 7500K, 6500K, 5400K, 5000K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background, OSD pivot), auto white balance, OSD/power lock, memory recall

İŞLETİM KOŞULLARI

Isı: 0° to 40°

Nem: 10% to 90% (non-condensing)
AğıRLıK

Net: 6.8kg (w/ stand);

4.2 kg (w/o stand)
VIDEO GIRIşI

Frekans: DVI-D (TMDS, 100 ohms)

Senk.: H/V separated (TTL), composite, sync on green

Analog: RGB analogue (0.7/1.0 Vp-p , 75 ohms)

Dijital: DVI-D (TMDS, 100 ohms)
GÜÇ YÖNETİMİ

Meets TCO'03, ENERGY and Energy Star standards
ERGONOMIK ÖZELLIKLER

Eğilme: Down 5°, up 20°

Kendi Etrafında Dönme: 270° (135° left/right)

Yükseklik Ayarı: 0~135mm

Eğme: 0°~90°

PC:	Compatible from VGA up to 1280 x 1024 non-interlaced (max. 75Hz)
Mac®:	Power Mac™ up to 1280 x 1024 (max. 75Hz)

Analog:	2 x 15-pin mini D-sub (detachable cable)
Dijital:	DVI-D (detachable cable)
Güç:	3-pin plug (CEE22)

Gerilim:	AC 100-240V, 50-60Hz (Auto-Switch), internal power supply
Tüketim:	38 watt (max.), <= 1 watt in suspend mode

Frekans:	DVI-D (TMDS, 100 ohms)
Senk.:	H/V separated (TTL), composite, sync on green
Analog:	RGB analogue (0.7/1.0 Vp-p , 75 ohms)
Dijital:	DVI-D (TMDS, 100 ohms)

Eğilme:	Down 5°, up 20°
Kendi Etrafında Dönme:	270° (135° left/right)
Yükseklik Ayarı:	0~135mm
Eğme:	0°~90°

Isı:	0° to 40°
Nem:	10% to 90% (non-condensing)
