Önemli Özellikler

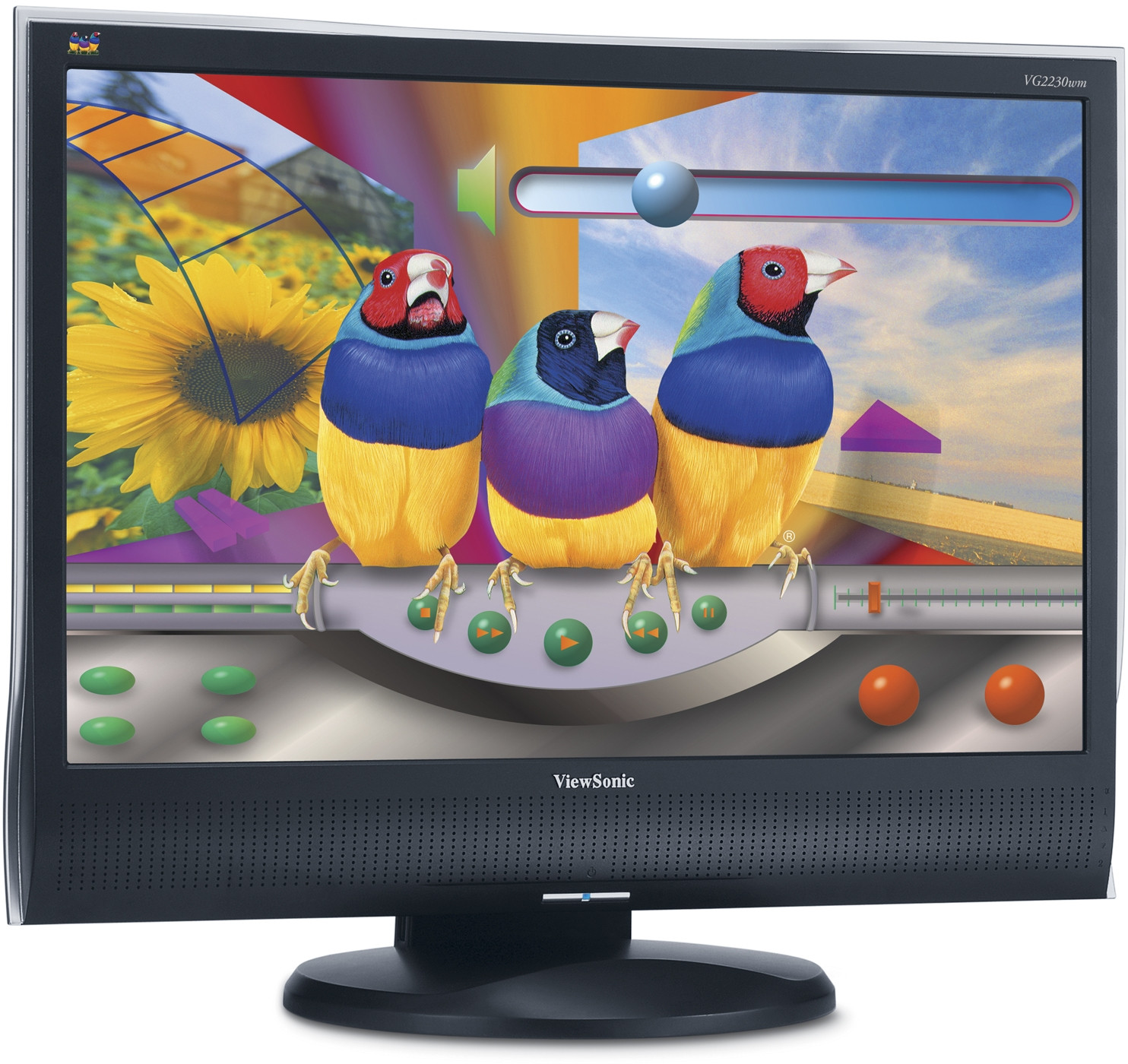

VG2230wm
Ürün Açıklama
For big performance and even bigger productivity you need a big screen. The ViewSonic VG2230wm features large widescreen multimedia performance for a unique desktop experience. The 56 cm / 22" WIDESCREEN display allows you to view two documents side-by-side or work in two applications simultaneously and the 360° SWIVEL base allows you to share your view with co-workers. The 280cd/m² brightness and high 700:1 contrast ratio produce bright, crisp, detailed images whilst analogue and digital inputs ensure versatile connectivity options. Graphics professionals love the FAST 5MS VIDEO RESPONSE TIME that delivers blur-free, full motion video and crystal clear images. And with ERGONOMIC HEIGHT ADJUSTMENT and tilt, you’ll work comfortably for hours. The VG2230wm widescreen multimedia LCD delivers a complete visual experience to your desktop.
Bizi Ziyaret Edin
  • www.viewsonic.com
  • COLORS
    Black
  • LCD
    Tür: 56 cm / 22" Wide TN colour TFT active matrix WSXGA+ LCD
    Kontrast Oranı: 700:1 (typ.)
    Görüntüleme Açıları: 170° horizontal, 160° vertical (at 10:1)

    170° horizontal, 170° vertical (at 5:1)
    Parlaklık: 280cd/m² (typ.)
    Ekran Alanı: 47.6cm horizontal x 29.8cm vertical, 55.9cm diagonal
    Optimum Çözünürlük: 1680 x 1050@60Hz
    Yanıt Süresi: 5ms (off-on-off) (typ.)
    Işık Kaynağı: Long life, 60000 hrs. (typ.)
    Panel Yüzeyi: Anti-glare
    Piksel Aralığı: 0.282mm
    Renk Desteği: 16.7M colours (6-bit + 2-bit FRC)
    Piksel Saat: 165MHz
  • UYUM
    PC: VGA up to 1680 x 1050 non-interlaced
    Mac®: Power Mac™ G3/G4/G5 up to 1680 x 1050 non-interlaced
  • BOYUTLAR
    Stand İle Birlikte Fiziksel: 519 x 436-571 x 250
    Stand Olmadan Fiziksel: 519 x 392 x 60
    Ambalaj (GxYxD): 570 x 530 x 300
  • PAKET İÇERİĞİ
    LCD Monitor, power cable, 15-pin VGA video cable, audio cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers)
    (multi-language)
  • SES
    Hoparlörler: 2 x 2 watt integrated stereo speakers
  • KONEKTÖRLER
    Analog: 15-pin mini D-sub (detachable cable)
    Dijital: 24-pin DVI-D (detachable cable)
    Güç: 3-pin AC plug (CEE22)
    Ses: 3.5mm stereo audio line-in
  • Güç
    Gerilim: AC 100– 240V, 50/60Hz (auto switch), internal power supply
    Tüketim: 43 watt (typ.), <1 watt in power save mode
  • KONTROLLER
    Temel: Power, menu [1], up, down, select [2], mute, volume up/down
    OSD: Auto image adjust, contrast, brightness, input select (D-sub, DVI-D), ViewMatch® colour adjust (sRGB, 9300K, 7500K, 6500K, 5400K), information (resolution, H/V frequency, pixel clock, model number, serial number), audio adjust (volume, mute), manual image adjust (H/V position, fine tune, sharpness), setup menu (language, resolution
    notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall
  • İŞLETİM KOŞULLARI
    Isı: 0°C – 40°C
    Nem: 10% – 90% (non-condensation)
  • AğıRLıK
    Stand İle Birlikte Net: 6.6kg
    Brüt: 8.6kg
  • VIDEO GIRIşI
    Frekans: Fh: 24~82kHz, Fv: 50~85Hz
    Senk.: H/V separated (TTL)
    Analog: RGB analogue (0.7 Vp-p , 75 ohms)
    Dijital: DVI-D (TMDS, 100 ohm)
  • GÜÇ YÖNETİMİ
    Meets TCO’03 and ENERGY STAR® standards
  • GÜVENLİK
    Kensington® security port
  • DUVAR MONTAJI
    VESA FDMI 100mm x 100mm
  • ERGONOMIK ÖZELLIKLER
    Eğilme: Down 5°, Up 20°
    Kendi Etrafında Dönme: 360° swivel base
    Yükseklik Ayarı: 0~ 135mm
