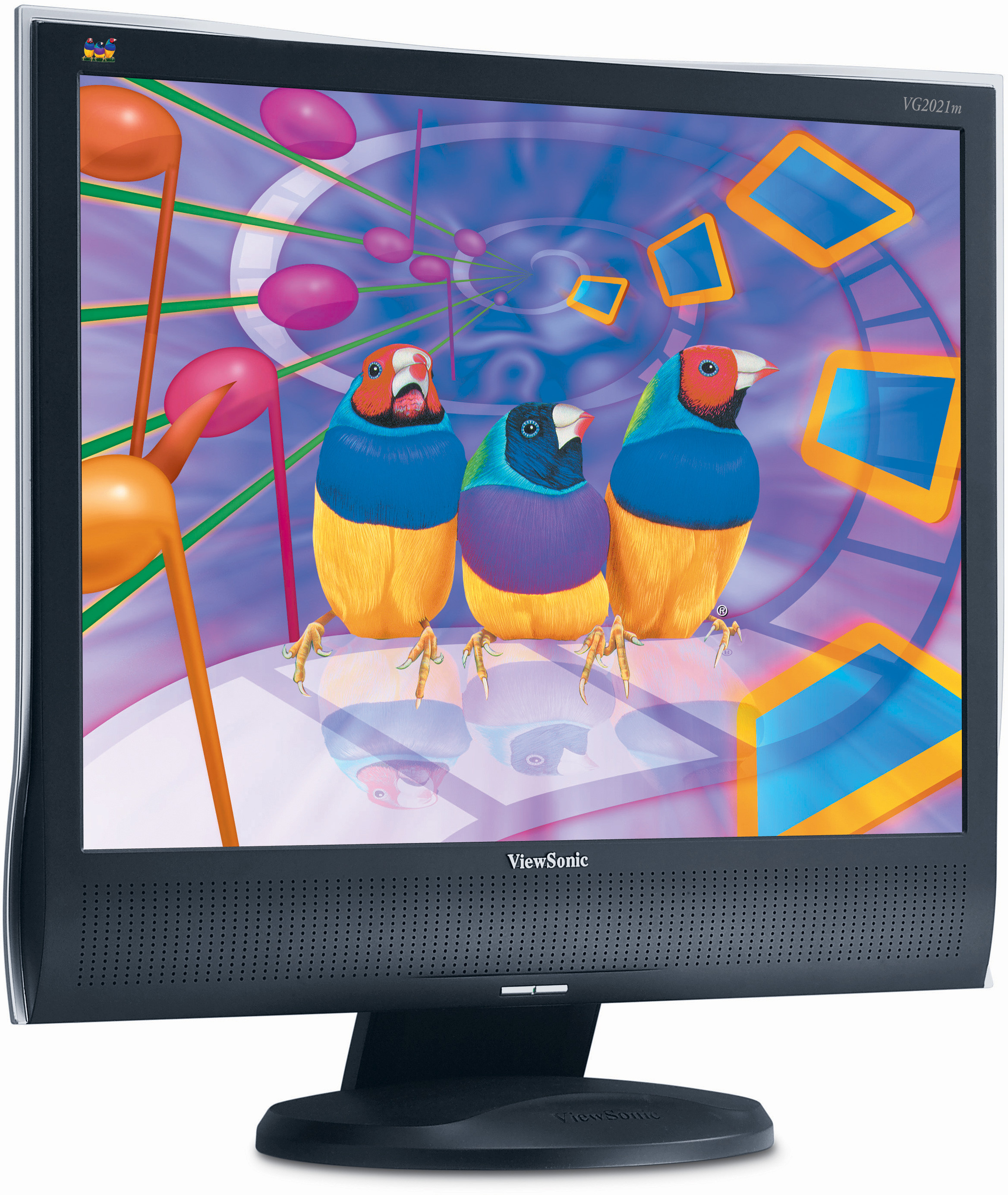

ViewSonic VG2021m 20" MEDIA GRAPHICS SERIES LCD MONITOR

Önemli Özellikler

Ürün Açıklama

ViewSonic’s VG2021m 20" sleek two-tone LCD is your top choice in high-performance multimedia monitors. Class-leading features like ClearMotiv™ 8ms broadcast-quality video response DELIVER SUPERIOR CLARITY AND PERFECT FOCUS WHEN VIEWING MOVING IMAGES. You will enjoy a superb multimedia experience with the bezel-integrated speakers. Crystal-clear pictures featuring 300cd/m² brightness (typ.) along with ergonomic adjustments enhance productivity in graphic production, medical and financial fields. Professionals demanding high performance, elegant design, and great value will choose the ViewSonic VG2021m LCD monitor.

Bizi Ziyaret Edin

www.viewsonic.com

LCD

Tür:	50.80cm (20") TN colour TFT active matrix SXGA+ LCD
Kontrast Oranı:	500:1 (typ.)
Görüntüleme Açıları:	150° horizontal, 130° vertical (at 10:1) 170° horizontal, 155° vertical (at 5:1)
Parlaklık:	300 cd/m² (typ.)
Ekran Alanı:	40.9cm horizontal x 30.6cm vertical; 50.8cm diagonal
Optimum Çözünürlük:	1400 x 1050
Yanıt Süresi:	8ms (off-on-off) (typ.)
Işık Kaynağı:	Long life, 50000 hrs. (typ.)
Panel Yüzeyi:	Anti-glare
Piksel Aralığı:	0.292mm
Renk Desteği:	16.2M colours (6-bit + 2-bit FRC)
Piksel Saat:	140MHz

UYUM

PC: VGA up to 1400 x 1050 non-interlaced (@ 60Hz preferred)

Mac®: Power Mac™ G3/G4/G5 up to 1400 x 1050 non-interlaced (@ 60Hz preferred)
BOYUTLAR

Stand İle Birlikte Fiziksel: 458 x 465 x 205

Stand Olmadan Fiziksel: 459 x 404 x 61

Ambalaj (GxYxD): 520 x 520 x 160
PAKET İÇERİĞİ

LCD monitor, power cable, VGA cable, audio cable, Quick Start Guide,
ViewSonic Wizard CD (User Guide/drivers)
SES

Hoparlörler: 2 x 2.5 watt integrated stereo speakers
KONEKTÖRLER

Analog: 15-pin mini D-sub (detachable cable)

Güç: 3-pin AC plug (CEE22)

Ses: 3.5mm stereo audio line-in
Güç

Gerilim: AC 100–240V, 50/60Hz (auto switch), internal power supply

Tüketim: 55 watt (max.), <1 watt in power save mode

KONTROLLER

Temel:	Power, menu [1], down, up, select [2], mute
OSD:	Auto image adjust, contrast, brightness, ViewMatch® colour adjust (sRGB, 9300K, 6500K, 5400K, 5000K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), audio (volume, mute), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall

İŞLETİM KOŞULLARI

Isı: 5°C – 35°C

Nem: 20% – 80% (non-condensation)
AğıRLıK

Stand İle Birlikte Net: 6.2kg
VIDEO GIRIşI

Frekans: Fh: 30 ~ 82kHz, Fv: 56 ~ 76Hz

Senk.: H/V separated (TTL)

Analog: RGB analogue (0.7 Vp-p , 75 ohms)
GÜÇ YÖNETİMİ

Meets TCO’03 and Energy Star standards
GÜVENLİK

Kensington® security port
DUVAR MONTAJI

VESA® FPMPMI 75mm x 75mm

PC:	VGA up to 1400 x 1050 non-interlaced (@ 60Hz preferred)
Mac®:	Power Mac™ G3/G4/G5 up to 1400 x 1050 non-interlaced (@ 60Hz preferred)

Stand İle Birlikte Fiziksel:	458 x 465 x 205
Stand Olmadan Fiziksel:	459 x 404 x 61
Ambalaj (GxYxD):	520 x 520 x 160

Analog:	15-pin mini D-sub (detachable cable)
Güç:	3-pin AC plug (CEE22)
Ses:	3.5mm stereo audio line-in

Gerilim:	AC 100–240V, 50/60Hz (auto switch), internal power supply
Tüketim:	55 watt (max.), <1 watt in power save mode

Frekans:	Fh: 30 ~ 82kHz, Fv: 56 ~ 76Hz
Senk.:	H/V separated (TTL)
Analog:	RGB analogue (0.7 Vp-p , 75 ohms)

Isı:	5°C – 35°C
Nem:	20% – 80% (non-condensation)
