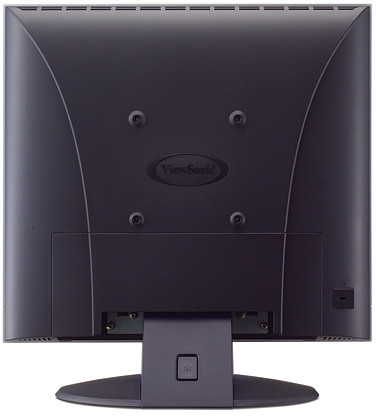

ViewSonic VA712 17" VALUE SERIES LCD DISPLAY

LCD

Tür:	43cm / 17" colour TFT active matrix SXGA LCD
Kontrast Oranı:	350:1 (typ.)
Görüntüleme Açıları:	160° horizontal, 120° vertical (at 10:1) 160° horizontal, 140° vertical (at 5:1)
Parlaklık:	350cd/m² (typ.)
Ekran Alanı:	338mm horizontal x 270mm vertical, 43.2cm diagonal
Optimum Çözünürlük:	1280 x 1024
Yanıt Süresi:	8ms (typ)
Işık Kaynağı:	Long life, 50,000 hrs. (typ.)
Panel Yüzeyi:	Anti-glare
Piksel Aralığı:	0.264mm
Renk Desteği:	16.2M colours (6-bit +2-bit FRC)

UYUM

PC: VGA up to 1280 x 1024 (up to 75 Hz)

Mac®: Power Mac™ G3/G4/G5 1280 x 1024 (up to 75 Hz)
BOYUTLAR

G x Y X D mm: 386 x 411 x 177 (with stand)
SES

Hoparlörler: 2 x 1 watt
GİRİŞ SİNYALİ

Frekans: Fh: 30~82kHz

Fv: 50~85Hz

Video: RGB analogue (75 ohms, 0.7 Vp-p)

Senk.: H/V separate (TTL)
KONEKTÖRLER

Analog: 15-pin mini D-Sub (captive cable)

Ses: Stereo mini audio line in
Güç

Gerilim: AC 100–240V (universal), 50–60Hz (auto switch), external power supply

Tüketim: 51 Watt (typ.)

KONTROLLER

OSD:	Auto image adjust, brightness, contrast, input selection, ViewMatch® colour adjust (sRGB, 9300K, 6800K, 6500K), information (mode, model number, serial number), audio (volume, mute), manual image adjust (H. position, V.position, fine tune, sharpness), setup menu (language, resolution notice) OSD position, OSD timeout, OSD background, memory recall
Fiziksel:	Power on/off, menu, up, down, select

PC:	VGA up to 1280 x 1024 (up to 75 Hz)
Mac®:	Power Mac™ G3/G4/G5 1280 x 1024 (up to 75 Hz)

Analog:	15-pin mini D-Sub (captive cable)
Ses:	Stereo mini audio line in

Gerilim:	AC 100–240V (universal), 50–60Hz (auto switch), external power supply
Tüketim:	51 Watt (typ.)

Isı:	0°C to 40°C
Nem:	10% to 90% (no condensing)
