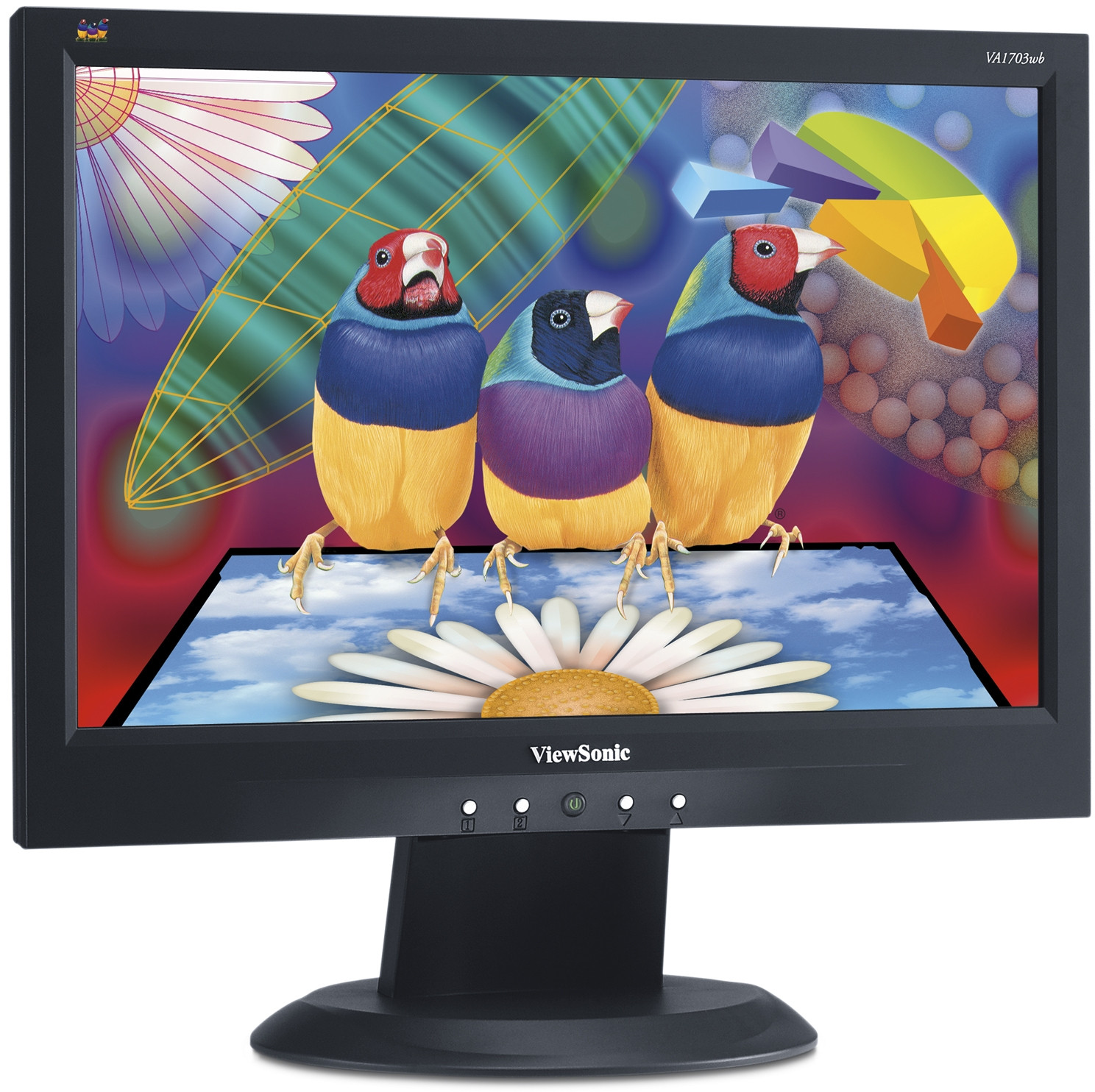

ViewSonic VA1703wb 17” WIDESCREEN LCD MONITOR VA SERIES WITH 8MS VIDEO RESPONSE TIME

Önemli Özellikler

Ürün Açıklama

ViewSonic's 17” VA1703wb LCD brings panoramic widescreen to everyone. The 16:10 wide aspect ratio and high 1440 x 900 resolution provide AMPLE SPACE FOR MULTIPLE DOCUMENT WINDOWS, side-by-side full-page layouts, and immersive gaming that virtually surrounds the user. With ClearMotiv® video response, you get to enjoy extreme clarity, amazing colour and stunning brightness.The VA1703wb delivers on ViewSonic's tradition of BRILLIANT IMAGE QUALITY AND RELIABLE PERFORMANCE all at an attractive price. It's the easy choice for gamers, home/small office users and corporate professionals.

Bizi Ziyaret Edin

www.viewsonic.com

COLORS

Black

LCD

Tür:	17” Wide TN colour TFT active matrix WXGA+ LCD
Kontrast Oranı:	500:1 (typ.)
Görüntüleme Açıları:	150° horizontal, 130° vertical (at 10:1) 160° horizontal, 150° vertical (at 5:1)
Parlaklık:	250 cd/m² (typ.)
Ekran Alanı:	36.7cm horizontal x 23.0cm vertical, 43.2cm diagonal
Optimum Çözünürlük:	1440 x 900@60Hz
Yanıt Süresi:	8ms (off-on-off) (typ.)
Işık Kaynağı:	Long life, 30000 (min.)
Panel Yüzeyi:	Anti-glare (3H)
Piksel Aralığı:	0.255mm
Renk Desteği:	262k colours supported (6-bit)
Piksel Saat:	135MHz

UYUM

PC: VGA up to 1440 x 900 non-interlaced

Mac®: Power Mac™ G3/G4/G5 up to 1440 x 900 non-interlaced
BOYUTLAR

Stand İle Birlikte Fiziksel: 407 x 375 x 210

Stand Olmadan Fiziksel: 407 x 293 x 63

Ambalaj (GxYxD): 456 x 420 x 156
PAKET İÇERİĞİ

LCD Monitor, power cable, 15-pin VGA video cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers) (multi-language)
KONEKTÖRLER

Analog: 15-pin mini D-sub (detachable cable)

Güç: 3-pin AC plug (CEE22)
Güç

Gerilim: AC 100–240V, 50/60Hz (auto switch), internal power supply

Tüketim: 25 watt (typ.), <1 watt in power save mode

KONTROLLER

Temel:	Power, menu [1], up, down, select [2]
OSD:	Auto image adjust, contrast, brightness, ViewMatch® colour adjust (sRGB, 9300K, 6500K, 5400K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall

İŞLETİM KOŞULLARI

Isı: 0°C – 40°C

Nem: 10% – 80% (non-condensation)
AğıRLıK

Stand İle Birlikte Net: 3.2kg

Stand Olmadan Net: 2.9kg

Brüt: 4.0kg
VIDEO GIRIşI

Frekans: Fh: 24–82kHz, Fv: 50–75 Hz

Senk.: H/V separated (TTL)

Analog: RGB analogue (0.7/1.0 Vp-p, 75 ohm)
GÜÇ YÖNETİMİ

Meets MPR II and ENERGY STAR standards
GÜVENLİK

Kensington security port
DUVAR MONTAJI

VESA FDMI 75mm x 75mm
ERGONOMIK ÖZELLIKLER

Eğilme: Down 5°, Up 20°

PC:	VGA up to 1440 x 900 non-interlaced
Mac®:	Power Mac™ G3/G4/G5 up to 1440 x 900 non-interlaced

Stand İle Birlikte Fiziksel:	407 x 375 x 210
Stand Olmadan Fiziksel:	407 x 293 x 63
Ambalaj (GxYxD):	456 x 420 x 156

Analog:	15-pin mini D-sub (detachable cable)
Güç:	3-pin AC plug (CEE22)

Gerilim:	AC 100–240V, 50/60Hz (auto switch), internal power supply
Tüketim:	25 watt (typ.), <1 watt in power save mode

Stand İle Birlikte Net:	3.2kg
Stand Olmadan Net:	2.9kg
Brüt:	4.0kg

Frekans:	Fh: 24–82kHz, Fv: 50–75 Hz
Senk.:	H/V separated (TTL)
Analog:	RGB analogue (0.7/1.0 Vp-p, 75 ohm)

Isı:	0°C – 40°C
Nem:	10% – 80% (non-condensation)
