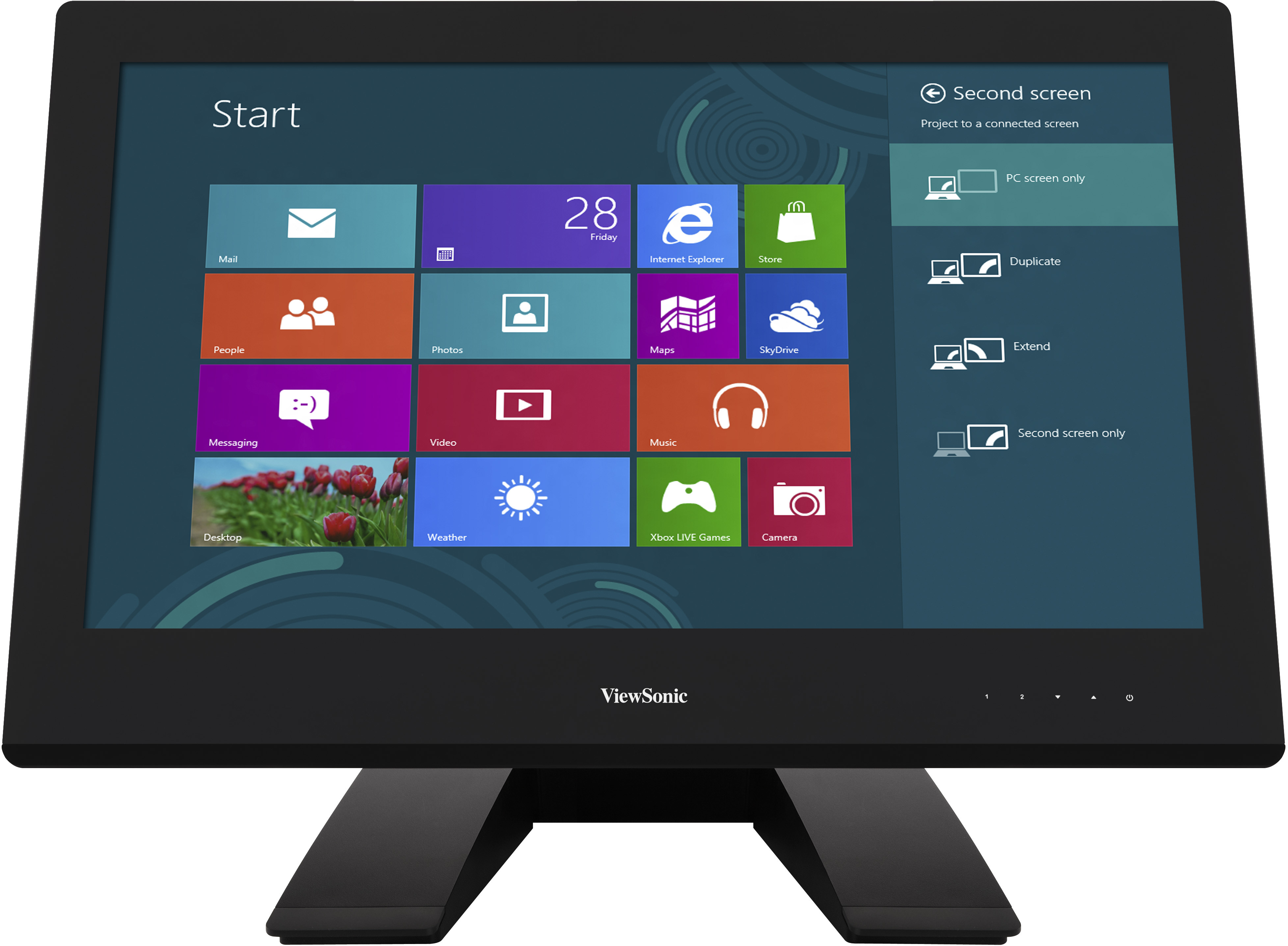

ViewSonic TD2340 23" FHD 10 Parmak Kapasitif Dokunmatik IPS Panel LED Monitör, Flicker Free Teknolojisi, VGA, HDMI, DisplayPort Girişleri, 2xUSB Portu, Hoparlör, Pivot ve Yükselik Ayarı

LCD

Tür:	23" Wide Color TFT Active Matrix LED
Kontrast Oranı:	1000:1 (typ.)
Görüntüleme Açıları:	178º horizontal, 178º vertical
Ekran Alanı:	20.0" horizontal x 11.3" vertical; 23.0" diagonal
Optimum Çözünürlük:	1920x1080
Yanıt Süresi:	7ms (typ.)
Panel Yüzeyi:	hard-coating (7H)
Parlaklık:	250 cd/m² (typ.)
Dinamik Kontrast Oranı:	20,000,000:1
Arka Aydınlatma:	White-light LED
Arka Aydınlatma Ömrü:	30,000 hours (min.)

COLORS

Black
UYUM

Mac®: Power Mac (up to 1920 x 1080)

PC: PC compatibles (VGA up to 1920 x 1080 Non-Interlaced)

BOYUTLAR

Stand Olmadan Fiziksel:	22.7 x 17.9 x 2.6 in. / 576.6 x 453.8 x 66.5 mm
Kutu İle Birlikte:	26.4 x 20.1 x 9.2 in. / 671 x 510 x 234 mm
Stand İle Birlikte Fiziksel:	22.7 x 17.9 x 12.8 in. / 576.6 x 453.8 x 324.5 mm

GARANTİ

Three-year limited warranty on parts, labor and backlight.
GERİ DÖNÜŞÜM/ATMA

Please dispose of in accordance with local, state or federal laws.
VIDEO GIRIşI

Dijital: HDMI (TMDS, 100 ohms) / DisplayPort (PCI-E)

Analog: RGB analog (0.7 / 1.0 Vp-p, 75 ohms)

Frekans: Fh: 24~83kHz, Fv: 50~76Hz

Senk.: Separate Sync
KONEKTÖRLER

Ses: Audio In (3.5mm mini-jack)

Earphone Out (3.5mm mini-jack)

Güç: Internal power board, 3-pin plug (CEE22)

USB: USB x2, USB Upstream x1
Güç

Tüketim: w/o audio 22W (typ.) / w/ audio 45W (typ.)

Tasarruf: 18.5W (typ.)

En İyi Duruma Getirme: 23W (typ.)

Gerilim: AC 100–240V (universal), 50 / 60Hz

KONTROLLER

OSD:

Auto Image Adjust, Contrast/Brightness, Input Select (D-SUB, HDMI, DisplayPort), Audio Adjust (Volume, Mute), Color Adjust (sRGB, Bluish, Cool, Native, Warm, User Color [R,G,B]), Information, Manual Image Adjust (H/V Position, Horizontal Size, Fine Tune, Sharpness, Dynamic Contrast, Response Time, Aspect Ratio, Eco-mode), Setup Menu (Language Select, Resolution Notice, OSD Position, OSD Timeout, OSD Background, Auto Power Off, Power Indicator), Memory Recall

Ön Panel:

1, 2, Down, Up, Power

VESA® MONTAJ

100mm x 100mm
GÜÇ YÖNETİMİ

ENERGY STAR® standards / EPEAT Gold
ERGONOMIK ÖZELLIKLER

Pivot: 90º

Eğilme: 50º~-5º
AğıRLıK

Net Standla: 20.4 lb. / 9.2 kg

Net Standsız: 14.5 lb. / 6.6 kg

Brüt: 26.9 lb. / 12.2 kg
İŞLETİM KOŞULLARI

Isı: 32–104º F (0–40º C)

Nem: 20–90% (non-condensing)

DÜZENLEMELER

CE, CB, BSMI, PSB, SASO, C-tick, SASO, KC, UL/cUL, FCC-B (including ICES003), Mexico Energy, GOST-R, UkrSEPRO + DoC, TCO 5.2, Erp, CCC, CEL Level1, ENERGY STAR®, EPEAT Gold, WEEE, RoHS, REACH SVHC list & DoC, Windows 7 / Windows 8

AUDIO OUT

Speakers: 2-watt (x2)
PAKET İÇERİĞİ

TD2340 display, power cable, audio cable, VGA cable, HDMI cable, USB cable, Quick Start Guide, ViewSonic Wizard CD (available in some countries only)

Mac®:	Power Mac (up to 1920 x 1080)
PC:	PC compatibles (VGA up to 1920 x 1080 Non-Interlaced)

Dijital:	HDMI (TMDS, 100 ohms) / DisplayPort (PCI-E)
Analog:	RGB analog (0.7 / 1.0 Vp-p, 75 ohms)
Frekans:	Fh: 24~83kHz, Fv: 50~76Hz
Senk.:	Separate Sync

Ses:	Audio In (3.5mm mini-jack) Earphone Out (3.5mm mini-jack)
Güç:	Internal power board, 3-pin plug (CEE22)
USB:	USB x2, USB Upstream x1

Tüketim:	w/o audio 22W (typ.) / w/ audio 45W (typ.)
Tasarruf:	18.5W (typ.)
En İyi Duruma Getirme:	23W (typ.)
Gerilim:	AC 100–240V (universal), 50 / 60Hz

Net Standla:	20.4 lb. / 9.2 kg
Net Standsız:	14.5 lb. / 6.6 kg
Brüt:	26.9 lb. / 12.2 kg

Pivot:	90º
Eğilme:	50º~-5º

Isı:	32–104º F (0–40º C)
Nem:	20–90% (non-condensing)
