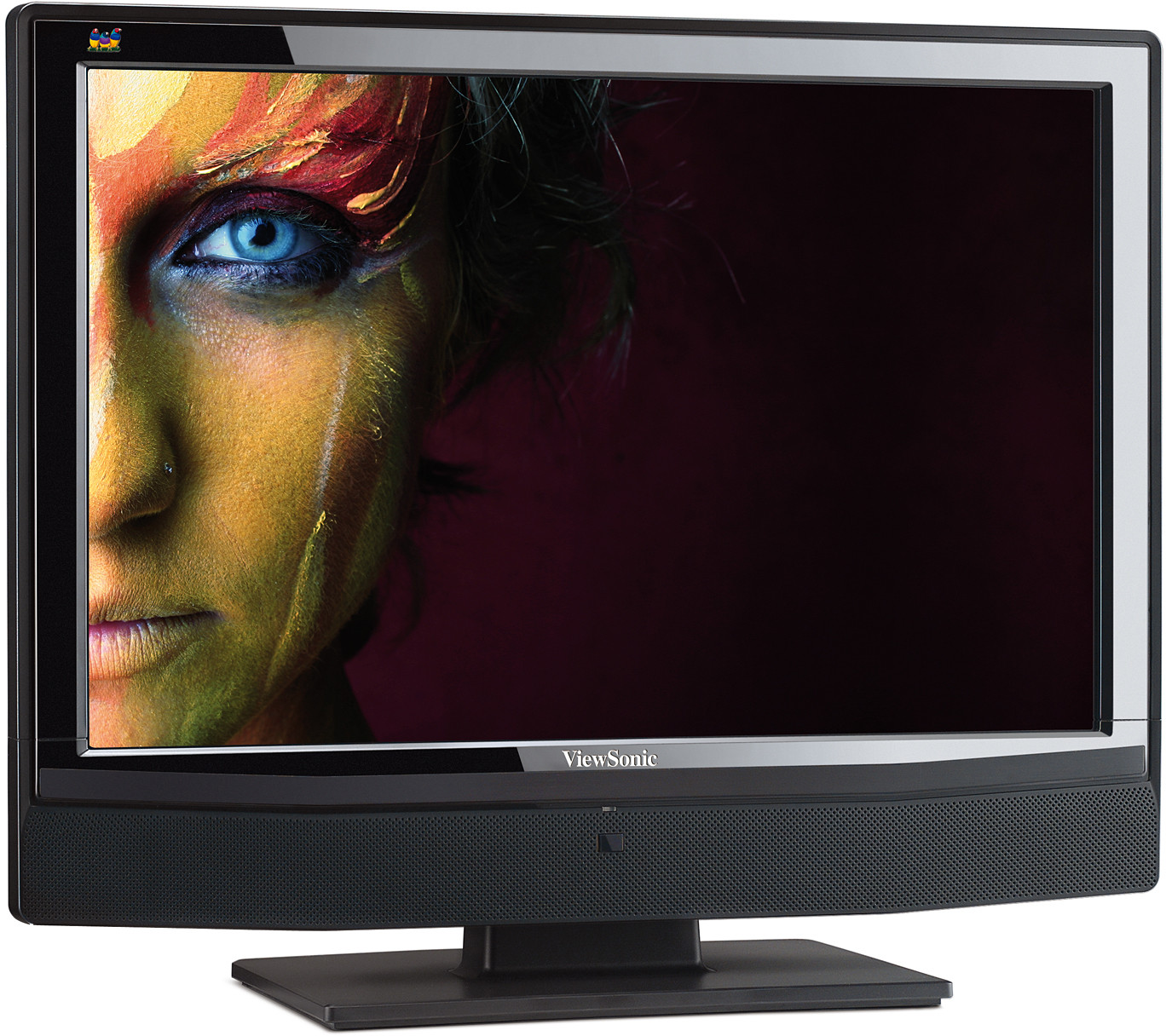

ViewSonic NX2240w 22" WIDESCREEN HIGH DEFINITION LCD TV

COLORS

Black

LCD

Tür:	22“ TN colour TFT active matrix WSXGA + LCD
Kontrast Oranı:	1000:1 (typ.)
Görüntüleme Açıları:	170° horizontal, 160° vertical (at 10:1)
Parlaklık:	300 cd/m² (typ.)
Ekran Alanı:	47.4cm horizontal x 29.6cm vertical, 55.9cm diagonal
Yanıt Süresi:	5ms (grey-to-grey)
Görüntü Oranı:	16:10
Panel Yüzeyi:	Anti-glare 3H

UYUM

PC: Compatible from VGA up to 1680 x 1050 @ 60Hz preferred

Mac®: Power Mac™ up to 1680 x 1050 @ 60Hz preferred
BOYUTLAR

G x Y X D mm: 539 x 447 x 209 (with base)
620 x 523 x 160 (packaging)

PAKET İÇERİĞİ

LCD TV, power cables (Europe [Schuko]/UK), 15-pin VGA to component adapter, adapter cable, AV cable, 3.5mm PC audio to RCA R/L audio adapter cable, remote control, batteries, quick start guide, user guide (multi-language)

SES

Hoparlörler: 2 x 2 Watt

KONEKTÖRLER

Dijital:	1 x HDMI
S-Video:	1 x 4-pin mini DIN jack
Kulaklık:	1 x 3.5mm mini stereo jack
SCART:	1 x SCART2 (CVBS, RGB, Audio)
Tuner:	1 x Coax RF (PAL/SECAM)
PC:	1 x 15-pin mini D-sub
Güç:	3-pin plug (CEE22)
Kompozit Video:	1 x RCA (CVBS)
Komponent Video:	Via 15-pin mini D-sub to 3 x RCA component video adapter

Güç

Gerilim: AC 100–240V, 50/60Hz (auto switch), internal, fanless power supply

Tüketim: <75 watt (max.)

KONTROLLER

Temel:

Power, source, menu, channel up/down, volume up/down

OSD:

Picture Menu (contrast, brightness, colour, sharpness, dynamic skin tone, colour temperature, user RGB, preset, phase, clock, auto adjust, info, reset), Audio Menu (volume, balance, bass, treble, AVL, loudness, preset, equalizer, reset), Function Menu (source OSD, language [Danish, English, Finnish, French, German, Italian, Norwegian, Russian, Spanish, Swedish], country, sleep timer, tele text language, reset), TV Setup Menu (autosearch, colour system, frequency, AFC, channel skip, channel name, channel select, reset)

İŞLETİM KOŞULLARI

Isı: 32-104ºF (0-40ºC)

Nem: 10% - 85% (non-condensation)
AğıRLıK

Net: 6.2kg (with base) 5.5kg (without base)

Brüt: 8.7kg
TELETEXT

Yes (10 pages)
VIDEO GIRIşI

PAL, SECAM, NTSC3, SDTV/EDTV (480i/p, 576i/p), HDTV (720p, 1080i)

PC:	Compatible from VGA up to 1680 x 1050 @ 60Hz preferred
Mac®:	Power Mac™ up to 1680 x 1050 @ 60Hz preferred

Gerilim:	AC 100–240V, 50/60Hz (auto switch), internal, fanless power supply
Tüketim:	<75 watt (max.)

Isı:	32-104ºF (0-40ºC)
Nem:	10% - 85% (non-condensation)

Net:	6.2kg (with base) 5.5kg (without base)
Brüt:	8.7kg
