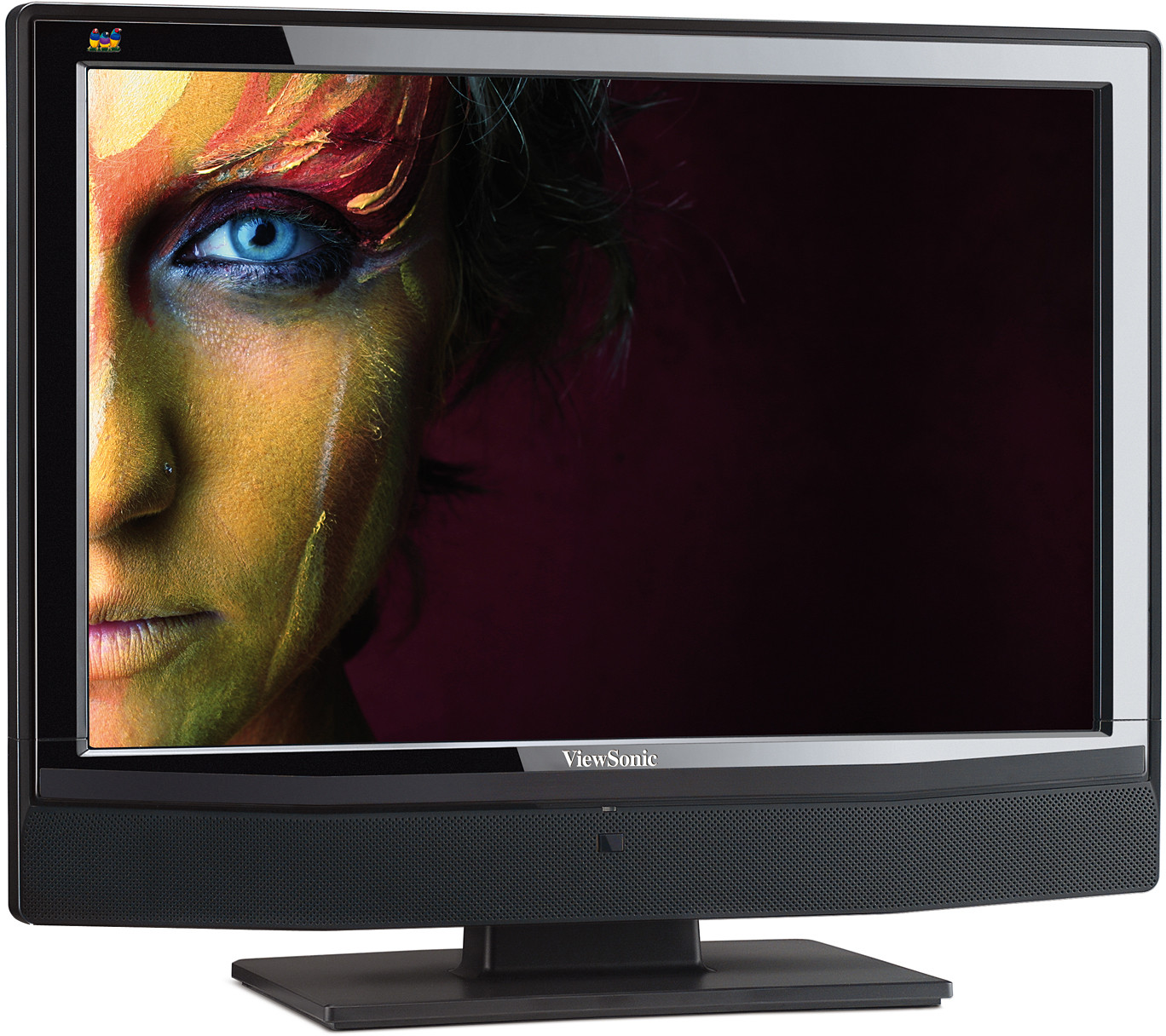

ViewSonic NX1940w 19" WIDESCREEN HIGH DEFINITION LCD TV

COLORS

Black

LCD

Tür:	48cm / 19" TN colour TFT active matrix WXGA+ LCD
Kontrast Oranı:	800:1 (typ.)
Görüntüleme Açıları:	160° horizontal, 160° vertical (at 10:1)
Parlaklık:	300cd/m² (typ.)
Ekran Alanı:	41.0cm (horizontal) x 25.6cm (vertical), 48.3cm diagonal
Yanıt Süresi:	5ms (off-on-off) (typ.)
Görüntü Oranı:	16:10
Panel Yüzeyi:	Anti-glare

UYUM

PC: Compatible from VGA up to 1440 x 900 @ 60Hz preferred

Mac®: Power Mac™ up to 1440 x 900 @ 60Hz preferred
BOYUTLAR

G x Y X D mm: 478 x 406 x 209 (with base)
620 x 523 x 160 (packaging)

PAKET İÇERİĞİ

LCD TV, power cables (Europe [Schuko]/UK), 15-pin VGA to component adapter cable, AV cable, 3.5mm PC audio to RCA R/L audio adapter cable, remote control, batteries, quick start guide, user guide (multilanguage)

SES

Hoparlörler: 2 x 2 Watt

KONEKTÖRLER

Dijital:	1 x HDMI (HDCP)
Ses Girişi:	1 x RCA Audio set L/R for S-video/composite1 x 3.5mm mini stereo jack for component/PC
S-Video:	1 x 4-pin mini DIN jack
Kulaklık:	1 x 3.5mm mini stereo jack
SCART:	1 x SCART² (CVBS, RGB, Audio)
Tuner:	1 x Coax RF (PAL/SECAM)
PC:	1 x 15-pin mini D-sub
Güç:	3-pin plug (CEE22)
Komponent Video:	Via 15-pin mini D-sub to 3 x RCA component video adapter

Güç

Gerilim: AC 100–240V, 50/60Hz (auto switch), internal, fanless power supply

Tüketim: <65 watt (max.)

KONTROLLER

Temel:

Power, source, menu, channel up/down, volume up/down

OSD:

Picture Menu (contrast, brightness, colour, sharpness, dynamic skin tone, colour temperature, user RGB, preset, phase, clock, auto adjust, info,reset), Audio Menu (volume, balance, bass, treble, AVL, loudness, preset, equalizer, reset), Function Menu (source OSD, language [Danish, English,Finnish, French, German, Italian, Norwegian, Russian, Spanish, Swedish], country, sleep timer, teletext language, reset), TV Setup Menu (autosearch, colour system, frequency, AFC, channel skip, channel name,channel select, reset)

İŞLETİM KOŞULLARI

Isı: 32-104ºF (0-40ºC)

Nem: 10% - 85% (non-condensation)
AğıRLıK

Net: 5.8kg (with base) 5.1kg (without base)

Brüt: 8.1 kg
DUVAR MONTAJI

VESA FDMI 100mm x 100mm (M4.0 x 10mm screws)
TELETEXT

Yes (10 pages)
VIDEO GIRIşI

PAL, SECAM, NTSC³, SDTV/EDTV (480i/p, 576i/p), HDTV (720p, 1080i)

PC:	Compatible from VGA up to 1440 x 900 @ 60Hz preferred
Mac®:	Power Mac™ up to 1440 x 900 @ 60Hz preferred

Gerilim:	AC 100–240V, 50/60Hz (auto switch), internal, fanless power supply
Tüketim:	<65 watt (max.)

Isı:	32-104ºF (0-40ºC)
Nem:	10% - 85% (non-condensation)

Net:	5.8kg (with base) 5.1kg (without base)
Brüt:	8.1 kg
